High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
- Category: Lamp LED >>>
- Supplier: Shenzhen Fedy Technology Co. Ltd.
Share on (60643549519):
Product Overview
Description
High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
Product Description
Item: High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
Warranty: 3 years
Lifespan>80 000hours
Super low decay version
Packing: 1000pcs/ESD bag
Certificate: CE/RoHS /REACH
Emitting angle can be done with: 15-20degree 30-35degree 45degree 60degree 90degree
Intensity available from 1000mcd up to 25000mcd
| 5mm Round Red LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TR-1 | 4000-6000 | 15-20degree 30-35degree 45degree 60degree 90degree | 620-630 | Water clear lens White diffused lens Red diffused lens |
| FD-5TR-2 | 6000-8000 | 620-630 | ||
| FD-5TR-3 | 8000-12000 | 620-630 | ||
| FD-5TR-4 | 12000-18000 | 620-630 | ||
| FD-5TR-5 | 18000-20000 | 620-630 | ||
| FD-5TR-6 | 20000-23000 | 620-630 | ||
| FD-5TR-7 | 23000-25000 | 620-630 | ||
| 5mm red led Special wavelength | ||||
| FD-52TR-1 | / | 15-20degree 30-35degree 45degree 60degree 90degree | 630-635 | |
| FD-53TR-1 | / | 660 | ||
| FD-54TR-1 | / | 670 | ||
| FD-542TR-1 | / | 670-680 | ||
| FD-55TR-1 | / | 760-770 | ||
| 5mm Round Yellow LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TY-1 | 5000-7000 | 15-20degree 30-35degree 45degree 60degree 90degree | 588-595 | Water clear lens White diffused lens Yellow diffused lens |
| FD-5TY-2 | 8000-10000 | 588-595 | ||
| FD-5TY-3 | 10000-15000 | 588-595 | ||
| FD-5TY-4 | 18000-22000 | 588-595 | ||
| FD-5TY-5 | 22000-25000 | 588-595 | ||

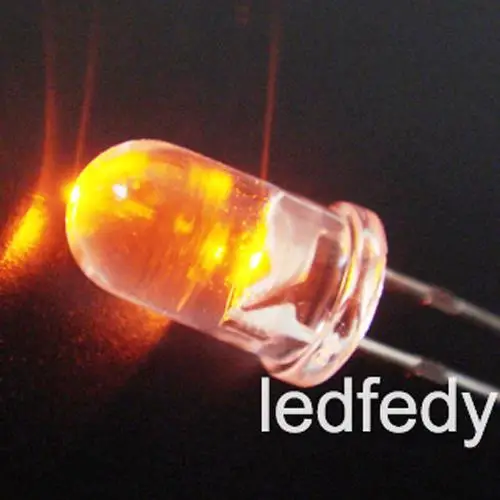

| 5mm Round Amber LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TA-1 | 5000-7000 | 15-20degree 30-35degree 45degree 60degree 90degree | 600-610 | Water clear lens White diffused lens Amber diffused lens |
| FD-5TA-2 | 8000-10000 | 600-610 | ||
| FD-5TA-3 | 10000-15000 | 600-610 | ||
| FD-5TA-4 | 18000-22000 | 600-610 | ||
| FD-5TA-5 | 22000-25000 | 600-610 | ||
| 5mm round White LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TW-1 | 13000-16000 | 15-20degree 30-35degree 45degree 60degree 90degree | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) | Water clear lens White diffused lens |
| FD-5TW-2 | 18000-20000 | |||
| FD-5TW-3 | 25000 | |||
| 5mm round Green LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TG-1 | 20000-23000 | 15-20degree 30-35degree 45degree 60degree 90degree | 520-530 | Water clear lens White diffused lens Green diffused lens |
| FD-5TG-2 | 23000-25000 | 520-530 | ||
| FD-5TG-3 | 25000-28000 | 520-530 | ||
| Special wavelength | ||||
| FD-52TG-1 | / | 15-20degree 30-35degree 45degree 60degree 90degree | 500-505 | |
| FD-53TG-1 | / | 490-495 | ||
| FD-54TG-1 | / | 495-500 | ||
| FD-5TYg-1 | 565-575 | |||

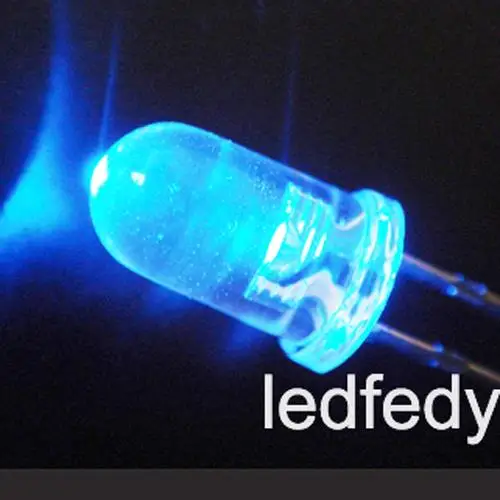

| 5mm round Blue led | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TB-1 | 8000-10000 | 15-20degree 30-35degree 45degree 60degree 90degree | 460-470 | Water clear lens White diffused lens Blue diffused lens |
| FD-5TB-2 | 13000-15000 | 460-470 | ||
| FD-5TB-3 | 18000-20000 | 460-470 | ||
| 5MM Blue Led Special wavelength | ||||
| FD-52TB-1 | / | 15-20degree 30-35degree 45degree 60degree 90degree | 440-450 | |
| FD-53TB-1 | / | 450-455 | ||
| FD-54TB-1 | 480 | |||
| 5mm round Purple color in water clear lens | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TUV-1 | 1000-2000 | 15-20degree 30-35degree 45degree 60degree 90degree | 400-410 | Water clear lens White diffused lens |
| FD-5TUV-2 | 4000-6000 | 400-410 | ||
| FD-52TUV-1 | 1500 | 390-400 | ||
| FD-53TUV-1 | 800 | 380-385 | ||
| FD-54TUV-1 | 300 | 365 | ||
| FD-5TUV370 | / | 370-375 | ||
| FD-55TUV-1 | 1000 | 410-420 | ||
| FD-356TUV-1 | 800 | 430-440 | ||
| 5mm round Pink led | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TPI-1 | 3000-4000 | 15-20degree 30-35degree 45degree 60degree 90degree | Water clear lens White diffused lens | |
| FD-5TPI-2 | 4000-8000 | |||
| 5mm round Infrared IR LED | ||||
| Part No. | Wavelength ( nm ) | Output MW /SR | Current mA | Emitting Angle ( Degree ) |
| FD-5TIR-1 | 940 | / | 20-80 | 15-20degree 30-35degree 45degree 60degree 90degree |
| FD-52TIR-1 | 850 | / | 20-80 | |
| FD-5TIR730 | 730 | 10-30mw/sr | 60-80 | |
| FD-5TIR760 | 760 | 10-20mw/sr | 60 | |
| FD-5TIR770 | 770 | 30-55mw/sr | 80 | |
| FD-5TIR780 | 780 | 25-48mw/sr | 80 | |
| FD-5TIR810 | 810 | 30-55mw/sr | 80 | |
| FD-5TIR830 | 830 | 17-35mw/sr | 80 | |
| FD-5TIR840 | 840 | 15-25mw/sr | 60 | |
| FD-5TIR860 | 860 | 15-25mw/sr | 60 | |
| FD-5TIR870 | 870 | 15-25mw/sr | 60 | |
| FD-5TIR880 | 880 | 15-25mw/sr | 80 | |
| FD-5TIR890 | 890 | 20-30mw/sr | 80 | |
| FD-5TIR980 | 980 | 20-30mw/sr | 80 | |
High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
Product Pictures
Pictures
High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
Company Information
1. FEDY is a professional manufacturer of high quality led diode since 2000
2. Class A quality with 3 years warrany for all items.
3. Orignal Epistar/Bridgelux chips with 100% Class A grade.
4. All leds 100% QA passed before shipped.
5. Fully automatic production machine and quality checking machines insure great quality of goods , and fast delivery .
FAQ
1) How can I place order?
A: You can contact us by email about your order details.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) , Paypal, or Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pre-paid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-10days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
Certificate
Certificate
All the raw materials we used are CE ROHS Applied .
High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
Factory Show
Factory
High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
Contact Us
Contact
Contact us freely !
High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
Packing & Shipment
Packing
Packing details :
High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
SMD LED : Reels
DIP LED : ESD bag , Taping . Tubes
High power led : ESD box . Taping , Tubes
Shipping : High brightness 6000mcd 8000mcd 12000mcd 16000mcd 25000mcd 30000mcd F5 led Green light
