PT124G 128 пластиковая машина штранг прессования расплава высокой температуры датчик давления

Description

PT124G-128 is plastic extrusion machine melt high temperature pressure transmitter , where mounting space is limited. It also has a free-spinning jam nut that simplifies installation. It comes equipped with six or eight pin bendix connector. This series product is widely used in the domestic and abroad, and it can be interchangeable with the similar world standard products.

Application

It can be widely used in various plastic extrusion lines for pressure measuring and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical.

Specifications

Pressure range:0-3.5MPa…0-150MPa (0-500psi…0-20000psi)

Over Pressure: 1.5 X FSO

Combined Error: ± 1.0% FSO, ±0.5% FSO (Including Linearity, Repeatability & Hysteresis)

Output: 3.33mV/V,2mV/V

Input Voltage: 10VDC

Repeatability: +/- 0.2%FSO

Internal Shunt Calibration (R-Cal): 80% FSO +/- 1%

Insulation Resistance: 200 megohms @ 100 Vdc

Max Diaphragm Temperature: 350℃

Mounting Torque: 500 inch/lbs. Max.

Standard Wetted Parts: Diaphragm coated 15-5 PH SST

Process connector: 1/2″-20UNF, M14×1.5, M18×1.5 Optional

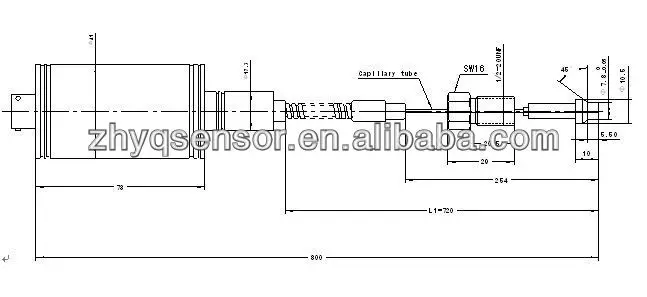

Dimension

Order Guide

Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.

ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
