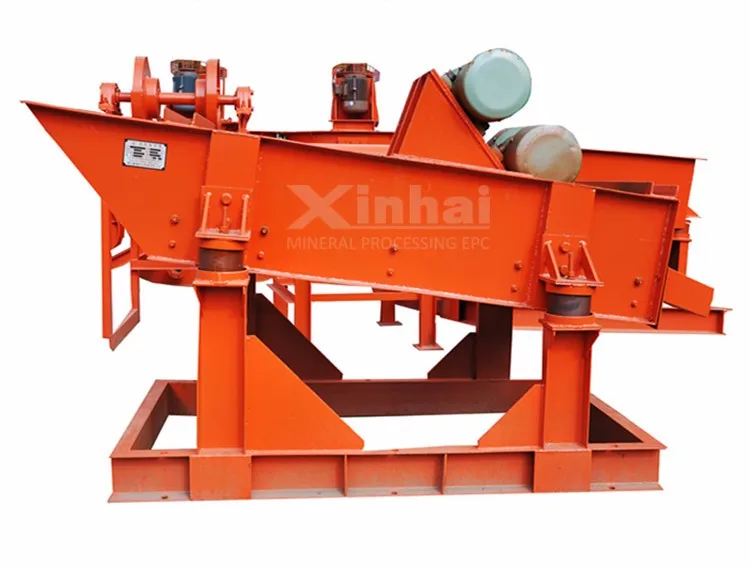

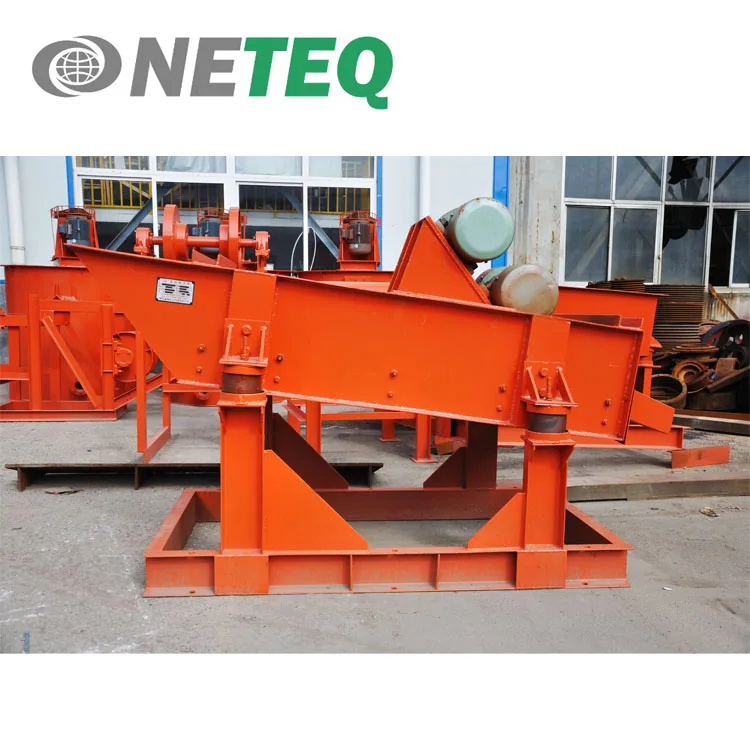

Over 6mm Feeding Size Mining Double Deck Vibrating Screen , Double Deck Vibrating Screen For Sale
- Category: >>>
- Supplier: Shandong Xinhai Mining Technology & Equipment Inc.
Share on (60643840969):
Product Overview
Description
Products Description

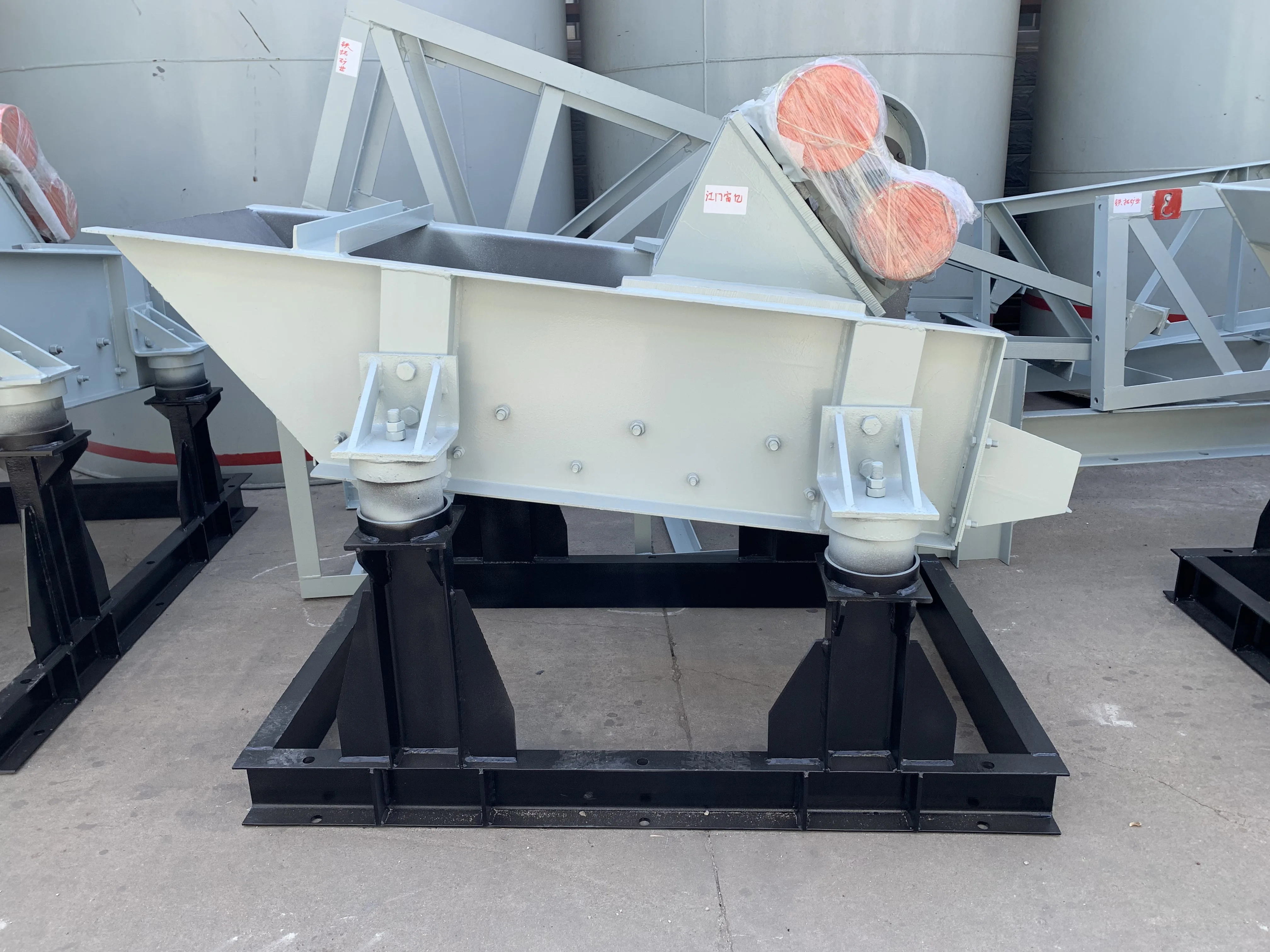

Double Deck Vibrating Screen---Product Description
【Introduction】:Linear vibrating screen is a vibrating screen that screen box takes reciprocating movement along the directional linear, is used for fine screening
【 Capacity 】:20～300t/h
【Improvement】:Screen angle of Xinhai linear vibrating screen is adjustable. Vibrating motor as vibration exciter, low energy consumption.
【 Capacity 】:20～300t/h
【Improvement】:Screen angle of Xinhai linear vibrating screen is adjustable. Vibrating motor as vibration exciter, low energy consumption.
Product Advantages

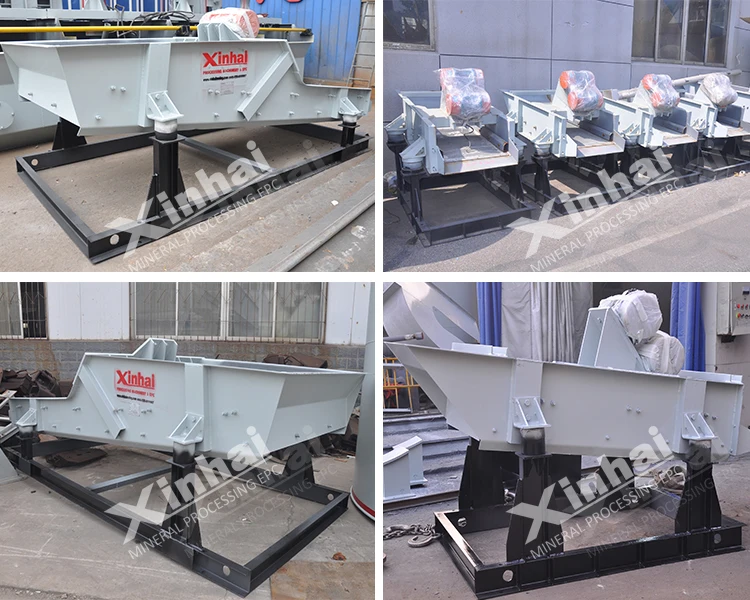

Double Deck Vibrating Screen
1. Small motor power, only 1/4-1/5 of other vibrating screens;
2. Xinhai linear vibrating screen has high screen efficiency;
3. Adjustable screen angle Transferring the small load to base do not need special treatment;
4. Screen mesh of Xinhai linear vibrating screen is made of wear-resistant rubber with long service life.
Product Structure

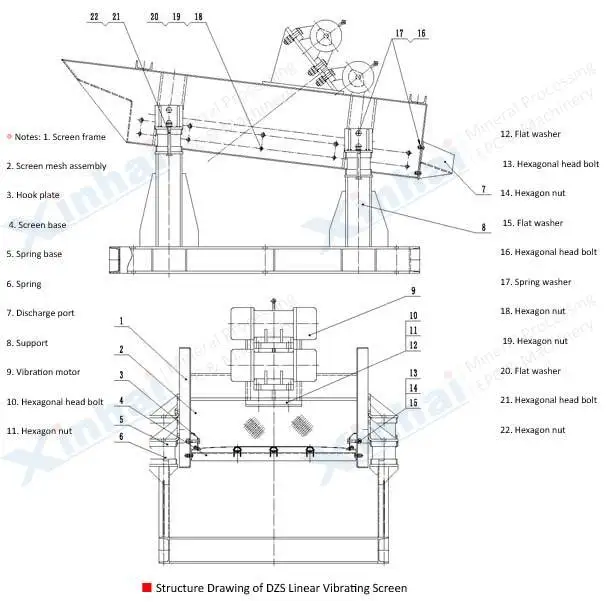

Mining Double Deck Vibrating Screen---Product Structure

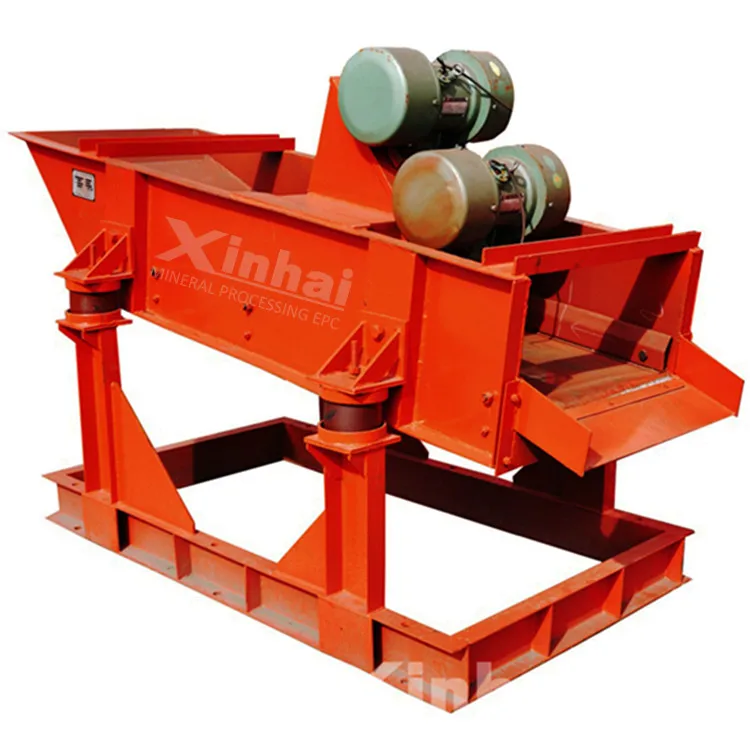

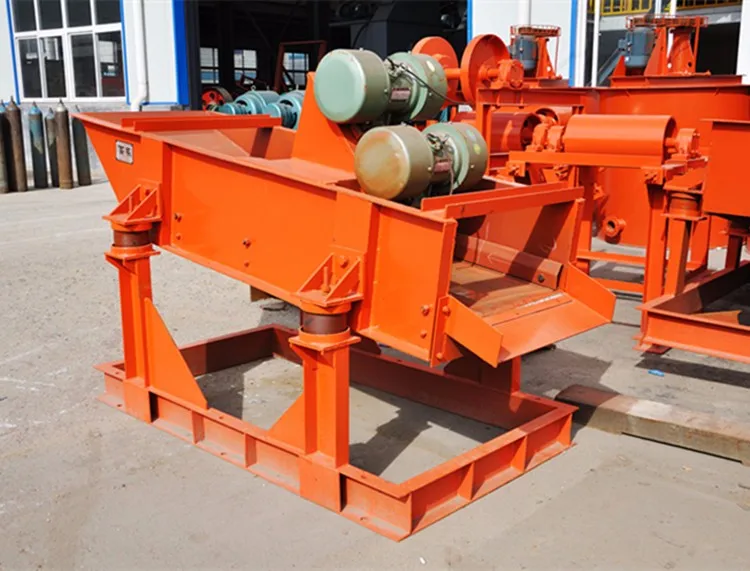

DZS linear vibrating screen is driven by double vibration motors.
While two vibration motors doing synchronous rotation or counter¬rotation, the exciting force generated by eccentric block is canceled out with transverse exciting force, and the longitudinal exciting resultant force is passed on the whole screen surface of liner vibrating screen. In this way, the motion track of vibrating screening machine is a straight line. There is an inclination between the exciting force direction and screen surface, under the action of the resultant force of exciting force and material gravity, the materials on screen surface of liner vibrating screen are thrown up and jumped forward in a straight line.In this way, the materials screening and classifying are achieved.
While two vibration motors doing synchronous rotation or counter¬rotation, the exciting force generated by eccentric block is canceled out with transverse exciting force, and the longitudinal exciting resultant force is passed on the whole screen surface of liner vibrating screen. In this way, the motion track of vibrating screening machine is a straight line. There is an inclination between the exciting force direction and screen surface, under the action of the resultant force of exciting force and material gravity, the materials on screen surface of liner vibrating screen are thrown up and jumped forward in a straight line.In this way, the materials screening and classifying are achieved.
Applicable
Technical Parameters
Model | Screening Area (m2) | Amplitude (mm) | Motor Model | Motor Power (kW) | Rotating Speed (r/min) |
DZS0412 | 0.4X1.2 | 2~4 | YZS-3-6 | 0.25 | 970 |
DZS0415 | 0.4X1.5 | ||||
DZS0612 | 0.6X1.2 | ||||
DZS0718 | 0.7X1.8 | YZO-10-6 | 0.75 | 960 | |
DZS0816 | 0.8X1.6 | ||||
DZS0912 | 0.9X1.2 | ||||
DZS0918 | 0.9 X 1.8 | YZU-10-6 | 0.75 | ||
DZS1018 | 1.0X1.8 | 4~6 | YZU-16-6 | 1.1 | 950 |
DZS1020 | 1.0X2.0 | 3~5 | YZO-20-6 | 2 | |
DZS1225 | 1.25X2.5 | YZU-16-6 | 1.1 | ||
DZS1530 | 1.5X3.0 | YZU-20-6B | 1.5 | 960 | |
2DZS1530 | 1.5X3.0 | YZO-20-6 | 2 | 950 | |
DZS1536 | 1.5X3.6 | YZU-20-6B | 1.5 | 960 | |
2DZS0918 | 0.9 X 1.8 | 4~6 | YZU-25-6B | 1.5 | 960 |
2DZS1018 | 1.0 X 1.8 | 2~4 | YZU-20-6B | 1.5 | 960 |
