Tobee Effluent Handling
$12,600
40/20 60meters electric raw water circulator pump
- Category: >>>
- Supplier: Wenzhou Defu Machinery Co. Ltd.
Share on (60643959149):
Product Overview
Description
Product Description

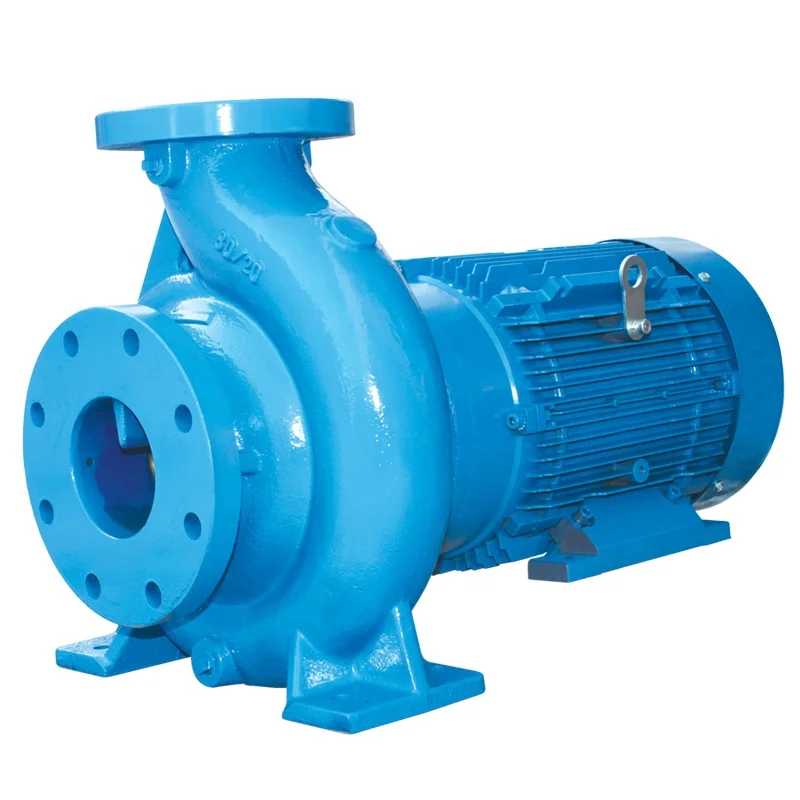

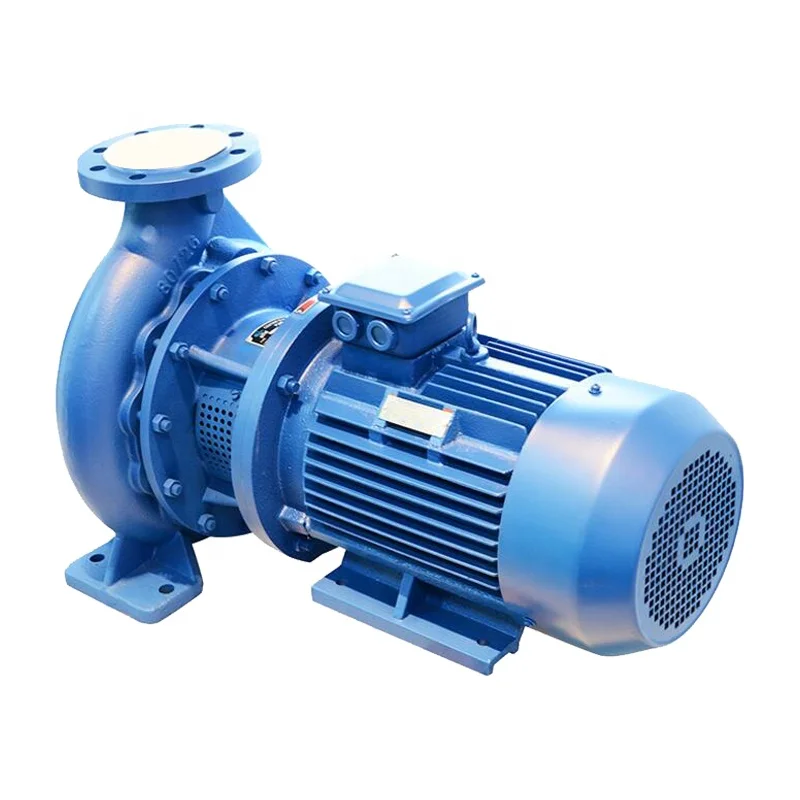

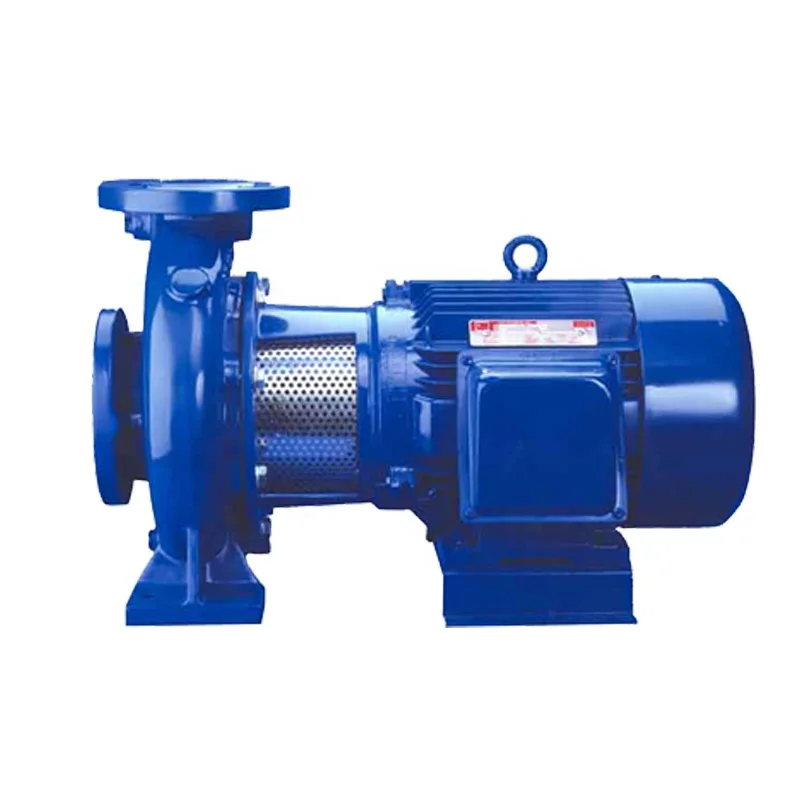

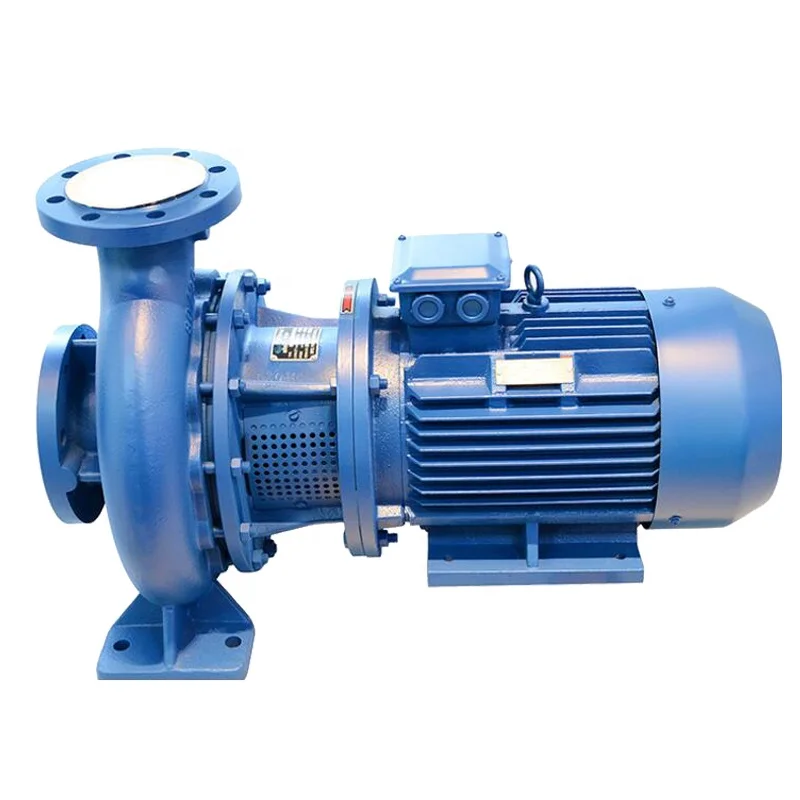

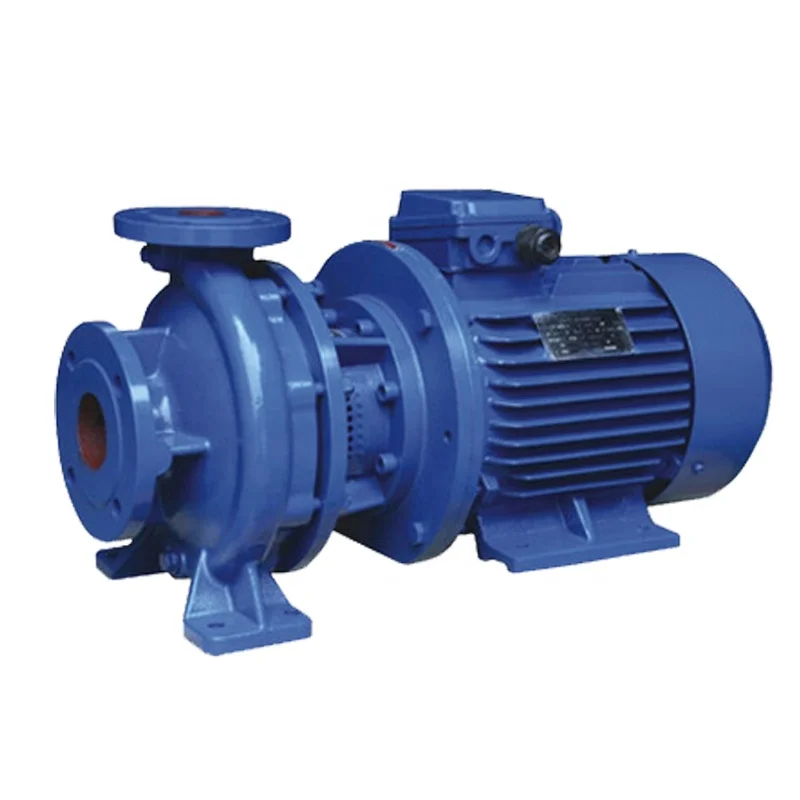

40/20 60meters electric raw water circulator pump
DA/DAZ is used for handing clear water or the liquid similar to the water physically and chemically finding the apliication for water feed and supplly service in Mine, Plants and Towns , Air-conditioning, Extinguishing and Irrigation.
The DA/DAZ is a back-open type. the pump cover and the impeller can be dismantled without taking out both the suction and discharge piping.In the bearing bracket ,there are two ball bearings which are lubricated with oils or grease. the pump is dirven through the flexible couplings by the motor.
SPECIFICATIONS FOR WATER PUMP | ||||||
PUMP | Capacity | 40 | m3/h | |||
Head | 65 | meters | ||||
Speed | 2900 | rpm | ||||
Inlet & outlet | 65/40 | mm | ||||
Material | Cast iron casing , iron impeller, 45#steel shaft | |||||
Seal | Mechanical seal / Packing seal | |||||
MOTOR | Brand | Chinese brand BeiNeng | ||||
Power / Speed | 11 kw at 2900 rpm | |||||
Frequancy /Voltage | 50 hz/ 380 V | |||||
Connection | Directly ( no coupling) | |||||

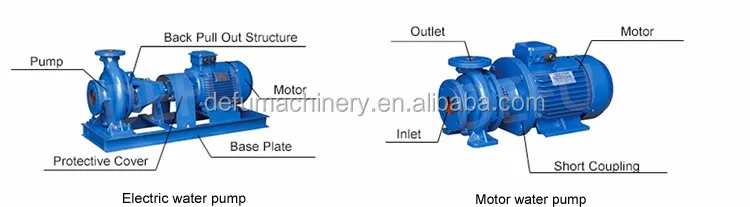

Pump detail picture
Design
Performance and dimensions referring to BS EN733/ DIN24255
Structure
Horizontal, Axial End-Suction, Single-Stage, Single-Suction, Volute Casing, Back pull-out, Centrifugal Pump
Flange
DIN2501 (ISO7005.2 / GB/T17241.6 PN1.6) standard, ANSI B16.5 Class150lb optional
Rotation
Clockwise viewing from the drive side
Performance Curve
Other pump case
Pump + electric motor
mechanical seal
with Pinpin coupling
on the steel base plate
Pump + diesel engine ( Cummins or Chinese brand )
mechanical seal
with High elastic coupling
8 hours oil tank
on the two wheels trailer
Pump +diesel engnie ( Cummins or Chinese brand )
mechanical seal
with High elastic coupling
10hours oil tank
vaccum system
on the hanging backet
Related product
Process Flow Diagram
Lathe
installing
Spray lacqucer
Testing
Packing
To you
Our client
Certifications
Our factory
Contact us
WenZhou DEFU Machinery comapny is an Enterprise involved in designing ,developing , manufacturing and selling water pumps ,
Including self priming pump , centrifugal pump , diaphragm pump , gear pump , diesel engine pump and some others . Relying on the local industrial China,
DEFU has established its production base in Shanghai ,Hubei and Shandong province .
