China Made 600m reflectorless total station Hi target HTS 420R

Product Overview

Description

Key features:

1. Laser beam focused in non-prism mode for 600m distance
2.Strong software to help to achieve the measurment
3.RS232 or USB ports for option
4.Good laserto protect the eyes of the surveyor
5.Large LED display



Specification:



Hi-target HTS-420R Total Station
Angle Measurement
Measurement Method:	Absolute Encoding
Minimum Readout:	1″/5″/10″(0.3mgon/1.5mgon/3mgon)optional
Accuracy1	2”
Distance Measurement (with Reflector)
Single Prism	3000m (9,842ft.) under good condition3
Three Prisms	6000m (19,685ft.) under good condition3
Reflective Sheet	800m (2,624 ft.)
Accuracy	2 mm +2ppm
Measuring Time (Fine/Quick/Tracking)	1.5s/1s/ 0.5s
Distance Measurement (Reflectorless)
Reflectorless2 Range	350m, 600m
Single Prism	>7500m (24606ft.)
Accuracy	3mm+2ppm
Measuring Time	1.5s
Telescope
Magnification	30X
Field of View	1°30′ (2.7m at 100m)
Minimum Focusing Distance	1.2m
Reticle	Illuminated
Compensator
System	Dual-axis (optional)
Working Range	±3′
Setting Accuracy	1″
Bluetooth
Interface	Standard RS232, SD card4, USB pen drive, mini-USB
Internal Data Memory	Approx. 20,000 Points
Data Format	ASCII
Operation
Operation system	Real-time Operating System
Display	High resolution backlight black and white display with  contrast adjustment/ Graphics: 280 x 160 pixels /  Character:6 lines x 25 characters
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Laser Plummet
Type	Laser point, 4 brightness levels adjustment /  Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Power Supply
Battery Type	Rechargeable Li-ion battery
Voltage/Capacity	ZBA-400: 7.4V (DC) / 3000mAh
Operating Time With ZBA-400	Optimal 16 hours5 (Continuous angle measurement  every 30 seconds) / 10 hours (typical)
Measuring Times	Approx. 12000 times
Environmental
Operating Temperature	-20℃ ~+50℃( -4℉ to +122℉)
Storage Temperature	-40℃ ~+70℃(-40℉ to +158℉)
Dust&Water Proof (IEC60529 Standard)/Humidity	IP54, 95%, non-condensing

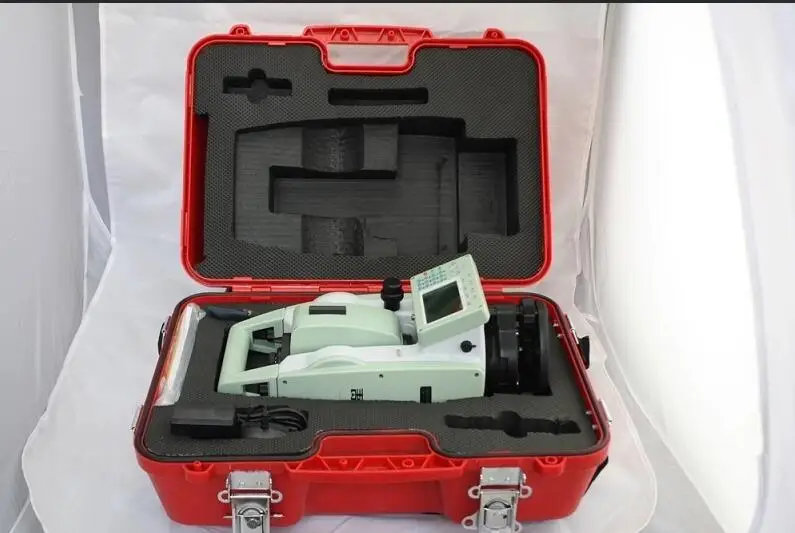

Product Picture:

Our Services

Our warranty policy:

1. 1. For GNSS products we offer one year and half a year warranty. For optical instruments(total station, theodolite, Level), we offer 1 years warranty. For accessories we offer 6 months warranty.

2.Product in warranty please send  us  photos  to  show  the  problem . And  then  we  will  decide  to  send  you parts or you send the instrument back to us to repair.We are responsible for the double-run  freight  and  other cost.Please make sure to contact us first instead of sending the damaged parts directly to us.

3.For problem out of the warranty period or warranty liability,we will judge the problem and quoted for you.You need to pay double-run freight and the maintenance cost.

4. Remark:Improper use of   the instrument and man-made  damage  of  the  instrument  is not  covered in warranty  liability. Warranty  only aimed at the problem caused by the product quality.



Our Technical Support:

1).Before any shipment we will have quality check person to give the instrument a careful quality check (software installation and test for GNSS product).

2).For all GNSS and optical instrument, you will get the user manual and operating video and free online techical support.

3).For green hand users we offer free online training (especially for GNSS products), regarding receiver configuration, survey software on controller and post process software operation. If customer needed we also offer charged on site training.



Special service:

1).If you have a survey project, and you are finding a most cost-effective and efficient way to handle it. Just tell us your project specification, we will feedback with professional suggestions as reference.

2).We offer GNSS raw data process and CAD drawing for survey field end users.

3).If you have some broken instrument, and want to re-pick up into normal use, send it to use we offer professional repair service for all kinds of survey equipment.



FAQ

1.Whats your payment method ?

We accept T/T in advance,L/C at sight,Western Union,Paypal ,Secure Payment(Alibaba) and Credit Card.For L/C payment ,some countries and some models are not available,for PayPal payment,you need to pay additional charge by Ebay company about 4% of the total Amount.

2.How can you guarantee the safety of my funds?

Trust is always a big problem for international trade,we believe good business credit and reputation is the most important for businessman.We recommend Trade Assurance service by Alibaba Group.We wont get the fund unless you get the product and confirm the payment.

3.What Countries do you ship to?
We ships goods to almost all countries by express ,air or sea. And we will inform you if we cant ship to your country.

4.Are your products in stock?
Most items are usually in stock. It all depends on promotions we run, demand at manufacturers and suppliers, and other parts of the equation.Most delivery will be made within 3 working days after payment confirmed.
5.Does NCT sell second hand renewed instruments?
We do not sell any second hand or renewed equipment. Everything we sell is brand new.For some instrument we may need to test or check the language before delivery,but we do it very carefully.

6.Do you have other items that are not displayed on your website?
Yes, we have other items that we do not display on our website. Please contact us and let us know what you are looking for. Chances are we have it, or can find it.
