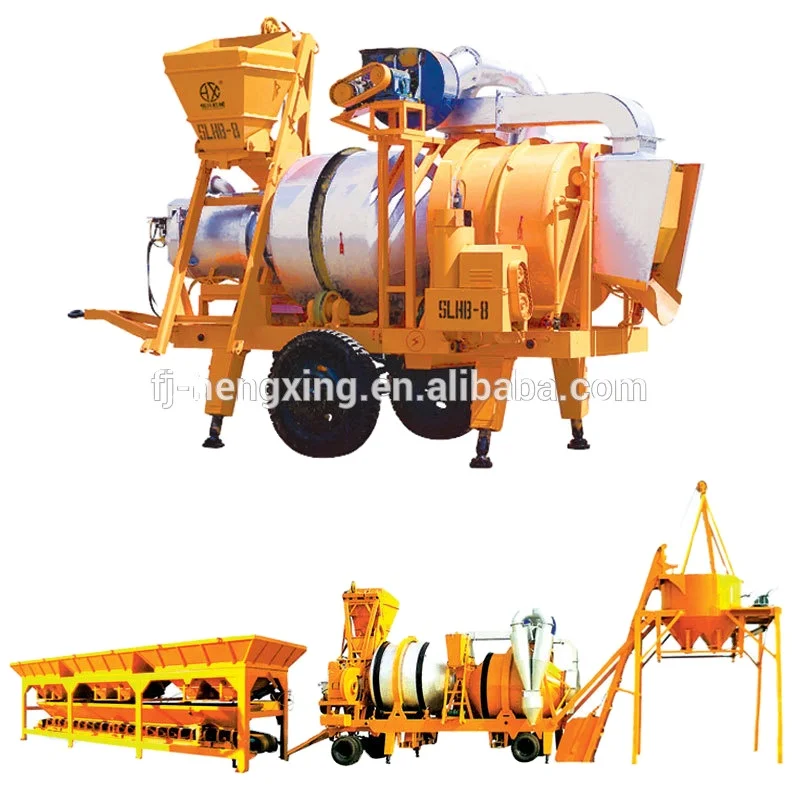

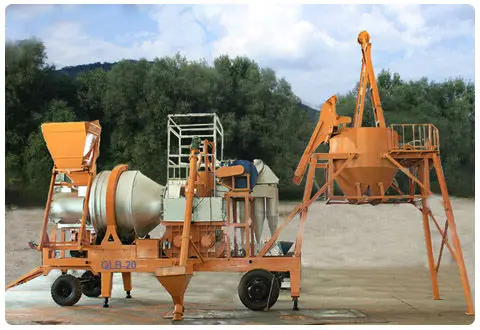

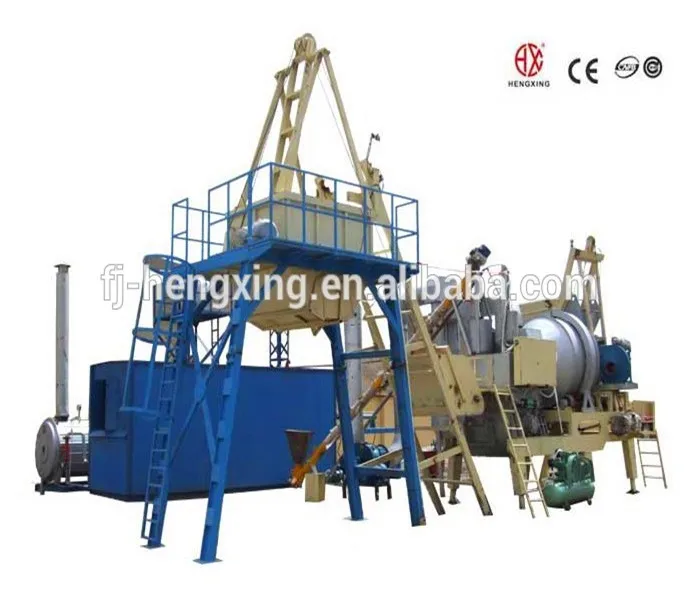

China Hot Sale QLB Series Small Asphalt Mixing Plant

Product Overview

Description

QLB Series  small Asphalt hot cold Mixing Plant Features



1. Integrated design of drying drum and horizontal twin-shaft mixer, more even mixing and better asphalt

2. Accurate weighing, and stable quality

3. Simple structure, easy operation, drying while drum rotate in counter-clockwise direction (from burner), discharging while drum rotates in clockwise direction (from burner), and the wind are swirled in the center of the drum

4. PLC control, touch screen, auto/manual switchable

5. Towing chassis for easy transport and installation

6. Burner is available for coal and oil, at customer’s option



QLB series modular and mobile Mini Asphalt Batch Plant  technical parameters:



Type	QLB-10	QLB-15	QLB-20	QLB-30	QLB-40	QLB-60	QLB-80
Capacity	10t/h	15t/h	20t/h	30t/h	40t/h	60t/h	80t/h
Power	56 kW	73 kW	98 kW	132 kW	185 kW	232 kW	268kW
Aggregate batcher	——	——	5m3×3	5m3×3	8m3×3	8m3×3	8m3×4
Storage bin	2t	5t	5t	9t	9t	9t	13t
Product temperature	120~180°C,Adjustable
Fuel comsumption	Oil:5~7.5 kg/t  Coal:13~15 kg/t
Optional	Coal miller,Wet filter,Bag House,Control room,Bitumen heating tank
