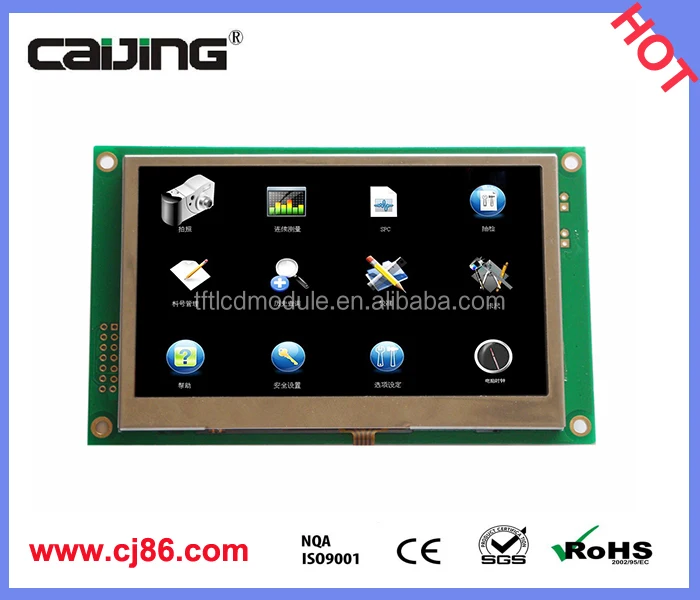

HMI industrial programmable 4.3 inch tft smart terminal lcd module 480x272 pixel
HMI industrial programmable 4.3 inch tft smart terminal lcd module 480x272 pixel
HMI industrial programmable 4.3 inch tft smart terminal lcd module 480x272 pixel
HMI industrial programmable 4.3 inch tft smart terminal lcd module 480x272 pixel

HMI industrial programmable 4.3 inch tft smart terminal lcd module 480x272 pixel

Share on (60644040643):


Price:

Quantity:


Product Overview

Description


programmable 4.3 inch tft smart terminal lcd module 480x272 pixel

Product Description

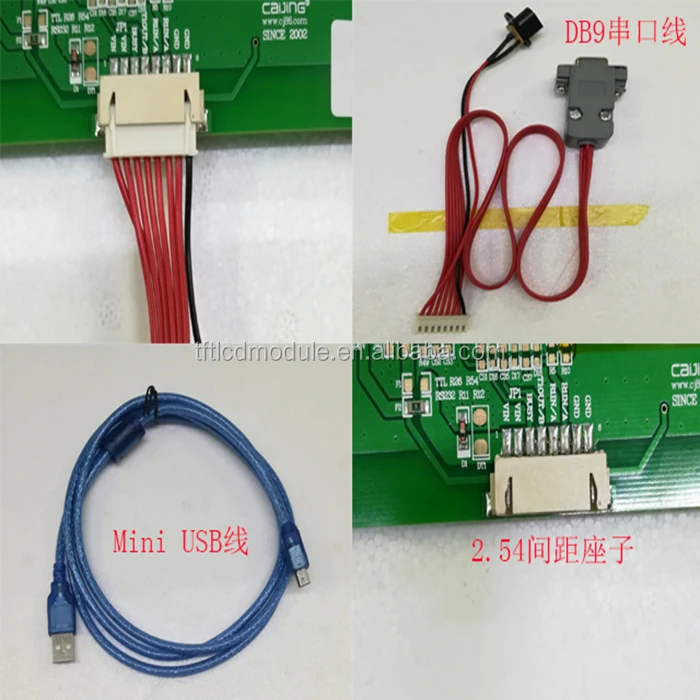

Supporting RS232, RS485, USART (3.3V TTL) interfaces, baud rate from 1,200 to 115,200bps wide input range VDD (9-26V)
RTC real-time clock
Embedded 4-wire touch panel controller
USB picture download
Multiple pages DDRAM
Color depth TFT: 65K colors
2/4GB flash
PWM for backlight
Management of datasheet file
Efficient development tool for PC, most development work can be done on the PC
Hardware acceleration, transferred image quickly

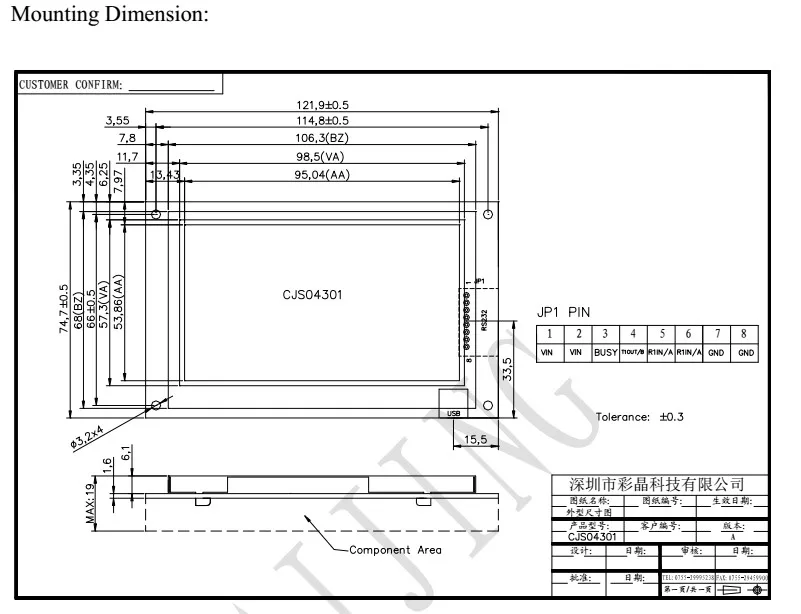

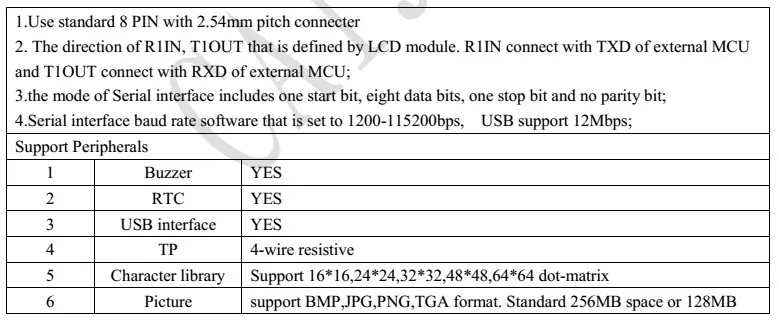

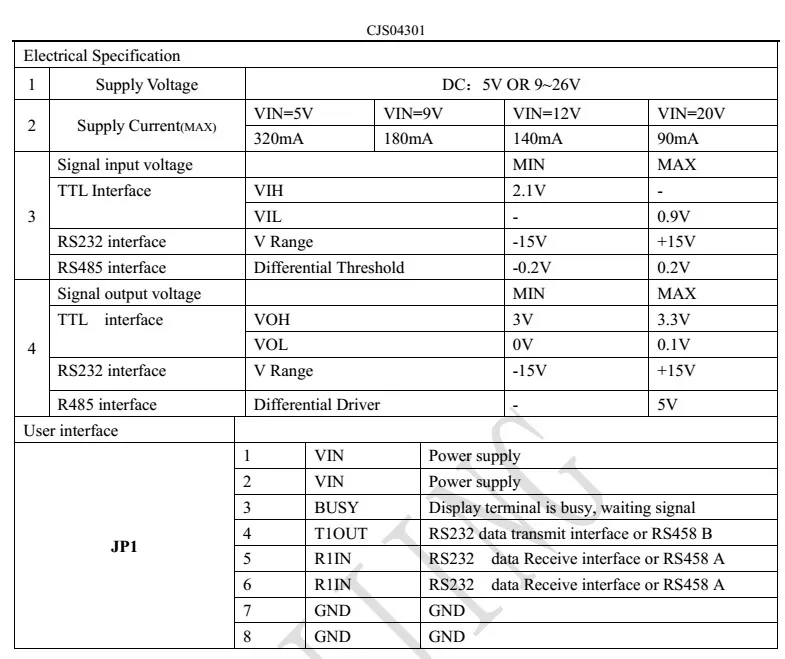

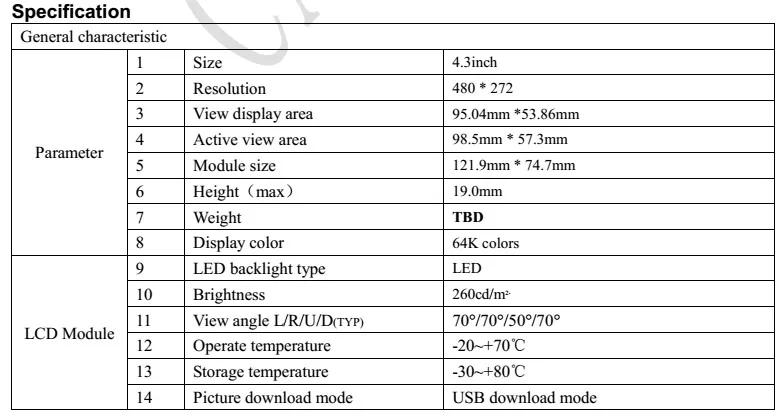

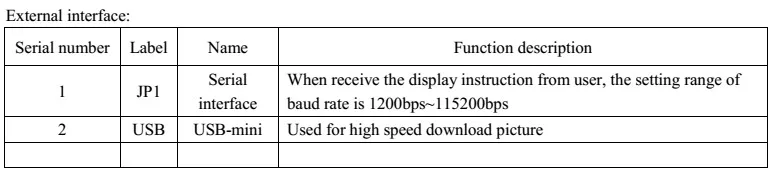

4.3 inch tft.JPG4.3 inch tft lcd.JPG4.3 inch tft lcd module.JPGtft lcd display.JPGtft lcd display module.JPG

Product Certificates

programmable 4.3 inch tft smart terminal lcd module 480x272 pixel

8 characters 2 lines lcd module certificates.png

Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

Our equipment.png

Product usage

 Our lcd module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .




Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/

Related Product

programmable 4.3 inch tft smart terminal lcd module 480x272 pixel



Display contentModel No.Outline size
L x W x H (mm)		V.A
L x W(mm)		Dots Size
L x W(mm)		VOltage     Interface
480x272RGBCJS04301120.4x68.6x8.098.5x57.30.066x0.1985V/9V-26VRS232/RS485/TTL
800x480RGBCJS05001143.5x80.9x17.5109x65.80.045x0.1355V/9V-26VRS232/RS485/TTL
640x480RGBCJS05602143.5x105x17115.9x87.670.0588x0.17645V/9V-26VRS232/RS485/TTL
800x480RGBCJS07001190x112x18154.9x93.90.0635x0.19055V/9V-26VRS232/RS485/TTL
800x480RGBCJS07002190x112x18155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
1024x600RGBCJS07006190x106.6x37.5156.2x92.60.0635x0.19055V/9V-26RS232/RS485/TTL
800x480RGBCJS07008203x112x21155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
800x600RGBCJS08001199.4x148.9x15163.5x123.50.0675x0.20255V/9V-26VRS232/RS485/TTL
1024x768RGBCJS08003199.4x148.9x37.5163.5x123.50.0675x0.20255V/9V-26RS232/RS485/TTL
1280x800RGBCJS10101248x150.7x37.5219.46x138.10.0635x0.19055V/9V-26RS232/RS485/TTL
800x600RGBCJS10401247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
800x600RGBCJS10402247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
