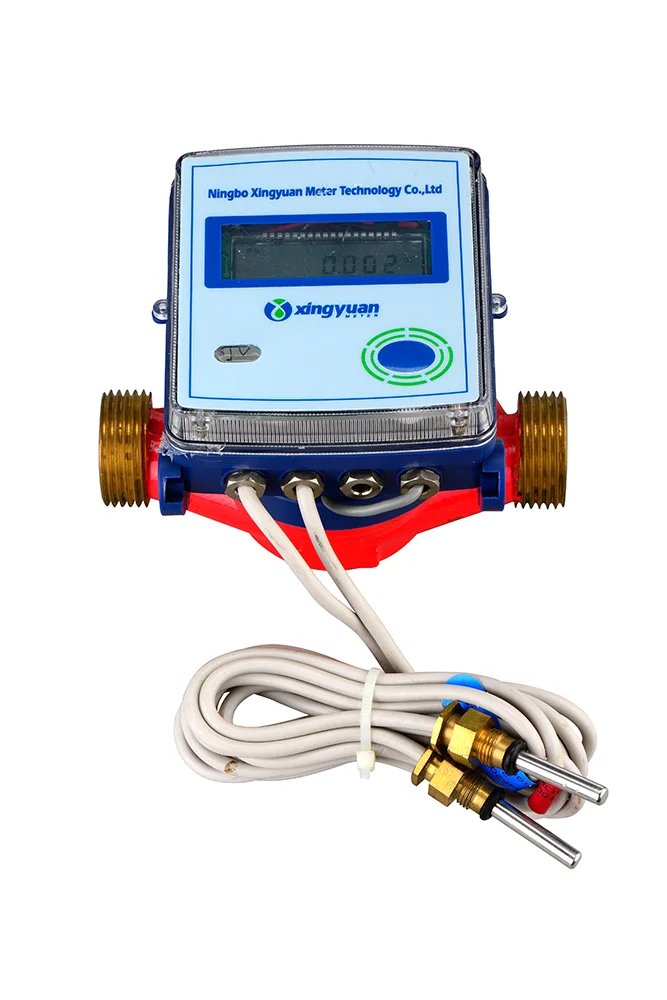

Competitive Price Anti corrosion heat flux meter

    FEATURES

• The flow sensor is a single jet water meter
• The calculator displays all actual and fixed data related data ergonomically operated by one push button
• The calculator can rotate 360°,can taken off from the meter for easily reading in any position

    APPLICATION

• For measuring the heat which,in a heat-exchange circuit,is abs or bed or given up by water called the heat-con veying liquid
• Application in household-based heating system and air conditioner cooling system

    STANDARDS COMPLIANCE

• ISO 4064 Class B for horizontal Installation

    WORKING CONDITIONS

• Water temperature:≤90°C
• Water pressure:≤1.6MPa
