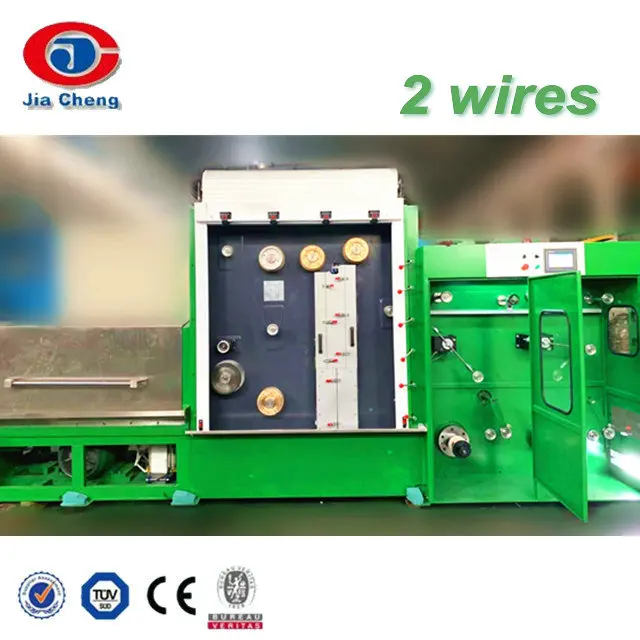

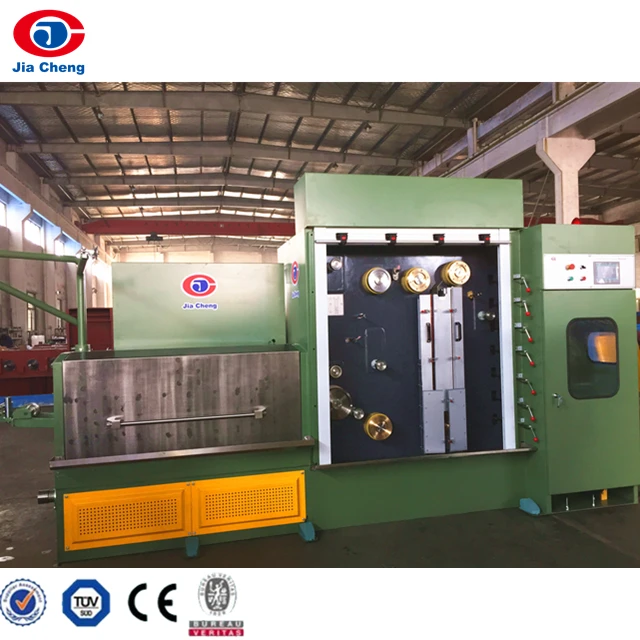

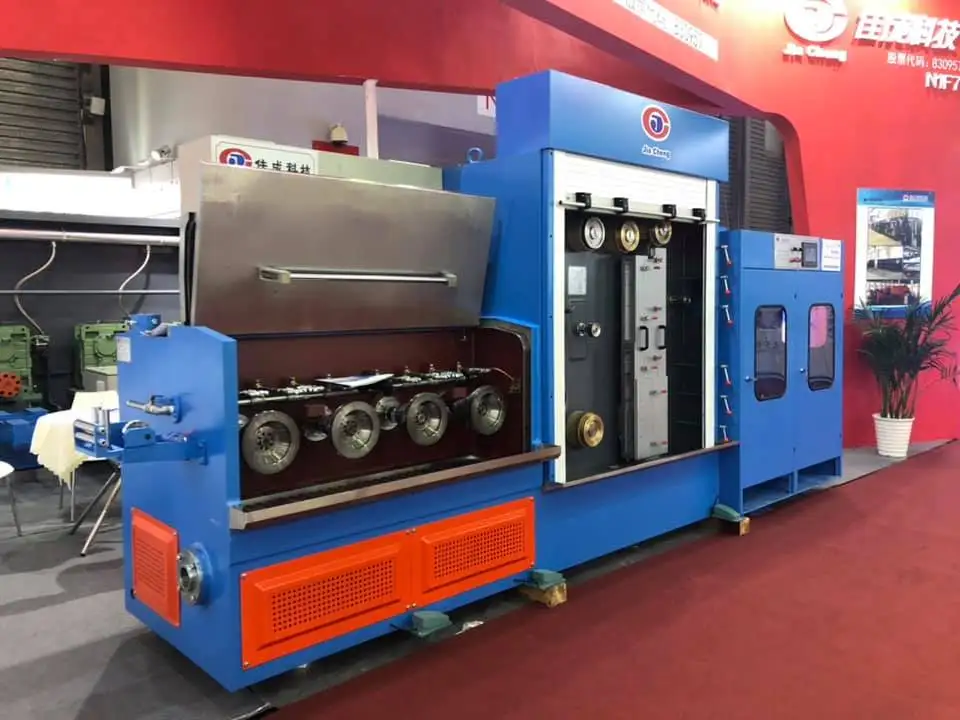

Скамейка для рисования медной проволоки с двумя головками с непрерывным отжигом
- Category: >>>
- Supplier: Jiangsu Jiacheng Technology Co. Ltd.
Share on (60644220053):
Product Overview
Description
FEATURES AT A GLANCE
Main usage: It is used for drawing two copper wires from 0.5mm-1.2mm to 0.1mm-0.3mm
Max.Every layer of drawn wire number:
two wires
Main feature:
1,double inverter type can precisely control the spool wire tension to reduce the slip ratio of wire to a minium manner;
2,DC power annealer and stable elongation;
3,Tension auto control system;
2,DC power annealer and stable elongation;
3,Tension auto control system;
PRODUCT SPECIFICATIONS
No | Item | |
1.Wire inlet dia: | 0.5mm-1.2mm | |
2.Wire outlet dia: | 0.1mm-0.3mm | |

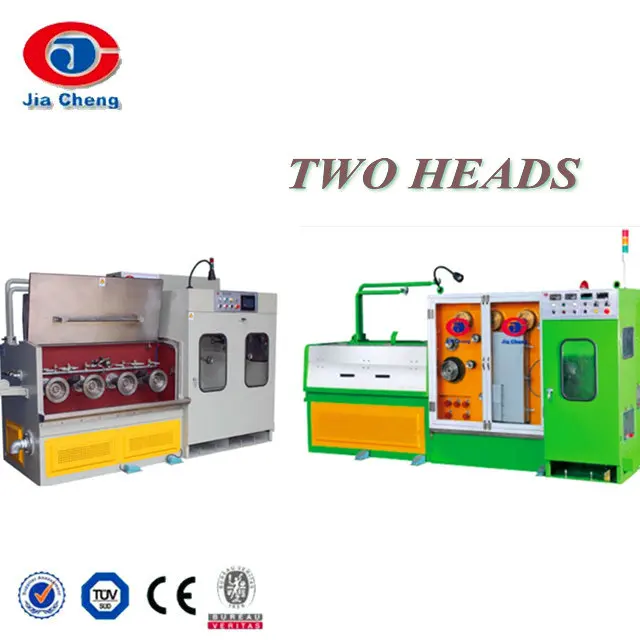

3.The head of production: | 2 heads | |
4.Max speed: | Max 1800m/min | |
5.Max dies number: | 24x2 (customer self provided) | |
6.Min dies number: | 14x2(customer self provided) | |
7.Eye dies outer dia: | 20mm ×thickness 8mm or10mm |
PRODUCT CONFIGURATION
Annealing wheel dia: | 160mm |
Annealing type: | DC three step annealing |
Max. Annealing current: | 350A |
Max. Annealing voltage | DC60V |
Cooling water tank capacity: | 225L |
Consumption amount of compressed air: | 225L |
Pressure of the compressed air: | 0.4 MPA |
.Steam consumption(taking care by customer) | 2kg/h |
The Annealing process: it will be divided into three stage annealing,
The first is Preheating, it can let the wire heating, Reducing the wire loss due to direct annealing,
the second is annealing, it can make the wire softening ,
the third is Cooling and drying, Because of the high temperature and speed, wires can’t cooling to normal temperature rapidly, so our machine design this part .
the Advantage: it can relies online continuous annealing, automatic annealing speed tracking.Low annealing cycle, high yield.
The first is Preheating, it can let the wire heating, Reducing the wire loss due to direct annealing,
the second is annealing, it can make the wire softening ,
the third is Cooling and drying, Because of the high temperature and speed, wires can’t cooling to normal temperature rapidly, so our machine design this part .
the Advantage: it can relies online continuous annealing, automatic annealing speed tracking.Low annealing cycle, high yield.
After sales service
Pre-Sales Service
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training,
includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
After-Sales Service
①Free service guarantee period is: 12 months after shipping (except wearing parts)
② Provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee
and other basic cost.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as
possible, if need our engineers come, 24hours will be arrived inland, and one to two week oversea based on getting visa on time.
② Provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee
and other basic cost.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as
possible, if need our engineers come, 24hours will be arrived inland, and one to two week oversea based on getting visa on time.
Company Profile
we established in 1990.We are the professional manufacturer have more than 20 years of experience in making all kinds of wire and
cable machinery,realize the wire from drawing to extruding.
cable machinery,realize the wire from drawing to extruding.
we are the factory not the trade company,Machine's body and other key components and parts are produced by our own factory,
quality is reliable.,and we can control .the price;.the quality and .the delivery time;
quality is reliable.,and we can control .the price;.the quality and .the delivery time;
We have annealing,stranding,extruding machine and cable auxiliary equipment(for example:wire winding machine,take up and pay-off
machine,wire wrapping machine and so on)
machine,wire wrapping machine and so on)
FAQ
A:I just get into this industry, I don't know how to plan?
Q : Every salesman of us can tell you how to plan the workshop ,how to install the equipment,how to save the costs and so on.
A: How can i install my machine when it arrives?
Q: We will send our engineers to your factory to install the machines and train your staff how to operate the machines
A:How could find the most suitable machine?
Q:Tell us your request in details: inlet wire and out wire diameter range, production capacity.
A:How could find the reliable supplier?
Q: 1)Check the background information which is assured and certificated.
2) Visit the factory, have a face to face meeting.
A:Why there are big differences price between different suppliers?
Q:After visiting factory, compare the price based on same quality and service.
Q : Every salesman of us can tell you how to plan the workshop ,how to install the equipment,how to save the costs and so on.
A: How can i install my machine when it arrives?
Q: We will send our engineers to your factory to install the machines and train your staff how to operate the machines
A:How could find the most suitable machine?
Q:Tell us your request in details: inlet wire and out wire diameter range, production capacity.
A:How could find the reliable supplier?
Q: 1)Check the background information which is assured and certificated.
2) Visit the factory, have a face to face meeting.
A:Why there are big differences price between different suppliers?
Q:After visiting factory, compare the price based on same quality and service.
