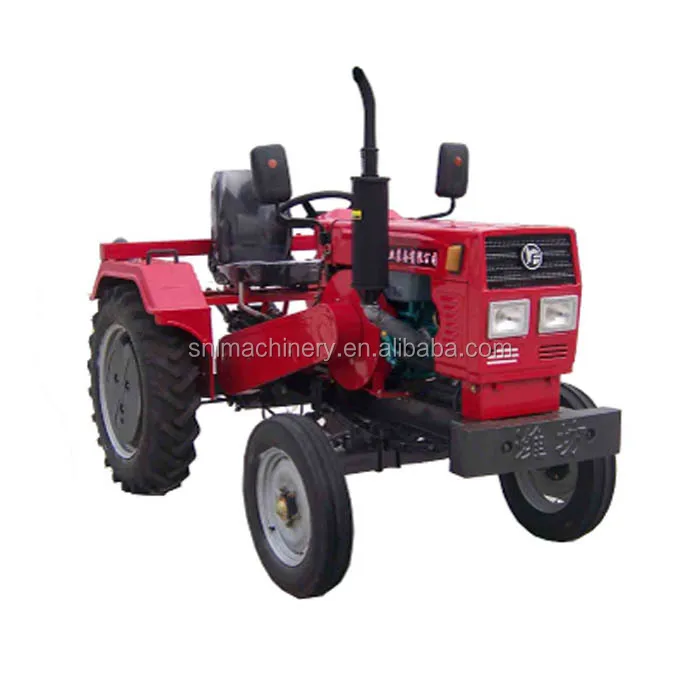

High Output Tractor Mini Four Wheel Farm Agriculture Machinery

Product Overview

Description

High Output Tractor Mini



1.The mini tractor with a new streamlined design, high-grade paint, bright colors, beautiful and fashionable .



2.The mini tractor with good diesal engine, Low fuel consumption and environment friendly



3. The mini tractor with dual stage clutch and hydraulic steering,safe and easily operate



4.The mini tractor can be equipped with agricultural implements such as mower,rotary tiller,snow blade etc.



5. Except the cheap price,high quality goods,excellent service is the basic of our

Business.



The main parameters of whole Tractor ( 15HP )
Type			HQ15E
Model			2×2wheeled half rack belt drive
Rated power(N)			1800
Tractor size(mm)	overall dimention(L*W*H)	length	2200
		width	1100
		hight	1210
	wheelbase		1200
	Tread	front wheel	4.00-10/4.00-12
		back wheel	6.00-12/6.5-16
	Minimum ground clearance (gearbox bottom)		200
Turning radius(m)			2.2±0.2
Theoretical speed (km/h)	1  stalls		2.1
	2  stalls		3.28
	3 stalls		5.31
	4  stalls		8.56
	5  stalls		13.32
	VI stalls		21.53
	reverse I stalls		1.62
	reverse II stalls		6.59
Tractor’s weight (kg)	Model		Mechanical lift	hydraulic lift
	(kg)structural quality			532kgwith plough/ 568Kg with rotary tiller
Engine model		CF15NM
Rrated power(kw)		10.8
Rated speed (r/min)		2400
Number of cylinder		1
Bore(mm)		100
Cooling		condensing
Starter		electric starter
Clutch		double plate,dry,often engagement
Transmission type		(3+1)x2combined
Differentials		closed,symmetrical bevel gear
Brake system	brake type	shoe
	operation	mechanical pedal
Engine and clutch transmission		V-belt B3200
