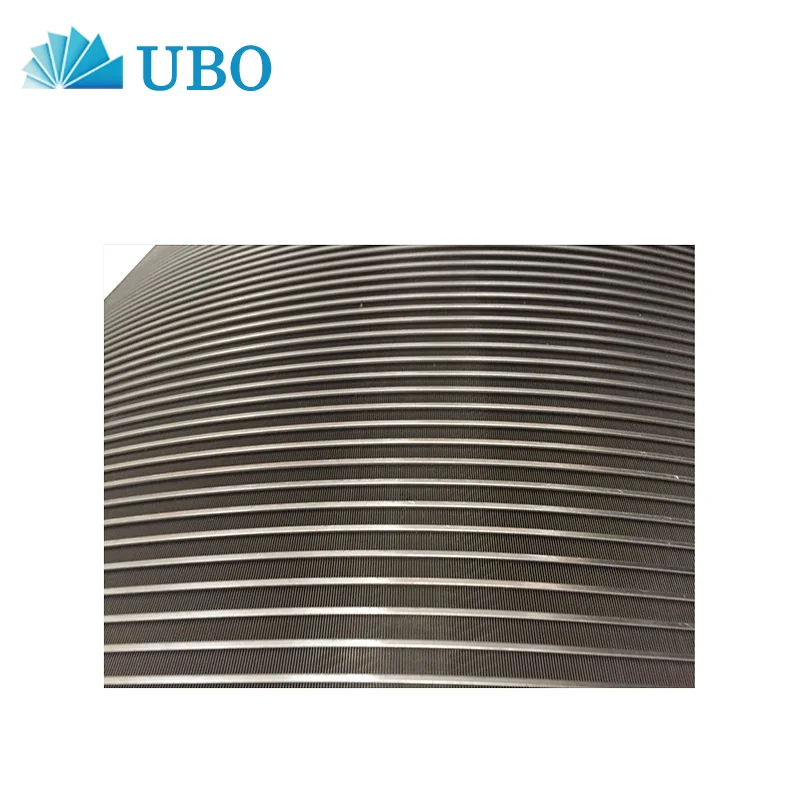

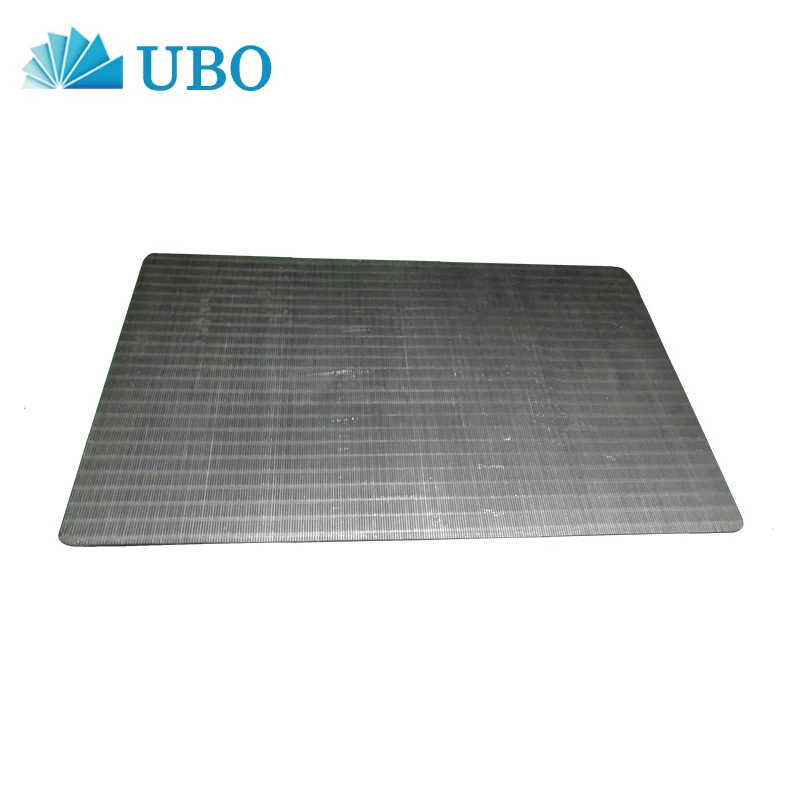

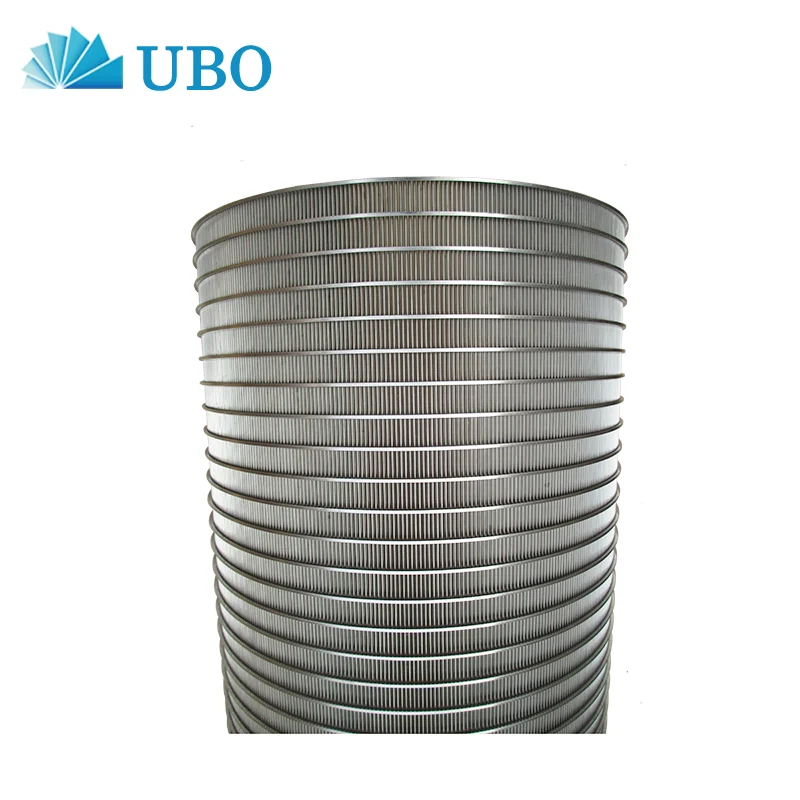

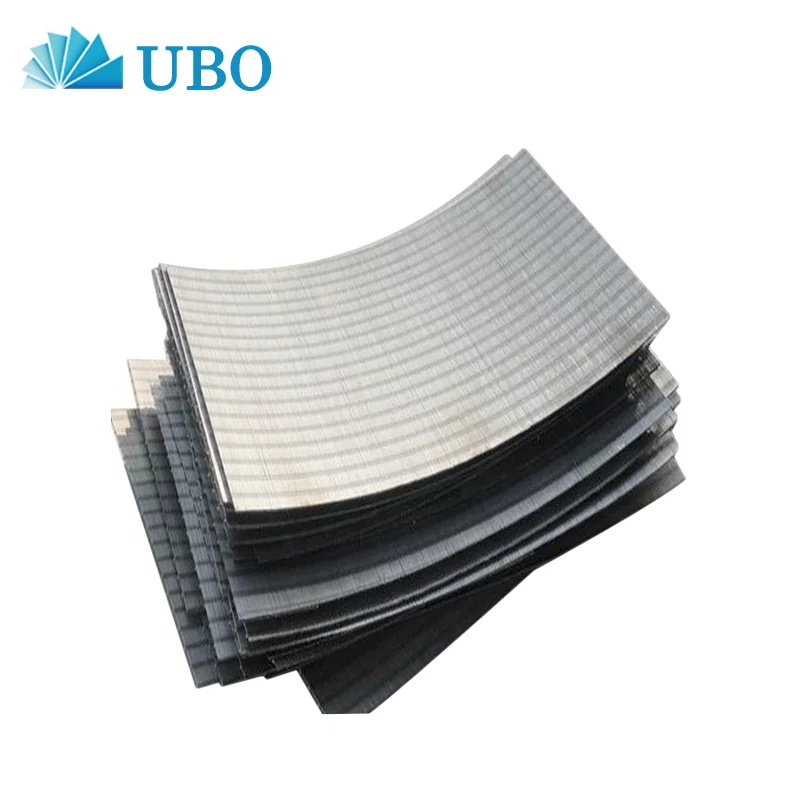

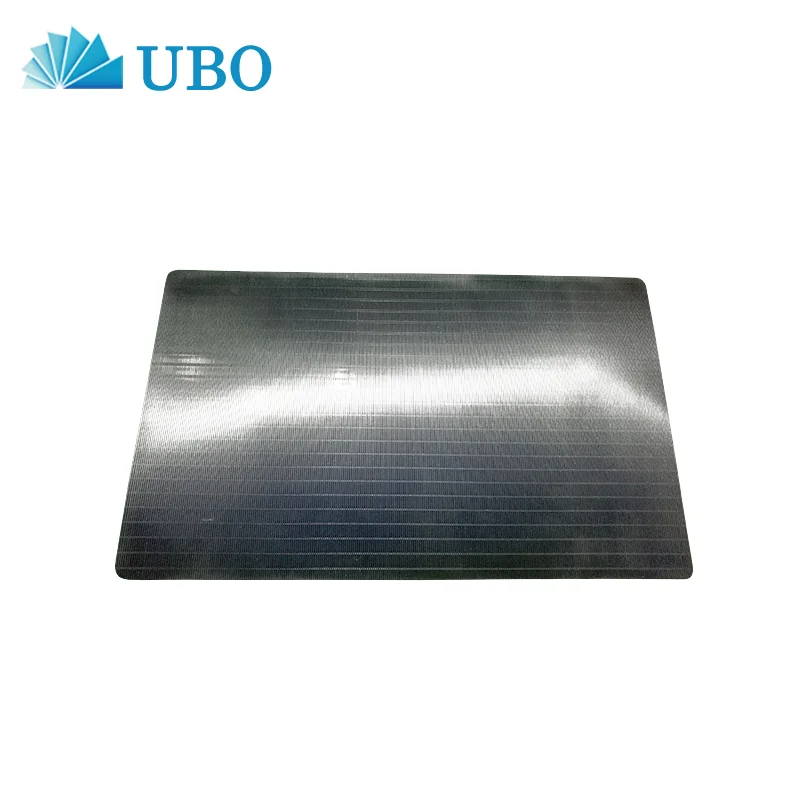

Stainless Steel Static Side Hill Screen Sieve Bend Screen for Food Processing
- Category: >>>
- Supplier: Hebei YUBO Filtration Equipment Co. Ltd.
Share on (60644381391):
Product Overview
Description
Product Description
Stainless Steel Static Side Hill Screen Sieve Bend Screen for Food Processing
Stainless Steel Static Side Hill Screen Sieve Bend Screen for Food Processing consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.
Specifications
 | |||||||
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
Length Range | Up to 6000mm | ||||||
Width Range | Up to 6000mm | ||||||
Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
Support Rod | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5*2.5 2x3 | 2x3 | 3*5 | 3x5 | 3x5 4*6 5*8 |
Angle | 90°,120°,140°,150°,160° etc. | ||||||
Arc height | 10mm,15mm,20mm,50mm or depend on you size of screen panel. | ||||||
Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. | ||||||
Note | Customized according to requirement | ||||||
