KC6S GSK MINI CNC LATHE
- Category: >>>
- Supplier: Yancheng C&J Machinery Co. Ltd.
Share on (60644577307):
Product Overview
Description
KC6S-GSK MINI CNC LATHE6S CNC Lathe
Product Description
KC6S-GSK MINI CNC LATHE

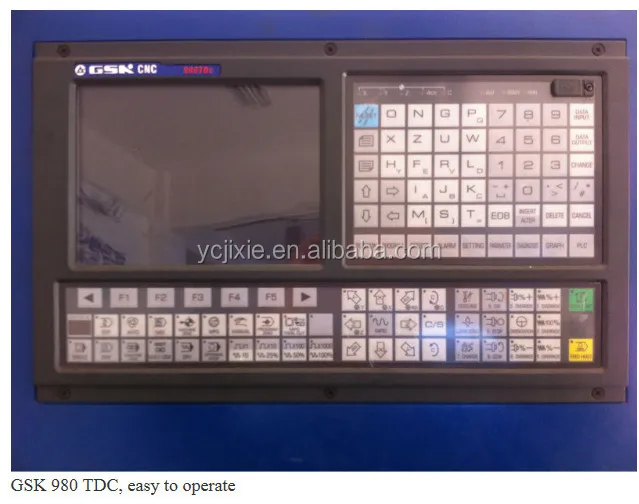

heritages outstanding base construction idea, only utilizing interral bed stucture which is comprises of high rigidity cast iron lubricated by high grade grease, along with multiple lengths of quenched guide ways. meanwhile, high precision ball screw and bearings are being used for extremely high quality axes to achieve smooth movement and accrate restoration, spindle, chuck and tailstock are also with nich quality and various tapers, still multiple positions tool posts are reliable and efficient as always. A centralized easy & friendly man-machine operating panel is not only creating an easier way for programming, but also bringing technicians convenience and enjoyment. common programming sNew condition mini CNC lathe machine ystems with most advanced technologies are all available including MACH/ GSK/SIEMENS/FANUC programming systemsm, allowing our customers to accomplish various purposes during their metal working. at meantime, a full closure cover design and cabinet door opening system and considerable safely signs will certainly erase all potential hazards, all strictly approved by CE certificate, SGS authentication and Chinese national standars.
KC6S-GSK MINI CNC LATHE
significantly improves the efficiench during all lathe working process, such as turning endface, taper or screws, spherical, external and internal cylindrical surface, and even for multi-tool turning missions, Especially when mass production is required, it will easliy achieve both appreciable efficiency and impressive quality
KC6S-GSK MINI CNC LATHE
Technical Specification
WORKING AREA | Turning diameter over bed(max) | 250mm |
| Travel across slide | 110mm | |
| Center width | 450mm | |
| SPINDLE | Chuck diameter | 125mm |
| Spindle speed | 100-3000r/min | |
| Spindle through-hole | 20mm | |
| Spindle mount | MT3 | |
| Spindle motor power | 1000W | |
| FEED | X travel | 180mm |
| Z travel | 320mm | |
| The max moving speed | 2000mm/min | |
| The max feeding speed | 500mm/min | |
| Motor | 4N/m | |
| TOOL REST | Tool position | 4 |
| Tool dimension | 10×10mm | |
| TAILSTOCK | Tailstock taper | MT2 |
| Tailstock sleeve diameter | 17mm | |
| Travel of tailstock | 50mm | |
| ACCURACY | Positioning accuracy | 0.015mm |
| Repeatability accuracy | 0.01mm | |
| OTHERS | Power | 220V |
| Weight(NW/GW) | 360/410kg | |
| Dimension | 1460×760×1450/1630×1070×1685 |

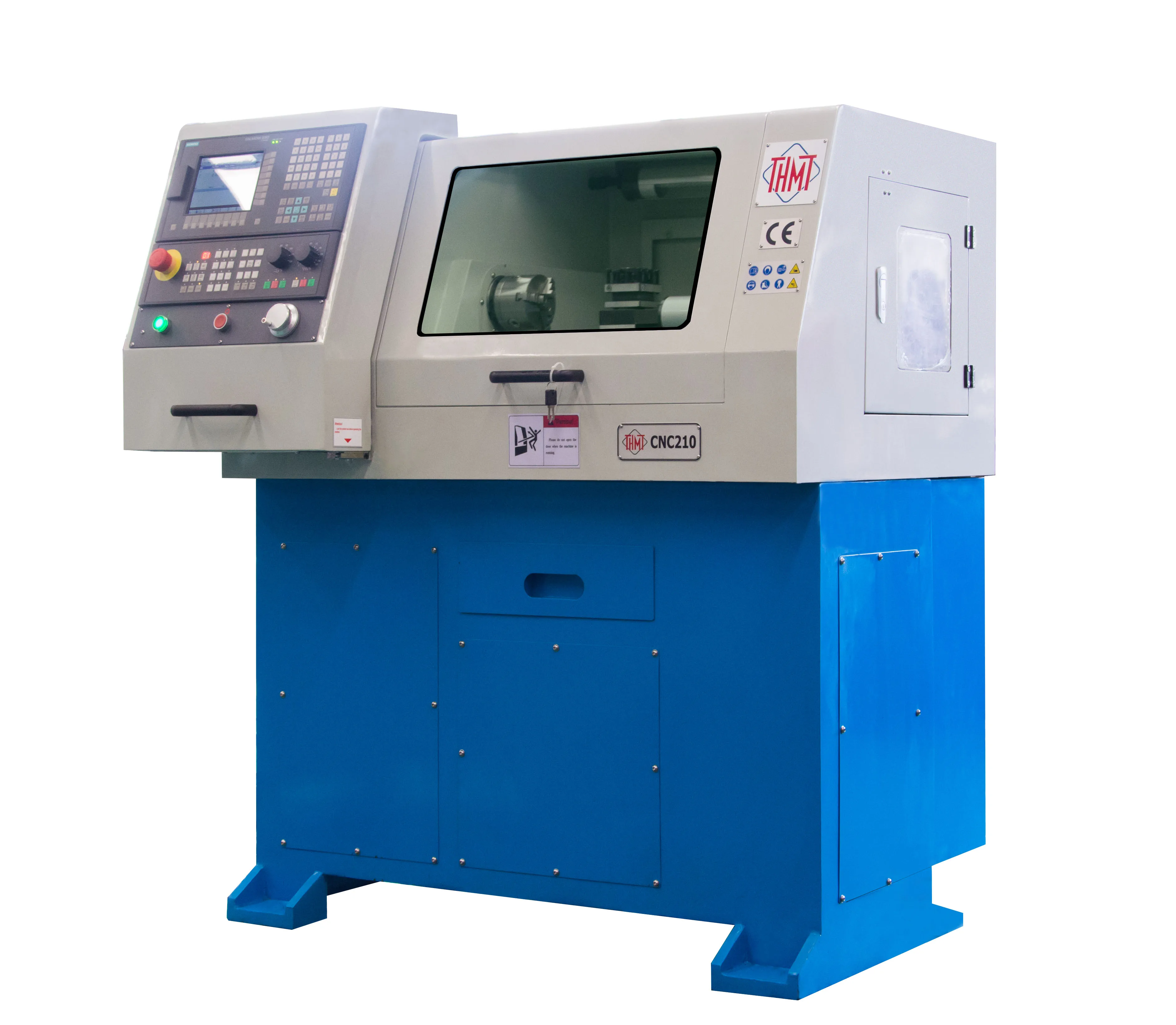

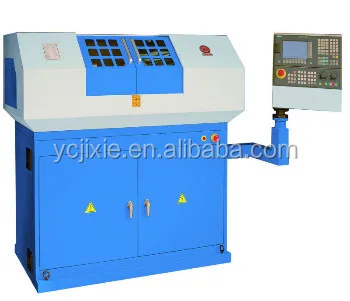

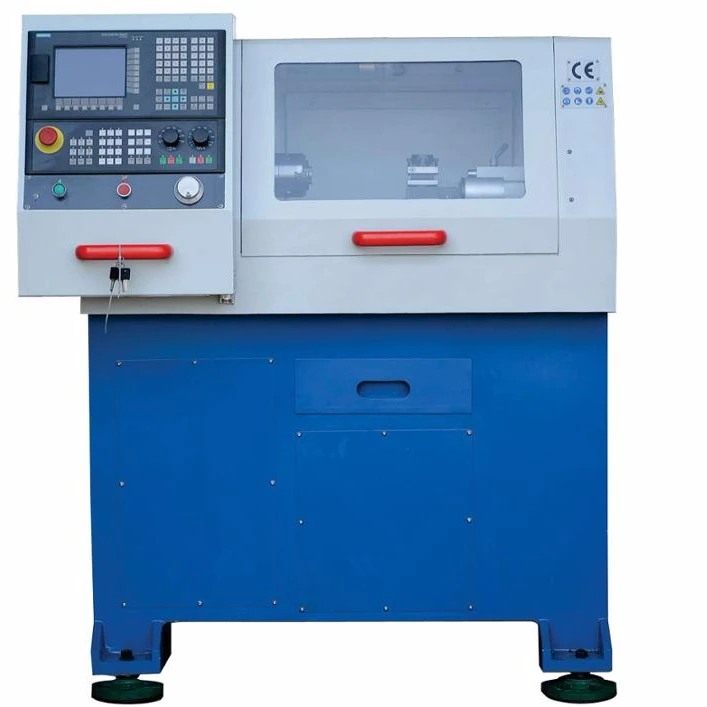

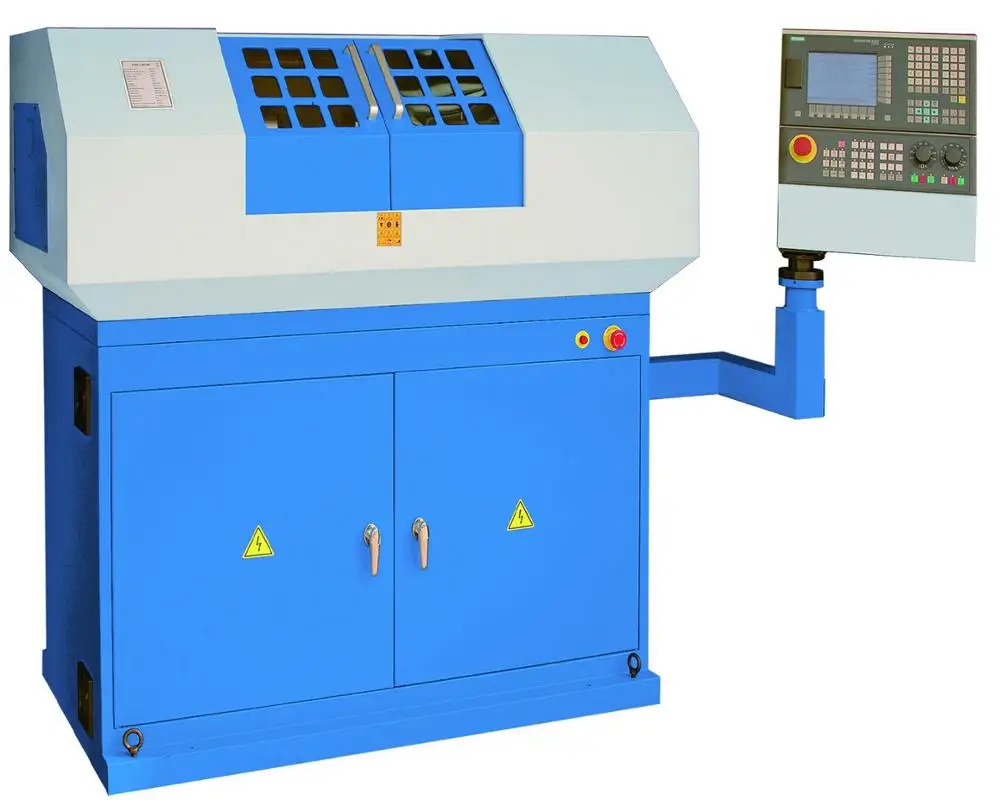

Machine photo:
KC6S-GSK MINI CNC LATHE
Certifications
CE certificate
More customer
More Credit to customer, More customer, More and More Business Cooperation!
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
WhatsApp: 0086 13851005559
- Please do not hesitate to contact us for more details or data sheets, all other questions would be fully welcomed too.
- Latest MACHINERY CATALOGUES are available now! Download them on our official website or directly contact us.
- CJ Machinery always insist on the concept of providing our customers the most enjoyable metal working experiences. Every need or request would be answered at our best considering customer’s greatest interests.
- CJ Machinery values each relationship among our worldwide customers and hopes every unique requirement of our customers could be satisfied.
