UVC electronic industry UV Curing Equipment For Components
- Category: >>>
- Supplier: Dongguan City Jinyao Exactitude Equipment Co. Ltd.
Share on (60644587525):
Product Overview
Description

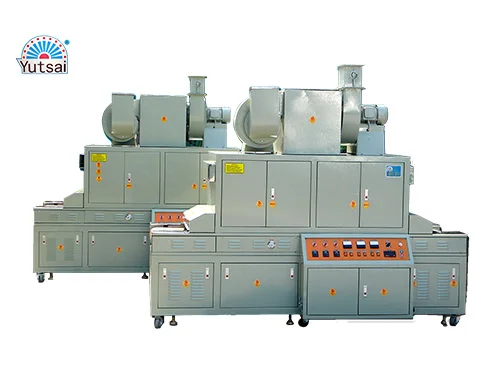

Product Name UV Dryer UVC-754 Power 380 V 3phase 50HZ 33KW
Specifications [1] conveyor width 300mm [2] machine width 1020mm
[3] Effective width 320mm [4] Machine height 1890mm (approx.)
[5] The length of the exit and feed sections is 800mm [6] The height of the machine's mesh surface is 900mm ±50
[7] Full length 3600mm
Material Patented aluminum reflective UV cover is sturdy, and the outer steel plate is sprayed with paint.
UV unit US UV LAMP 7.5KW 4 pieces. The luminous length is 120W/cm, the UV radiation main wavelength is 365mm, the light is stable, and it is not easy to be weakened. With the stepless dimming system, the quartz glass plate is added to effectively filter the infrared rays, penetrate the ultraviolet rays, and reduce the radiant heat temperature. With the full lamp and half lamp lighting system, the lamp distance can be adjusted to achieve the energy requirement of 3000mj /cm~4000 mj /cm.
Patented product Concentrated patented special reflector, which is illuminated by concentrated light, and is made of aluminum reflector. It is treated with special anodizing to keep the reflection effect for a long time.
Conveying device The Japanese-made Panasonic transmission motor is equipped with the gear reducer to control the speed regulation. The conveying mode is the plug-in wire conveying mode, the conveying surface width is adjustable, the range is 300-350mm, and the electronic type-free adjustment is accompanied by a digital speedometer display. Speed: 0.5-6M/min adjustable
Cooling system Two sets of multi-wing exhaust fans are cooled, without external air ducts. Special cooling system is installed to reduce the working temperature (within 60 °C) and reduce the lamp loss rate. The furnace temperature is within 60 °C (room temperature is 24 °C)
Control panel UV lamp ammeter. Lighting running time meter, over temperature indicator. Lighting completion indicator. Power indicator. Sta
rt switch. Stop switch. Fault indicator. UV light switch (with half light / full light switch). Japanese temperature controller.
Safety device
[1] Japanese leakage circuit breaker, over temperature preventer
[2] Motor overload protection
[3] Front and rear emergency stop switch control
[4] Maintenance door opening and closing control
[5] Fault detection control
Accessories Leakage circuit breaker, electromagnetic switch, ammeter, signal indicator, emergency switch, over temperature prevention system, fuse, timer, special cooling circuit system, etc.
Product Description
Hot sale modles for recommand:
Our Services
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convenient
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Engineer are available for oversea training.
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

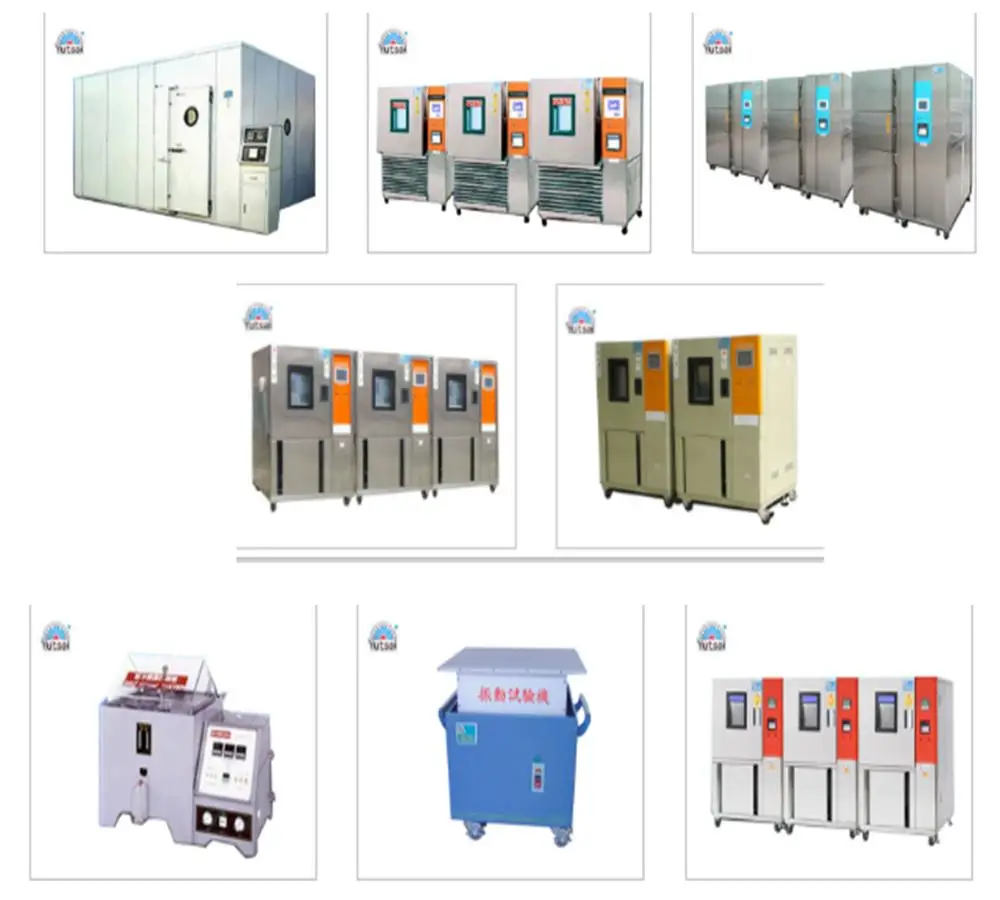

5,Our hot sale modles in test machine and the market of our products:
Company Information
About Us
Dongguan city Jinyao precision Equipment co., LTD is one of Enterprise combining develop, produce and sale. Established in 1980, already have 30 years experience to produce: precision Hot-air drying oven; IR/UV deliver drying equipment; environmental test equipment; printing machine; automation industrial equipment etc.
Our company always keep the aims that provide high quality product; quick service attitude and the great design. We keep the company spirit that has advance technology and high quality team. Our product receive a lot of client trust, and stand firmly front of others.
Dong Guan Yutsai Precision Device Enterprise LTD. is registered capital achieve ten million RMB. It has 4800 square meters factory. More than three million RMB fixed assets. Value of output achieve 24million RMB each year.
We has the steady domestic clients such as: Foxconn, HuohYow, Fu Brothrt Industrial Company, HuaXin technology company, PuYao group etc. It's all about more than 500 company include domestic ,foreign and military enterprises. We also has the long-term relationship with Thailand, India and England.
The company toward higher, farther, more perfect operating system. the Taiwan Head Company as the axis, and we make efforts in mainland market development.
Hot air circulation oven is our Original product, with carefully designed and continuously update,it have reach the international advanced level.
The device is a kind of Oven, and can be installed, divided into CT type (centrifugal fan)
CT-C (axial fans) series products, it is the use of steam, electricity and gas as heat source,
through the heater heating,a large number of hot air will circulate in the Oven, and then continue to dehumidify from the outlet,increase the heat transfer effect, and keep reducing the moisture.
The oven equipped with low noise and high temperature proof axial flow fan and automatic temperaturecontrol system, the circulatory system fully closed, the thermal efficiency of the oven is from the traditional drying room 3 - 7% increase to the current 35 - 40%, the highest thermal efficiency up to 70%.
The device named SAO series is according to the National Pharmaceutical Administration released the industry standard.
Advantage
1.Strong durability: As the haater is sealed in the housing,the contact area with air is small,it is difficult be oxidized.
2.Heated air circulation: Baked good is heated uniformly
Accurate and reliable electrical control:reasonable structure,effective working area,full-function,simple operation,easy to maintenance and adjustment,low noise,high reliability,low cost,low energy consumption and high production efficiency.
Application
Apply for baking of food and goods with chemical gas ,removal of the substrate,curing of the lnk and drying of film and so on. Widely used in the precision baking,drying,tempering,preheating,stereotypes and processing of electronics,electrical,communications,plating,plactics,metal,chemicals,food,printing,pharmaceutical,PC board,power,dipping,spraying,glass,ceramic and building materials and so on.
With the help of our experienced professionals, we offer a comprehensive range of Hot Air Oven that gives accurate control over
temperature setting. These are provided with double walled insulation, which keeps the heat in and conserves energy. To assure
optimum performance and durability, we manufacture these ovens using superior quality raw material such as sheets and structural
steel, blowers and motors, burners, insulation , heat exchanger and Control systems.
Victech manufactures the following type of ovens
Dry Off Ovens for moisture removal after Pretreatment or any wet process
Industrial Drying Oven for any drying application
Batch / Conveyorised Ovens for paint or powder curing
Hot Air Generators - Electrical / Oil /Gas
Heat Exchangers
FAQ
1. Can you customize the product?
Yes, we can customize any products according to customer's requirements.
2. Which payment terms are you doing?
PayPal, West Union, T/T, (100% payment in advance.)
3. Which shipment is available?
By sea, by air ,by express or as your requirement.
4. Which country you have been exported?
We have been exported to many countries, all most all around the world, like Malaysia, Vietnam, Thailand, United States, France, Spain, Mexico, Dubai, Japan, Korea, Germany, Porland Etc.
5. How long is the delivery time?
It's about 15-30 days.
