RSBW 30 RSBW30 Sprag Freewheel Clutch Backstop Bearings for Sale



Product Description



Features of rsbw backstop bearing for sale

Structure: RSBW one way clutch bearing is a sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected metallic labyrinth seals.

Application: Primarily used as backstop

Package detail: radial spherical plain bearings are delivered grease lubricated, ready to install in a vertical or horizontal position.

Caution: the torque arm and bearings must not be pretressed.



Product name

Backstop bearing for sale

Model

RSBW30

Torque capacity

606Nm

Overrunning speeds

400 min -1

Inner diameter

30mm

Outer diameter

106mm

Thickness

48mm

Weight

2.5kg

Application

Fishinery machinery, Reducer, household appliances

Package

Carton Box

Payment terms

TT, L/C, D/A, D/P, Western Union, Paypal

Delivery time

7-10 Days

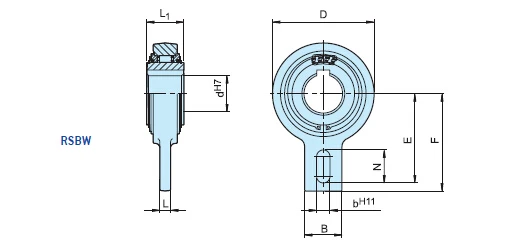

Catalogue of RSBW backstop bearing for sale for your choice




Type Size Torque Overrunning Speeds DIMENSIONS Weight
RSBW dH7 TKN1) nimax D L 1 F E B N L bH11
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
20 375 400 106 35 113 102.5 40 35 15 18 2
25 606 400 106 48 113 102.5 40 35 15 18 2.6
30 606 400 106 48 113 102.5 40 35 15 18 2.5
35M  375 400 106 35 113 102.5 40 35 15 18 2
35 606 400 106 48 113 102.5 40 35 15 18 2.4
40 1295 300 132 52 125 115 60 35 15 18 4.6
45 1295 300 132 52 125 115 60 35 15 18 4.5
50 1295 300 132 52 125 115 60 35 15 18 4.5
55 1295 300 132 52 125 115 60 35 15 18 4.4
60 2550 250 161 54 140 130 70 35 15 18 6.5
70 2550 250 161 54 140 130 70 35 15 18 6.4
80 4875 200 190 70 165 150 70 45 20 25 9.9
90 4875 200 190 70 165 150 70 45 20 25 9.8




Detailed Images

 AV 1.jpgAV50-2.jpg

RSBW AV 1.jpg

3_083_09

FAQ

Q: How do you pack the goods?

  •  Total less than 25 KG :  Each in white box + 19*18*9cm box + 29*28*19CM carton box
  •  Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A:  It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  •    Small items: In stock.
  •     Medium Items: 10-15 Days
  •     Big items: 20-25 Days
