European standard cylinder deadlock 5572ZD with CE fire rating 2/4 hours on timber/steel door HANRUI brand useD in storeroom
- Category: >>>
- Supplier: Shandong Hanrui Hardware Co. Ltd.
Share on (60644762820):
Product Overview
Description
Product Description

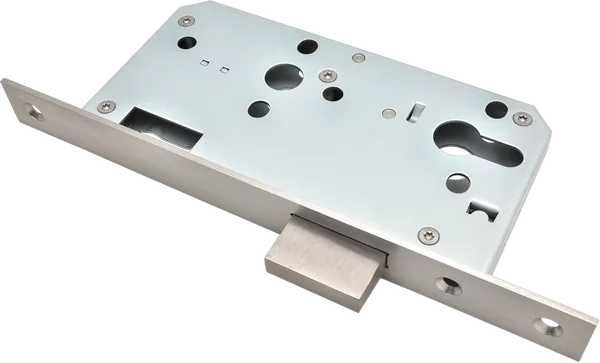

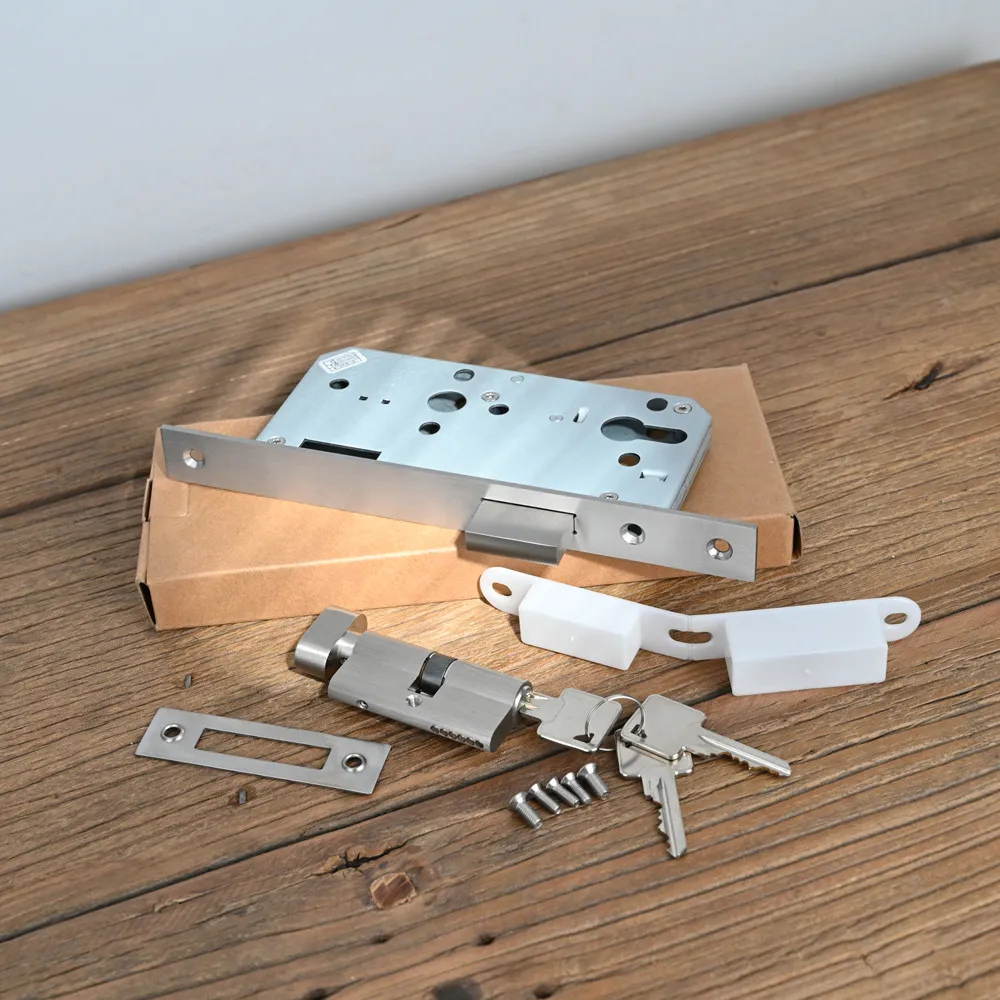

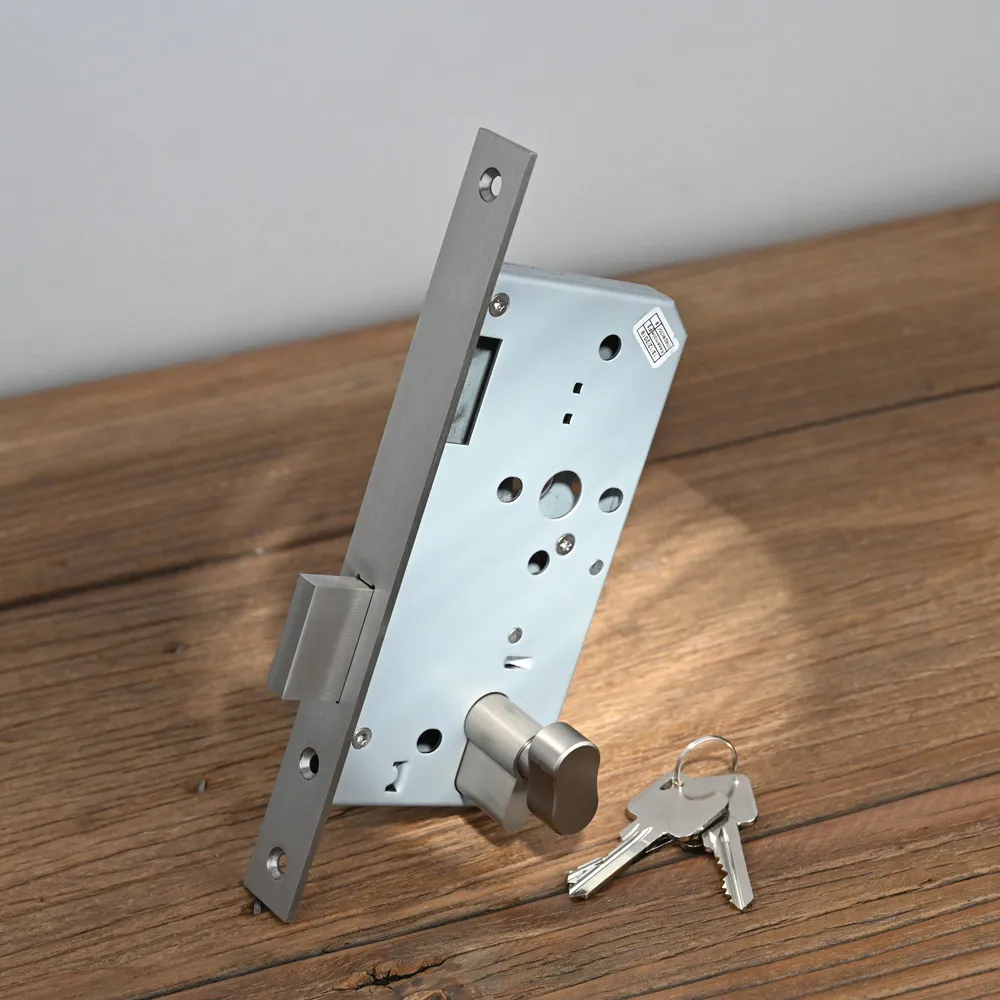

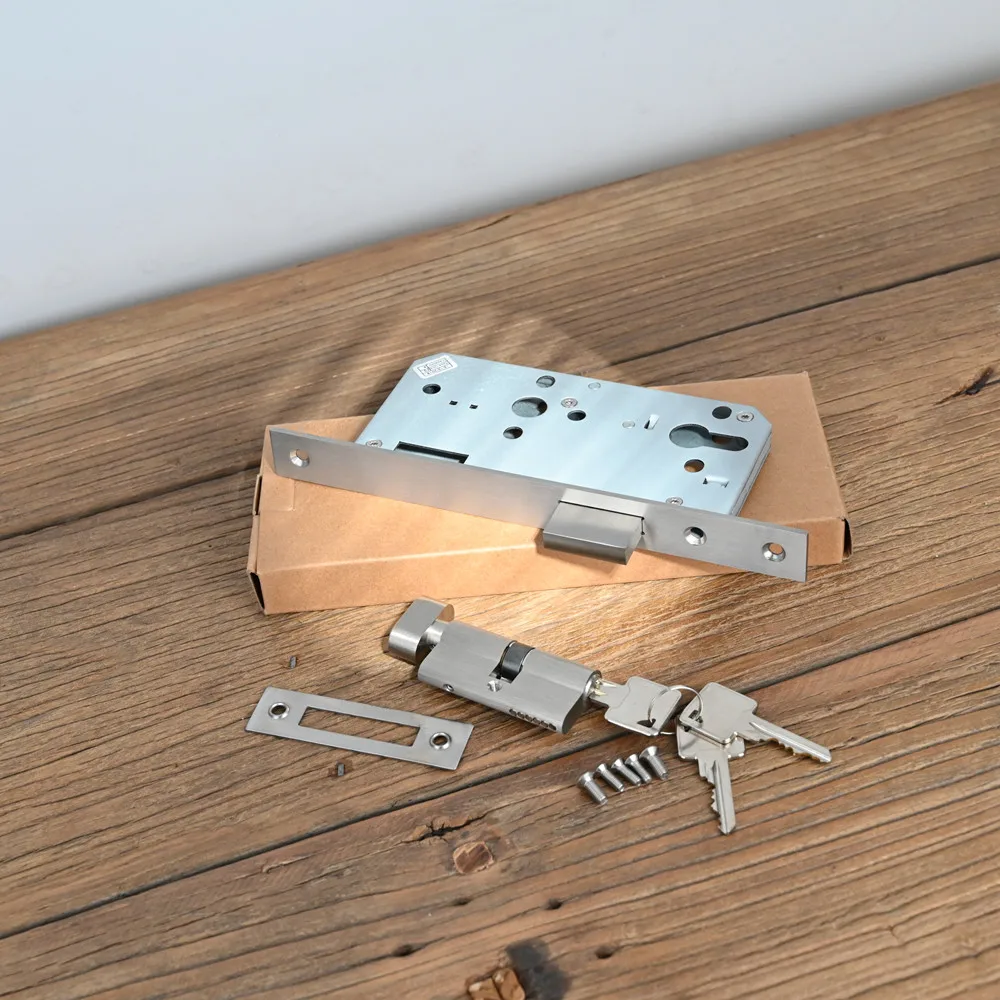

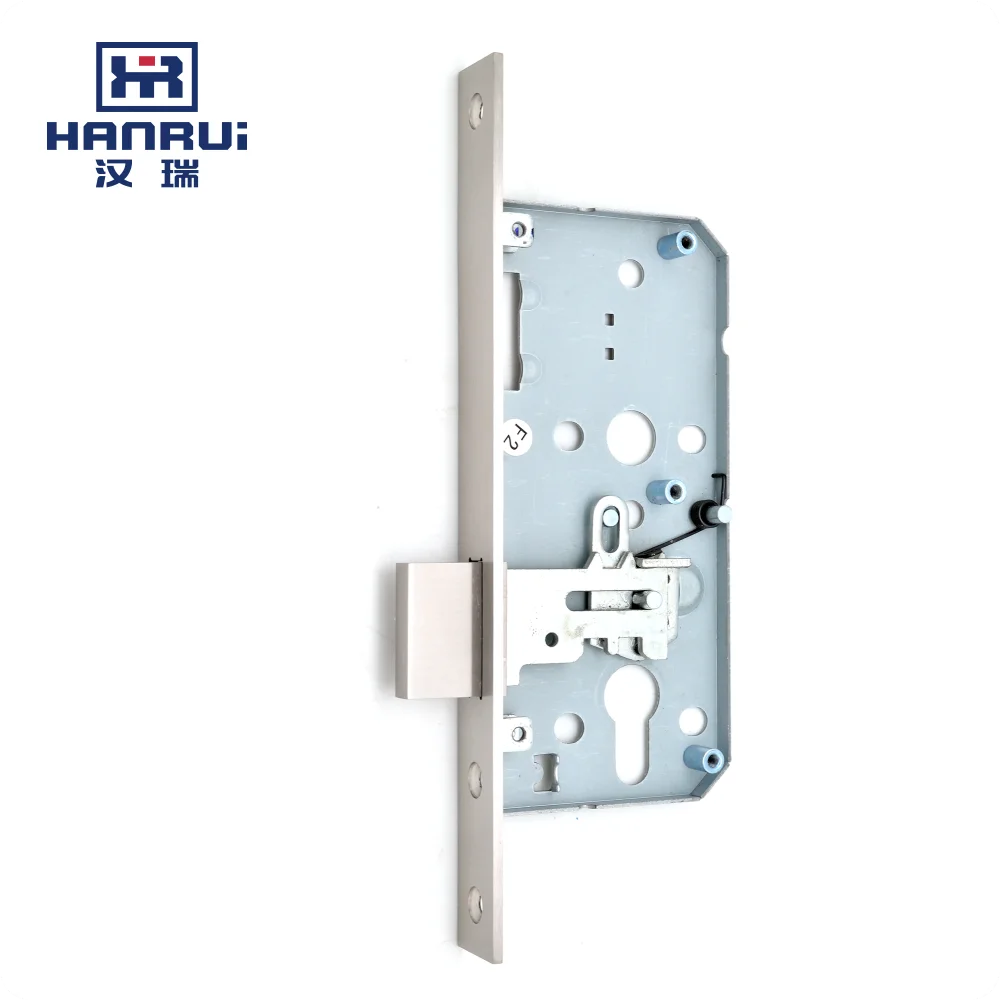

En12209 Din18251 CE certificate FIRE rated deadlock 5572ZD
5572ZD | Parameter | |
Backset | 55mm | |
Center distance | 72mm | |
Fire test-Timber fire door | 111 mins | |
Fire test- Steel fire door | 260 mins | |
CE certificate (Intertek) | 3 X 9 1 0 G 3 B C 0 0 | |
1. Dinmensional co-ordination to DIN18251 | ||
2.CE marked | ||
3.Fully compliant with EN12209 | ||
4.Double throw bolt action | ||
5.Lock functios: deadlock | ||
Product Information
Intended Use | Yes/No | Comments | Reference |
On hinged doors | Yes | Locks are tested for side force and end force | EN12209:2016 |
Supported lock application | Yes | Tested in accordance with 5.5.1 and 5.11.3 using the fixture 20 or 29 and/or 5.11.5 using fixture 32 with support | |
Suitability for use on smoke control /fire resistance doorset | Yes | See manufacturers declaration referring to a test according to EN 1634–1 or declaration of melting point of the relevant latching parts and if applicable the duration of the proven smoke control and/or fire resistance | |
Lock for use with unsprung handle | Yes | The lock shall conform to 5.4.6, minimum follower restoring torque of 0,8 Nm |
CE Certifications
Packing&Shipping
1PC/BOX(can be color one with your brand design), 20PCS/CTN, 1000PCS/PALLET
Product Testing
Durability test (Hinge)
Durability test (Mortise lock)
Test temperature
Durability test (Handle)
Durability test(Cylinder)
Corrosion resistance
Company Introduction
COMPANY VALUES:
Concentration, Innovation, Passion, Perfection.
HANRUI company has 260 workers which covers 30,000 square meters, specialize in Architectural hardware for fire doors (Mortise lock / Lever handle / Profile cylinder / Hinge).
We have passed Quality Management System: ISO9001:2015; Fire rated Products have got relevant CE certification \\ Fire test and Performance certification.
1. Mortise lock have CE certification according to EN12209 and EN1634-1
2. Hinge have CE certification according to EN1935 and EN1634-1
3. Brass profile cylinder has been verified according to EN1303
4. Lever handle has been verified according to EN1906
2. Hinge have CE certification according to EN1935 and EN1634-1
3. Brass profile cylinder has been verified according to EN1303
4. Lever handle has been verified according to EN1906
We can give you authorization to do Co-listing CE under your company name.
Widely used in school, hospital, office building, supermarket, bank,airport facilities, gymnasium, public building and so on.
