Combined Mini Rice Husker and Whitener Machine

Product Overview

Description

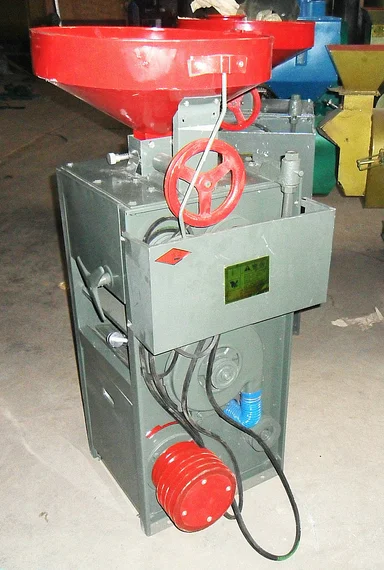

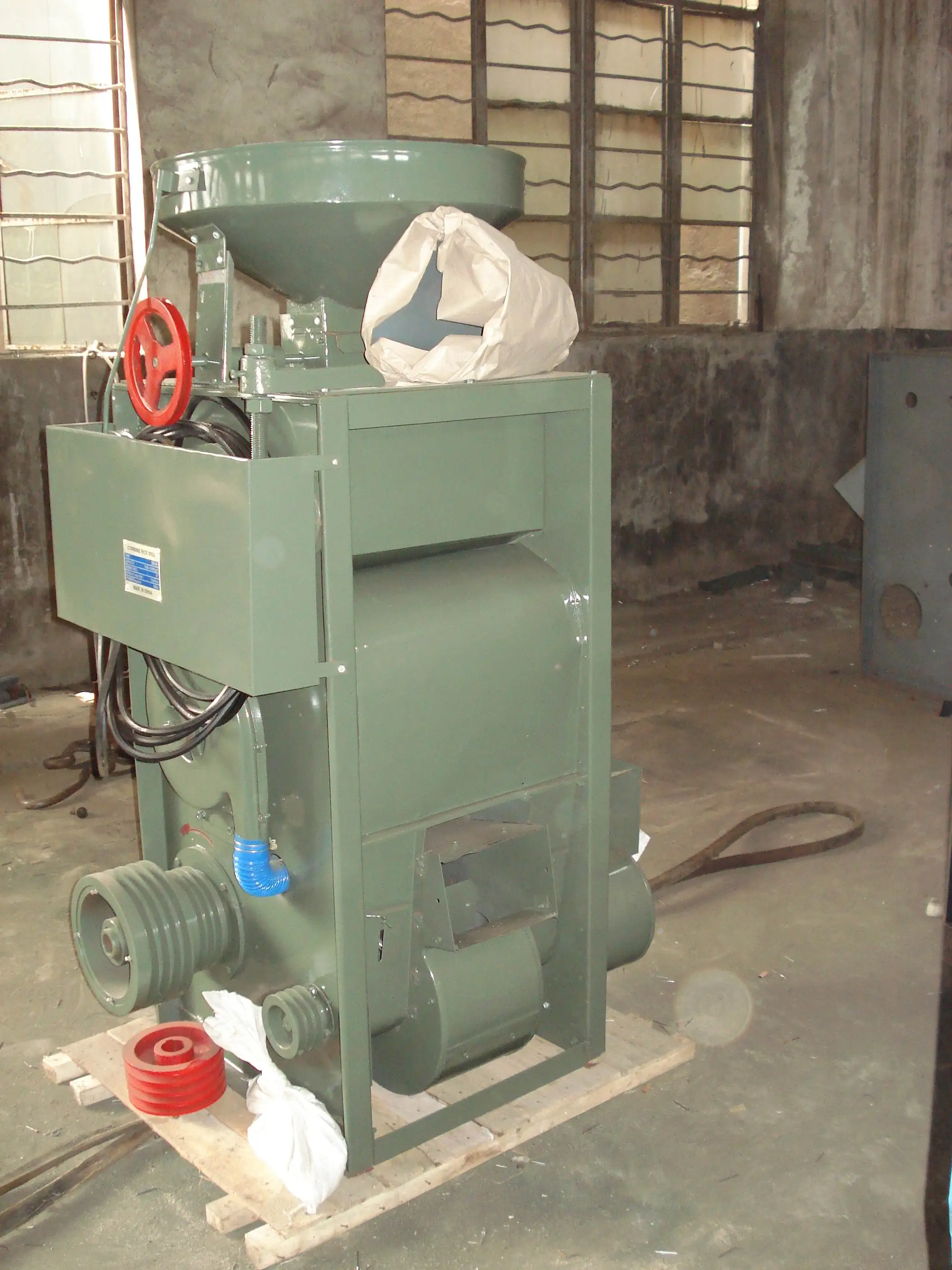

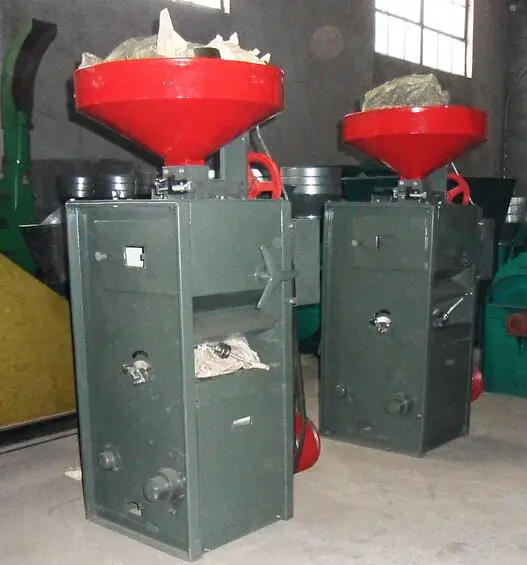

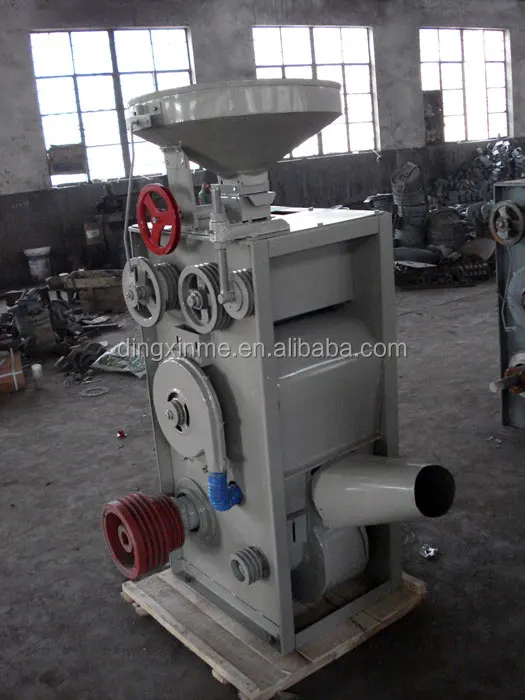

Combined Mini Rice Husker and Whitener Machine





The SB Rice Mill Machine is a kind of comprehensive rice processing equipment. Paddy goes into machine via vibrating screen (removing stones) and magnet unit (removing little piece of steel), and then pass through hulling room (removing the yellow husks), winnowing room, milling room (removing the brown chaff, and then become white rice), and blowing room in turn.



This machine can complete all the processing works from cleaning grain, hulling grain to milling rice in succession. As to husk, chaff, blighted grain, as well as polished rice, they are all pushed out of machine separately. It is indeed a new generation of Combined Rice Mill Machine.







 Application



Home use rice mill







Feature

This machine is equipped with all the advantages of varied kinds of rice processing machines:

1. Overall arrangement, rational design, compact structure.

2. Low noise, convenient and reliable operation, reliable performance.

3. Low chaff rate, few broken rice, high milling degree.

4. Low power consumption, high efficiency.

5. Can be run on diesel motor and electrical motor.







Parameters







Model	Packing Dimension (L*W*H, MM)	Capacity (KG/H, paddy)	G.W. (KG)	N.W. (KG)	Power (KW)	20’ GP (SET)
SB-5	690*670*1400	400 - 600	190	130	5.5

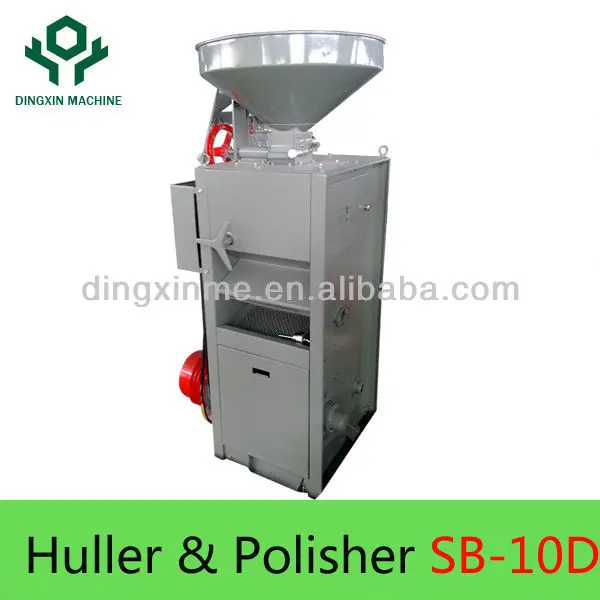

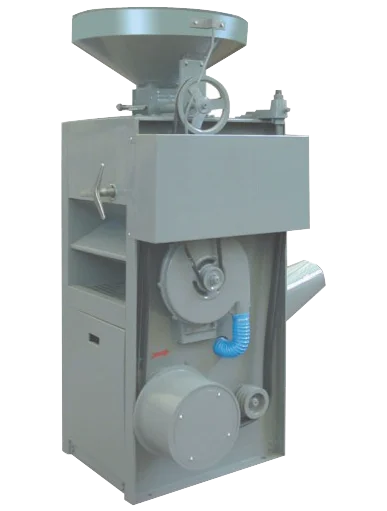

SB-10D	750*740*1700	600 - 900	285	195	7.5-11	33

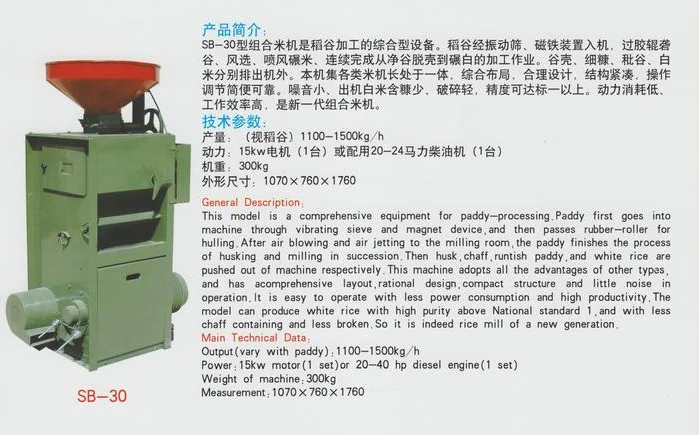

SB-30	970*760*1730	1100 - 1500	330	230	15
SB-50	1050*970*2200	1800 - 2300	780	630	22
