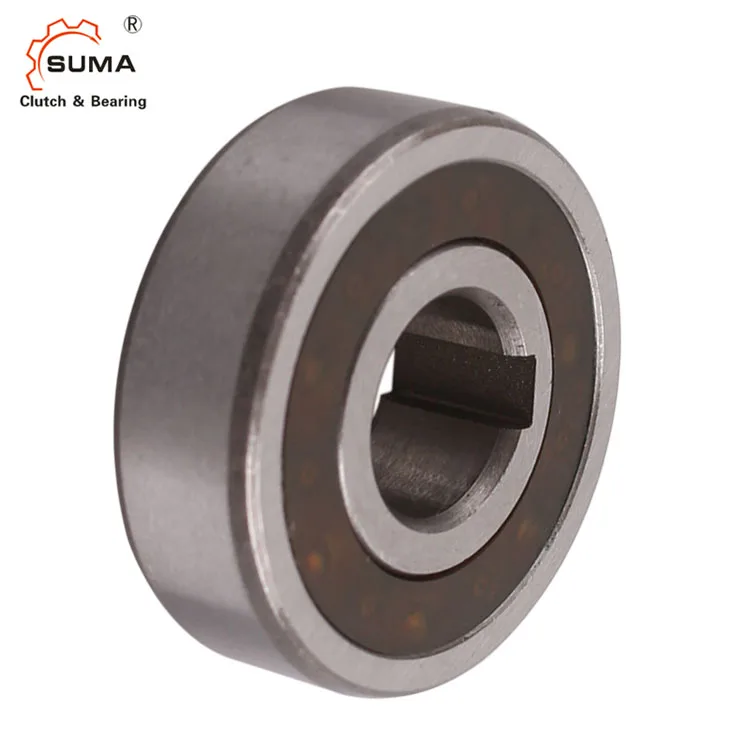

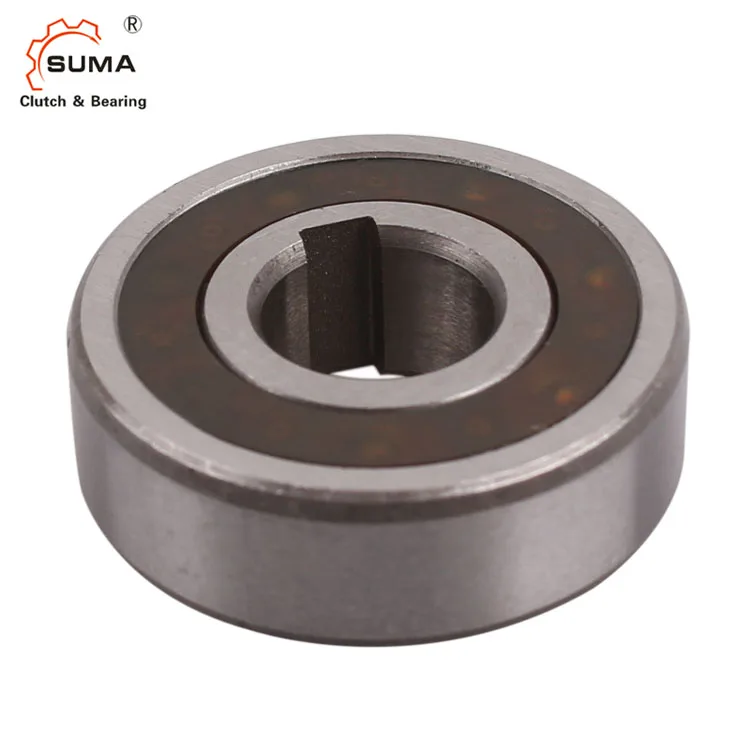

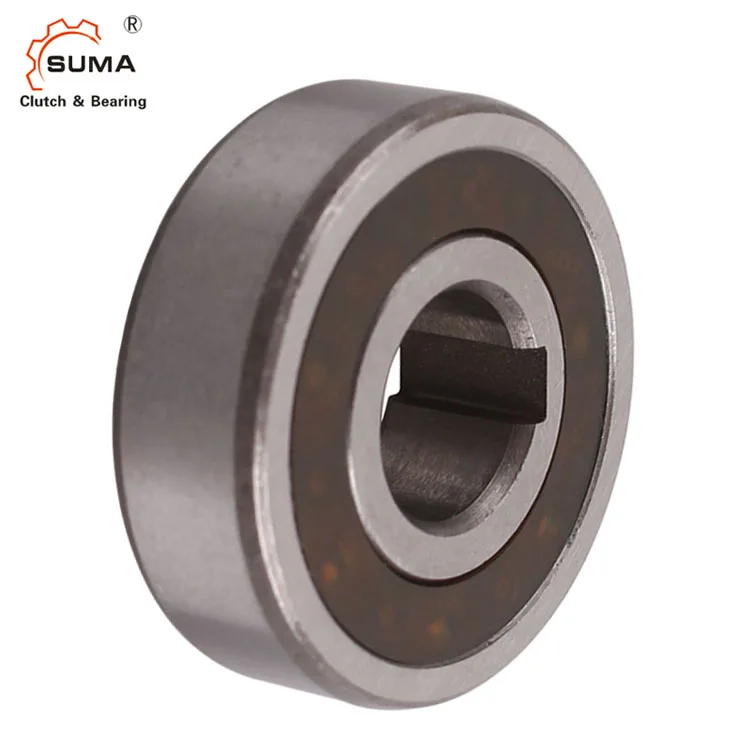

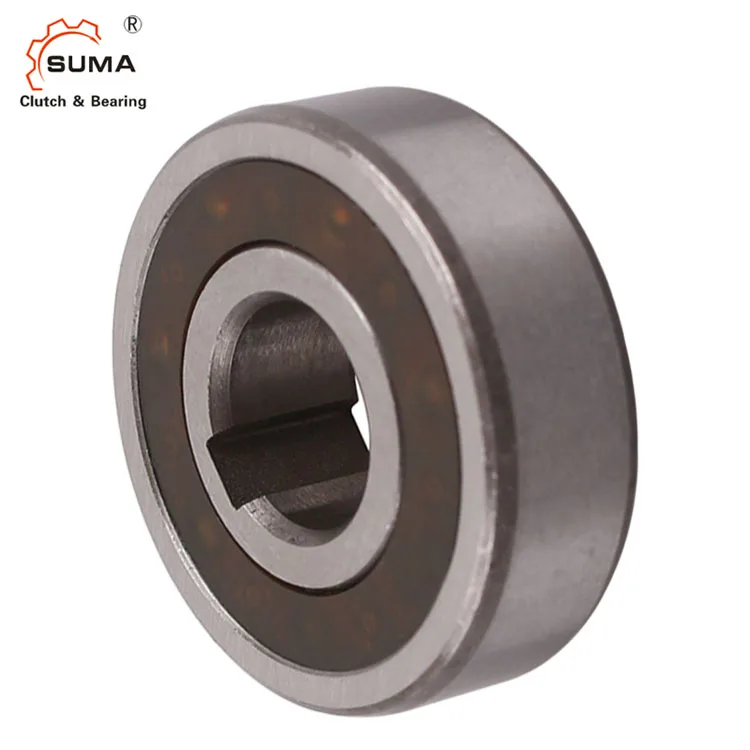

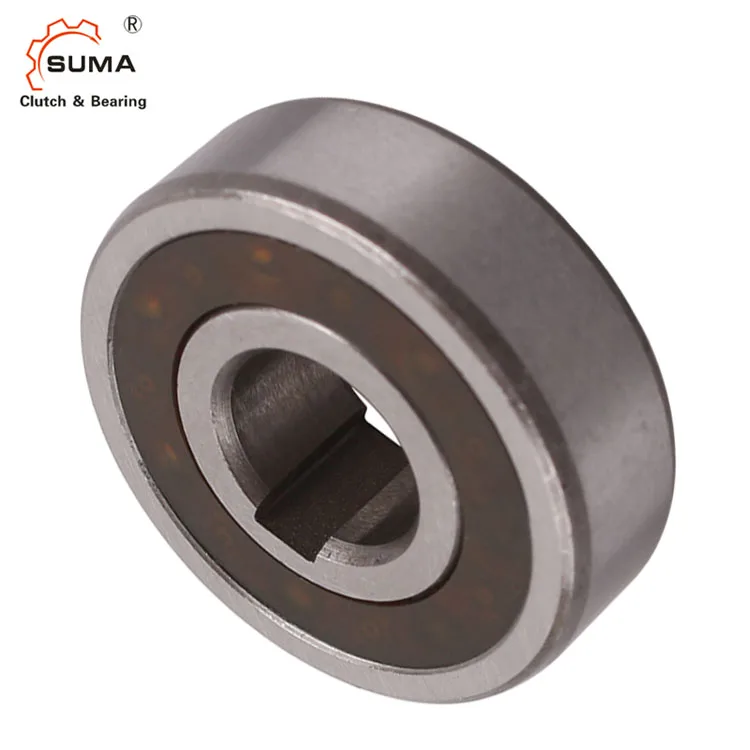

One Way Clutch UKC 15 ZZ Washer Bearing CSK15P Free Wheel
- Category: Other Bearings >>>
- Supplier: Changzhou Suma Precision Machinery Co. Ltd.
Share on (60645098006):
Product Overview
Description
One Way Clutch UKC 15 ZZ Washer Bearing CSK15P Free Wheel
Product Description
Data Sheet
| Item | UKC 15 ZZ |
| Material | GCr15 |
| Inner dia. | 15 mm |
| Outer dia. | 35 mm |
| Width | 11 mm |
| Weight | 0.06 kg |
| Torque | 16.9 Nm |
| Package | Singer package or as your requirement |
| Port | Shanghai:Ningbo |
| Delivery time | 10-20 days |
Introduction
The UKC..ZZ model is equipped with a keyway on the inner race and should be fitted on k6 tolerance shafts. Seat fitting must be carried out with n6 keying tolerance.
Types UKC..ZZ and UKCC..ZZ are sprag type freewheels integrated into 62.. series ball bearings (except size 40).They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.
The use of additional “nylos” type seals is recommen-ded especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
In addition to the basic UK..ZZ model, type UKC..ZZ features a keyway on the inner race. For this reason it can be keyed to a shaft to k6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.
UKCC..ZZ features a keyway on both the inner and outer race. The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.
Different Sizes For Your Reference
| Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||||
| dynamic | static | |||||||||||
| UKC..ZZ | d | TKN1) | nmax | D | L | b | t | C | C0 | TR | ||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
| 12 | 6201 | 9.3 | 10000 | 32 | 10 | 4 | 1.3 | 6.1 | 2.77 | 0.04 | 0.7 | |
| 15 | 6202 | 16.9 | 8400 | 35 | 11 | 5 | 1.2 | 7.4 | 3.42 | 0.06 | 0.9 | |
| 17 | 6203 | 30.6 | 7350 | 40 | 12 | 5 | 1.2 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 6 | 1.6 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 8 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 8 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 10 | 2.4 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | – | 325 | 3000 | 80 | 22 | 12 | 3.3 | 15.54 | 12.25 | 0.5 | 7 | |
Certifications
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality
Our Services
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
