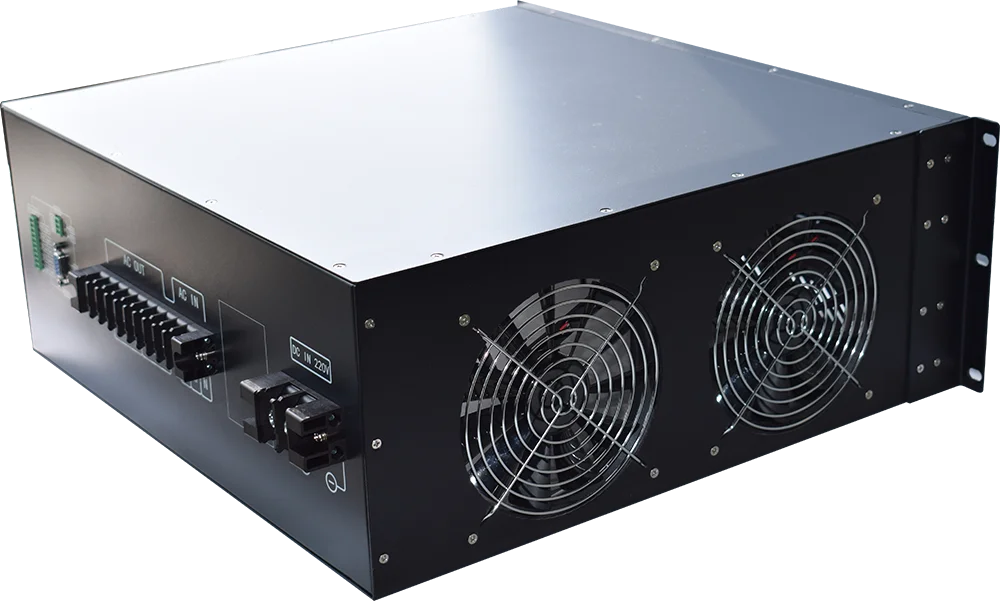

19 дюймов 4U rackmount 220vdc 10 кВт инвертор сделано в Китае 10 ква инвертор для трансмиссионной подстанции
- Category: >>>
- Supplier: Shenzhen Bwitt Power Co. Ltd.
Share on (60645107588):
Product Overview
Description
Products Description
Product name | 19 inch 4U rackmount 220vdc 10 kw inverter made in China 10KVA inverter for transmission substation |
220VDC inverter | |
10 kw inverter | |
10kva inverter |

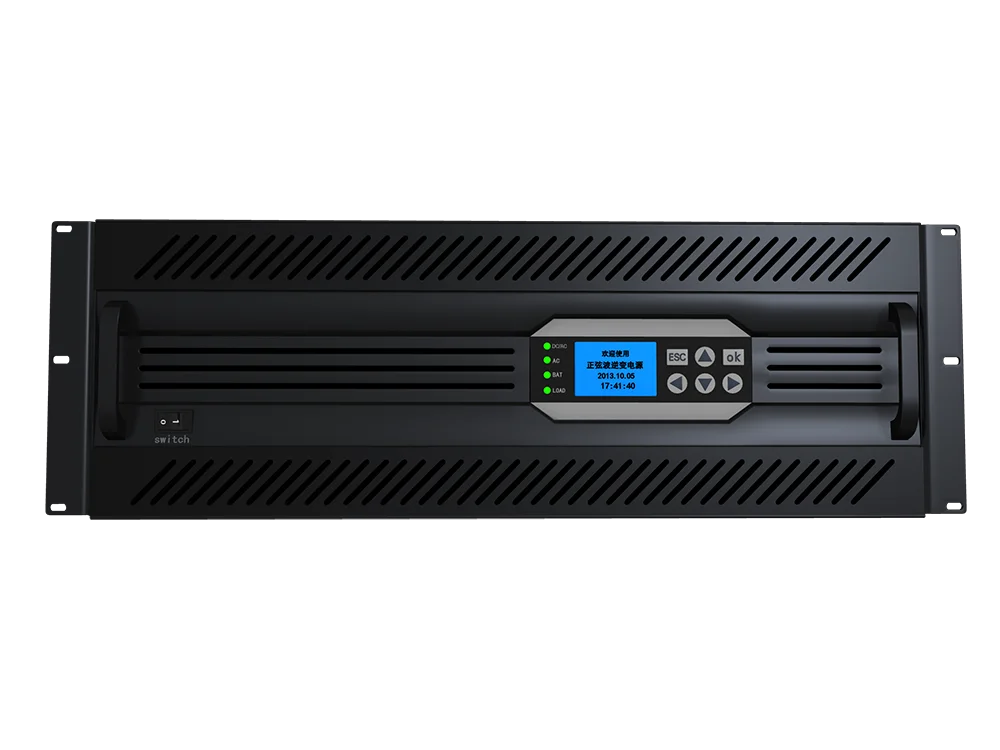

19 inch 4U rackmount 220vdc 10 kw inverter made in China 10KVA inverter for transmission substation
Inverter power supply This product adopts CPU to implement full digital control for each power conversion link of the inverter power supply. The system has a built-in high-power fan design, which greatly improves system reliability. Multiple SPWM and MCU control technologies provide precise control and isolation of input and output. , Output soft start, can be connected to a variety of options: SNMP network communication card, TCP-IP protocol box, etc., is the first choice for high-frequency pure sine wave inverters in the communication and power industries
Basic performance | ||||||||
DC Currnt(no-load) | 0.2A±0.1A | Power | Rating power | 1600W(±100W) | ||||
Inverter output(V) | 220±1.5% | Overload alarm power | 1600W(±100W) | |||||
Output Frenquency(HZ) | 50±0.1% | Overload shutdown power | 1700W(±100W) | |||||
Output waveform | Pure sine wave | Power factor | 0.8 | |||||
Main supply ways | ■Acz □Dcz | Ageing power | 1400W | |||||
Ageing time | ≥2H | |||||||
▶ The inverter has an ultra-wide input voltage and frequency range, and the grid adaptability is strong;
▶ The inverter's super load adaptability and output overload and short-circuit capability;
▶ When the harmonic filter is connected, the input power factor can be as high as 0.95, and the input harmonic current is less than 4.5%;
▶ The output power factor is as high as 0.85, which is 12% stronger than the load capacity of the traditional inverter power supply;
▶ The inverter's super load adaptability and output overload and short-circuit capability;
▶ When the harmonic filter is connected, the input power factor can be as high as 0.95, and the input harmonic current is less than 4.5%;
▶ The output power factor is as high as 0.85, which is 12% stronger than the load capacity of the traditional inverter power supply;
▶ Using CPU to convert the power of the inverter power supply, the system stability is higher;
▶ The inverter has a variety of built-in communication interfaces (RS232, RS485, dry contacts, etc.)
▶ LED+LCD status display, using 6-digit touch buttons; simple operation
Product Paramenters
Technical Index(VA) | 10KVA | ||
DC input | Rated input voltage (Vdc) | 220 | |
Rated input current (A) | 9 | ||
Allowable range of input DC voltage (Vdc) | 90-135 | ||
Backward noise current | ≤10% | ||
AC by-pass input | Allowable by-pass voltage (Vac) | 260V-180V(±10V) | |
Rated input current (A) | 4.5 | ||
By-pass conversion time (ms) | ≤5ms | ||
AC out put | Rated capacity (VA) | 10000 | |
Rated output power (W) | 10000 | ||
Inverter output voltage and frequency | 220Vac，50HZ | ||
Inverter output current (A) | 3.6 | ||
Output voltage precision (V) | 220±1.5% | ||
Output frequency precision (Hz) | 50±0.1% Or 60±0.1% | ||
Waveform | Pure sine wave | ||
Total harmonic distortion (THD) | ≤3% (linear load) | ||
Dynamic response time | 5% (load 0←→100%) | ||
Power factor (PF) | 0.8 | ||
Overload capacity | 100%-120% 60s 121%-150% 10s | ||
Inversion efficiency (80% resistive load) | ≥85% | ||
By-pass conversion time (ms) | ≤5ms | ||
Working environment | Dielectric strength (input and output) | 1500Vac, 1 minute | |
Noise (1m) | ≤40dB | ||
Operating environment temperature | -20℃~+50℃ | ||
Humidity | 0~90%, no moisture condensation | ||
Operating altitude (m) | ≤2000 | ||
Indication | LCD display | Input and output voltage, frequency, output current, temperature, percentage, etc. | |
inverter status | Normal mains, normal inversion, battery under-voltage and output overload | ||
Mechanical size | Standard rack (Depth × Width × Height) (mm) | 488X430X88mm | |
Protection function | Input under-voltage and overvoltage, output overload and short circuit protections, etc. | ||
weight | 11KG | ||

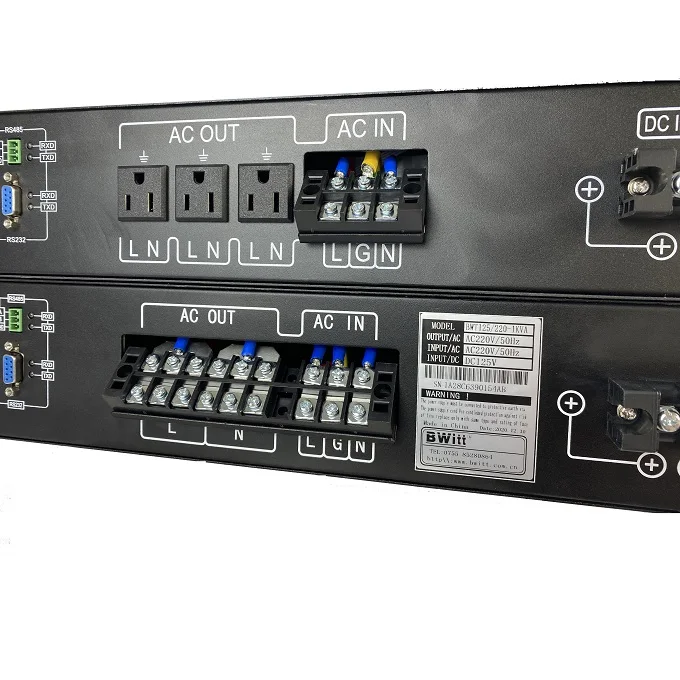

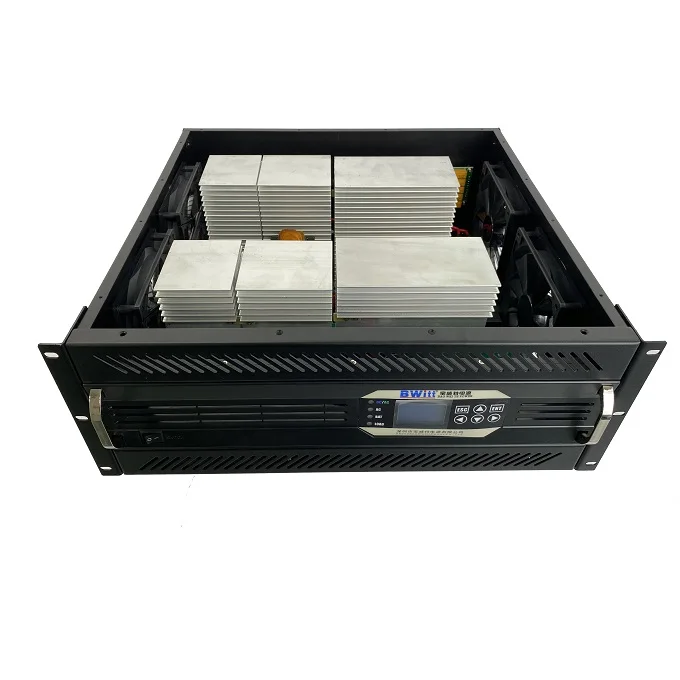

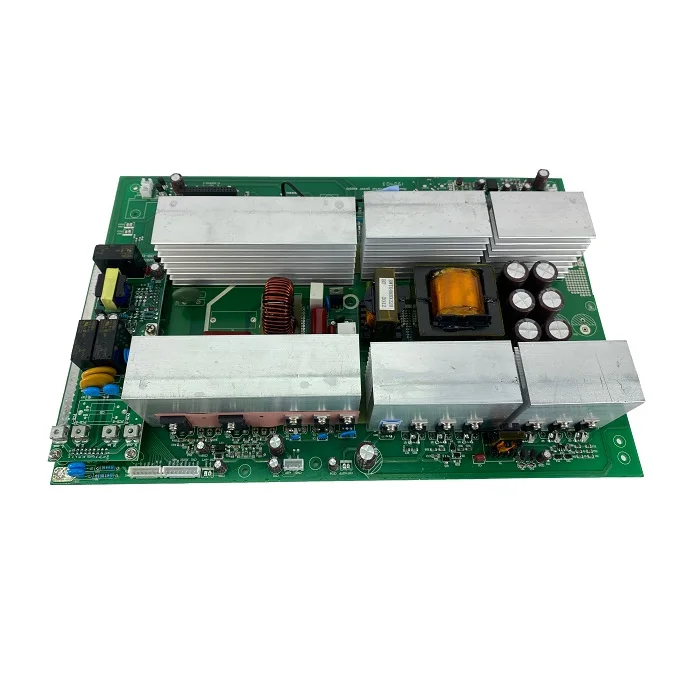

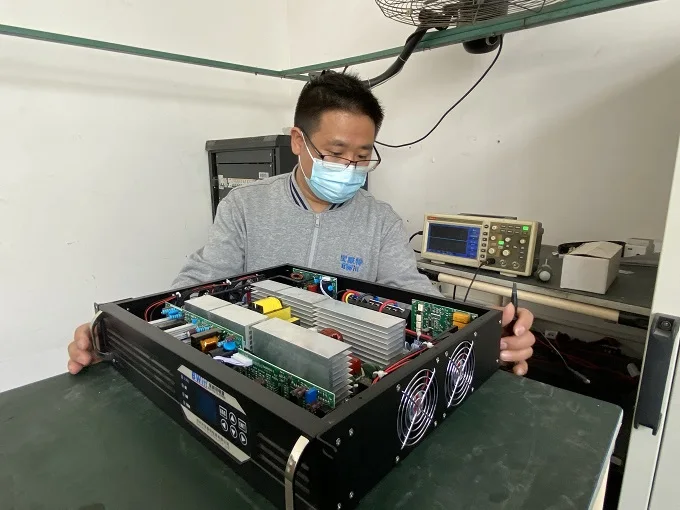

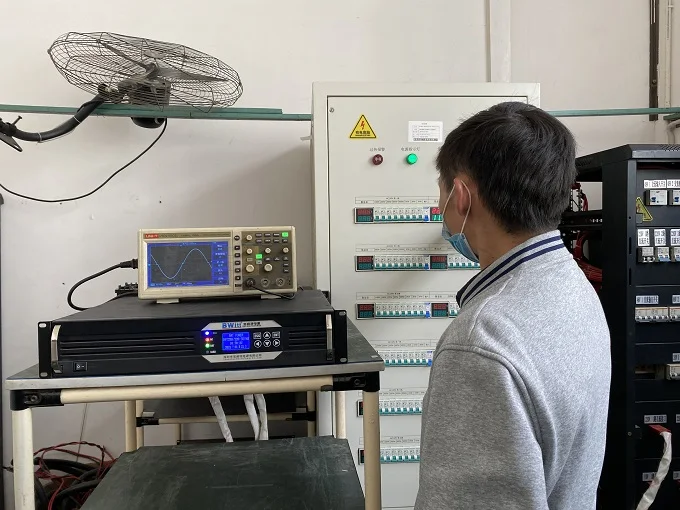

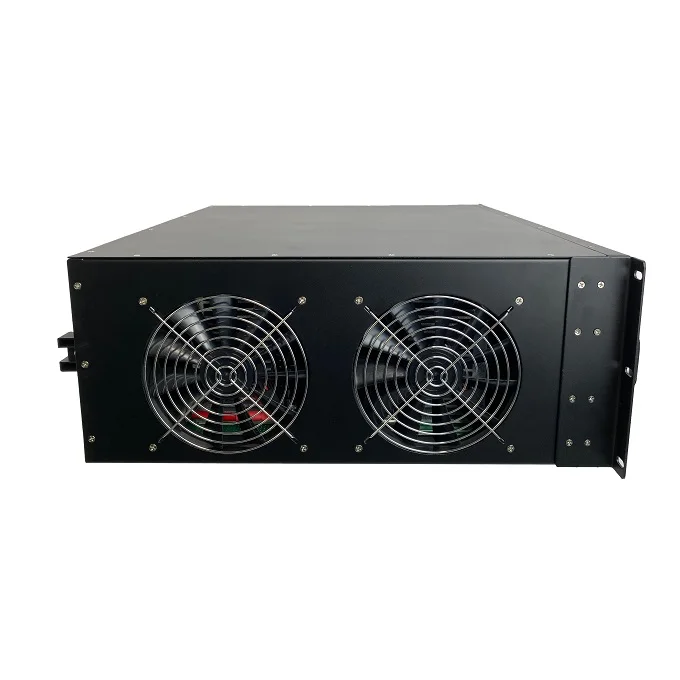

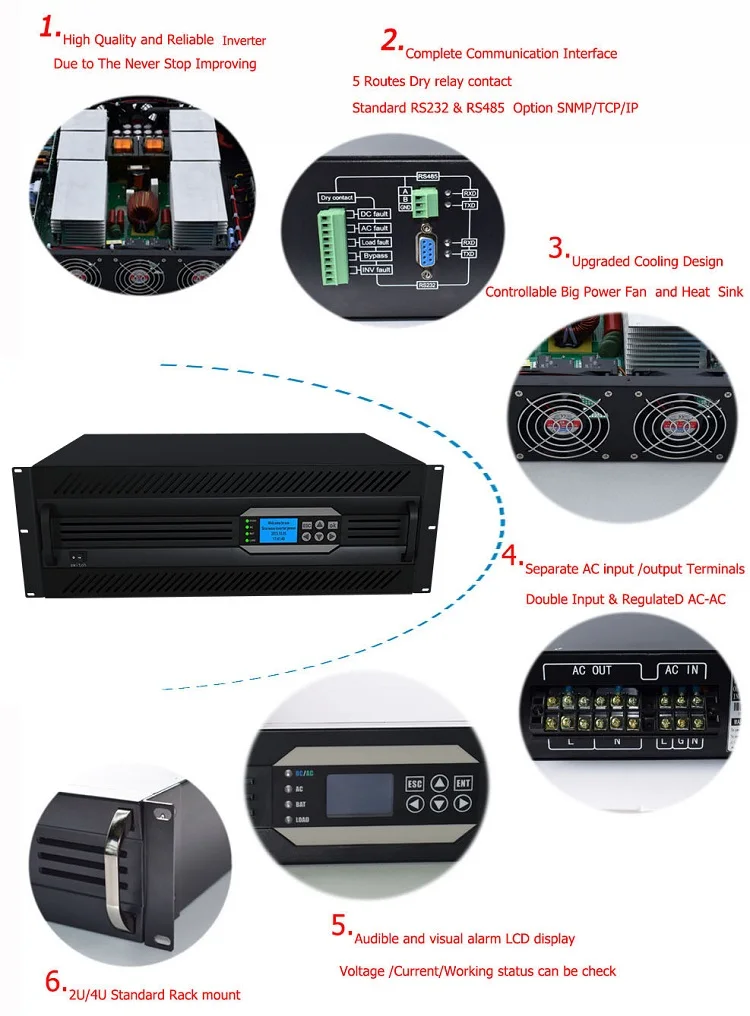

Details Images
Product packaging
product name: | Pure sine wave inverter |
Product packaging: | One inverter per carton |
Order number: | bwt202104194gsh-025 |
Production Date: | That day |
product weight: | 12kg |
Package dimensions: | 584*506*120cm |
Packing | Carton or wooden box |

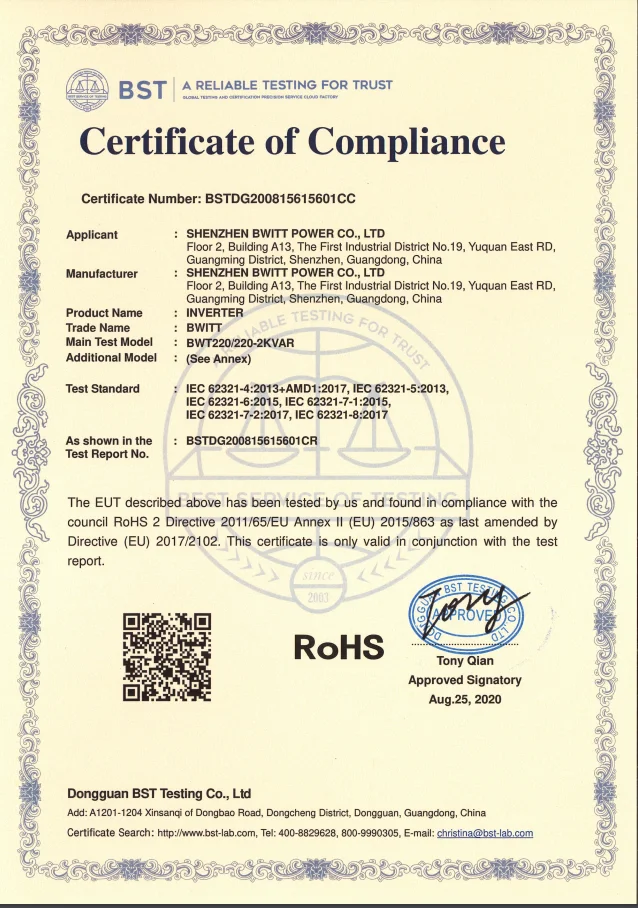

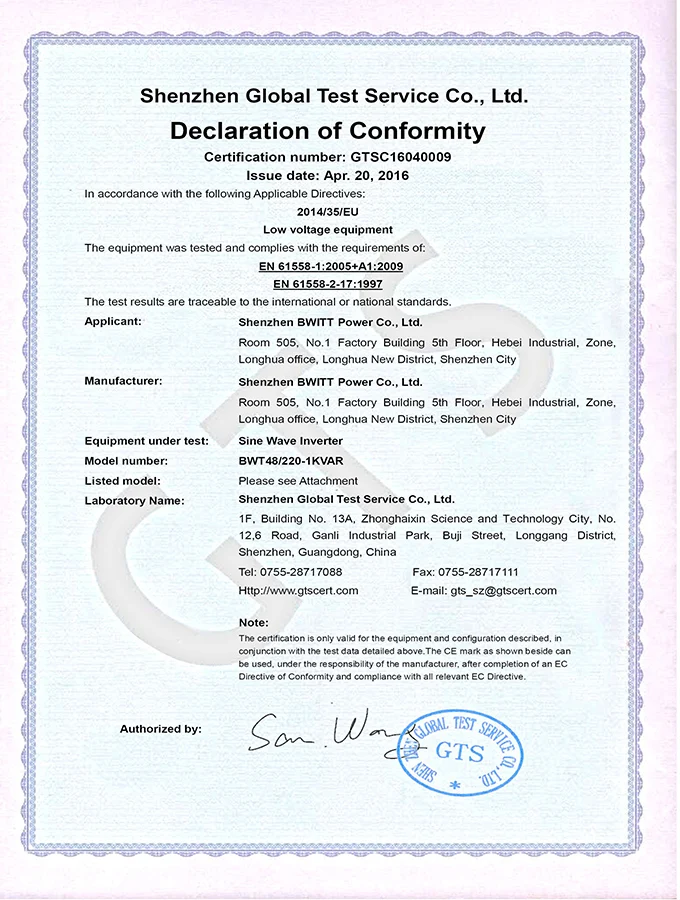

Certifications
All products have passed CE/ROSH quality certification
Company Profile
BWITT Power Supply is a high-tech enterprise focusing on R&D, production, sales and service of power equipment such as rack-mounted inverter power supplies, rectifier systems, and battery charging management systems. The main products are communication inverter power supply, power industry inverter power supply, communication rectification system, power rectification system
Our Advantages
FAQ
Question1: What is the Industrial frequency inverter characteristic?
Answer:
1.Suitable for different kind of lower environment
2.With strong load connecting ability
3.Strong stability
4.Output voltage stability
5.With large dimension
6.High efficiency
7.More dissipation Output without load connecting
8.With large capacity output
Question 2: Does the main input voltage and bypass input voltage can be switch in automatically or not for Industrial frequency inverter?
Answer:
1.Yes, it switch the main input voltage and bypass input voltage in automatically
2.Achieve uninterrupted operating with load
Answer:
1.Suitable for different kind of lower environment
2.With strong load connecting ability
3.Strong stability
4.Output voltage stability
5.With large dimension
6.High efficiency
7.More dissipation Output without load connecting
8.With large capacity output
Question 2: Does the main input voltage and bypass input voltage can be switch in automatically or not for Industrial frequency inverter?
Answer:
1.Yes, it switch the main input voltage and bypass input voltage in automatically
2.Achieve uninterrupted operating with load
Question 3: The user can select the main input voltage for the Industrial frequency inverter?
Answer:
1. Yes, There have 3 option , but buyer should be confirm before purchase
2. Pure DC Input without AC Bypass , if without ac input , the inverter will stop working
3. DC main input and ac bypass. When there have ac and dc input at the same time , dc voltage have priority , when dc voltage cut off , it can switch to ac for input in automatic
4. Ac main input and dc bypass, When there have ac and dc input at the same time , ac voltage have priority , when ac voltage cut off , it can switch to dc for input in automatic
Question4: can it make 3 phase output for Industrial frequency inverter
Answer:
1.Yes, it can
2.Buyer should be confirm before purchase
Answer:
1. Yes, There have 3 option , but buyer should be confirm before purchase
2. Pure DC Input without AC Bypass , if without ac input , the inverter will stop working
3. DC main input and ac bypass. When there have ac and dc input at the same time , dc voltage have priority , when dc voltage cut off , it can switch to ac for input in automatic
4. Ac main input and dc bypass, When there have ac and dc input at the same time , ac voltage have priority , when ac voltage cut off , it can switch to dc for input in automatic
Question4: can it make 3 phase output for Industrial frequency inverter
Answer:
1.Yes, it can
2.Buyer should be confirm before purchase

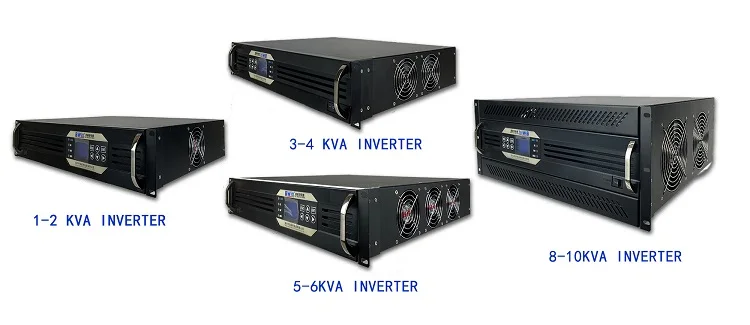

We Recommend
