CoolCox 140x140x25mm DC axial fan,14025,suitable for power supply,case cooling
CoolCox 140x140x25mm DC axial fan,14025,suitable for power supply,case cooling

CoolCox 140x140x25mm DC axial fan,14025,suitable for power supply,case cooling

Share on (60645129745):


Price:$1.90 - $2.80

Quantity:


Product Overview

Description



Product Description

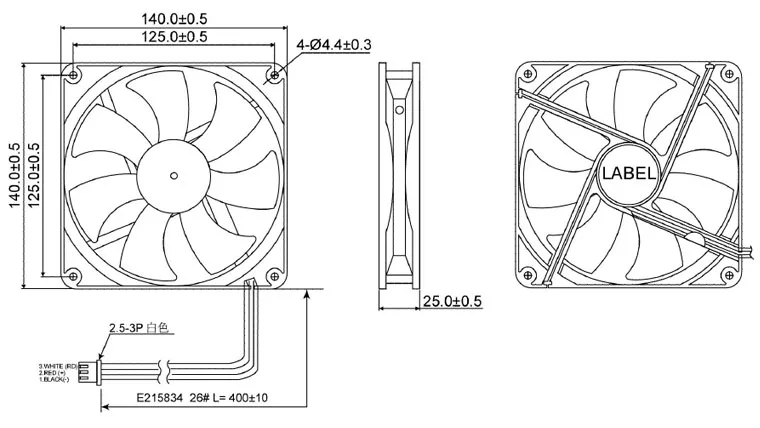

Dimensions:


 14025 dimension

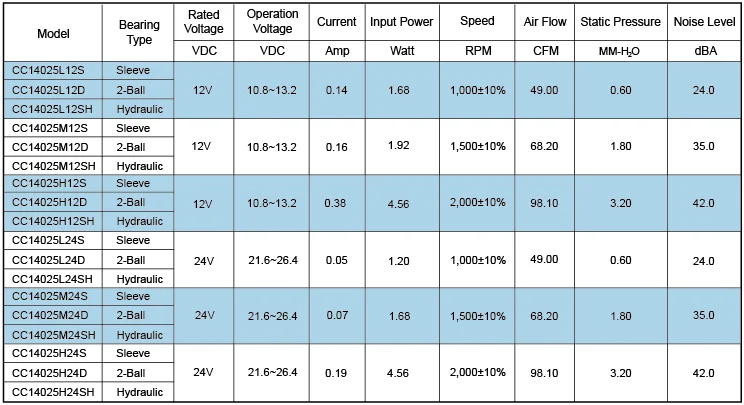

Parameters:


 CC14025_data_en_2021



























Parts Specs:

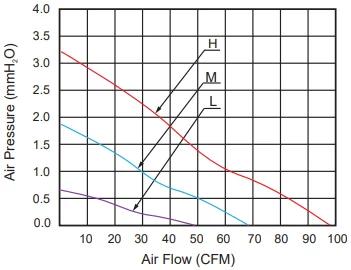

 P&Q Curve


Bearing type:Sleeve,2-Ball,Hydraulic


Material:
Frame & Impeler:PBT

Lead wire:
UL2468 AWG #26 or equivalent
Red Wire Positive (+)
Black Wire Negative (-)

FG,PWM,RD,Protection functions are optional





5V,12V,24V are available


 CC14025_data_curve_2021







Electrical  Specifications:

























 Insulation Resistance 10MΩ/between unshackled wire and frame at 500VDC/min
 Dielectric Strength 5Ma Max./Measured between lead wire(+)and frame at 500VAC/min
 Rotating Direction Anti-Clockwise
 Polarity Protect Circuit is protected when VCC&GND are exchanged
 No. of pole 4Poles







Environmental Specifications





















 Operating Temp  Range Temperature:-10℃~+70℃
 Humidity:35%~85%RH
 Store Temperature Temperature:-40℃~+70℃
 Humidity:35%~85%RH
 Thermal Shock Standard:MIL-STD 202F Method 107D,Condition D
 Insulation Shock UL:Class A







Testing Equipments


 cc_testing_equipments











Workshop


 CC_workshop_200812











Certifications


 ISO9001_14001








Packaging & Shipping

















FCL Shipment LCL Shipment
container pallet









 Air shipment:


Courier_logo_2








FAQ


 Lifetime:





















 Bearing type Lifetime
 Sleeve 30,000 hours
 Hydraulic 40,000 hours
 2-Ball 60,000 hours
