Pre Applied Thread coating machine with Touch screen
- Category: >>>
- Supplier: Cixi Tianhao Electric Technic Co. Ltd.
Share on (60645306897):
Product Overview
Description
Product Overview

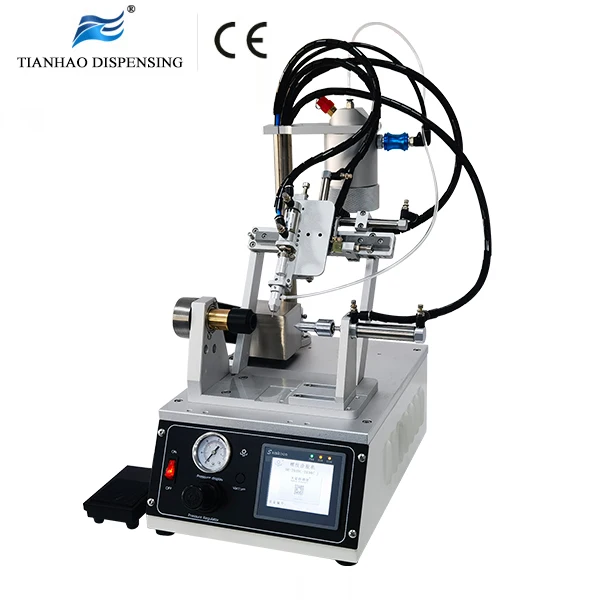

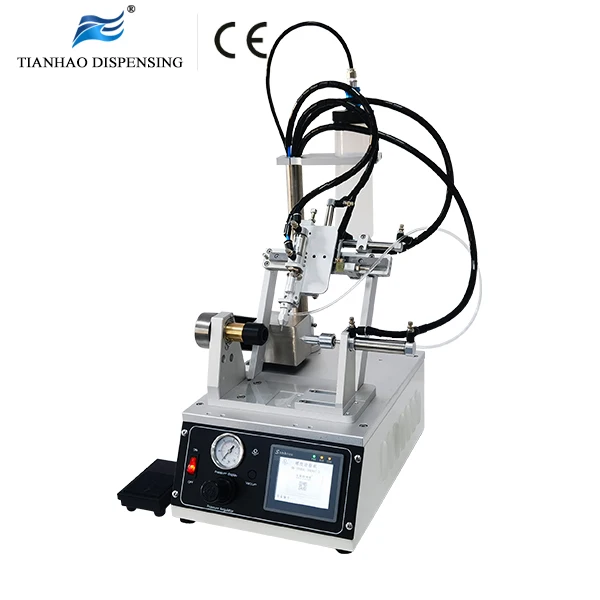

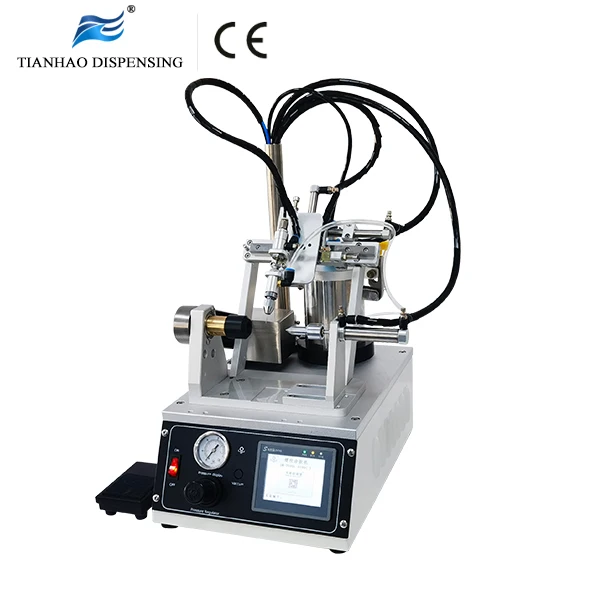

Pre-Applied Thread coating machine with Touch screen
Suitable for the all-different screw, bolt, nuts, Plug and various pneumatic connector, fastener thread coating
Liquid Material: Pre-coating threadlocker adhesive
Liquid Material: Pre-coating threadlocker adhesive
FEATURES AT A GLANCE
Feed system: 1KGS tank + special valve for Pre-coating glue + s/s needle. It is specially designed for pre-coating theadlocker
adhesive,Dispensing glue is uniform and no overflow, which can save more than 30% of glue.
The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more intuitive and convenient.
adhesive,Dispensing glue is uniform and no overflow, which can save more than 30% of glue.
The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more intuitive and convenient.

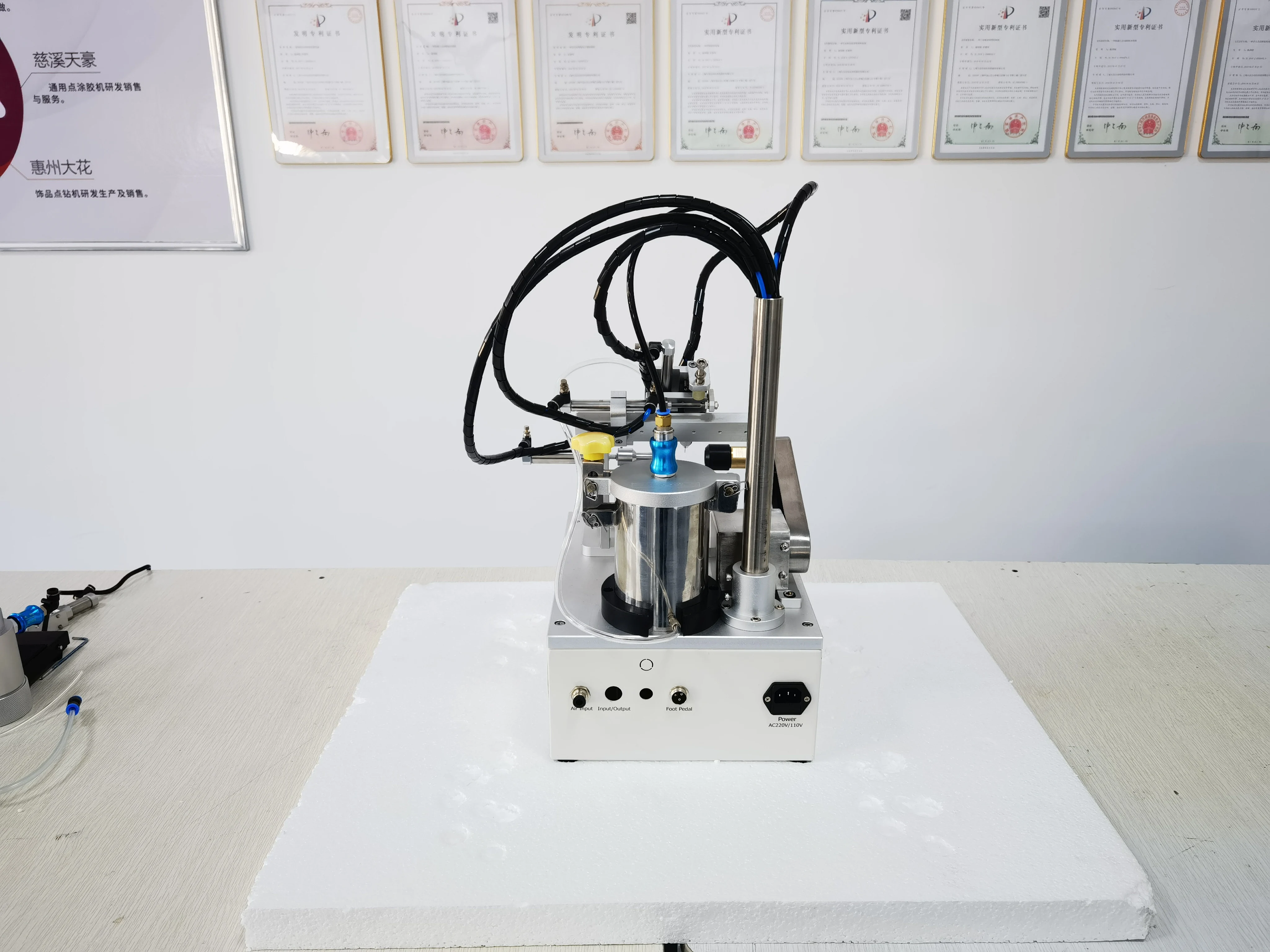

Right elevation
Left elevation

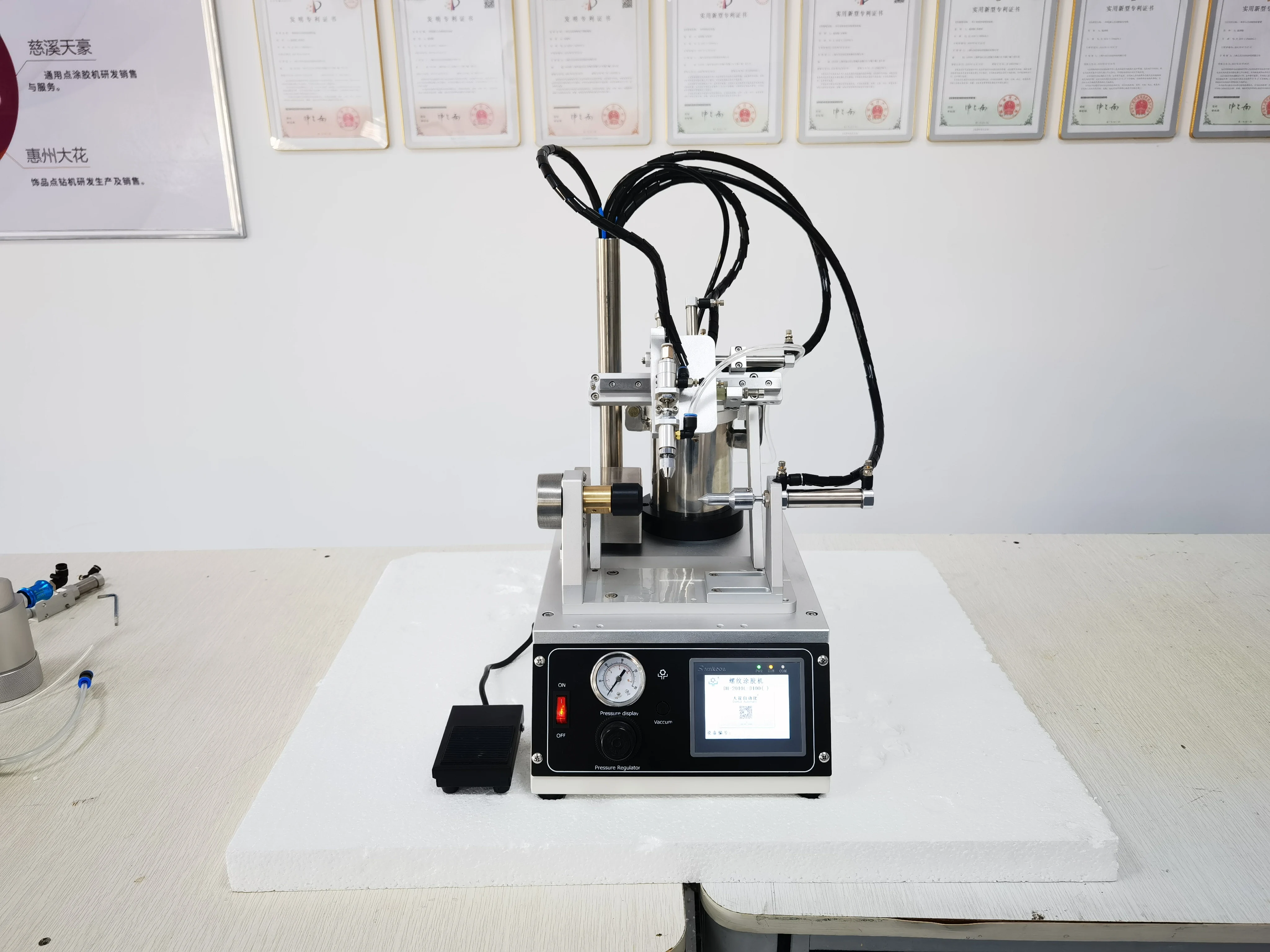

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power | 75KW |
2 | Input voltage | 110/220VAC (Internal conversion) |
3 | Input Air pressure | 5 bar (1bar =1.01972kg/cm² =14.5038psi) |
4 | Drive | Precision stepper motor |
5 | software | special software version 1.0 for thread coating machine |
6 | Thread ID | Size M5-M20 |
7 | Length | ≤100 mm（can adjusting） |
8 | Speed | 0.5-0.8S/circle of thread |
PRODUCT CONFIGURATION
1. Suitable for the thread M5-M20 and length less 100mm screw, bolt, nuts, Plug and various pneumatic connector fastener thread
coating
2. Good for each different threadlocker adhesive, as like pre-coating and anaerobic glue
3. Easy to replace different type threadlokcer adhesive.
4. Touch screen PLC professionally control system and visual operation panel, easy to set dispensing glue parameters;.
Adjustment gluing positions of start and end positions, and the number of gluing circles
5. Only replace different product jig can suting different products model.
6. Add voltage stabilization control module, the glue output is more stable
7. Option add the unload device ,that save pick place time by manual.
8. The product be glued product by machine, greatly improves reliability and durability.sealing
coating
2. Good for each different threadlocker adhesive, as like pre-coating and anaerobic glue
3. Easy to replace different type threadlokcer adhesive.
4. Touch screen PLC professionally control system and visual operation panel, easy to set dispensing glue parameters;.
Adjustment gluing positions of start and end positions, and the number of gluing circles
5. Only replace different product jig can suting different products model.
6. Add voltage stabilization control module, the glue output is more stable
7. Option add the unload device ,that save pick place time by manual.
8. The product be glued product by machine, greatly improves reliability and durability.sealing
