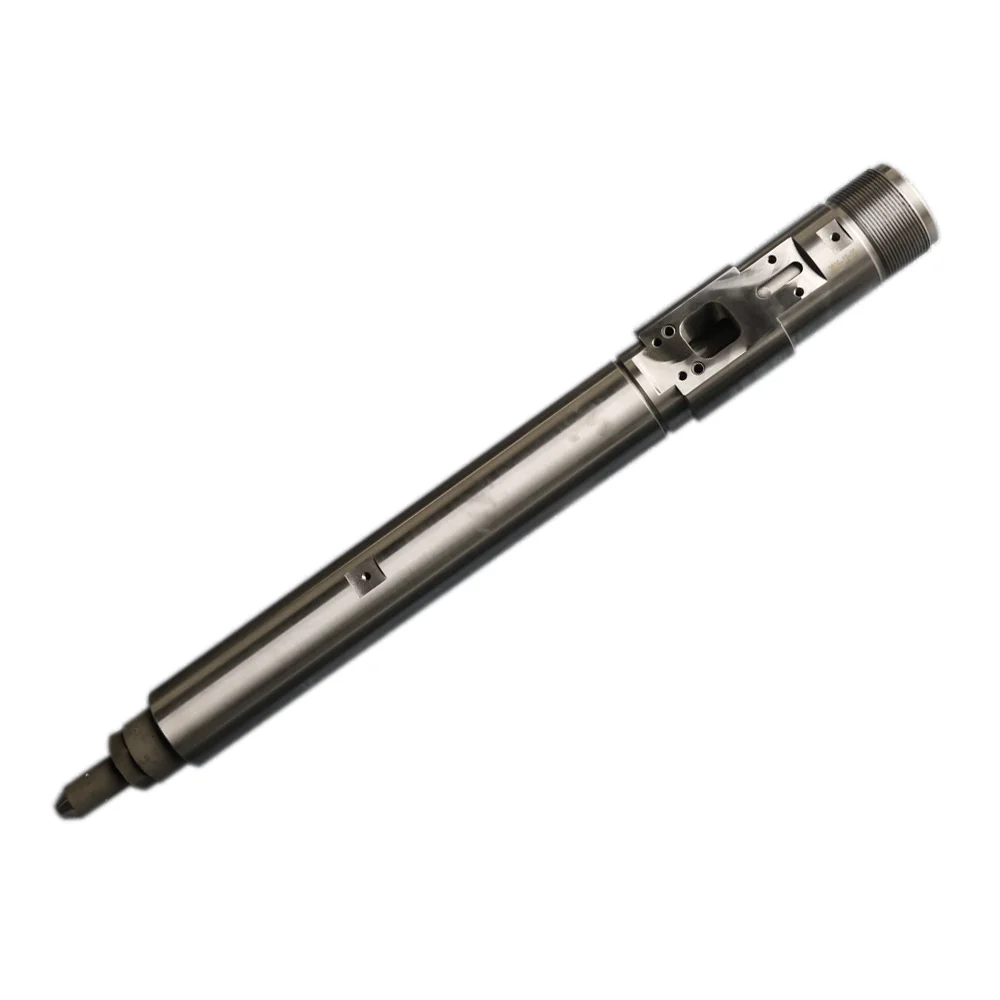

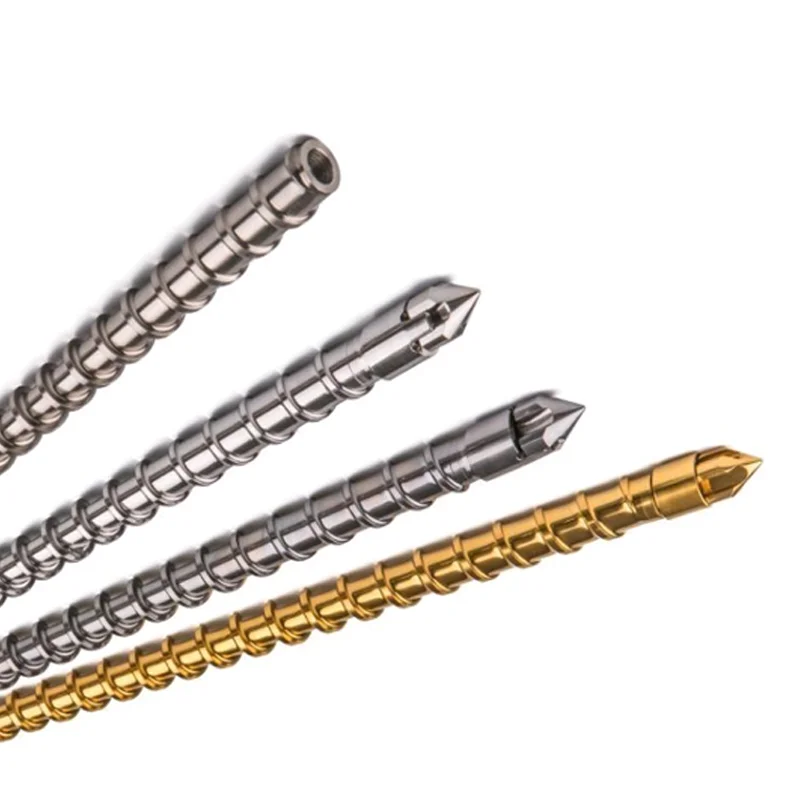

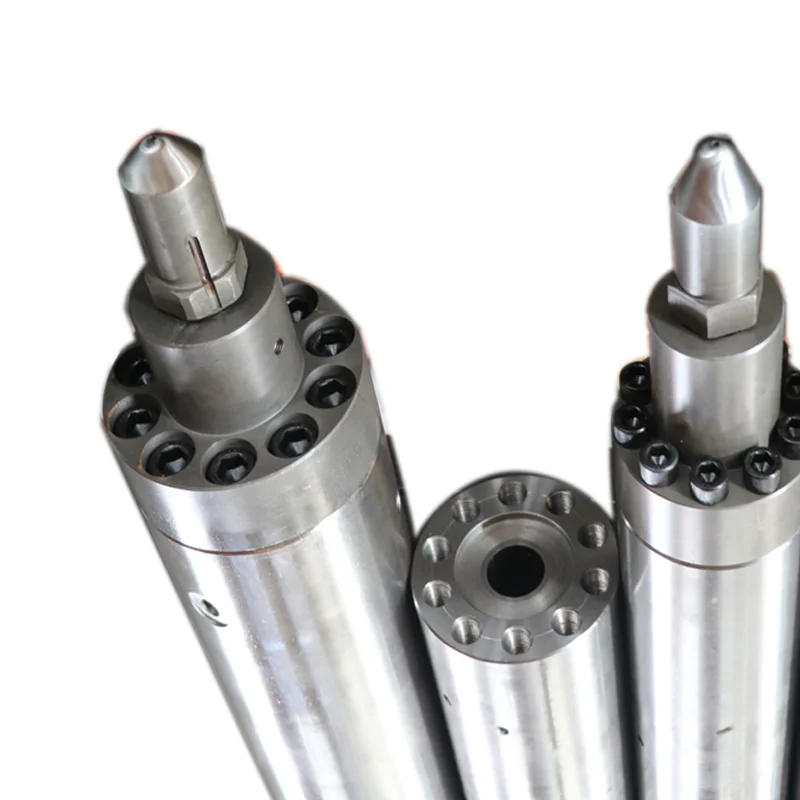

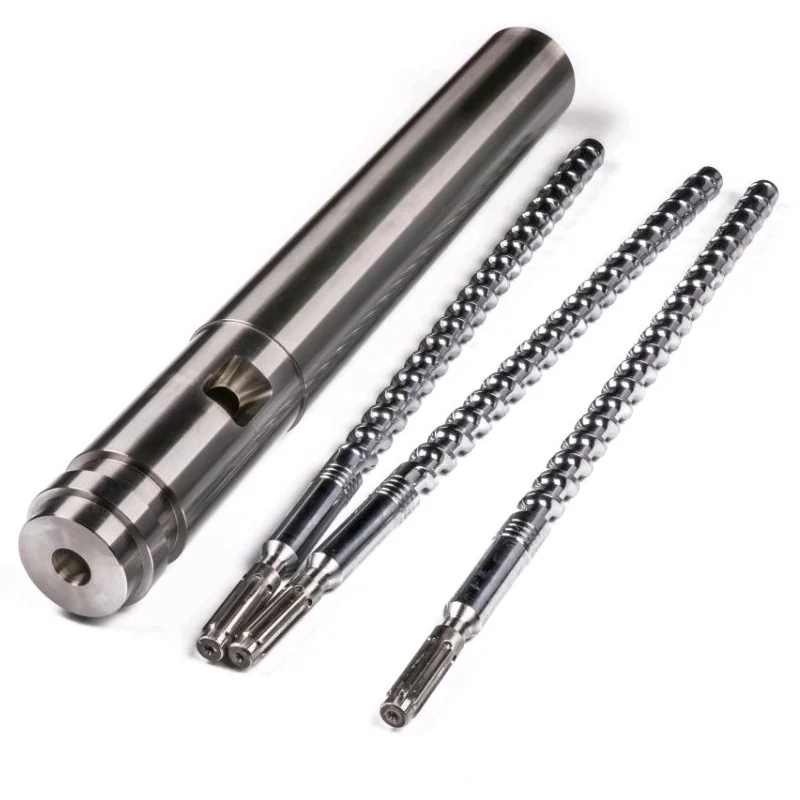

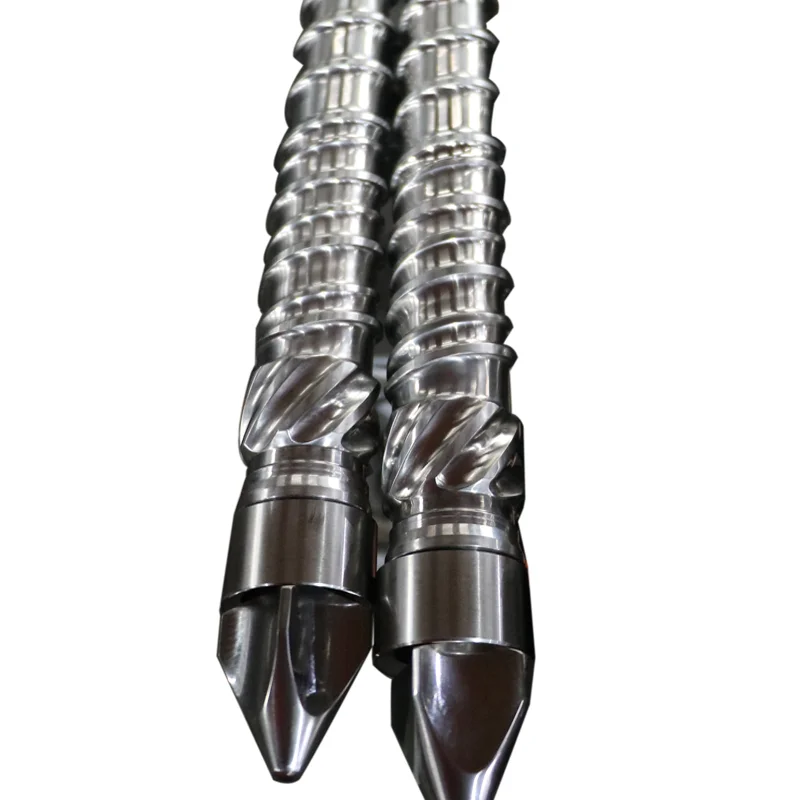

injection molding machine barrel and screw for shoes sole

Product Overview

Description



Technical Parameters:





Screw diameter : 10-500mm



Product	screw for shoes sole
Material	38 CrMoAlA(JIS SACM645); 42 CrMo(AISI 4140); Cr12MoV(JIS SKD-11); 4Cr5MoSiV1(JIS SKD-61)
Nitrided Hardness	HV900°~1000°
Hardness after hardening and tempering	HB260 °
Nitrided Depth	0.5~0.7mm
Nitrided Brittleness	above 2 stage
Surface Roughness	Ra0.4
Screw straightness	0.015mm
Hardess of surface chromium-plating after Nitriding	HV≥950HV
Chromium plating Depth	0.05~0.10mm
Alloy Depth	0.8~3.0mm
Alloy hardness	HRC56°~65°
Alloy(bimetallic)	iron,nickel,tungsten,molybdenum
Types of screw barrel	Gradual type,mutant type,wave type,barrier type,double screen type,shunt type,separation type,exhaust type,pin type,mixed type,double-head type,three-head type,multi head type etc.

Scope of application



For good plasticizing effect,we have different designs of screw and barrel for extruder or injection to meet customer's demand.Our factory manufactures with high-quality material, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness.

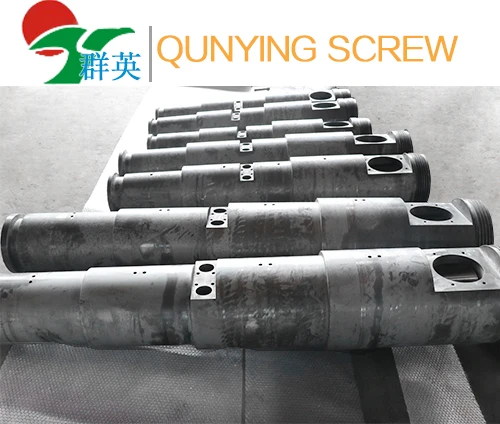

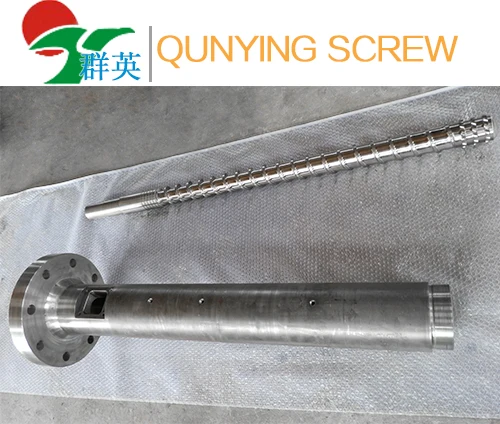

Our exhibition:



Our advantages:



1. Screw and barrel for various models



2. Professional engineers design for you



3. Since 2003 year in this line



4. Insist on developing screw and barrel for more injection and extruder machine models





5. Main market: Southeast Asia,Eastern Europe, Africa
