fan water spray,nozzle sprayer v nozzle 11005
US $1.40-$1.54
Alumina Sand Blasting Ceramic Nozzle
- Category: Cleaning Equipment Parts >>>
- Supplier: Dongguan Mingrui Ceramic Technology Co. Ltd.
Share on (60645384517):
Product Overview
Description
Product Description

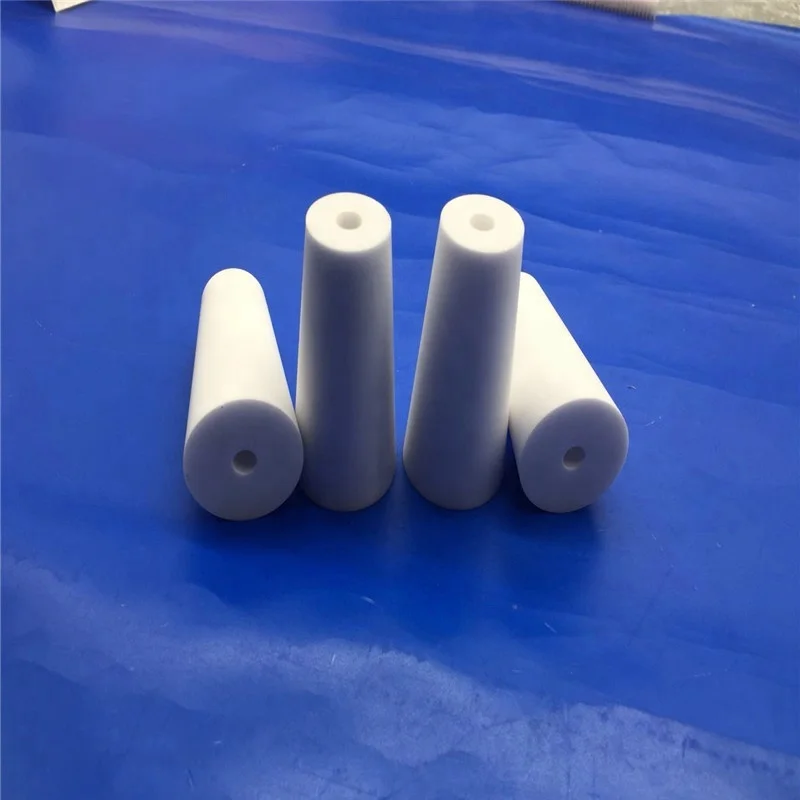

Alumina Sand Blasting Ceramic Nozzle
Ceramic nozzles are made of new ceramic materials through molding, sintering, precision machining and other processes.It has excellent corrosion resistance, high hardness, high temperature and pressure resistance, high smoothness, high precision and other ceramic properties than metal materials.
Ceramic material composition:
· 95%--99.99% Alumina (Al2O3) · Zirconia(ZrO2) · Silicon Carbide · Silicon Nitride..
· 95%--99.99% Alumina (Al2O3) · Zirconia(ZrO2) · Silicon Carbide · Silicon Nitride..
Precision specification:
Dimension + / - 0.001mm, the narrowest groove width 0.1 x 100mm,
linear tolerance 0.001mm, cylindricity 0.004mm...
The assembly:threaded fittings, valves, filters, pressure gauge...
Dimension + / - 0.001mm, the narrowest groove width 0.1 x 100mm,
linear tolerance 0.001mm, cylindricity 0.004mm...
The assembly:threaded fittings, valves, filters, pressure gauge...
Part of available ceramic nozzle sizes:
| Length | Outside diameter | Bore diameter |
| 28mm/35mm/36.5mm.. | 8mm/15mm/15.5mm.. | 4.5mm/5mm/6mm/7mm.. |
Ceramic material composition:
· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)

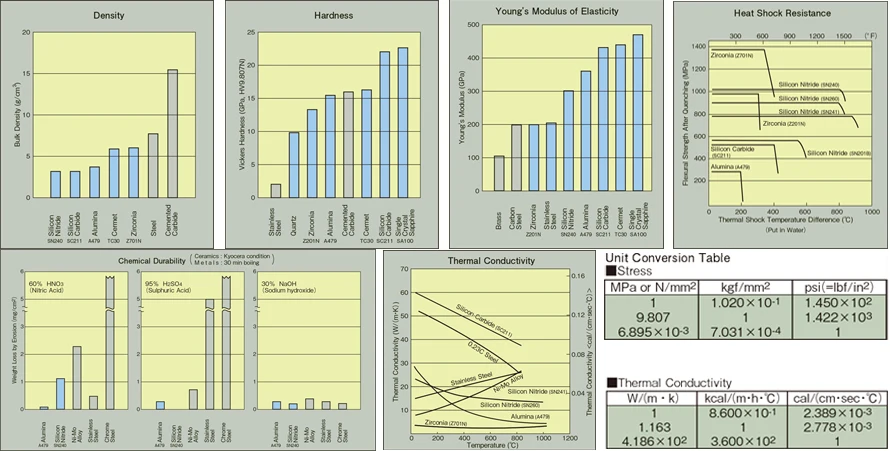

| Properties | Units | AL2O3 | ZrO2 | SiC | Si3N4 |
| Density | g/cm3 | 3.65-3.93 | 5.95-6.0 | 3.12 | 3.23 |
| Water absorption | 0 | 0 | 0 | 0 | 0 |
| Coefficientof thermal expansion | 10-16/k | 7.9-8.5 | 10.5 | 3 | 3.2 |
| Modulus of elasticity young`s mod | GPa | 280-340 | 210 | 440 | 300 |
| Poission`s ratio | / | 0.21-0.22 | 0.3 | 0.17 | 0.26 |
| HV hardness hv | MPa | 1650 | 1300-1365 | 2800 | 1500 |
| Flexural strength | MPa | 310 | 950 | 390 | 720 |
| Flexural strength(700℃) | MPa | 230 | 210 | 380 | 450 |
| Compressive strength | MPa | 2200 | 2000 | 1800 | 2300 |
| Fracture toughness | MPa*m1/2 | 4.2 | 10 | 3.9 | 6.2 |
| Heat conductivity | W/m*k | 26-30 | 2-2.2 | 120 | 25 |
| Electrical resistivity | Ω*mm2/m | >1016 | >1015 | >103 | >1013 |
| Max use temperature | ℃ | 1750 | 1050 | 1550 | 1050 |
| Resistance to acid alkaline | / | high | high | high | high |
| Dielectric constant | / | 9.6 | 29 | 9.66-10.03 | / |
| Dielectric strength | KV/mm | 8.7 | 9 | / | / |
| Thermal shock resistance | T(℃) | 180-220 | 280-350 | 230-260 | / |
| Tensile strength | MPa | 248 | 250 | / | / |
Customization & Machining Service:
As a manufacturer of ceramic nozzle and related ceramic parts, we support machining or customization of ceramic nozzle of special sizes and shapes.High Precision, Fast Delivery Time, High Composition.For more tubes, please contact us now!!
| Precision of manufacture | |
| Dimensional accuracy | Up to 0.001mm |
| Smoothness | Highest possible mirror |
| Concentricity | Up to 0.003mm |
| Parallelism | Up to 0.002mm |
| The inner hole tolerance | The minimum 0.005mm |
| Straight flute | The narrowest 0.1x100mm |
| The thickness of the size | Minimum to 0.02mm |
| The screw thread | Minimum internal thread M2 |
| Cylindricity | Up to 0.004mm |
| The linear tolerance | Up to 0.001mm |
| The smallest aperture | The minimum 0.07mm |
| Precision process | CNC maching,grinding,lapping |
| Surface finish | Glazed,polishing or metallized |
| Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface | |
Related products
As a ceramic parts manufacturer for industry applications, we can custom and sales all kind of the ceramic parts and components, ceramic rod series, ceramic tube series, ceramic bushing / sleeving series, ceramic pump parts series , other more related product which made from ceramics.
And more detaisl and types of the ceramic products at websites home, please clik here:Home Sites
Ceramic Parameter
Ceramic material composition:
· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)
...
The properties of ceramic:
·Excellent physical & chemical stability ·High temperature resistance
·Excellent wear & pressure & corrosion& insulation resistance and thermal conductivity...
| Properties | Units | AL2O3 | ZrO2 | SiC | Si3N4 |
| Density | g/cm3 | 3.65-3.93 | 5.95-6.0 | 3.12 | 3.23 |
| Water absorption | 0 | 0 | 0 | 0 | 0 |
| Poission`s ratio | / | 0.21-0.22 | 0.3 | 0.17 | 0.26 |
| HV hardness hv | MPa | 1650 | 1300-1365 | 2800 | 1500 |
| Flexural strength | MPa | 310 | 950 | 390 | 720 |
| Heat conductivity | W/m*k | 26-30 | 2-2.2 | 120 | 25 |
| Electrical resistivity | Ω*mm2/m | >1016 | >1015 | >103 | >1013 |
| Dielectric constant | / | 9.6 | 29 | 9.66-10.03 | / |
| Dielectric strength | KV/mm | 8.7 | 9 | / | / |
| Coefficientof thermal expansion | 10-16/k | 7.9-8.5 | 10.5 | 3 | 3.2 |
| Modulus of elasticity young`s mod | GPa | 280-340 | 210 | 440 | 300 |
| Flexural strength(700℃) | MPa | 230 | 210 | 380 | 450 |
| Compressive strength | MPa | 2200 | 2000 | 1800 | 2300 |
| Max use temperature | ℃ | 1750 | 1050 | 1550 | 1050 |
| Resistance to acid alkaline | / | high | high | high | high |
| Thermal shock resistance | T(℃) | 180-220 | 280-350 | 230-260 | / |
| Fracture toughness | MPa*m1/2 | 4.2 | 10 | 3.9 | 6.2 |
| Tensile strength | MPa | 248 | 250 | / | / |
Manufacturing parameters:
| Additional Information:
| |||||||||||||||||||||||||||||
As a manufacturer of ceramic parts, we offer customization of ceramic for special sizes and shapes.High Precision, Fast Delivery Time, High Composition.
Company Information
CULTURE
We are a leading manufacturer of industrial ceramic parts, who has years of R&D experience in China. And very advanced technologies in the production of zirconia and alumina ceramic tube, ceramic rod, ceramic plate, ceramic ring, ceramic sleeve, ceramic valve, ceramic piston plunger pump, and semiconductor ceramics, etc.
They are applicable to Electrical, Appliance, Mining, Oil & Gas, Energy & Power, Food & Medical, Agriculture, Aerospace, even other high-end fields.
