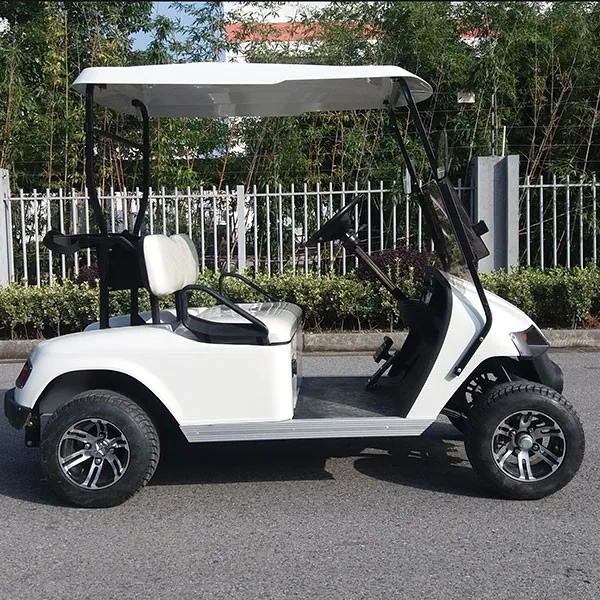

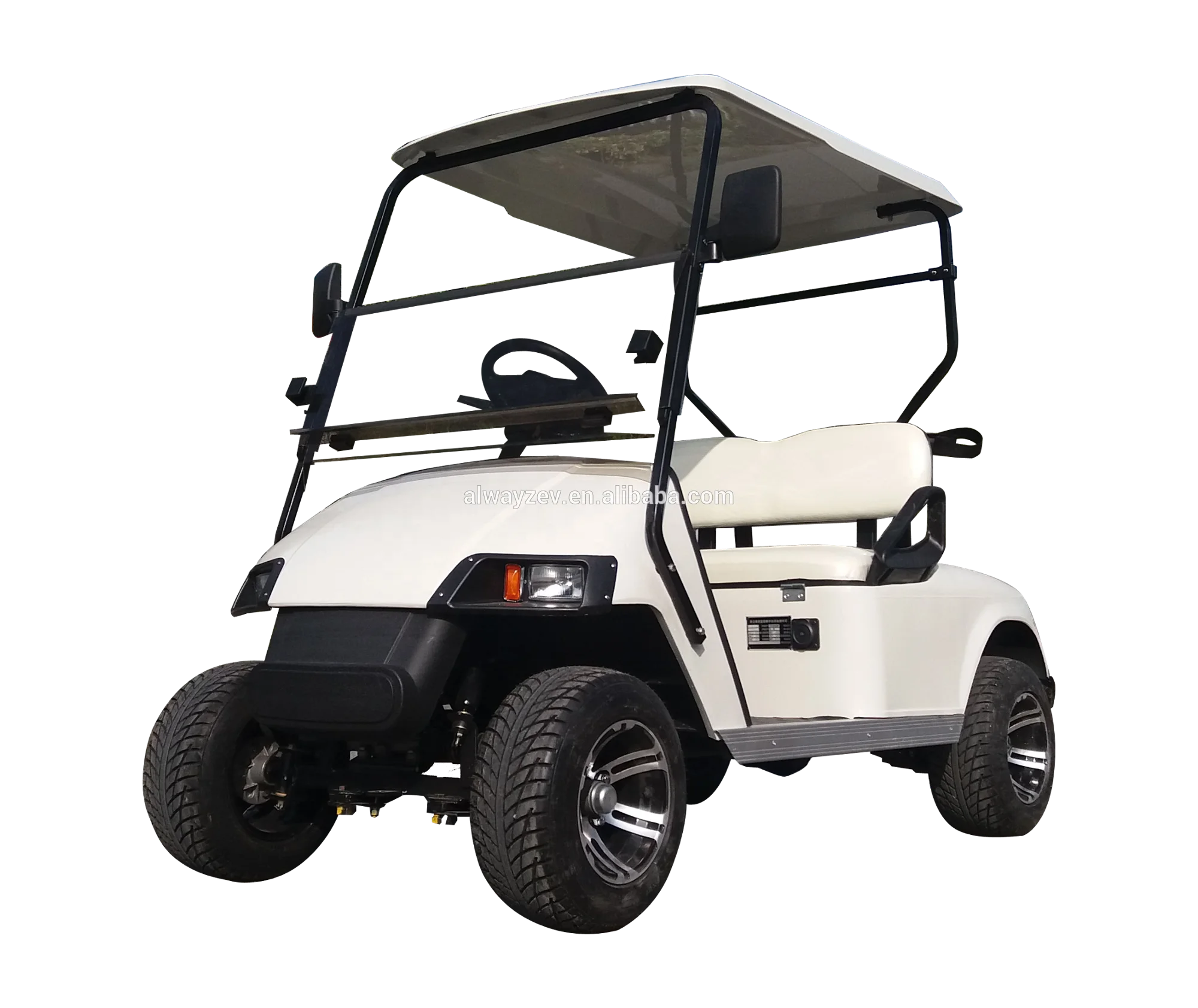

Battery powered golf carts AW2024K electric golf buggy for promotion

Share on (60645549907):


Price:

Quantity:


Product Overview

Description


Company Information
electric beach buggy

  Suzhou Alwayz Electric Vehicle



     Manufacturing Co.LTD

Custom golf car 2-seater
Vehicle modelAW2024K

Main Specifications
System Voltage48V
DC or ACAC
Battery8pcs quality lead-acid batteries
Motor3KW
ControllerCurtis  or Navitas
Passenger capacity2
Max. range (loaded) subject to running on flat road at a speed of 20km/h (km) >60
Max. speed @10.25:1 gear ratio30
Minimum turning radius (m)3.5
Max. climbing ability (loaded)    20%
Max. movement after brake at speed of 20km/h≤4m
Max. loading weight270kgs
Net weight410kgs
Overall dimensions (mm)2350X1180X1800

Other specifications
FrameWelded steel framework to be treated in dipping (phosphate)+electro-coating treatment
BodyPP plastic front body + PP plastic rear body
Rooffiberglass or plastic
WindshieldWindshield, hinged
Large Seats:
     1) backrest and cushionRebond seat + artificial leather
     2) armrestplastic
Floorrubber
Dashboard in black plasticforward/reverse switch, battery capacity indicator, ignition key
Beverage holders 4 cups drink holders
Side trimAluminum
Score card holderon steering wheel
Towing bracket on front of golf car
Lighting system and horn2 headlights, 2 front turn signals, 2 LED taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 48V to 12V), horn.
Reversing alarm\\
Chargeron-board charger, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A
Steering systemSingle-stage rack and pinion steering system, automatic rocker compensating function
Brake systemMechanical brake
AcceleratorStepless speed change
Suspension systemFront and rear plate spring + cylinder hydraulic shock absorber
Driving modeRear axle two stage deceleration, motor direct driving
Rear axleIntegrated, Gear ratio12.49:1
Integrated, Gear ratio10.25:1
Wheel & Tyre10x6 Alumimum wheel & 205/50-10 4PR
