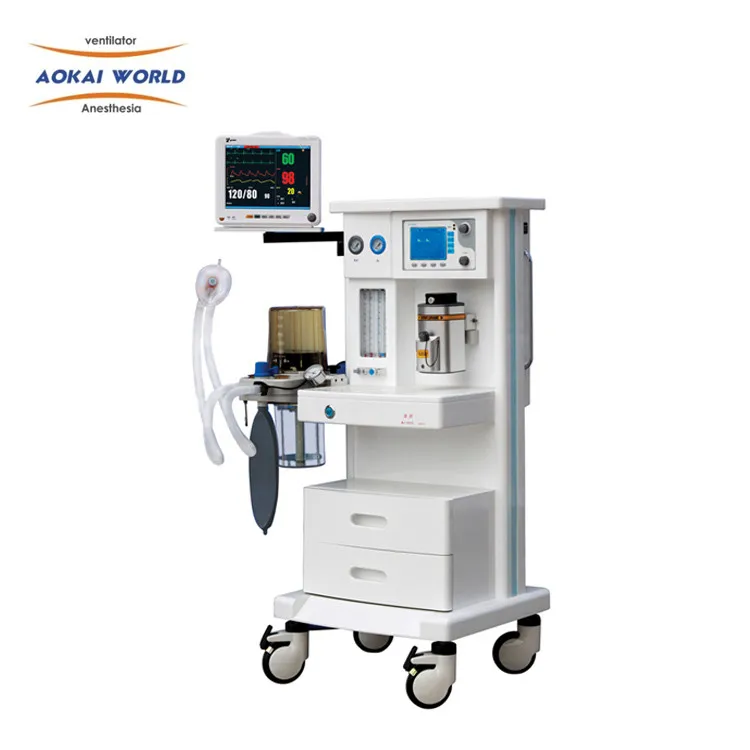

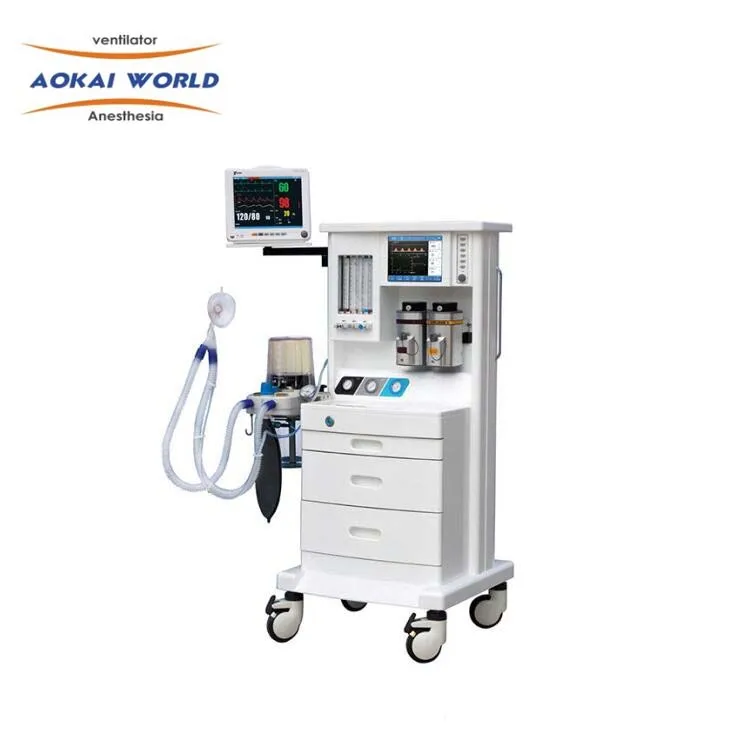

5.7 inch High Definition LCD Screen Display Anesthesia Machine with Ventilator for sale

Anesthesia Machine

Model

MJ-560B

MJ-560B1

MJ-560B2

MJ-560B3

MJ-560B4

MJ-560B5

Part of Anesthesia Machine

Main body

High-strength engineering plastic rack, light, beautiful and corrosion resistan

Scope of application

adult, child(4 years above)

Gas source

O2:0.28~0.6 MPa

O2, N2O: 0.28~0.6MPa

O2, N2O, Air: 0.28~0.6MPa

Flow meter

 O2:

n1.0-10L/min

 O2:

 0.05-1.0L/min  1.1-10L/min

 O2,N2O:

 0.05- 10L/min  0.05-10L/min

O2,N2O:

0.05-1.0L/min

1 .1-10L/min

O2,N2O:

0.05-1.0L/min   1.1-10L/min

O2,N2O:

0.05-1.0L/min

1.1-10L/min

Air:0. 05-10L/min

O2, N2O linkage and N2O Stopper

When using nitrous oxide, oxygen concentration>25%. When the oxygen pressure<0.2MPa, the flow of nitrous oxide would be cut off.

Vaporizer

one

One, high-precision evaporator

One, high-precision evaporator

One, high-precision evaporator

Two, high-precision evaporator

Two,high-precision

evaporator

Part of Ventilator

Display mode

5.7”

5.7”

10.4” TFT

5.7”

10.4” TFT

 mode

IPPV, SIPPV, SIMV, MANUAL

IPPV,SIPPV,

SIMV, MANUAL

IPPV, SIPPV, SIMV, MANUAL, VCV, PCV

IPPV,SIPPV,SIMV,

MANUAL

IPPV, SIPPV, SIMV, MANUAL, VCV, PCV

function

PEEP, SIGH, IRV

PEEP, SIGH, IRV

PEEP,SIGH, IRV,

IP, standby

PEEP, SIGH, IRV

PEEP,SIGH, IRV, IP,  standby

TV

50~1500ml

50~1500ml

20~1600 ml

50~1500ml

20~1600 ml

Rate

2~99 bpm

2~99 bpm

2~99 bpm

2~99 bpm

2~99 bpm

SIMV rate

2~20 bpm

2~20 bpm

2~20 bpm

2~20 bpm

2~20 bpm

I:E

2:1~1:8

2:1~1:8

4:1~1:8

4:1~1:8

Inspiratory trigger pressure

-10~20cmH2O

-10~20cmH2O

-10~20cmH2O

-10~20cmH2O

-10~20cmH2O

PEEP

2~20cmH2O

2~20cmH2O

2~20cmH2O

2~20cmH2O

2~20cmH2O

Pressure limitation

5~60 cmH2O

10~60cmH2O

5~60 cmH2O

SIGH

1.5 times the inspiratory time/100bpm

SIGH 1.5 times the inspiratory time (60-120 adjustable)

1.5 times the inspiratory time/100bpm

IGH 1.5 times the inspiratory time (60-120 adjustable)

Inspiratory platform

0~50%

0~50%

Pressure control

3~50 cmH2O

3~50 cmH2O

Pressure slope

1~10 gear

1~10 gear

Power

AC 220V 50Hz (UPS, Storage battery)

Parameters for ventilation monitoring

B1, B2, B4: tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure - time waveform, flow - time waveform, PEEP, inspiratory trigger pressure

B3, B5: tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure, inhale tidal volume, inspiratory platform, average pressure, autonomous inspiratory rate, oxygen concentration, battery capacity, flow-volume loop, pressure-volume loop

Mechanical Arms

YES

YES

YES

End-tidal CO2 monitoring

Optional
