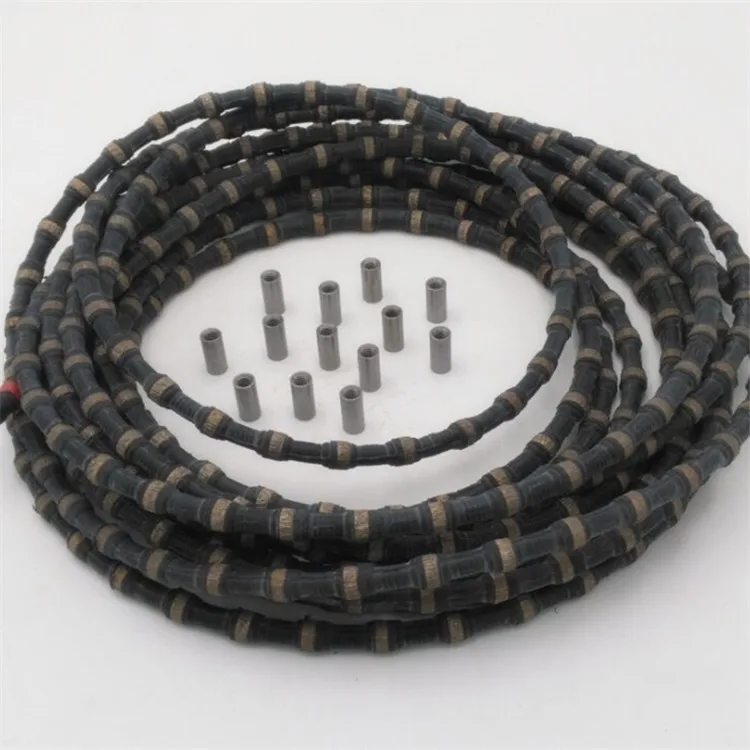

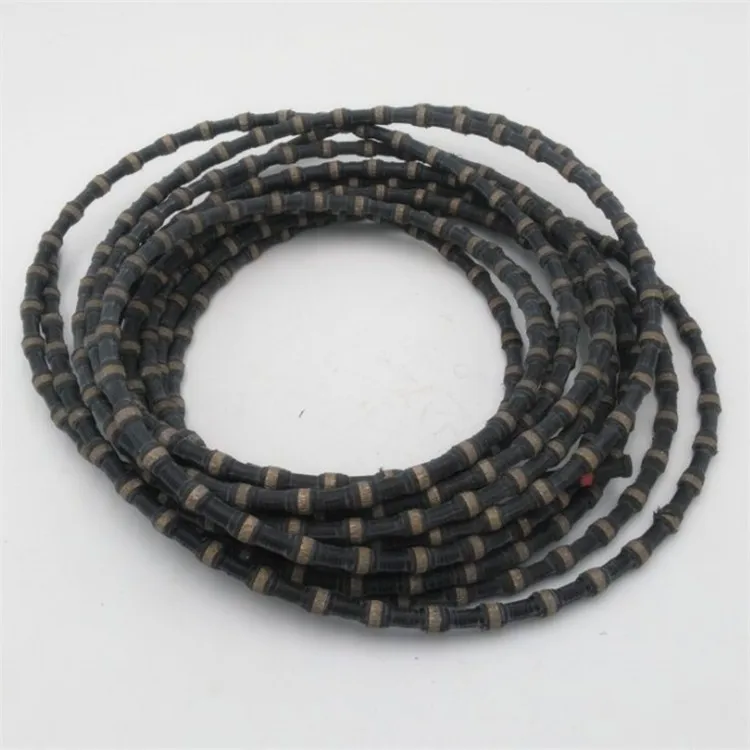

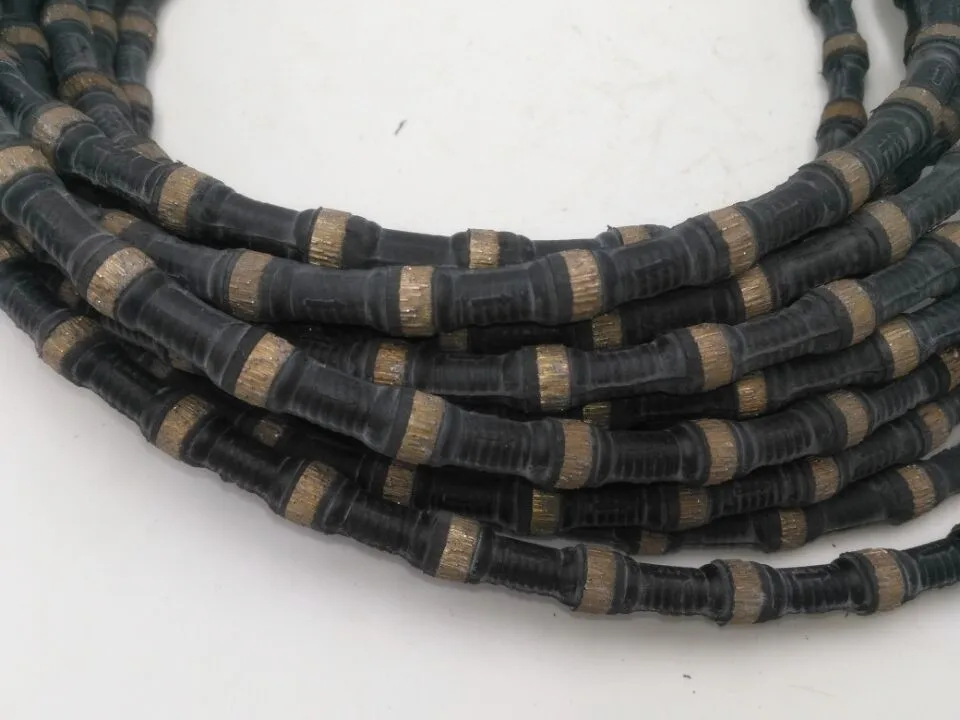

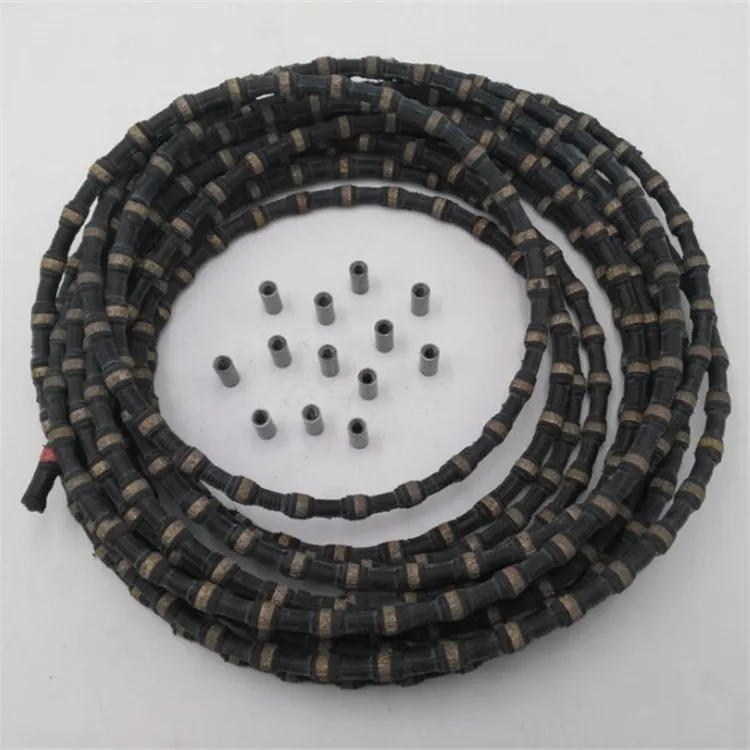

Plastic or Rubber Diamond Rope Wire Cutter for granite marble concrete

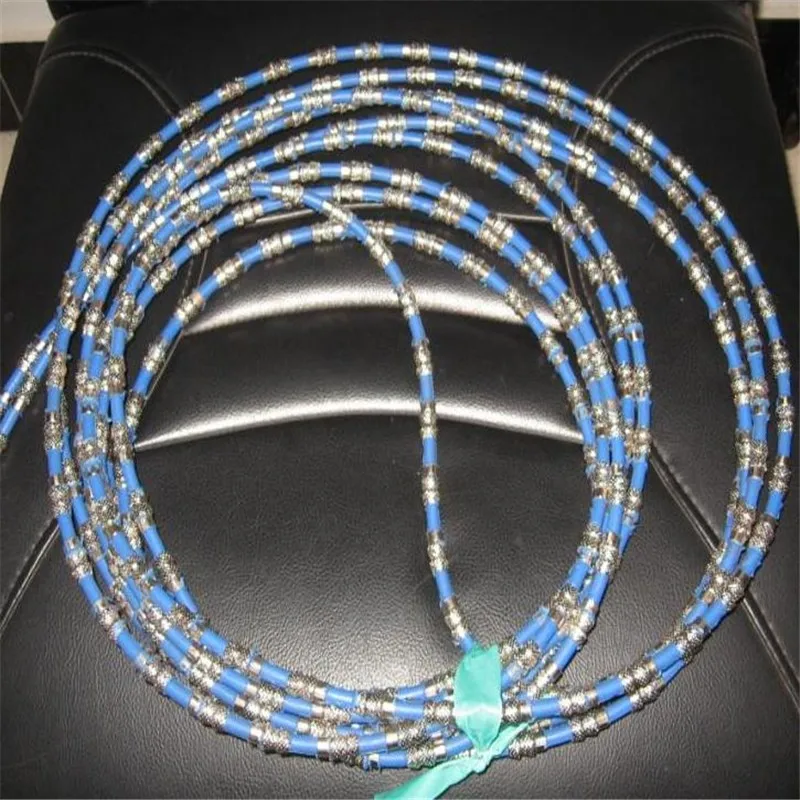

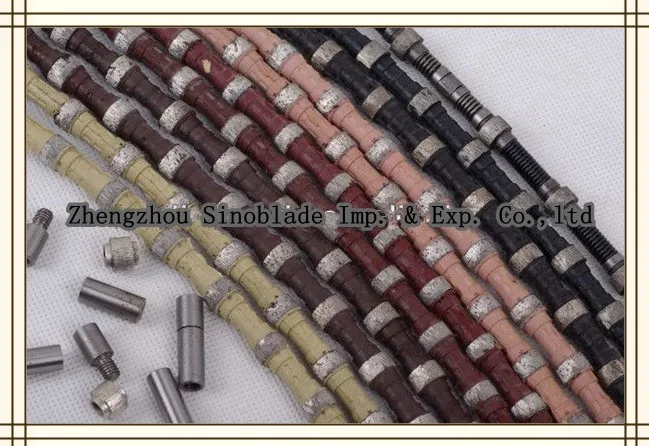

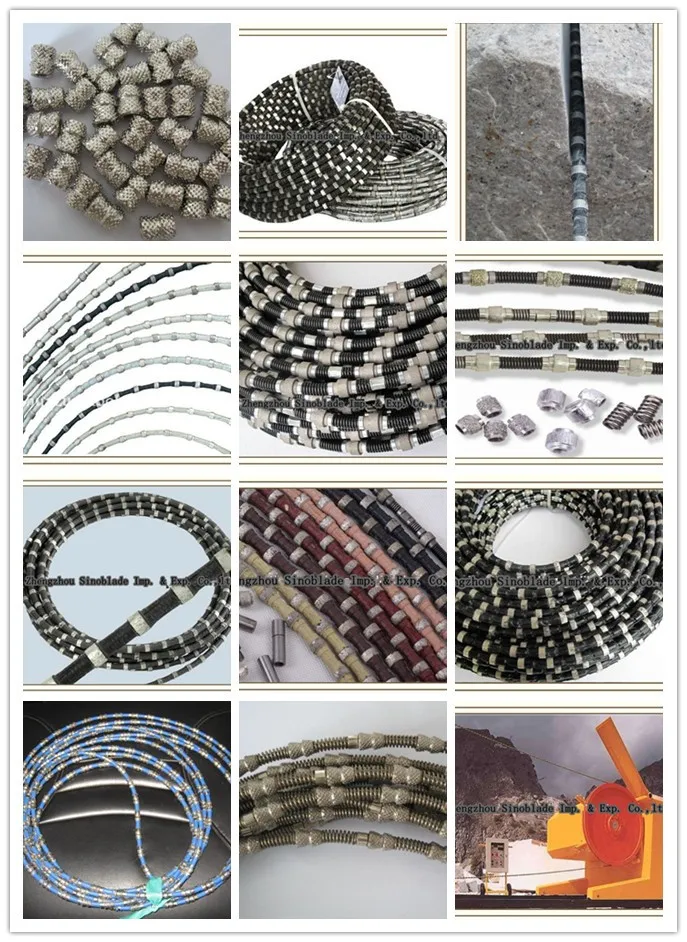

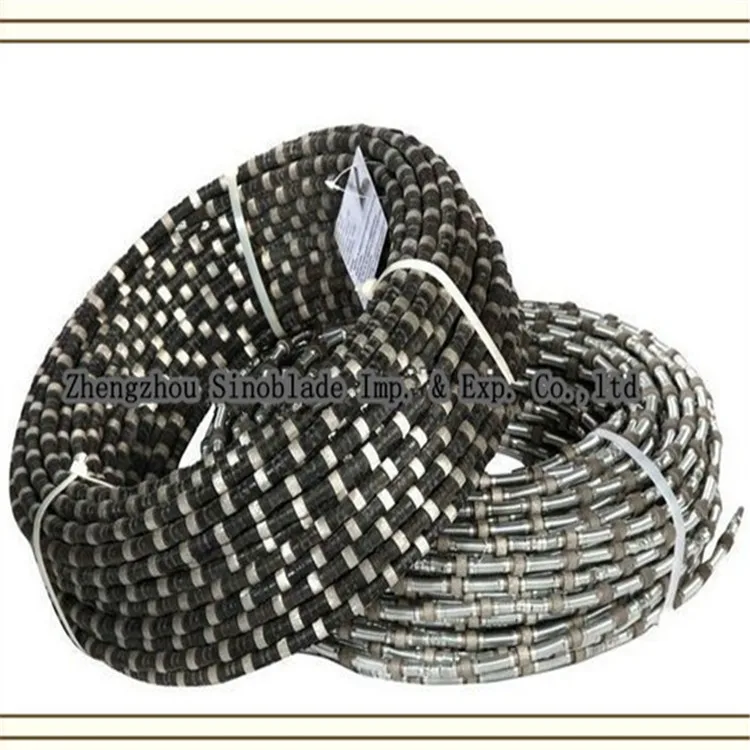

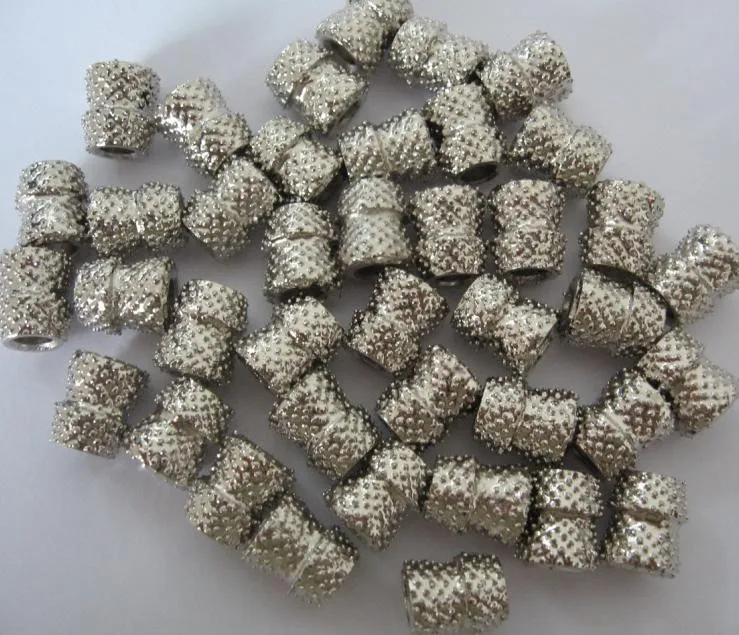

Diamond wire saw is composed of diamond beads which is stringed together with high strong steel wire.Diamond beads are produced coating diamond powder on the column steel rings by three types of technics: electroplating, sintering & vacuum brazing.

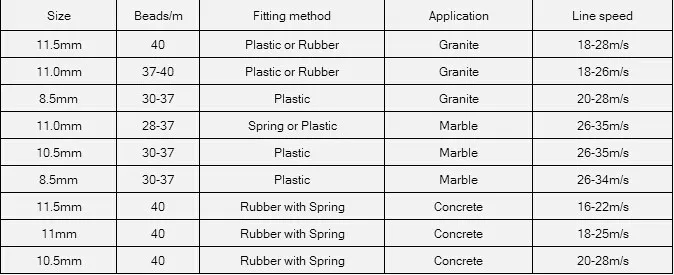

Diamond beads are reinforced with rubber or plastic injection and also spring on the steel wire.The Diameter of Diamond wire saw is from 7.5mm to 11.5mm to fit all kind of application conditions: quarrying, cutting and profiling marble, granite, limestone, sandstone



Product Features:

1.Small cutting gaps and high efficiency for quarrying.

2.High accuracy and fine definition for processing.

3.Convenient installation.

4.Lower waste of quarry resources.

5.Make the blocks more regular without internal injury.

6.Low-noise,no-dust,friendly surroundings,safety operation.



Application: Granite, marble, concrete, reinforced concrete.



Machinery: Wire saw machine.

Other types can be processed according to drawings and samples provided by customers.

1 TNT/FedEx/DHL/UPS for samples or under 45KG weight goods , Door to Door.

2. By Air or by Sea for large order ,from airport(seaport) to airport(seaport).

3. Delivery period : 3- 7 days for samples or small order ; 10-15 days for large order

1 Difference between wet blade and dry blade ?

The main difference is the way the diamond matrix is attached to the core. Wet blades are brazed, while dry blades are generally laser welded. Laser welding has a higher melting point.
Besides the weld, another difference is the bond. Dry blades usually have a slightly softer bond to allow easier cutting without water to cool and lubricate the cut.



2 What we should do if your products can not run well?

Give us detailed report, we will analyze the reason and try to find a way to solve the problem. If possible, we will give the replacement for free.



3 Do you inspect the finished products?

Yes, each step and finished products will be inspected when producing by QC department.

Like checking the flatness degree to see if it is up to the standard.



4 Can you accept OEM/ODM?

Yes, we will produce it exactly according to your requirement and drawing is better.

Zhengzhou Sinoblade Industrial., LTD, specialized in producing diamond tools for more than 10 yeas. Our factory was established in 2007.Now we are a high technology enterprise with the capability of production, sales, and research of new technology.

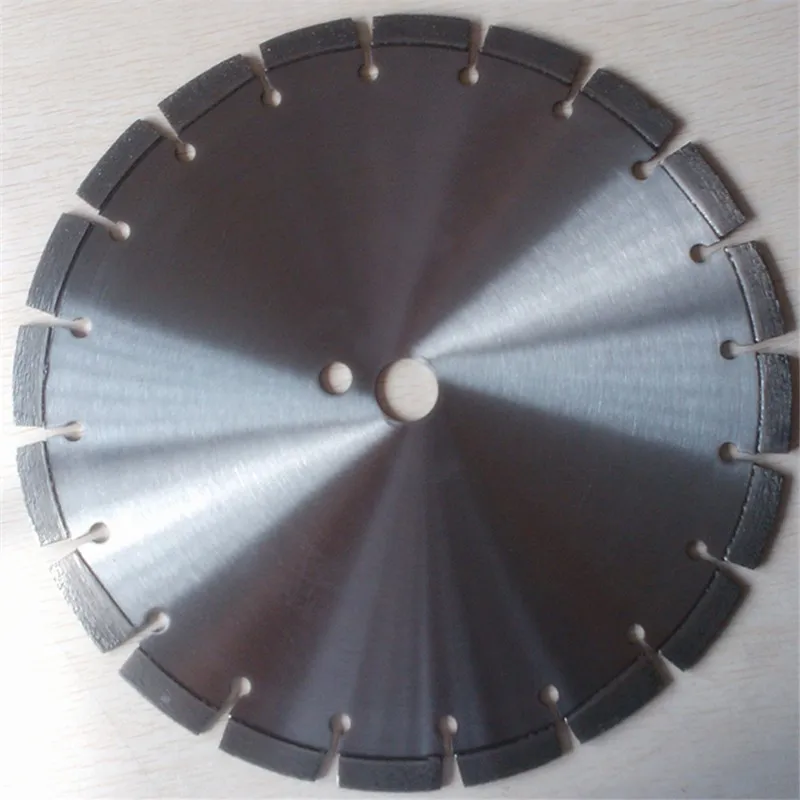

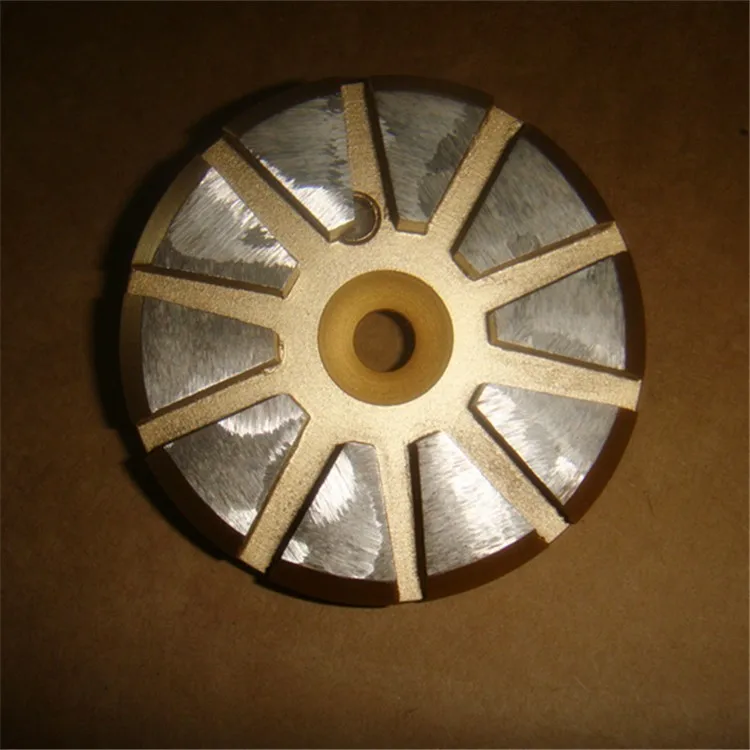

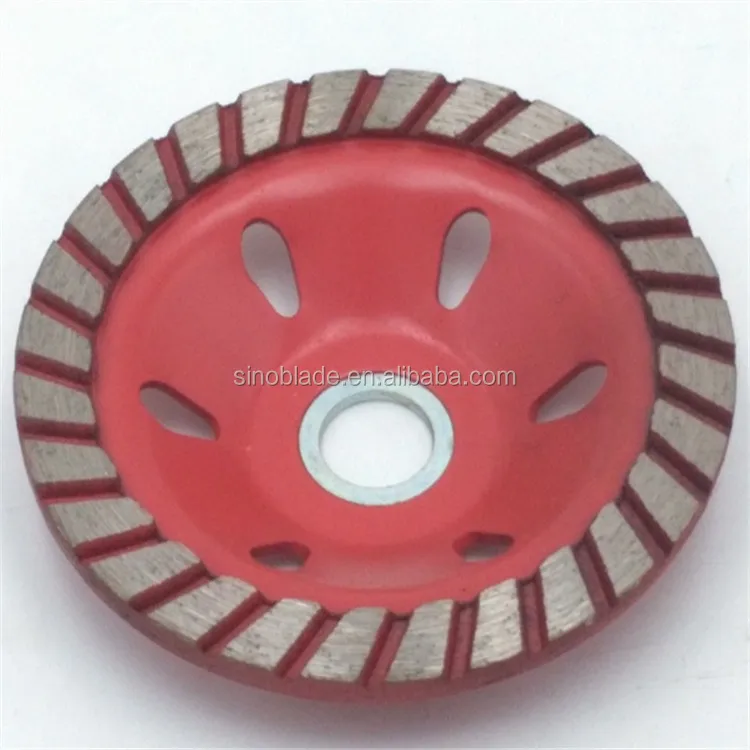

Our main products are laser welded diamond saw blade ,vacuum brazed core drill bit , grinding wheel , grinding block ,etc. Most of them applied in cutting, drilling, grinding, polishing granite, marble, terrazzo, epoxy coatings, refractory material, ceramic, glass, carbon, asphalt, brick , concrete and other nonmetal materials.

Our products are exported to many different countries, our main market are Asia ,Europe ,Middle –east , Africa and so on . They have wined best reputation among all the clients, also we have built a long business term with them .
