1.technical parameters of corrugated sheet metal roof making machine
Configurations
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Hydraulic Cutting Device(2) ,Hydraulic Station ,PLC Control, Supporter Table.
Control System
PLC Delta Inverter
Power Supply
3-Phase,380V,50Hz
Main Frame
350 H-Beam
Main Power
5.5kw
Pump Power
3kw
Forming Speed
10 m/min
Roll Station
Upper Level 11 Stands
Down Level 11 Stands
Roller Diameter
72mm
Hydraulic Pressure
10-12 MPa
Forming Size
840mm
850mm
Feeding Thickness
0.3-0.8mm
Feeding Width
1000mm
1000mm
Backboard Thickness
14mm
Chain Size
20mm
Cutter Standard
Cr12
Roller Standard
Cr12
Cr-Plating Size
0.05mm
Overall Size
7500×1500×1700mm
Total Weight
5T

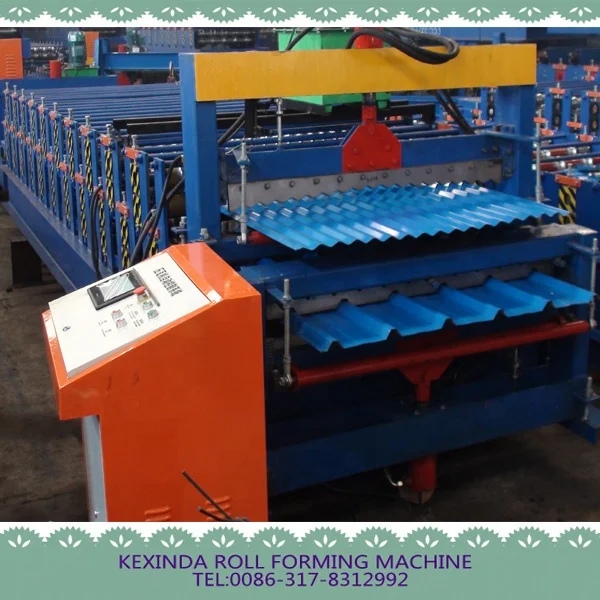

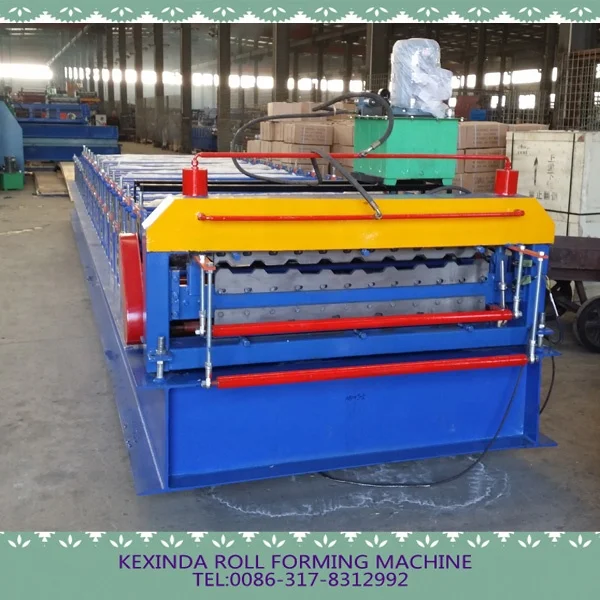

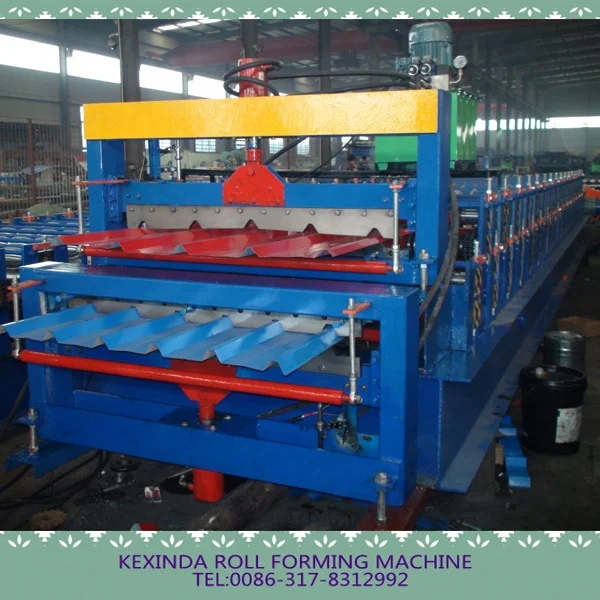

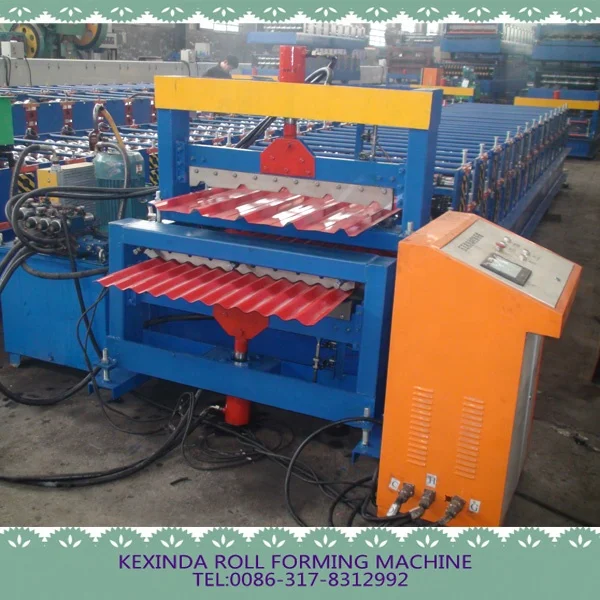

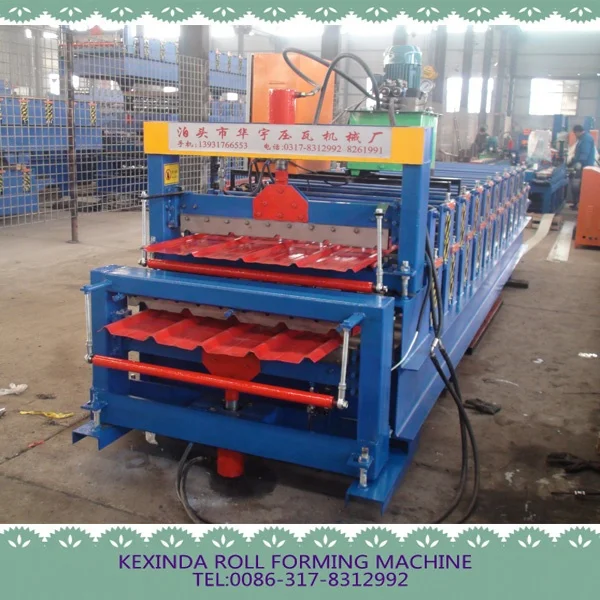

2.there are some pictures of corrugated sheet metal roof making machine
working shop
Packaging & Shipping
Our Services
Guarantee:
12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.
After-sale service:
We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.
Company Information
Botou Kexinda Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
