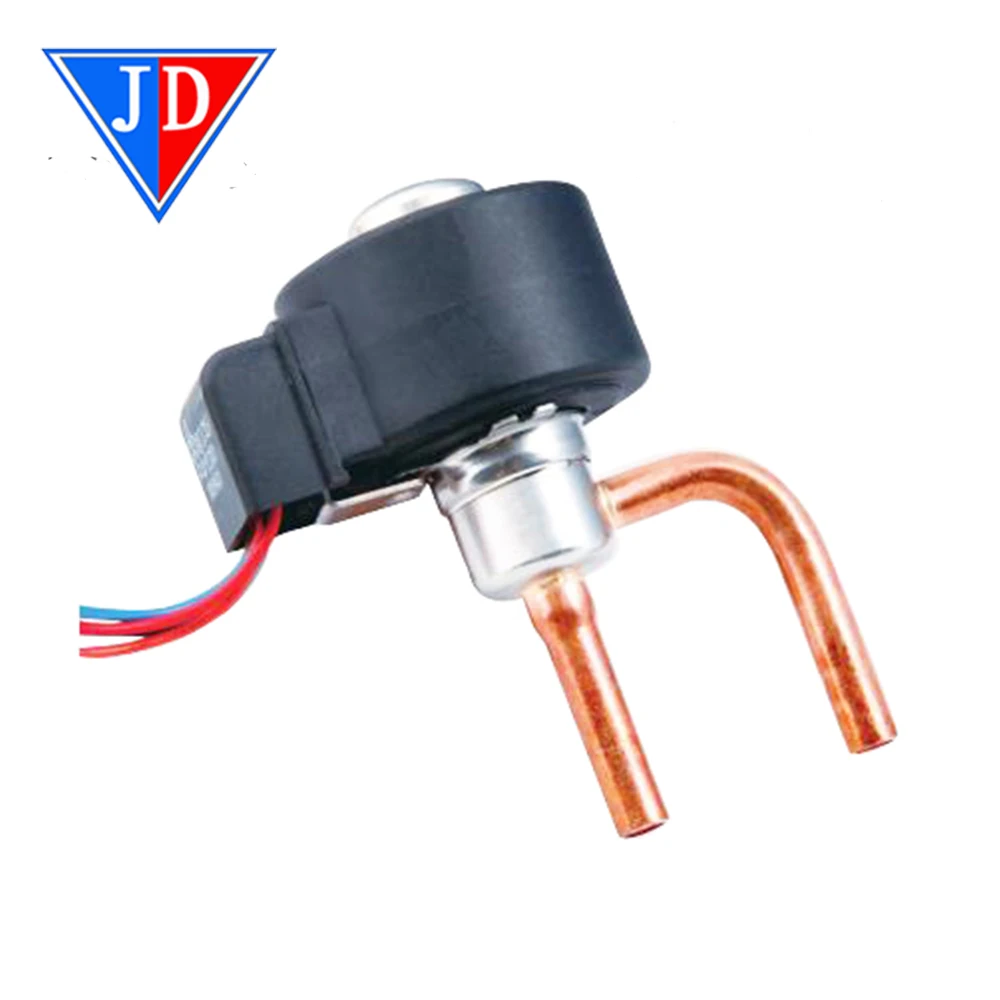

Electronic Expansion Valve DPF(TS1)2.4C 04 for Refrigeration

T/S series electronic expansion valves are designed for usage in air conditioning and refigeration systems or in heat pumps. The valve supports automatic adjustment of refrigerant flow rate and makes the system work under optimized conditions for the purpose of fast cooling or heating, precise temperature control and energy saving. The valve can also be sued e.g. for suction line pressure controls. These valves provide bidirectional operation to control the refrigerant flow rate in the heating or cooling mode.

Features:

1. Smaller installation space:Lower height, smaller size, lighter weight

2. Passway optimization, lower noise

3. Quick action, low energy consumption.

4. Bidirectional circulation, suitable for reversible systems such as heat pumps

5. T and Ts series can be used in oil-free system.

6. Installation mode: coil upward, androtor axis vertical to the horizontal plane with a deviation of less than 15 degree.

Specifications



Series	Model	Dia.	Kv	Nonimal capacity(kW)					Max. working pressure	Max. differential pressure	Opening pressure
		mm	m3/h	R 2 2	R134a	R407C	R404A/R5007C	R410A	MPa	MPa	MPa
DPF1.3	DPF(TS1)1.3C	1.3	0.05	4.7	3.6	4.8	3.3	5.5	4.4	3.5	≥2.1
DPF1.65	DPF(TS1)1.65C	1.65	0.08	7.8	6.0	8.0	5.5	9.10			≥2.1
DPF1.8	DPF(TS1)1.8C	1.8	0.1	9.4	7.2	9.7	6.6	11.0			≥2.1
DPF2.0	DPF(TS1)2.0C	2.0	0.16	11.50	8.9	11.80	8.1	13.5			≥2.1
DPF2.2	DPF(TS1)2.2C	2.2	0.2	15.0	11.6	15.5	10.5	17.6			≥2.1
DPF2.4	DPF(TS1)2.4C	2.4	0.23	20.7	15.9	21.3	14.5	24.2			≥2.1
DPF3.0	DPF(TS1)3.0C	3.0	0.39	30.8	23.7	31.7	21.6	36.0	4.2	3.0	≥1.5
DPF3.2	DPF(TS1)3.2C	3.2	0.43	36.3	28.0	37.4	25.4	42.5			≥1.5
DPF4.0	DPF(TS2)4.0C	4.0	0.5	50.4	38.8	51.9	35.3	59.0			≥0.7
DPF4.5	DPF(TS2)4.5C	4.5	0.7	67.8	52.2	69.8	47.5	79.3			≥0.7
DPF5.5	DPF(TS1)5.5C	5.5	0.9	78.2	60.2	80.5	54.7	91.5			≥0.7
DPF6.5	DPF(TS1)6.5C	6.5	1.1	96	73.5	98	66.8	111.8			≥0.7



Normal operating conditions

Condensing Temperature (℃)	38
Evaporating Temperature (℃)	5
Supeheating	0
Supercooling	0

1.Applicable refrigerant: R 2 2, R134a, R407C, R404A, R410A, R507A, etc

2. Allowable Temperature: Min. -30℃/ Max. 60℃

3. MediumTemperature: Min. -30℃/ Max. 70℃

4.Max pressure: 4.2Mpa

5. relative humidity: <95%
