2017 Cheap 4g Latest Development Boards Mobile Phone charger PCB Circuit Board Development Boards
- Category: Multilayer PCB >>>
- Supplier: Shenzhen Wonstron Technology Co. Limited
Share on (60645755413):
Product Overview
Description

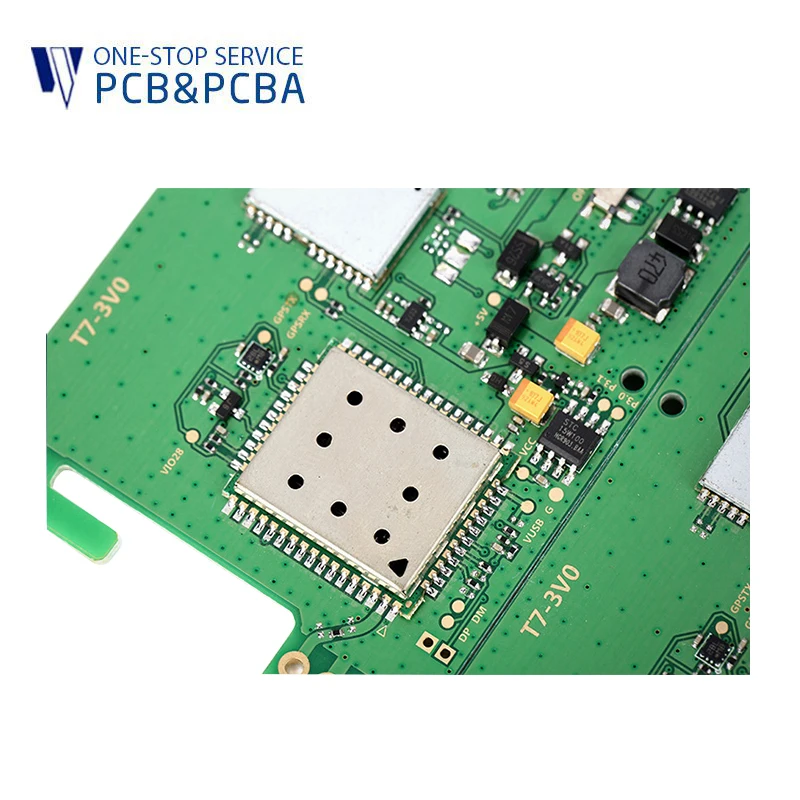

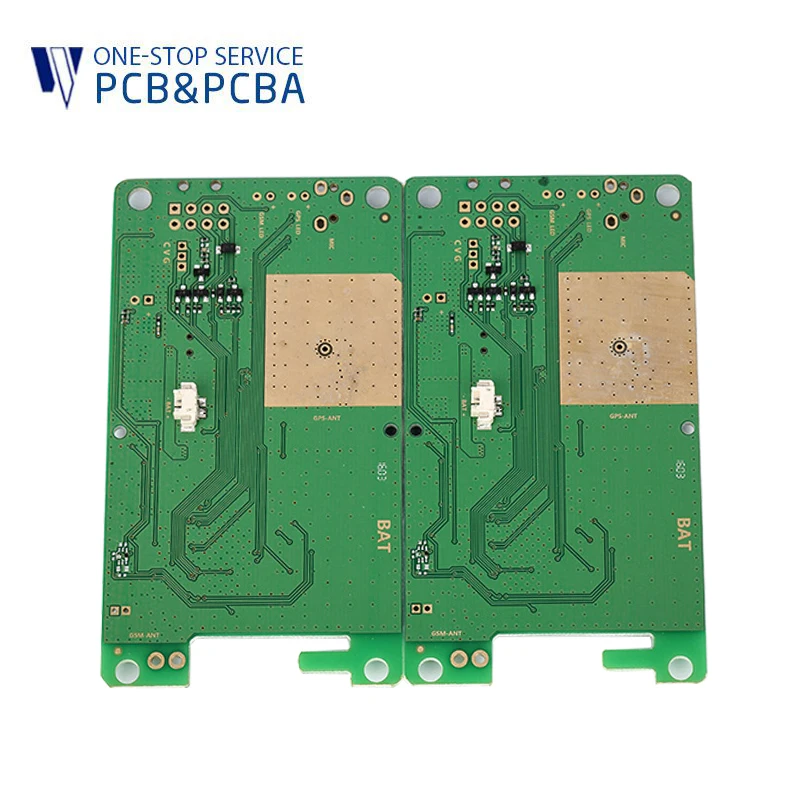

2017 Cheap 4g Latest Mobile Phone PCB Circuit Board
Product Description
Product Parameter:
| Stack Up | Double-sided |
| Material | FR-4 |
| Board Thickness | 1.2 mm |
| Min. Hole Size | 0.3 mm |
| Min. Line Width | 0.2 mm |
| Min. Line Spacing | 12 Mil |
| Copper Thickness | 1 OZ |
| Surface Finishing | HASL Lead-free |
Company Information
Thanks for visiting Wonstron Electronics Co., Ltd!
We are professional Electronics manufacturing company with good reputation in the field.Aim at being a world one-stop service PCBA house Wonstron Electronics.Co.,Ltd (in short Wonstron) keeps pace with update technologies and developing its capacity. Our PCB products range from 1-40 layers with high-frequency and blind/buried vias which are widely applied in automative,industrial,communication,energy fields, Medical,etc.We have six SMT lines in house for EMS service.Now our monthly production capacity can reach 350,000 sq.ft for rigid PCB,100,000 sq.ft for flexible PCB and 100,000,000 points for SMT/EMS
Our Services
Our Manufacture Capacity:
| Item | Mass Production | Sample |
| Main Material | CEM-1,CEM-3, FR-4 Tg 135/ Tg 170, Rogers | CEM-1,CEM-3, FR-4 Tg 135/ Tg 170, Rogers |
| Min Line Width/Space | 0.07mm/0.07mm | 0.05 mm /0.05 mm |
| Min Drilling Diameter | φ 0.1mm | φ 0.1mm |
| Drilling Tolerance | +/- 0.05 mm | +/-0.05 mm |
| Max.Outer Layer Copper Thickness | 8 Oz | 10 Oz |
| Max.Inner Layer Copper Thickness | 6 Oz | 8 Oz |
| Impedance Control Tolerance | +/- 10% | +/- 10% |
| Layers | 1-40 lA | 1-40 lA |
Max Drilling Aspect Ratio | 20:1 | 20:1 |
Max Panel Size | 23"*35" | 23"*35" |
Max.Finished Board Thickness | 7.0 mm | 7.0 mm |
Production Capacity Per Month | 30,000 m² | / |
Production Lead Time:
| Item | Sample | Mass Production |
| Single-Layer | 1-2 days | 3-5 days |
| Double-sided | 2-4 days | 5-10 days |
| Multi-Layer Boards | 4-10 days | 5-20 days |
| HDI Boards | 5-12 days | 10-20 days |
*Special material ordered lead time is not included.
We serve a lot of customers abroad and establish a stable supply relationship in our cooperation.
They visit us to show their projects.Some of them vist us annually for mutual supports.
They visit us to show their projects.Some of them vist us annually for mutual supports.
1.One-stop service covering hardware design + software program + PCB layout + PCB assembly + casing
service for customers.
2.More than 20-year experiences with PCB,PCBA production in automatic,auto,medical,industrial con-
trol,security,communications,power supply filed.We help our customers to deal with their difficulties in
the production and cost down by sourcing from China.
3.We provide full BOM sourcing for all kinds of electronic.parts,connectors,plastic mold and cable,etc.
We have most professional component sourcing team and competitive sourcing channels with guarantee
quality.
4.Instant feedback and short delivery time.We provide 24-hour online service for global customers.We
quote BOM within 24 hours and PCB assembly prototype in 5 days.
5.Both prototype and mass production are acceptable.There is no minimum order quantity restrictions.
6.We test both PCB and key components 100% before delivery.Our warranty is 12 months for all the
boards and products.
7.We provide credit to our long-term cooperation customers.
FAQ
How to contact us?
Answer: You can contact oline or send us email for any question.How start for inquiry?
Answer: Please send us full manufacture requirements and documents for quotation, i.e. gerber files, BOM, samples if it is necessary.What are your main services?
Answer: We offer one-stop service of PCB/PCBA manufacture, including PCB design,PCB manufacture, component sourcing, assembly (SMT, DIP,COB).
Do you offer prototype production? What is the lead time?
Answer: We can prepare both sample and mass production. The fastest lead time for double-sided samples is 36 hours. PCBA prototype can be 48 hours including both BOM sourcing and SMT.How is your quality?
Answer: We test both PCB and key components 100% before delivery. Aim to set up long term cooperation with customers. We provide products with reliable quality.What is your warranty?
Answer: 12 months
Packaging & Shipping
