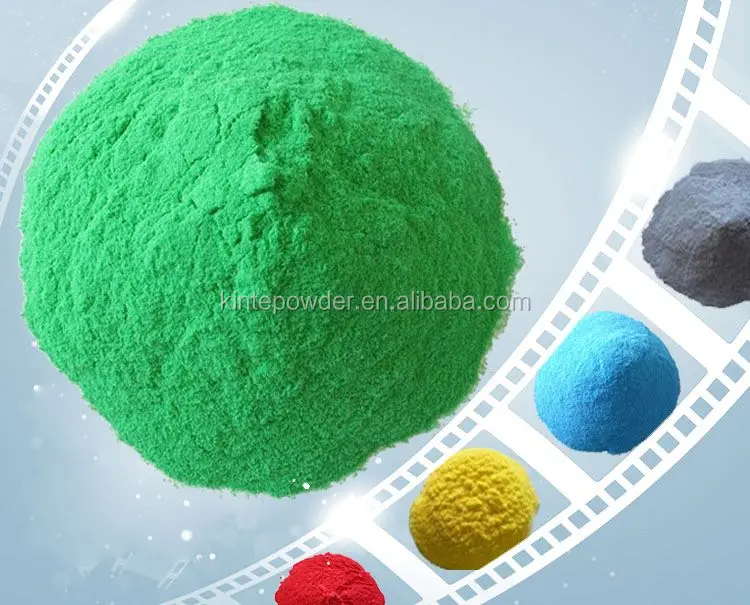

CUSTOMIZED Gloss Range FBE Powder Coatings

Fusion Bonded Epoxy (FBE) Super Anticorrosion Powder Coatings

Introduction:

This series of products is one kind of thermoset pure epoxy powder coating made of epoxy resins and epoxy hardener.

Feature:

---The film has high density and adhesion

---Excellent chemical corrosion resistance
---Excellent physical mechanical properties

---Curing reaction speed can be adjusted according to the customer request to satisfy the requirement of different spraying

---Not suitable for outdoor use directly, without good weatherability

Property:

Density: 1.2~1.8g/cm3(Owing to the different formula and different colors)

Particle size: Different purposes varies, the standard for the average particle size is 40 ~ 50um,

150μm powder on sieve ≤3%,250μm powder on sieve ≤0.2%

volatilization: ≤0.6%

Gel time: under 200℃≥12s, and in accordance with manufacturer’s value ±20%

Thermal properties: ΔH≥45J/g,Tg2≥95℃

Storage stability: Pure Epoxy Powder Coatings should be stored below 30°C in a dry and well ventilated place away from source of heat and direct sunlight. If stored in an air-conditioner room, in order to avoid damp again, before using the powder, the powder should be kept at the room temperature or at the same temperature with the spray equipment. Under such condition, the powder can be stored stably for 12months.

Extended, retest will be required. If the testing result meets the requirement, the powder can still be used.

Note: For the low temperature curing powder and powder with the gloss below 40%(60°),the stored temperature should be below 30℃.

Film characteristics:

Spraying: This series product is recommended to use high voltage electrostatic spraying method to coat

Curing guide: 160-230℃/3-5min or customizing design according to customer’s

                  spraying condition

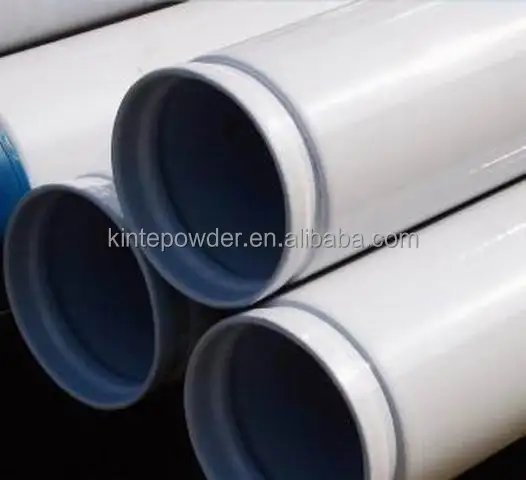

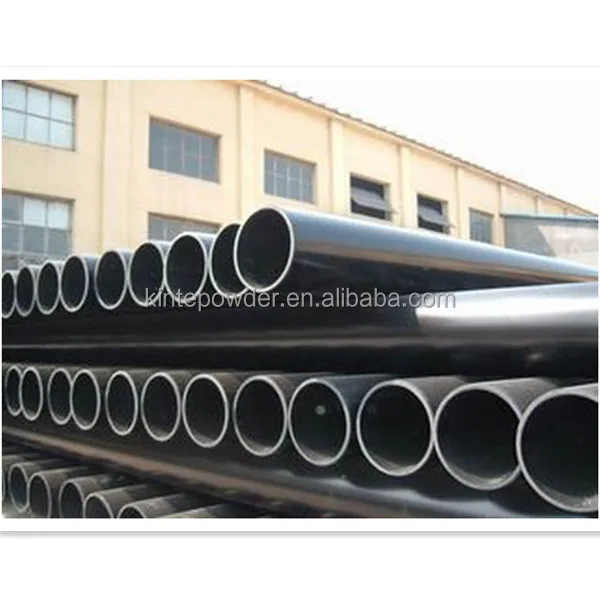

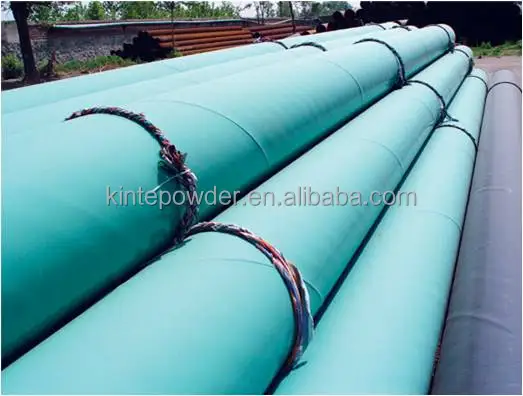

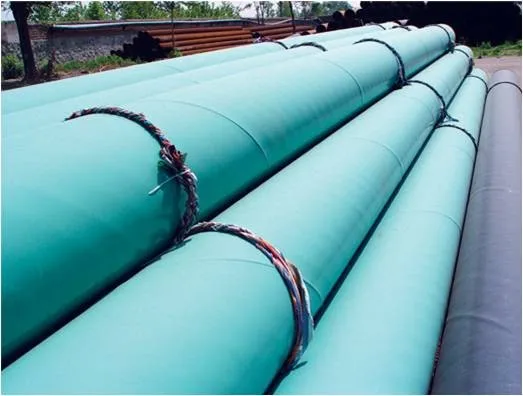

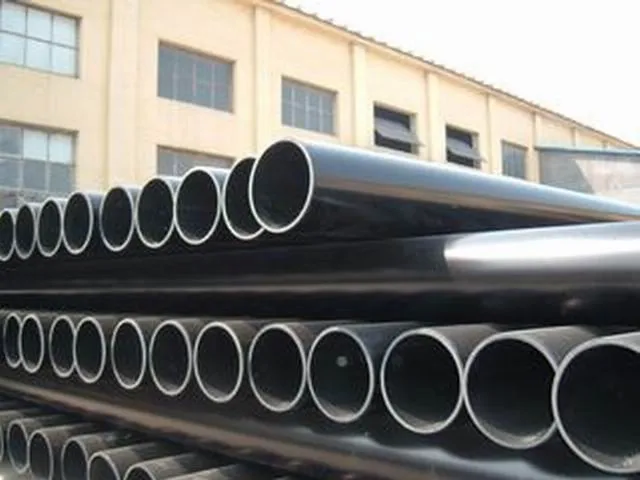

Field of application: single, double and three layer FBE anticorrosion coating for all kinds of steel pipeline of oil and gas

Packing and Transportation:

Cartons with double PP bags. N.W 20(25)kg/carton

Non-dangerous goods. It can be transported in various ways, but it should be away from direct sunlight, moisture, heat and chemicals.
