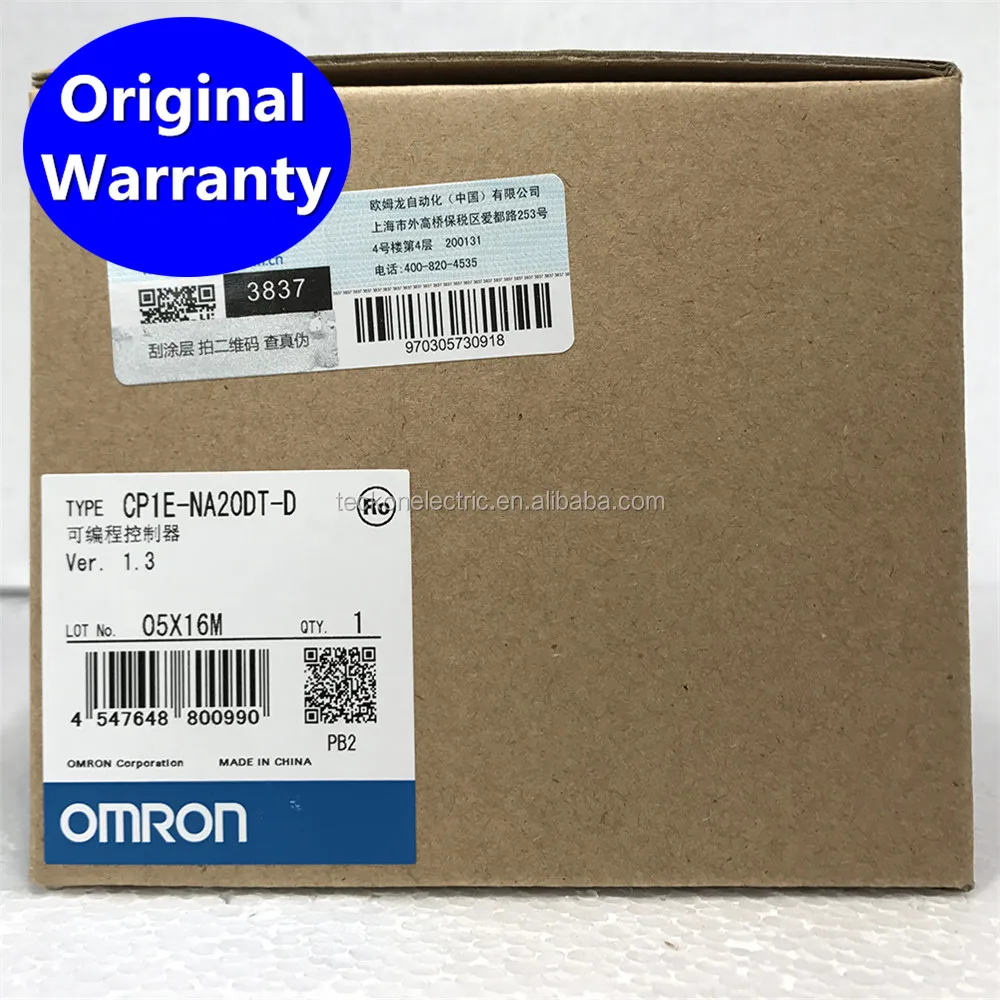

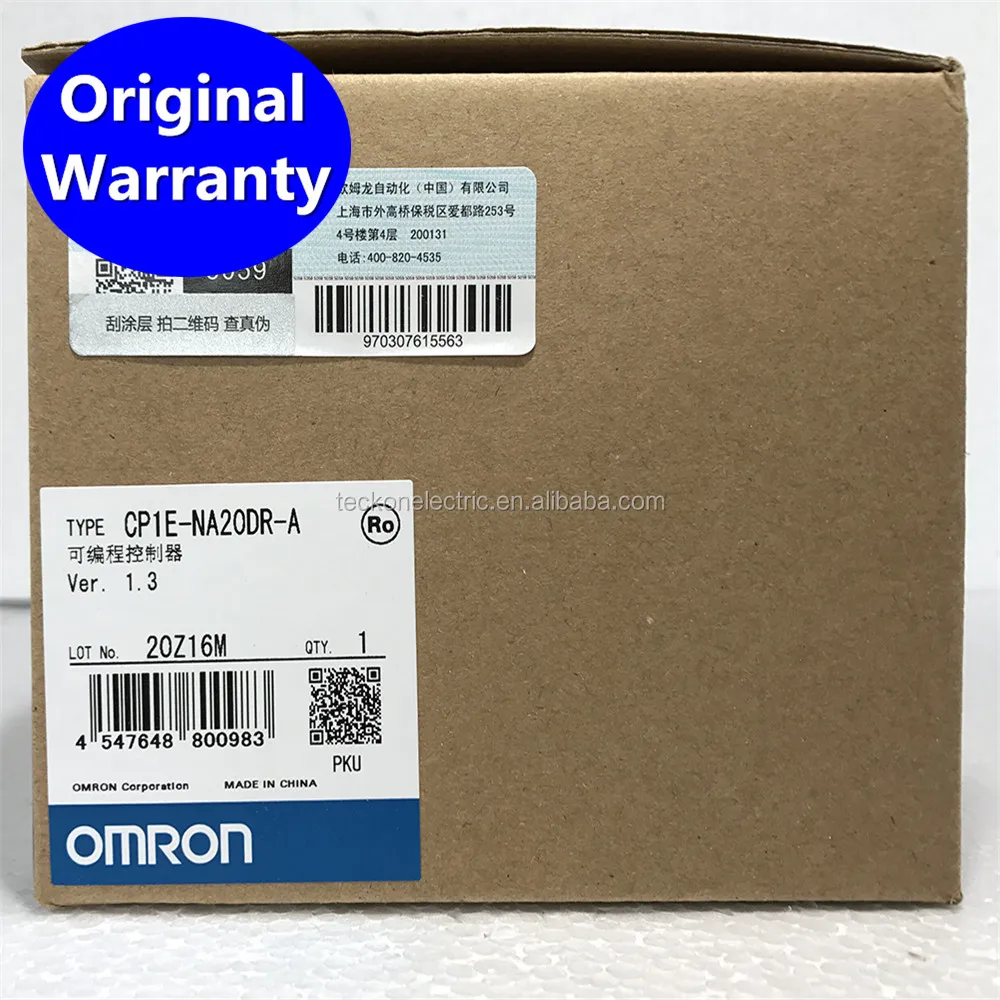

CP1E micro PLC with Built in analog CP1E NA20DR A CP1E NA20DT D CP1E NA20DT1 D Programmable Logic Controller
- Category: >>>
- Supplier: Teckon Electric (Shanghai) Co. Ltd.
Share on (60645861133):
Product Overview
Description
New & Original Omron PLC Programmable Logic Controller CP1E micro PLC with Built-in analog CP1E-NA20DR-A CP1E-NA20DT-D CP1E-NA20DT1-D
| Product name | Specifications | External power supply (24VDC) | Model | |||||
| Power supply | Inputs | Outputs | Output type | Program capacity | Data memory capacity | |||
| E**S- type CPU Units | 100 to 240VAC
| 8 | 6 | Relay | 2k steps | 2k words | -- | CP1E-E14SDR-A |
| 12 | 8 | -- | CP1E-E20SDR-A | |||||
| 18 | 12 | 0.3 | CP1E-E30SDR-A | |||||
| 24 | 16 | 0.3 | CP1E-E40SDR-A | |||||
| 36 | 24 | 0.3 | CP1E-E60SDR-A | |||||
| Product name | Specifications | External power supply (24VDC) | Model | |||||
| Power supply | Inputs | Outputs | Output type | Program capacity | Data memory capacity | |||
| E**-type CPU Units | 100 to 240VAC | 6 | 4 | Relay
| 2k stpes | 2k words | -- | CP1E-E10DR-A |
| Transistor (sinking) | -- | CP1E-E10DT-A | ||||||
| Transistor (sourcing) | -- | CP1E-E10DT1-A | ||||||
| 24VDC | Relay | -- | CP1E-E10DR-D | |||||
| Transistor(sinking) | -- | CP1E-E10DT-D | ||||||
| Transistor (sourcing) | -- | CP1E-E10DT1-D | ||||||
| 100 to 240VAC | 8 | 6 | Relay | -- | CP1E-E14DR-A | |||
| 12 | 8 | Relay | -- | CP1E-E20DR-A | ||||
| 18 | 12 | Relay | 0.3 | CP1E-E30DR-A | ||||
| 24 | 16 | Relay | 0.3 | CP1E-E40DR-A | ||||
| Product name | Specifications | External power supply (24VDC) | Model | |||||
| Power supply | Inputs | Outputs | Output type | Program capacity | Data memory capacity | |||
| N**S1 type CPU Units | 100 to 240 VAC | 18 | 12 | Relay | 8k steps | 8k words | 0.3 | CP1E-N30S1DR-A |
| DC 24V | Transistor (sinking) | -- | CP1E-N30S1DT-D | |||||
| Transistor (sourcing) | -- | CP1E-N30S1DT1-D | ||||||
| 100 to 240VAC | 24 | 16 | Relay | 0.3 | CP1E-N40S1DR-A | |||
| DC24V | Transistor (sinking) | -- | CP1E-N40S1DT-D | |||||
| Transistor (sourcing) | -- | CP1E-N40S1DT1-D | ||||||
| 100 to 240 VAC | 36 | 24 | Relay | 0.3 | CP1E-N60S1DR-A | |||
| DC24V | Transistor (sinking) | -- | CP1E-N60S1DT-D | |||||
| Transistor (sourcing) | -- | CP1E-N60S1DT1-D | ||||||
| Product name | Specifications | External power supply (24VDC) | Model | |||||
| Power supply | Inputs | Outputs | Output type | Program capacity | Data memory capacity | |||
| N**S type CPU Units | 100 to 240 VAC | 18 | 12 | Relay | 8k steps | 8k words | 0.3 | CP1E-N30SDR-A |
| DC24V | Transistor (sinking) | -- | CP1E-N30SDT-D | |||||
| Transistor (sourcing) | -- | CP1E-N30SDT1-D | ||||||
| 100 to 240 VAC | 24 | 16 | Relay | 0.3 | CP1E-N40SDR-A | |||
| DC24V | Transistor (sinking) | -- | CP1E-N40SDT-D | |||||
| Transistor (sourcing) | -- | CP1E-N40SDT1-D | ||||||
| 100 to 240 VAC | 36 | 24 | Relay | 0.3 | CP1E-N60SDR-A | |||
| DC24V | Transistor (sinking) | -- | CP1E-N60SDT-D | |||||
| Transistor (sourcing) | -- | CP1E-N60SDT1-D | ||||||
| Product name | Specifications | External power supply (24VDC) | Model | |||||
| Power supply | Inputs | Outputs | Output type | Program capacity | Data memory capacity | |||
| N** type CPU Units | 100 to 240 VAC | 8 | 6 | Relay | 8k stpes | 8k words | -- | CP1E-N14DR-A |
| Transistor (sinking) | -- | CP1E-N14DT-A | ||||||
| Transistor (sourcing) | -- | CP1E-N14DT1-A | ||||||
| 24VDC | Relay | -- | CP1E-N14DR-D | |||||
| Transistor (sinking) | -- | CP1E-N14DT-D | ||||||
| Transistor (sourcing) | -- | CP1E-N14DT1-D | ||||||
| 100 to 240 VAC | 12 | 8 | Relay | -- | CP1E-N20DR-A | |||
| Transistor (sinking) | -- | CP1E-N20DT-A | ||||||
| Transistor (sourcing) | -- | CP1E-N20DT1-A | ||||||
| 24VDC | Relay | -- | CP1E-N20DR-D | |||||
| Transistor (sinking) | -- | CP1E-N20DT-D | ||||||
| Transistor (sourcing) | -- | CP1EN20DT1-D | ||||||
| 100 to 240 VAC | 18 | 12 | Relay | 0.3 | CP1E-N30DR-A | |||
| Transistor (sinking) | 0.3 | CP1E-N30DT-A | ||||||
| Transistor (sourcing) | 0.3 | CP1E-N30DT1-A | ||||||
| 24 VDC | Relay | -- | CP1E-N30DR-D | |||||
| Transistor (sinking) | -- | CP1E-N30DT-D | ||||||
| Transistor (sourcing) | -- | CP1E-N30DT1-D | ||||||
| Product name | Specifications | Model | ||||||
| Power supply | Inputs | Outputs | Output type | Program capacity | Data memory capacity | External power supply (24VDC) | ||
| N** type CPU Units | 100 to 240VAC | 24 | 16 | Relay | 8k steps | 8k words | 0.3 | CP1E-N40DR-A |
| Transistor (sinking) | 0.3 | CP1E-N40DT-A | ||||||
| Transistor (sourcing) | 0.3 | CP1E-N40DT1-A | ||||||
| 24VDC | Relay | -- | CP1E-N40DR-D | |||||
| Transistor (sinking) | -- | CP1E-N40DT-D | ||||||
| Transistor (sourcing) | -- | CP1E-N40DT1-D | ||||||
| 100 to 240 VAC | 36 | 24 | Relay | 0.3 | CP1E-N60DR-A | |||
| Transistor (sinking) | 0.3 | CP1E-N60DT-A | ||||||
| Transistor (sourcing) | 0.3 | CP1E-N60DT1-A | ||||||
| 24 VDC | Relay | -- | CP1E-N60DR-D | |||||
| Transistor (sinking) | -- | CP1E-N60DT-D | ||||||
| -- | CP1E-N60DT1-D | |||||||
| 100 to 240 VAC | 12 (Built-in analog inputs: 2) | 8 (Built-in analog outputs: 1) | Relay | 0.3 | CP1E-NA20DR-A | |||
| 24 VDC | Transistor (sinking) | -- | CP1E-NA20DT-D | |||||
| Transistor (sourcing) | -- | CP1E-NA20DT1-D | ||||||
Options for CPU Units
| Name | Specifications | Model |
| RS-232C Option Board | Can be mounted in either CPU Unit Option Board slot 1 or 2. | CP1W-CIF01 |
RS-422A/485 Option Board | CP1W-CIF11 | |
RS-422A/485 (Isolated-type) Option Board | CP1W-CIF12 | |
Ethernet Option Board | Can be mounted in either CPU Unit Option Board slot 1 or 2. | CP1W-CIF41 |
Analog Input Option Board | Can be mounted in either CPU Unit Option Board slot 1 or 2. | CP1W-ADB21 |
| Analog Output Option Board | Can be mounted in either CPU Unit Option Board slot 1 or 2. | CP1W-DAB21V |
| Analog I/O Option Board | Can be mounted in either CPU Unit Option Board slot 1 or 2. | CP1W-MAB221 |
| LCD Option Board | Can be mounted only in the CPU Unit Option Board slot 1. | CP1W-DAM01 |
| Memory Cassette | Can be used for backing up programs or auto-booting. | CP1W-ME05M |
https://teckonelectric.en.alibaba.com/search/product?fsb=y&IndexArea=&CatId=&SearchText=cp1w
Expansion Units
| Product Name | Inputs | Outputs | Output type | Model | |
| Input Unit | 8 | -- | 24VDC Input | CP1W-8ED | |
| Output Units | -- | 8 | Relay | CP1W-8ER | |
| Transistor (sinking) | CP1W-8ET | ||||
| Transistor (sourcing) | CP1W-8ET1 | ||||
| -- | 16 | Relay | CP1W-16ER | ||
| Transistor (sinking) | CP1W-16ET | ||||
| Transistor (sourcing) | CP1W-16ET1 | ||||
| -- | 32 | Relay | CP1W-32ER | ||
| Transistor (sinking) | CP1W-32ET | ||||
| Transistor (sourcing)Transistor (sourcing) | CP1W-32ET1 | ||||
| I/O Units | 12 | 8 | Relay | CP1W-20EDR1 | |
| Transistor (sinking) | CP1W-20EDT | ||||
| Transistor (sourcing)Transistor (sourcing) | CP1W-20EDT1 | ||||
| 24 | 16 | Relay | CP1W-40EDR | ||
| Transistor (sourcing) | CP1W-40EDT | ||||
| Transistor (sourcing)Transistor (sourcing) | CP1W-40EDT1 | ||||
Analog Input Unit | 4CH | -- | Input range: 0 to 5V, 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA | Resolution: 1/6000 | CP1W-AD041 |
| Resolution: 1/12000 | CP1W-AD042 | ||||
| Analog Output Unit | -- | 2CH | Output range: 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA | Resolution: 1/6000 | CP1W-DA021 |
| -- | 4CH | Resolution: 1/6000 | CP1W-DA041 | ||
| Resolution: 1/12000 | CP1W-DA042 | ||||
| Analog I/O Unit | 4CH | 4CH | Input range: 0 to 5V, 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA Output range: 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA | Resolution: 1/12000 | CP1W-MAD44 |
| 4CH | 2CH | Resolution: 1/12000 | CP1W-MAD42 | ||
| 2CH | 1CH | Resolution: 1/6000 | CP1W-MAD11 |
| Temperature Sensor Unit | 2CH | -- | Sensor type: Thermo couple (J or K) | CP1W-TS001 | |
| 4CH | -- | Sensor type: Thermo couple (J or K) | CP1W-TS002 | ||
| 2CH | -- | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) | CP1W-TS101 | ||
| 4CH | -- | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) | CP1W-TS102 | ||
| 4CH | -- | Sensor type: Thermo couple (J or K) 2 channels can be used as analog input. Input range: 1 to 5V, 0 to 10V, 4-20mA | CP1W-TS003 | ||
| 12CH | -- | Sensor type: Thermo couple (J or K) | CP1W-TS004 | ||
CompoBus/S I/O Link Unit | 8 | 8 | CompoBus/S slave | CP1W-SRT21 | |
