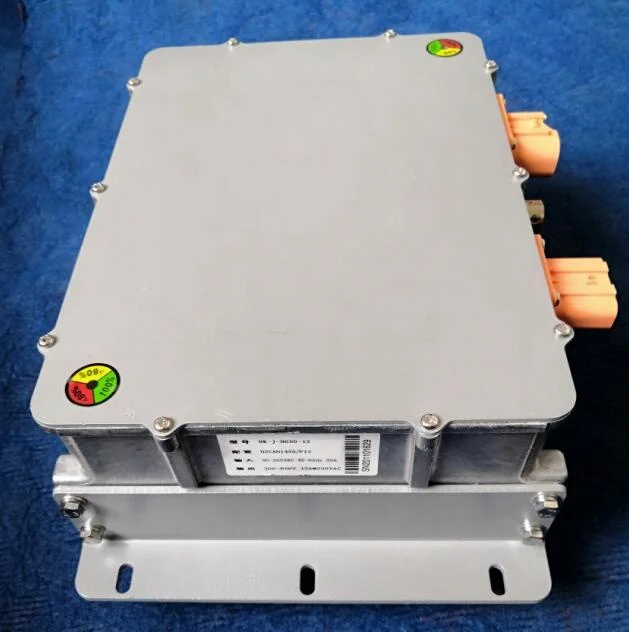

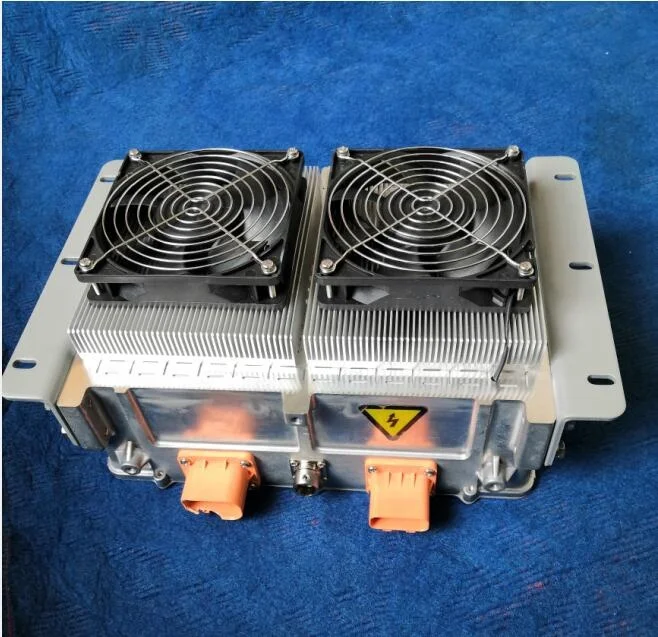

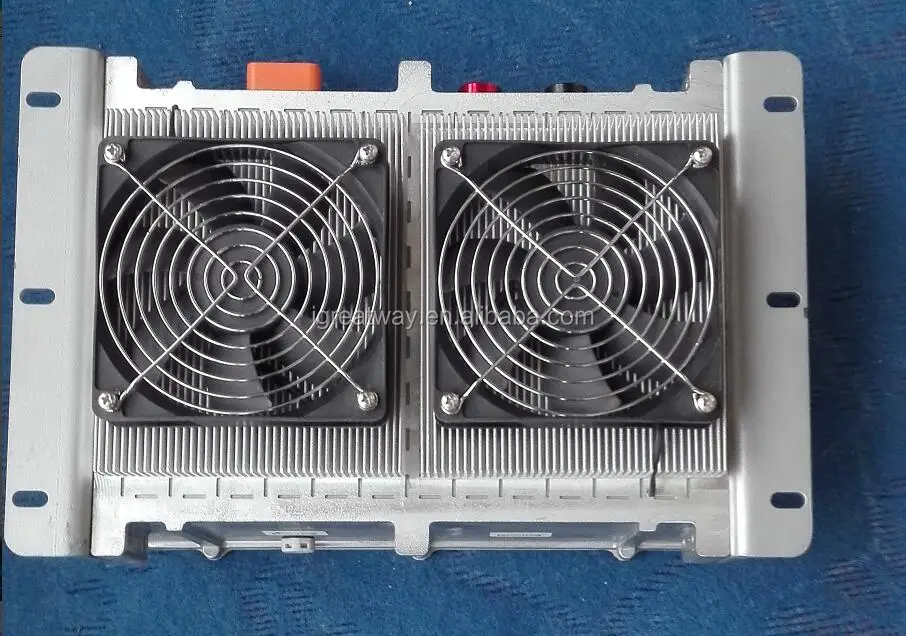

6.6KW 650V 12A on board EV battery charger

Product Overview

Description























HK-J Series 6.6KW charger is a new generation of charger, it replaced the old charger  GWCH series charger ,which is based on the national standard charger,  specially designed the product that supply the power battery of electric vehicles . The charger not only has the advantages of high efficiency, small size, high stability, long life, more high protection level, high reliability, complete protection and other characteristics, is the ideal charging power device for electric vehicle . The Charger is  built-in thermal sensors, with overheating protection, can be automatically restored. Fully encapsulated potting process, up to IP67 degree of protection, to ensure that  the charger can work without causing failure under any complex environment

2.  Main feature:

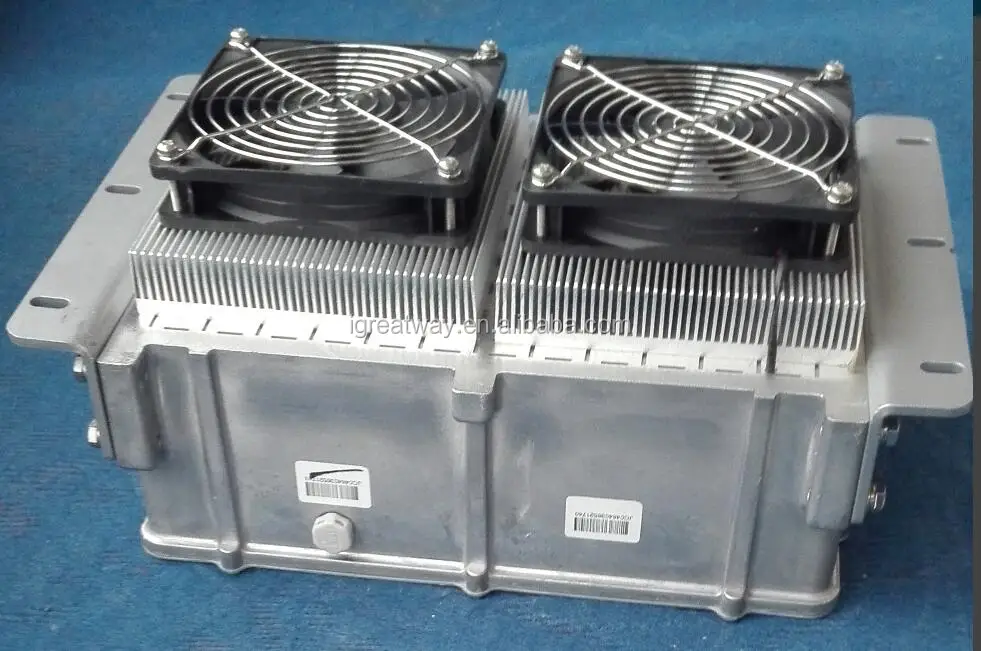

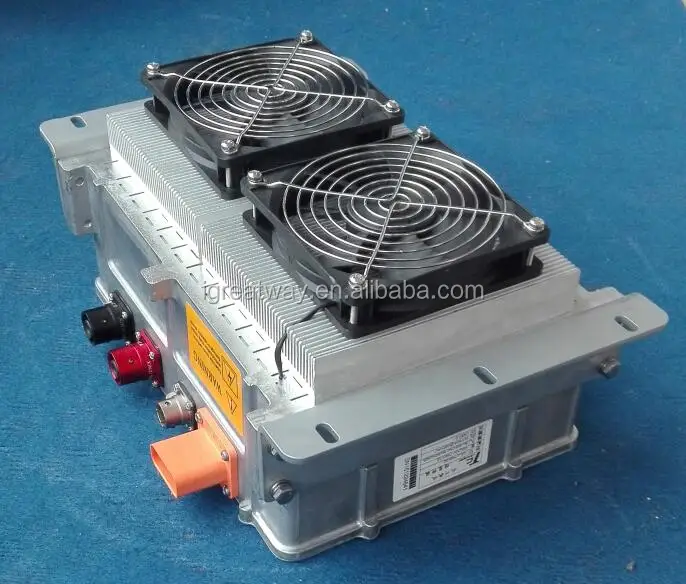

1) Full potting process, air cooling (modular optional) , it can be  reliably work in 40 ℃ - +85 ℃ degrees of  conditions

 2) Built-in temperature sensor, It can be turn off the output  in hazardous operating conditions (internal 95 ° C)

3) Protection class IP67,it  can work safely in mmersion conditionin short time

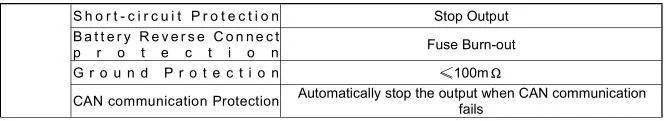

		6. Safety and others
				Input to Output:2000VAC≤10mA
		Withstand Voltage		Input to Ground:2000VAC≤12mA
				Output to Ground:2000VAC≤10mA,all 1min
		Insulation Resistance		Input, output, signal terminal to casing≥10MΩ
				Testing Voltage 1000VDC
	Electromagnetic		GB/T 18487.3-2001		11.3.1
	Immunity
	Electromagnetic		GB/T 18487.3-2001		11.3.2
	Abusive
	Harmonic Current		GB  17625.1-2003		6.7.1.1
	Inrush Starting Current		≤24A
	Current-rise Time		≤5S,Overshoot≤5%
	Close Response time		100% --10%≤50mS,100- 0%≤200mS
	Protection Level		IP67
	Vibration Resistance	10-25Hz Amplitude1.2mm,25-500Hz 30m/s2,8hrs per direction
	Noise		≤60dB(A )
	MTBF		150000H
	Work Environment		Relative Temp 5%-95% No condensation
	Working Temperature		-35℃ ~ +85℃
	Storage Temperature		-55℃ ~ +100℃

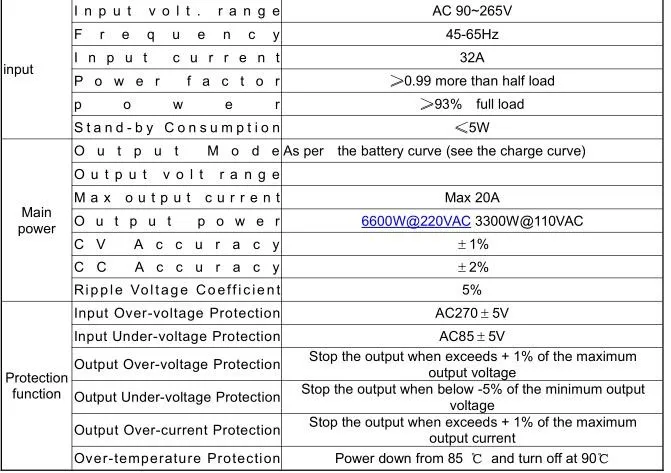

Spec.
