  • TFT type 1.5" inch small lcd module 128x128 dots with/without capacitive touch panel
TFT type 1.5
TFT type 1.5
TFT type 1.5
TFT type 1.5

TFT type 1.5" inch small lcd module 128x128 dots with/without capacitive touch panel

Share on (60646022209):


Price:RUB 371.64

Quantity:


Product Overview

Description

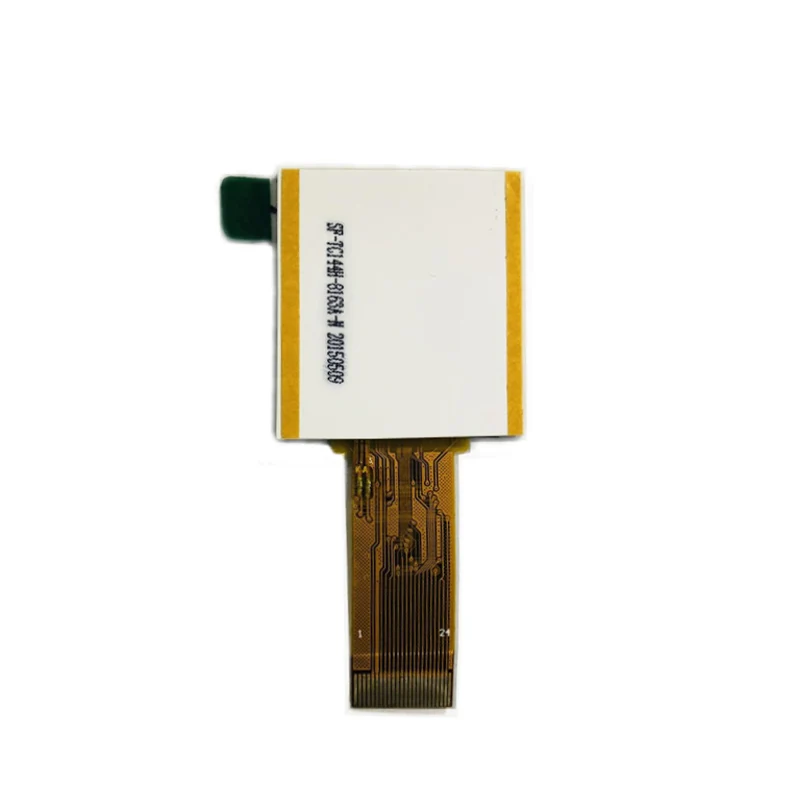

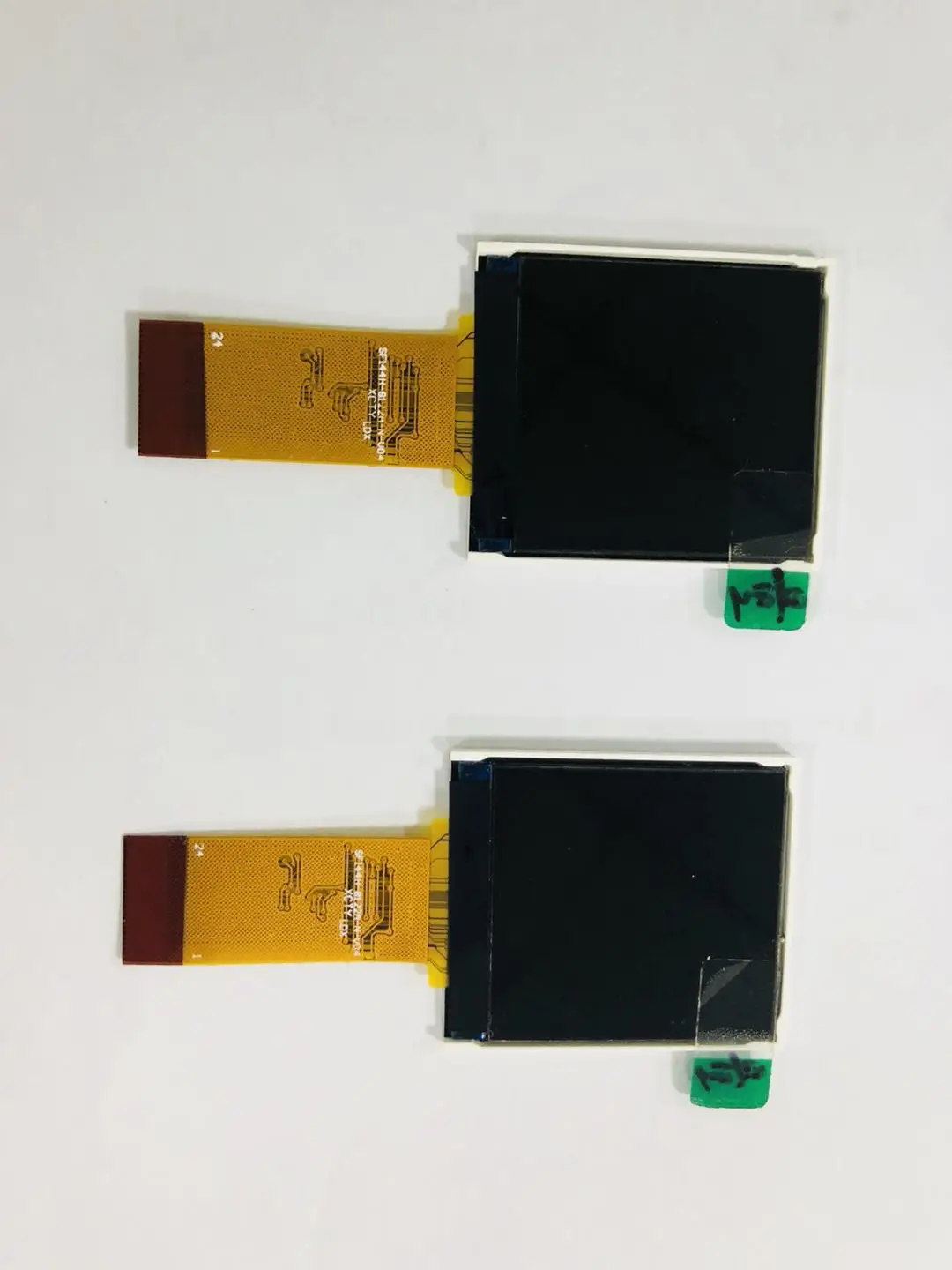

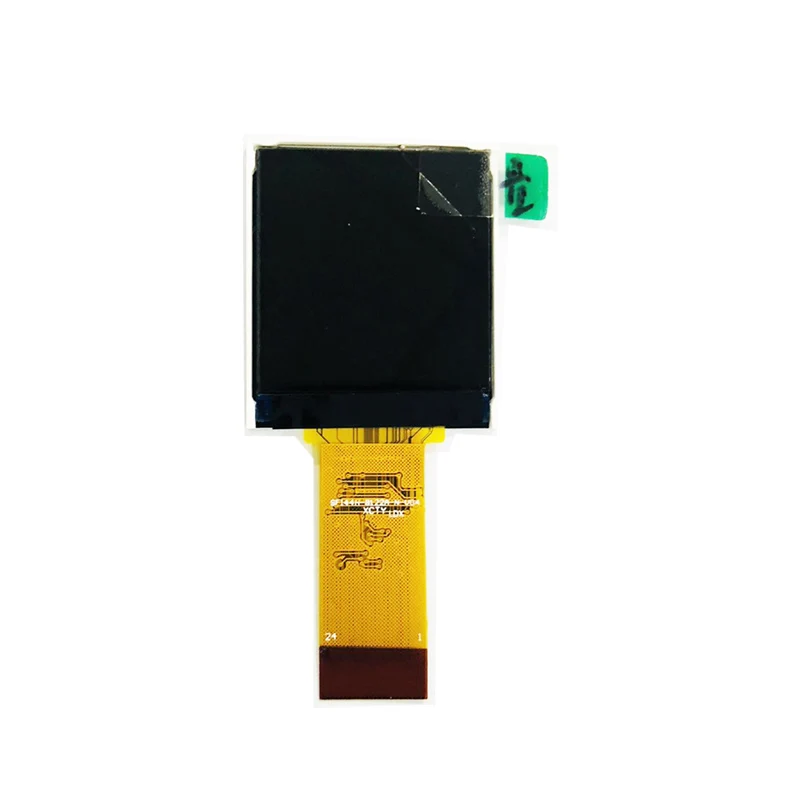

TFT type 1.5" inch small lcd module 128x128 dots with/without capacitive touch panel


1. Display Type:

1.44 inch lcd display

2. DRIVER IC:

ST7735S

3. Resolution:

128*(RGB)*128,TFT-Panel

4. Pin NO# :

24 pins

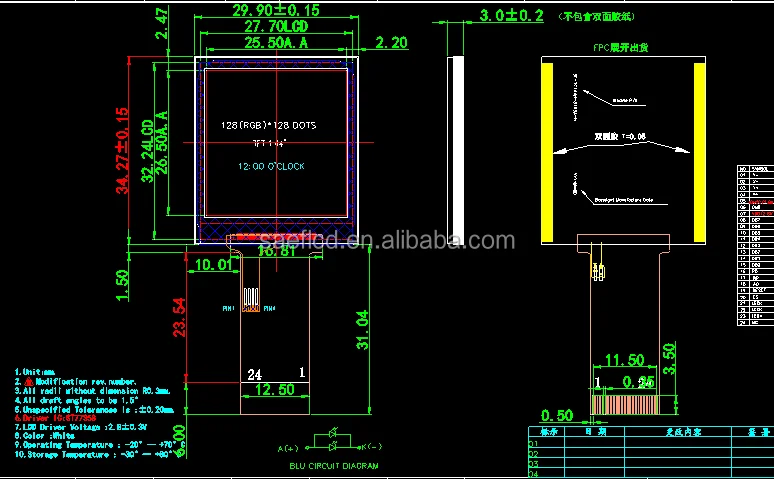

5. Outline Dimensions:

9.9*34.27*1.8mm

6.Luminous Intensity for LCM

150cd/m2

7. Interface Type:

MPU-8

8. Backlight:

White LED

9. Operating voltage:

+2.6V~3.3V

10. Viewing Angle:

 12 O’clock

11. Operating Temp:

-10°C~+60°C

12. Storage Temp:

-20°C~+60°C
















1. ISO9001 certificated, Factory Direct Supplied

2.RoHS Compliant, Lead Free, Reach Compliant

3.Competitive Price and Short Lead-time

4.Professional Team with Rich Experiences in Design/Mfg/Quality Control

5.Small MOQ Support & Fast Response to Customers

6.Long Product Life Time

Customer vist.jpg





ISO Certificate-1_.jpg


Shipping and Payment_.jpg

About Us-1_.jpg

Shenzhen SAEF Technology Ltd. is a manufacturer of LCD display modules and touch panel devices with well-equipped testing facilities and strong technical force.

With an experienced and professional team, we have exported our products to many countries and regions all over the world. Our products enjoy a good reputation among our customers.

We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
