High quality Concrete vibrator Japan type vibrator flexible drive shaft

Product Overview

Description

MY COMPANY



Products  Description:

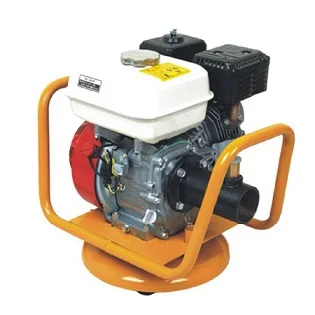

Internal concrete vibrators use the pendulum principle. 3,000rpm of the drive unit translates via the flexible shaft into 12, 000 vibrations per minute in the poker head. The low output speed ensures high reliability and extended service life. It can be used between two types of drive units (interchangeable): electrical motor and petrol or diesel engine drive units series, with 7 standard poker diameters. The vibrator poker is top of the range poker head suitable for professional application.

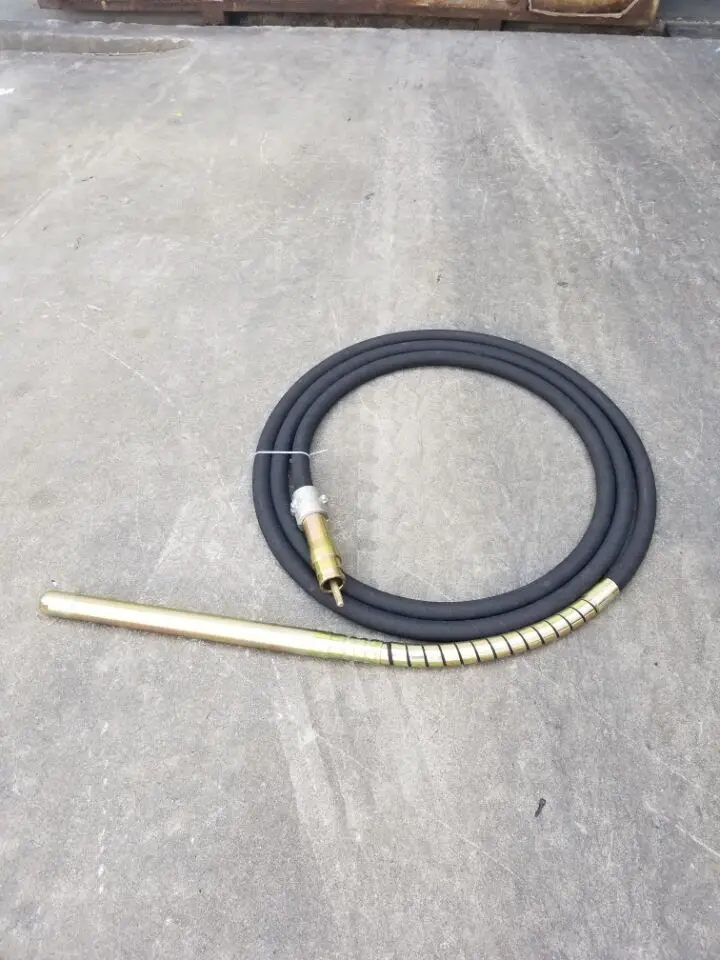

JK serials vibrator poker 4~12m length, Bar diameter 28mm, 32mm, 38mm, 45mm, 50mm, 60mm, 70mm

JK-SERIES Inserting Pendulum Vibrator Poker
Model	Vibrating Head Size	Vibration (V.P.M)	Vibration Amplitude (mm)	Flexible Shaft Diameter	Rubber Hose Diameter and Length
JK-28	28mmx47cm	10,000~15,000	0.9	8mm	30mmx4m~6m
JK-32	32mmx47cm		1.1	10mm	30mmx4m~6m
JK-38	38mmx47cm		1.6	10mm	30mmx4m~6m
JK-45	45mmx47cm		2.0	10mm	32mmx4m~6m
JK-50	50mmx47cm		2.2	13mm	32mmx4m~6m
JK-60	60mmx47cm	9,000~12,000	2.4	13mm	32mmx4m~6m
JK-70	70mmx47cm		2.6	13mm	36mmx4m~6m

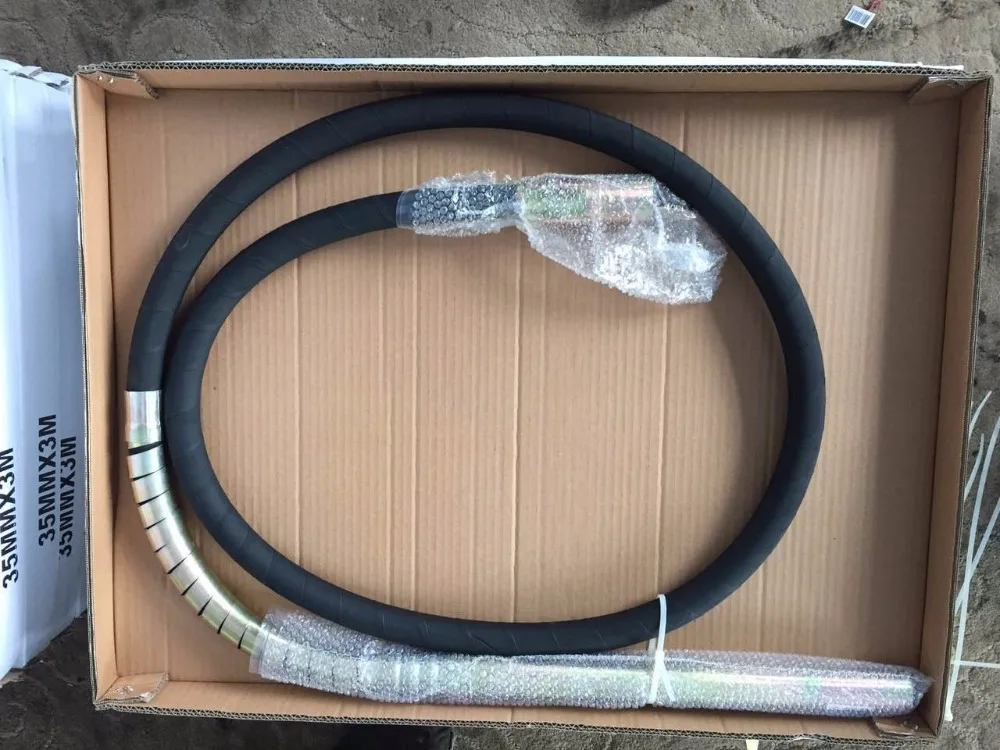

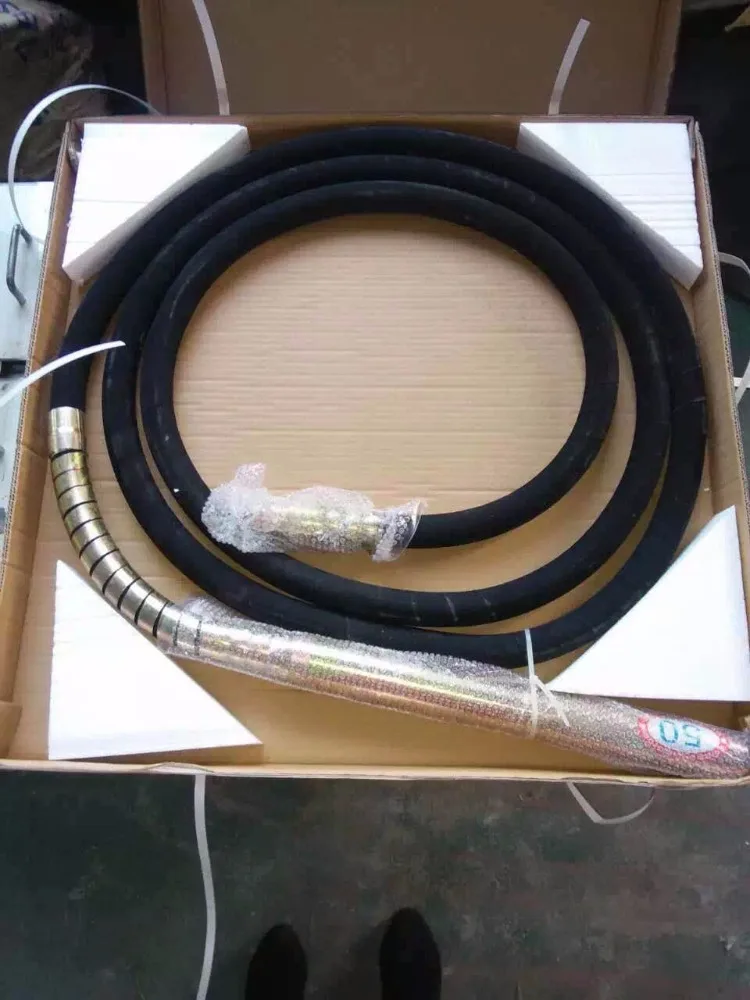

Packaging & Delivery:

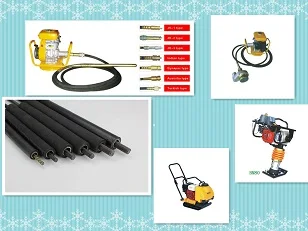

2.Pictures of different products



3.Certifications



4.Production Line







5.Welcome To Contact

    NAME:Tony

   Mobile:+8615763532377



  Address: Yanggu Industrial Park, Liaocheng City, Shandong Province, Liaocheng, Shandong, China

  Zip code :252300









7.

1) Why choose us?

   Professional supplier on flexible shaft products;
   Lowest factory price with good quality;

  Introducing advanced technology in Germany
   Meet safety standard for Europe and USA;

2) What is advantage on quality?

 Introducing advanced technology in Germany

 The factory has many years of manufacturing experience

 In China many times to win the integrity of the company honor
