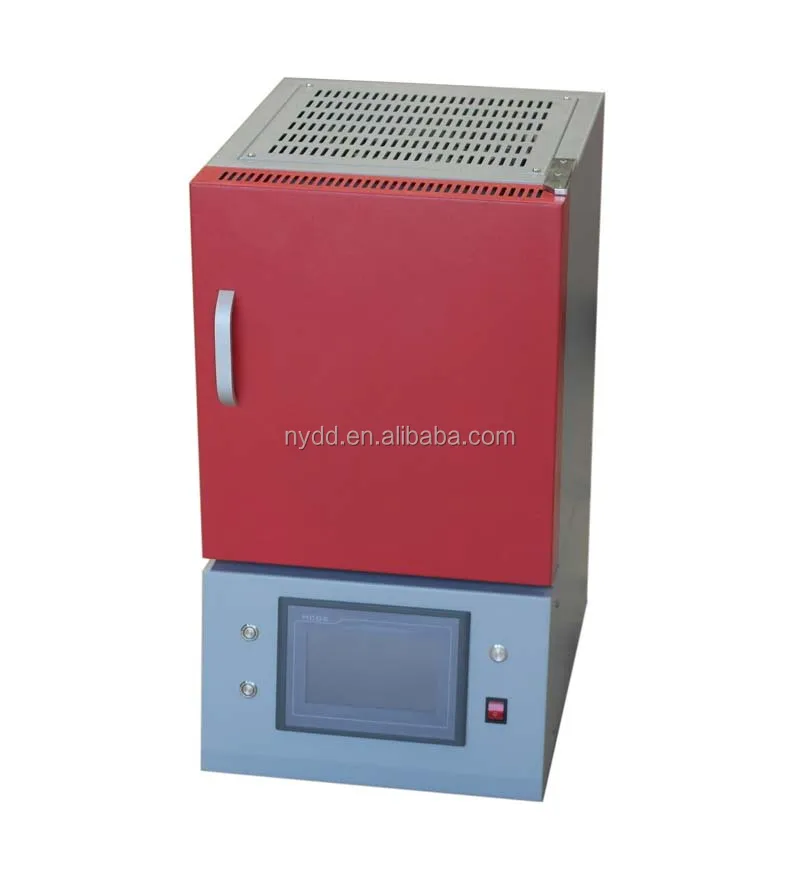

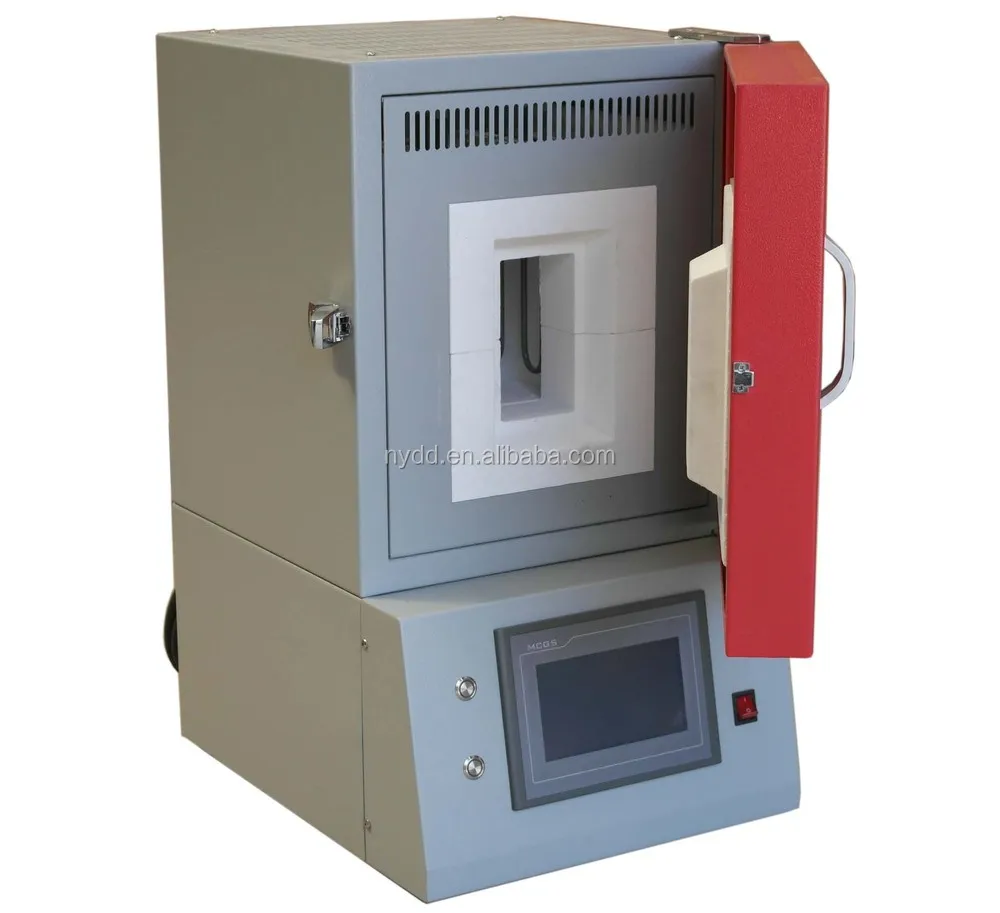

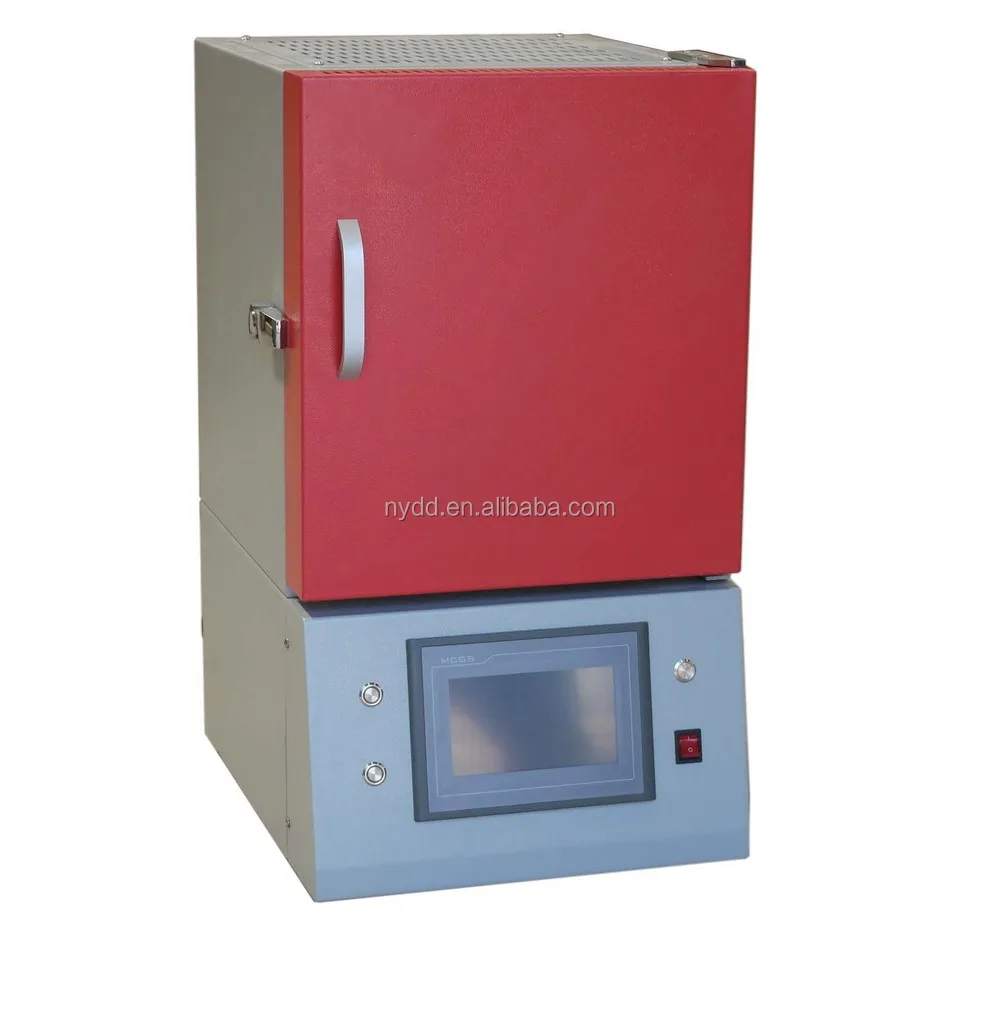

1700 Degree Mini Muffle Furnace Electric Heating Furnace Dental Zirconia Sintering Furnace
- Category: >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (60646113071):
Product Overview
Description
Product Description
High purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.
Doble layer sreel case with forced air cooling to ensure lower saferface temperature.
One optional venting port is built on the top of furnace,need at extra cost .
Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.
Doble layer sreel case with forced air cooling to ensure lower saferface temperature.
One optional venting port is built on the top of furnace,need at extra cost .
Product Name | 1700 Degree Mini Muffle Furnace Electric Heating Furnace Dental Zirconia Sintering Furnace |
Item No. | SX2-2-17TP |
Chamber size: | 100x100x100 mm, Capacity: 1 liter. |
Power: | AC 220V , 50/60Hz, 2000 W Max. ( power cord is included ) |
Max. Temperature : | 1700.C for short time |
Continuous Working Temperature: | 1600.C |
Temperature Controller : | PID automatic control and auto-tune function. 30 programmable segments for precise control. Built in protection for overheating and broken thermocouple. Large digital control panel for easy operation. |
Temperature Accuracy : | +/- 1 °C |
Heating Elements : | MoSi2 heater. |
Thermocouple : | B type |
Standard parts: | crucible tongs 1pc,high temperature gloves 1 pair,one user manual. |
Optional parts: | PLC touch screen controller, paperless recorder,Remote communication control system, observation window, Gas inlet and venting port are installed for using at oxygen or inert gas atmospheres. |

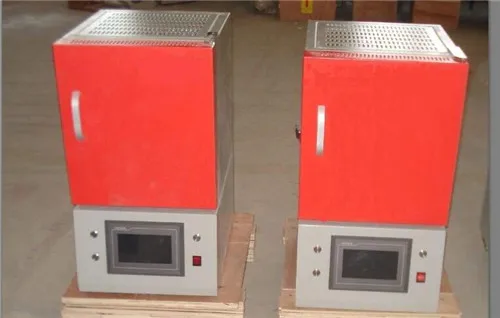

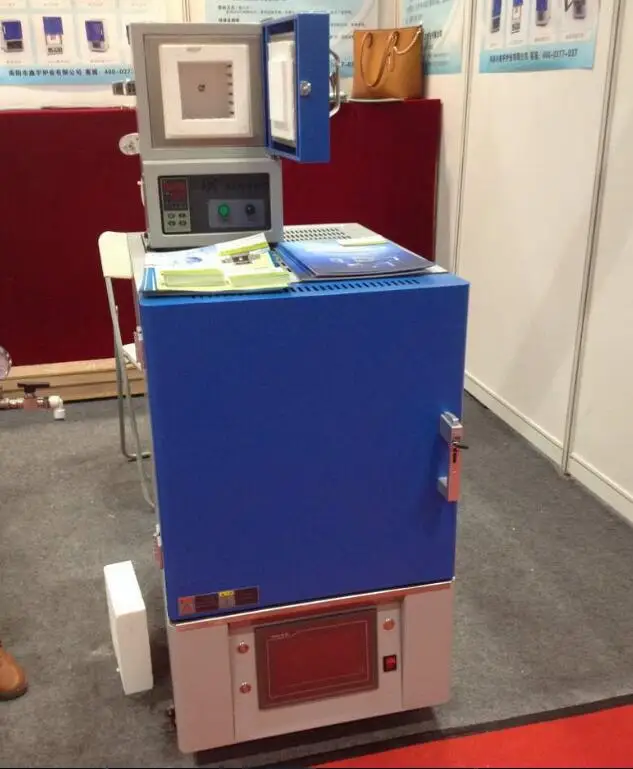

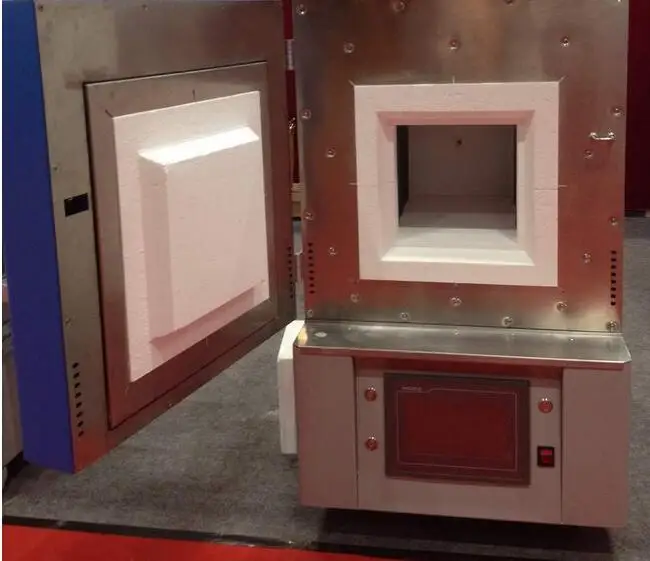

Products Show
Muffle furnace Standard Sizes:
Type | Furnace size | Working/Max.temperature | Delivery time |
1700.C muffle furnace | 100x100x100mm | 1600.C/1700.C | 15-30 days |
1700.C muffle furnace | 200x150x150mm | 1600.C/1700.C | 15-30 days |
1700.C muffle furnace | 300x200x200mm | 1600.C/1700.C | 15-30 days |
1700.C muffle furnace | 400x300x300mm | 1600.C/1700.C | 15-30 days |
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

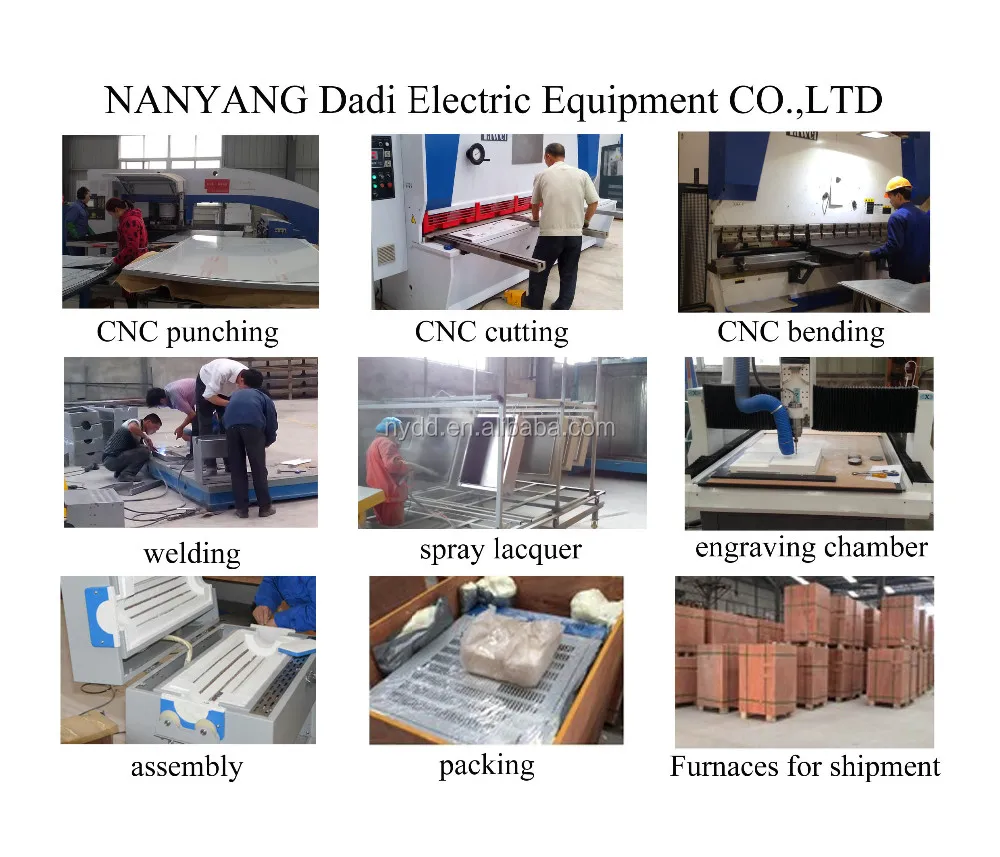

Furnace processing
Our Company

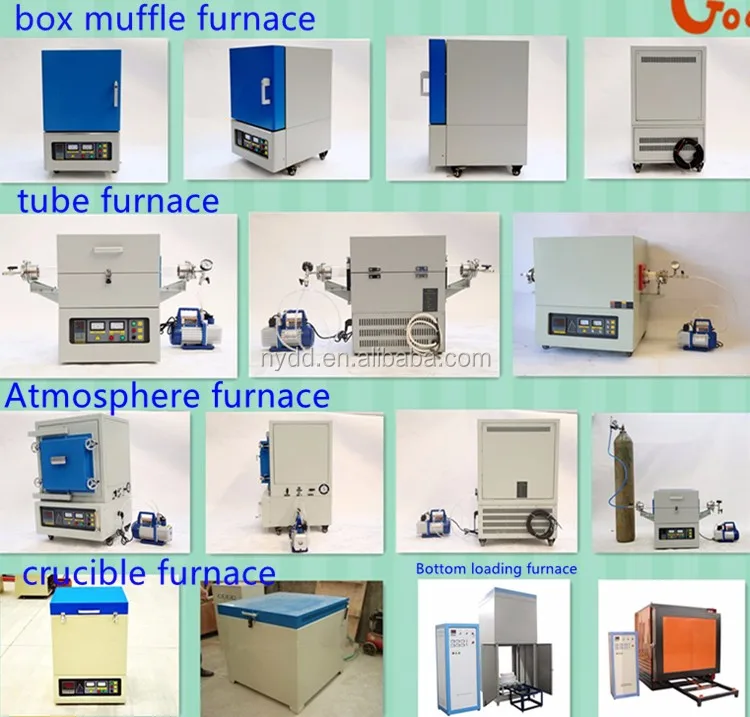

Nanyang Dadi electric Equipment Co.,Ltd, which is one professional Heat treatment furnace manufacturer Mianly product including: lab muffle furnace, atmosphere furnace, Crucible furnace, laboratory tube furnace, dental sintering furnace, vacuum furnace,vertical bell style furnace, CVD tube furnace, multiple heating zone (2/3/5 heating zone) tube furnace, rotary tilting tube furnace, RTP tube furnace and car bottom furnace etc.
We have rich experience in the various thermal applications fields, especially on the high temperature lab furnace and heating elements researthing and developping working, which earn us a sound reputation among our product users and clients.
Packing & Delivery
Strong plywood carton for furnace and parts.
Shipment by courier/by Sea/ by Air /by land Optional;
Fast delivery !
Shipment by courier/by Sea/ by Air /by land Optional;
Fast delivery !
FAQ
1 Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2 Q: Can I ask for special designs about your furnace?
A: Yes, and it is free.
3 Q: What about the furnace delivery time?
A: Normally 20 days after receiving your payment or based on order Qty and production schedule.
4 Q: What about the guarantee period?
A: 12 months.
5 Q: What about the Minimum Order Quantity?
A: The MOQ is 1 Pcs
