2.7 inch 128x64 SSD1325 LY270YT06 16 gray scale oled display panel
- Category: >>>
- Supplier: Shenzhen Liyuan Huida Technology Co. Ltd.
Share on (60646116480):
Product Overview
Description
Products Description
1. Display Specifications
NO. | Item | Specifications |
1 | Screen Size | 2.7 Inch |
2 | Display Resolution | 128x64 |
3 | Display Mode | Passive Matrix |
4 | Display Color | Monochrome (White/Yellow) |
5 | Panel Size | 73.00(W) x 41.86(H) x 2.00(T)(mm) |
6 | Active Area | 61.41(W) x 30.69(H) (mm) |
7 | Pixel Pitch | 0.48 x 0.48 (mm) |
8 | Pixel Size | 0.45 x 0.45 (mm) |
9 | Number of Pin | 30 Pins |
10 | Driver IC | SSD1325 with 16 gray scale |
11 | Interface | 8-bit 68XX/80XX Parallel, 4-wire SPI |
12 | Weight | 20.5(g) |

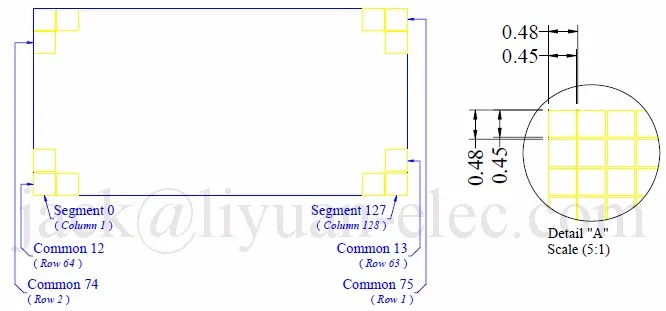

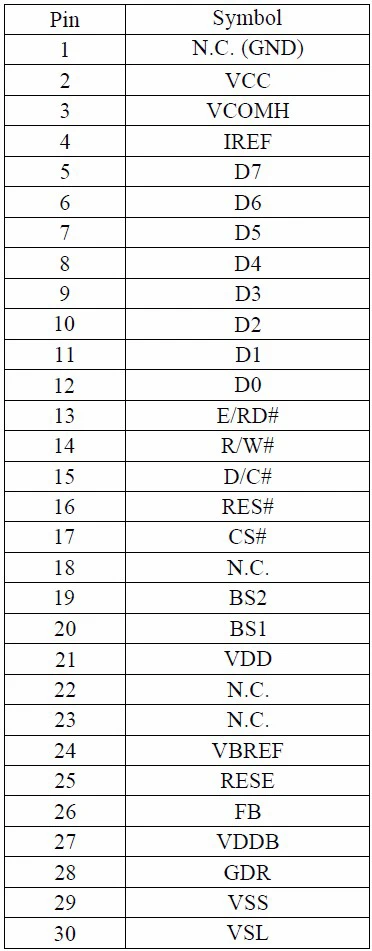

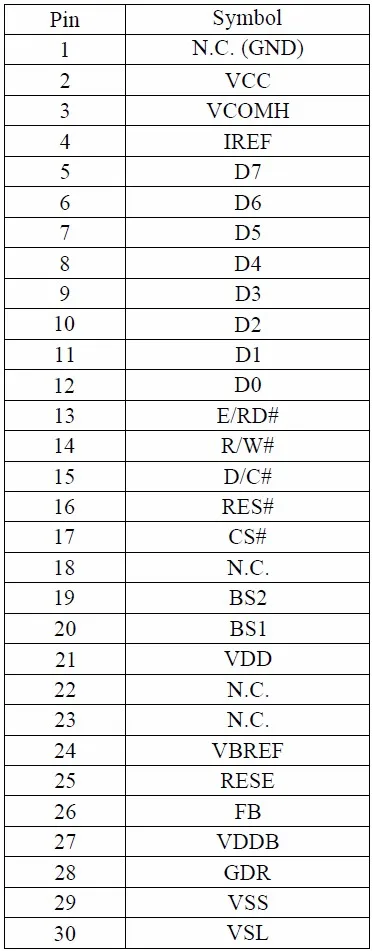

2. Pin Definition

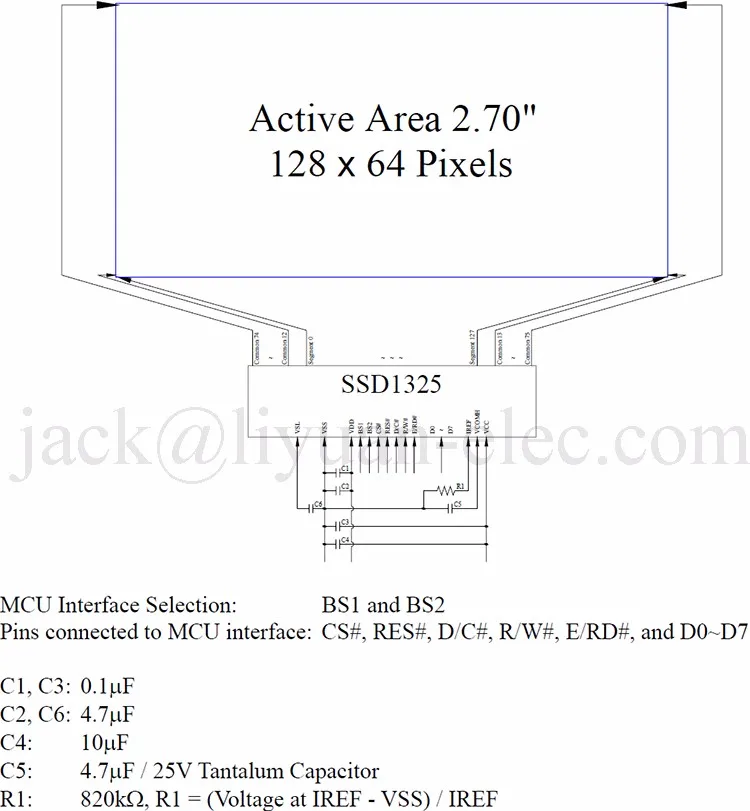

3. Application Circuit
If you have any questions in application circuit,we will provide detailed technical support.

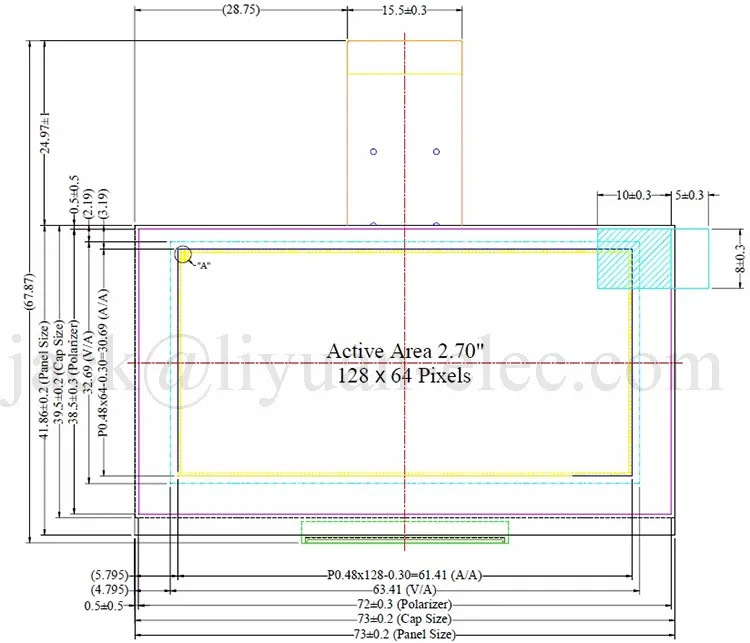

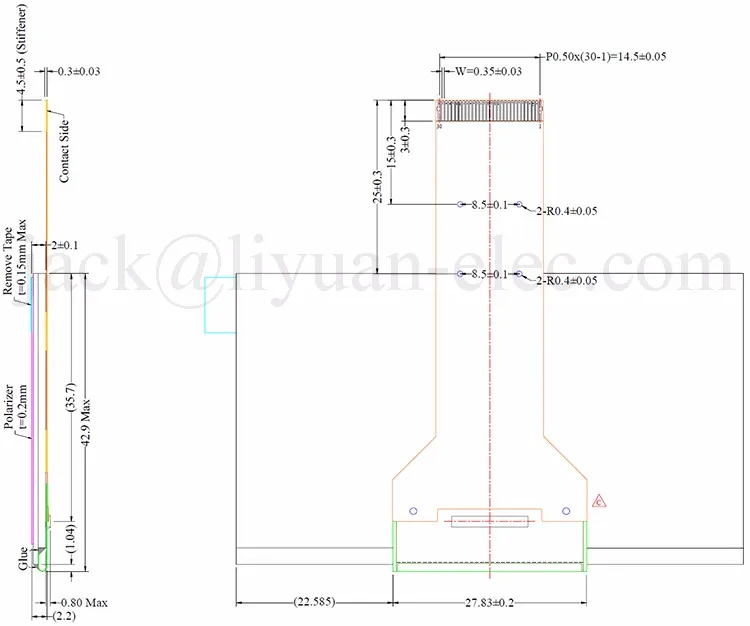

5. Mechanical Drawing

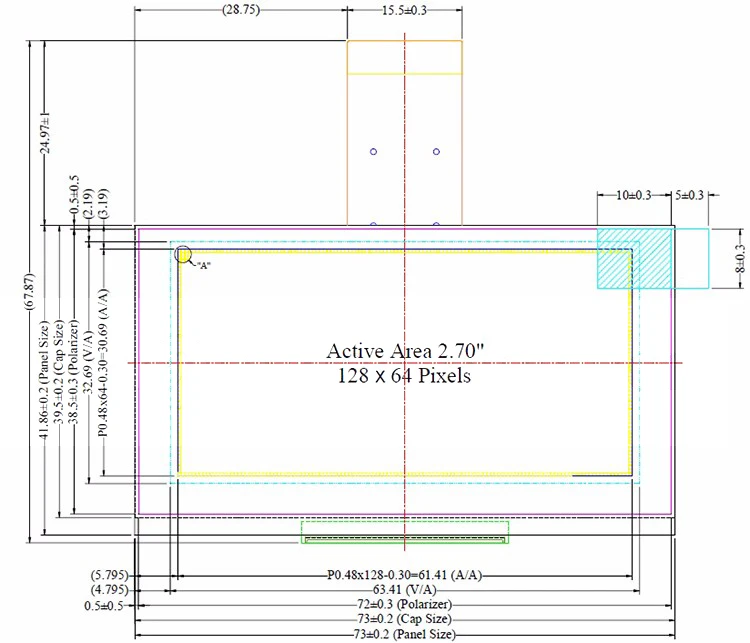

5. Mechanical Drawing

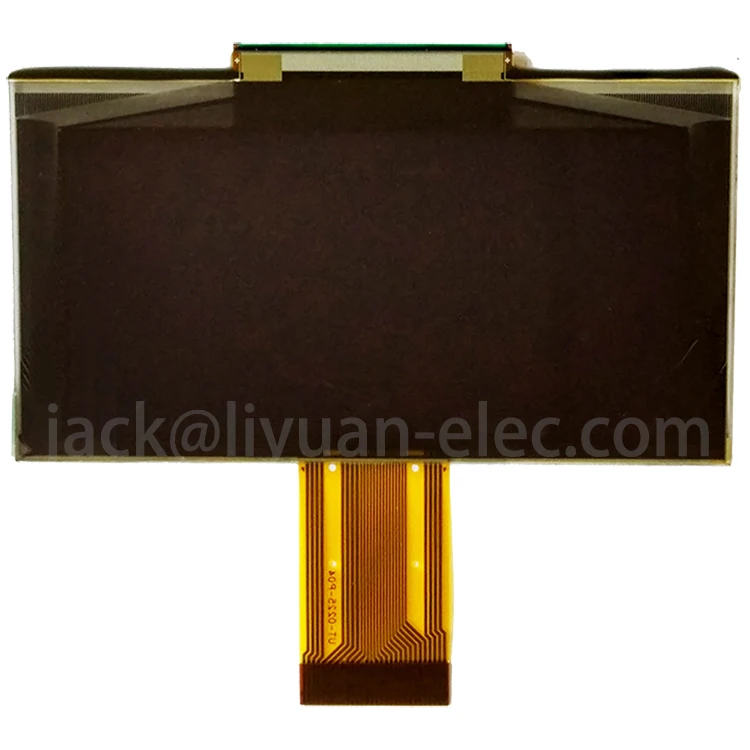

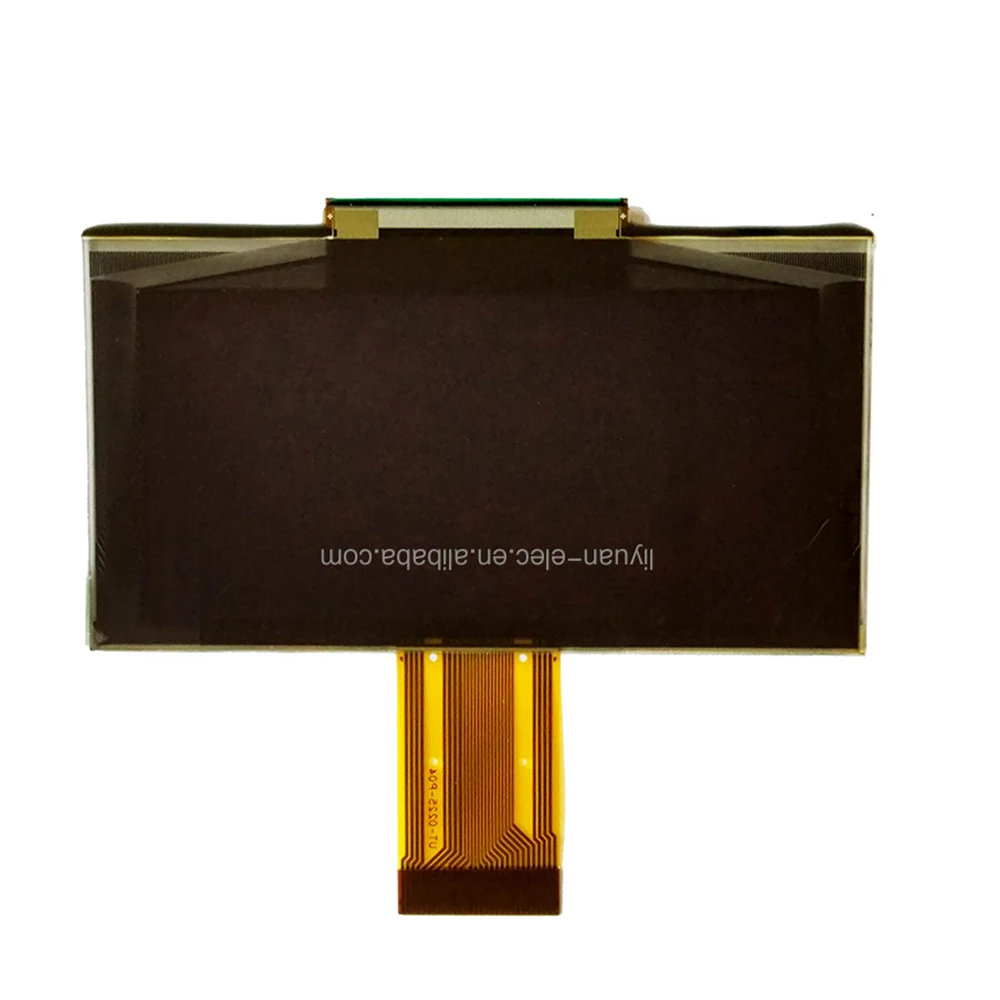

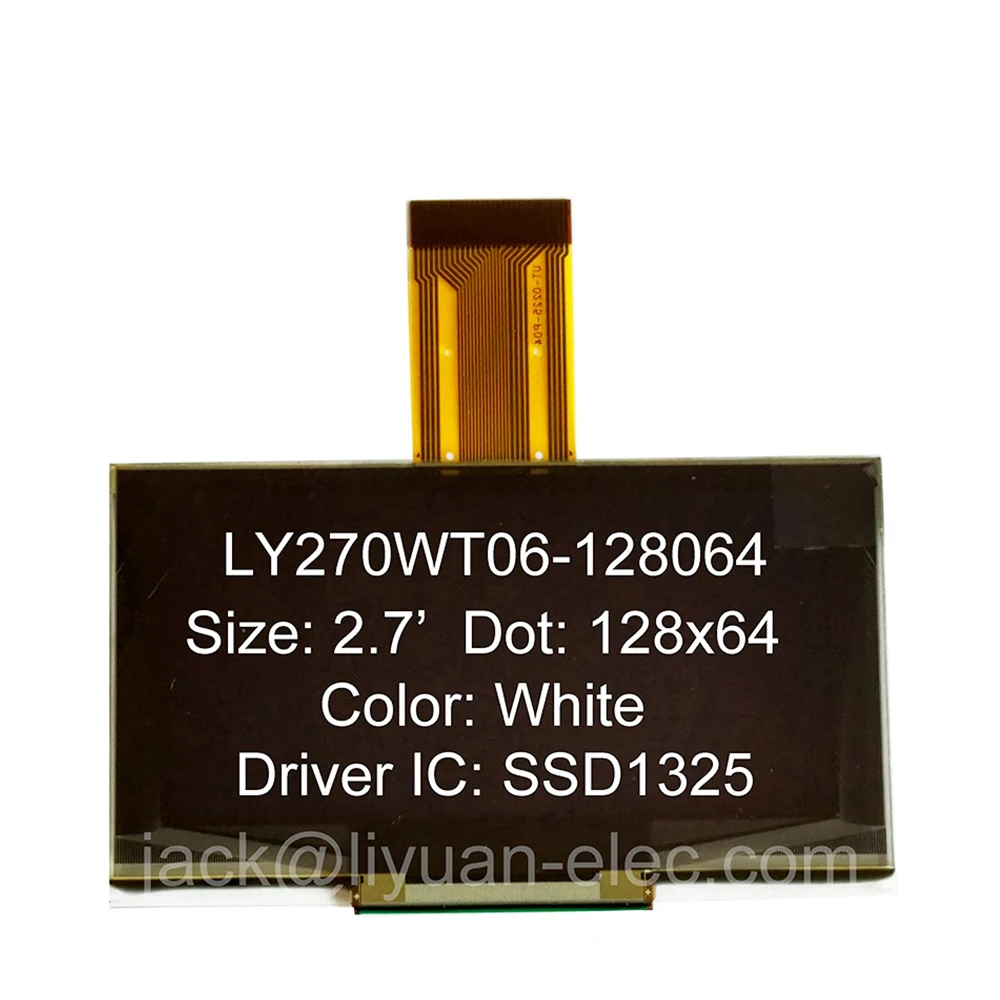

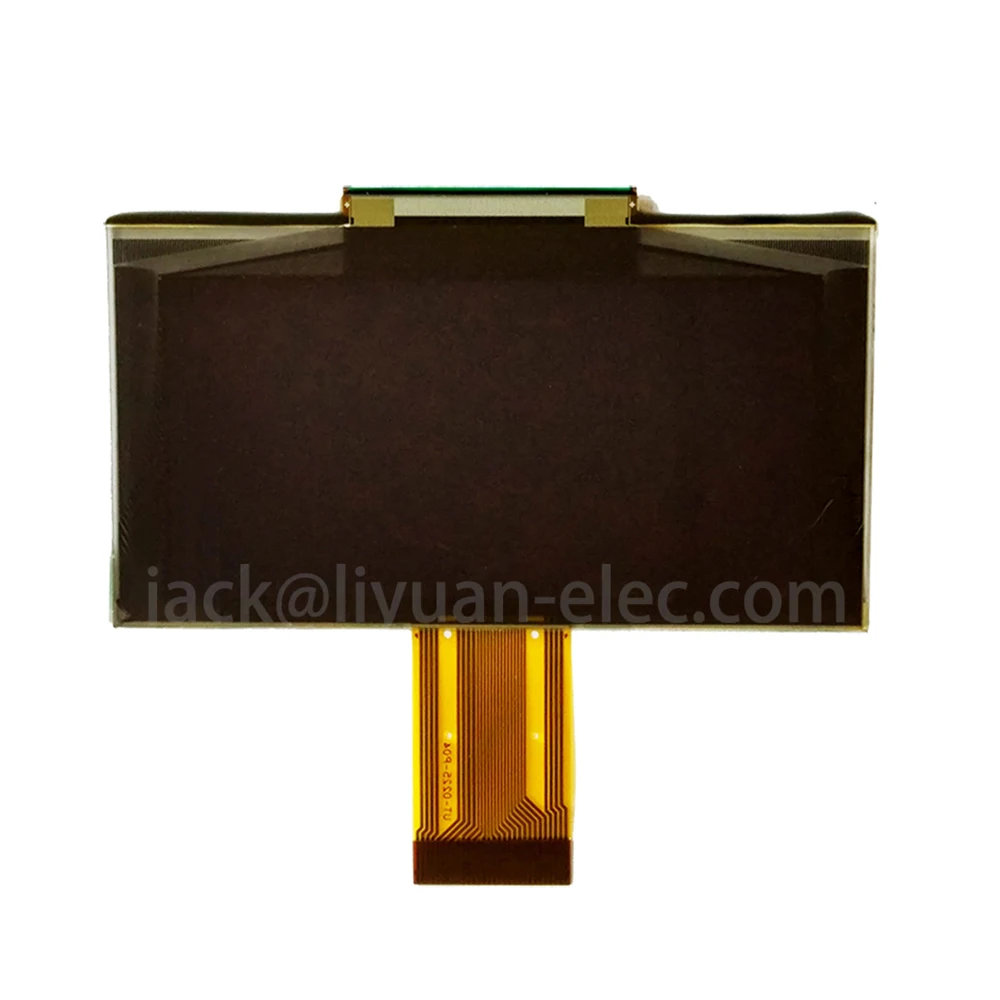

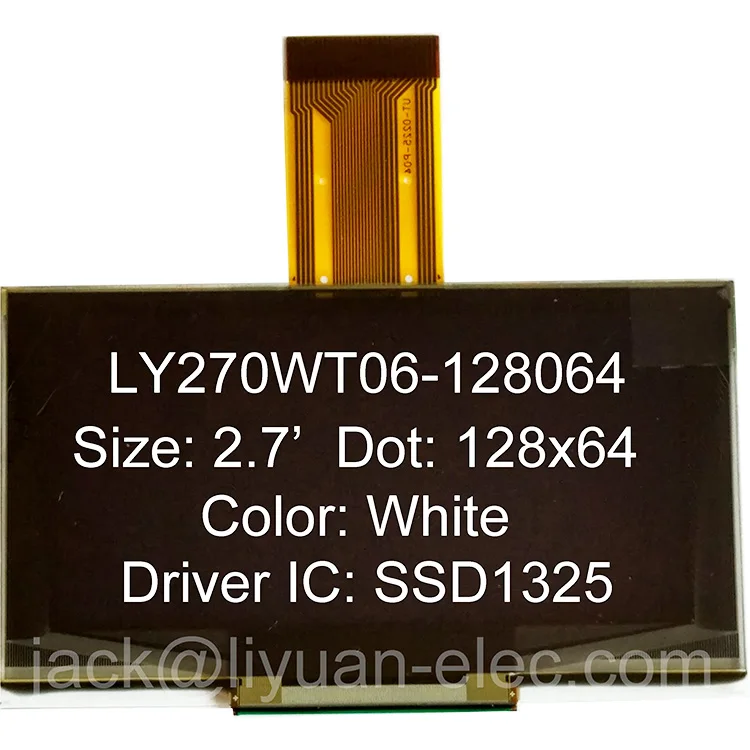

Details Images
Related Products
Size | Model No. | Resolution | Panel Size(mm) | Active Area(mm) | Driver IC | Interface |
0.42" | 72x40 | 12.0x11.0x1.2 | 9.196x5.180 | SSD1306 | SPI/I2C | |
0.49" | 64x32 | 14.5x11.6x1.2 | 11.18x5.58 | SSD1306 | IIC | |
0.5" | 48x88 | 8.928x17.1x1.227 | 6.124x11.244 | CH1115 | I2C | |
0.54" | 96x32 | 18.52x7.04x1.227 | 12.46x4.14 | CH1115 | I2C | |
0.63" | 120x28 | 21.54x6.62x1.22 | 15.58x3.62 | SSD1312 | I2C | |
0.66" | 128x32 | 18.46x18.1x1.45 | 13.42x10.06 | SSD1306 | SPI/I2C | |
0.69" | 96x16 | 26.3x8x1.3 | 17.26x3.18 | SSD1306 | IIC | |
0.78" | 80x128 | 12.13x23.6 | 9.68x17.26 | SH1107 | SPI/I2C | |
0.84" | 96x16 | 29.10x9.20x1.60 | 21.104x3.504 | SSD1306 | IIC | |
0.87" | 128x32 | 29.0x8.7x1.2 | 21.356x5.324 | SSD1316 | SPI | |
0.91" | 128x32 | 30.0x11.5x1.45 | 22.384x5.584 | SSD1306 | SPI | |
0.91" | 96x64 | 30.0x11.5x1.45 | 22.384x5.584 | SSD1306 | IIC | |
0.95" | 128x64 | 25.7x22.2x1.5 | 20.14x13.42 | SSD1331Z | SPI | |
0.96" | 128x64 | 24.74x16.9x1.42 | 21.74x10.86 | SSD1315 | SPI/I2C | |
0.96" | 128x64 | 26.7x19.26x1.45 | 21.744x10.864 | SSD1306 | SPI/I2C | |
0.96" | 128x64 | 26.7x19.26x1.45 | 21.744x10.864 | SSD1306 | SPI/I2C | |
0.96" | 128x64 | 18.0x31.0x1.1 | 10.86x21.74 | SSD1327Z | SPI/I2C | |
0.96" | 128x64 | 18.0x31.0x1.05 | 10.86x21.74 | SSD1327Z | 8-bit 8080 Parallel | |
1.04" | 128x32 | 29.8x14.5x1.3 | 25.58x6.38 | SSD1306 | SPI/I2C | |
1.09" | 128x64 | 14x31.96x1.22 | 10.86x25.58 | CH1115 | SPI | |
1.12" | 128x128 | 27.00x30.10x1.25 | 20.14x20.14 | SH1107G | SPI/I2C | |
1.3" | 128x64 | 34.50x23.00x1.4 | 29.42x14.70 | SSD1106 | SPI/I2C | |
1.3" | 128x64 | 34.50x23.00x1.45 | 29.42x14.70 | SSD1306 | SPI/I2C | |
1.3" | 128x64 | 34.50x23.00x1.4 | 29.42x14.70 | SH1106 | SPI/I2C | |
1.3” | 128x64 | 34.50x23.00x1.4 | 29.42x14.70 | SSD1306 | SPI/I2C | |
1.32" | 128x96 | 32.5x29.2x1.61 | 26.86x20.14 | SSD1327 | Parallel /I2C/ SPI | |
1.5" | 128x128 | 33.80x34.00x1.60 | 26.855x26.864 | SSD1351U3 | SPI | |
1.54" | 128x64 | 42.04x27.22x1.45 | 35.052x17.516 | SSD1309 | SPI/I2C | |
1.54" | 128x64 | 45.24x29.14x2.00 | 35.056x17.52 | SSD1305 | SPI/I2C | |
2.23" | 128x32 | 62.00x24.00x2.00 | 55.02x13.10 | SSD1305 | SPI/I2C | |
2.36" | 128x22 | 63.30x20.80x2.15 | 58.85x11.85 | SSD1305 | SPI/I2C | |
2.42" | 128x64 | 60.50x37.00x2.00 | 55.01x27.49 | SSD1309 | SPI/I2C | |
2.42" | 128x64 | 60.50x37.00x1.80 | 55.01x27.49 | SSD1305Z | SPI/I2C | |
2.7" | 128x64 | 73x41.86x1.82 | 61.41x30.69 | SSD1305 | SPI/I2C | |
2.7" | 128x64 | 73.00x41.86x2.00 | 61.41x30.69 | SSD1305 | SPI | |
2.7" | 128x64 | 73.00x41.86x2.00 | 61.41x30.69 | SSD1325 | SPI | |
2.7" | 128x64 | 73x41.86x1.82 | 61.41x30.69 | SSD1305 | SPI/I2C | |
2.7" | 128x64 | 73.00x41.86x2.00 | 61.41x30.69 | SSD1325 | SPI | |
2.8" | 256x64 | 84.00x25.80x2.00 | 69.104x17.264 | SSD1322 | SPI | |
3.12" | 256x64 | 88.00x27.80x2.00 | 76.78x19.18 | SSD1322 | SPI | |
3.37" | 240x128 | 89.52x54.41 | 75.58x40.30 | SSD1322Z2 | Parallel/Serial | |
5.5" | 256x64 | 46.00x45.00x2.00 | 135.65x33.89 | SSD1322 | SPI |
