Jinan weili LBW2500PC Insulating glass outside press production line for window door and curtain wall
- Category: >>>
- Supplier: Jinan Weili Machine Co. Ltd.
Share on (60646151654):
Product Overview
Description
Product Description

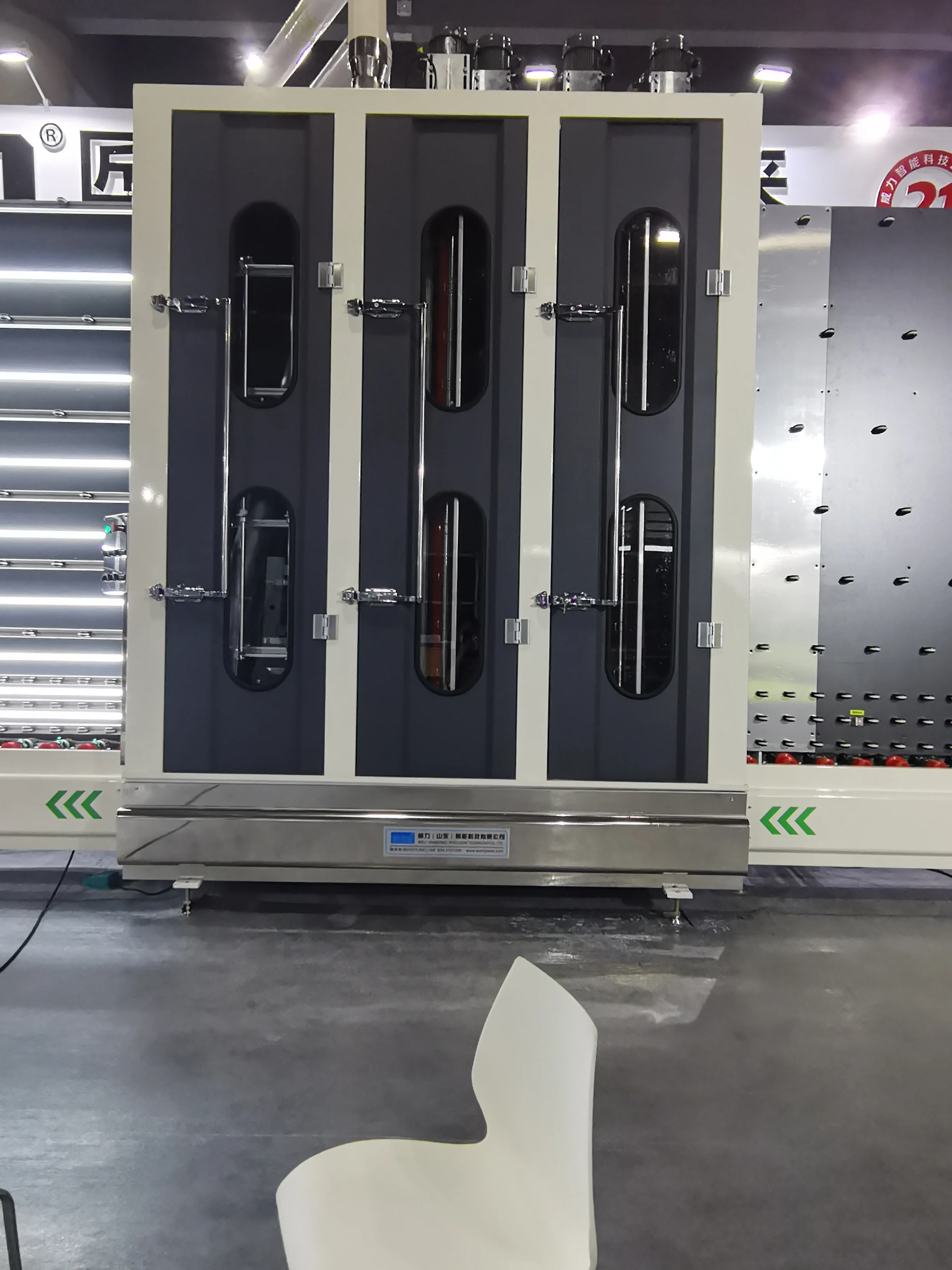

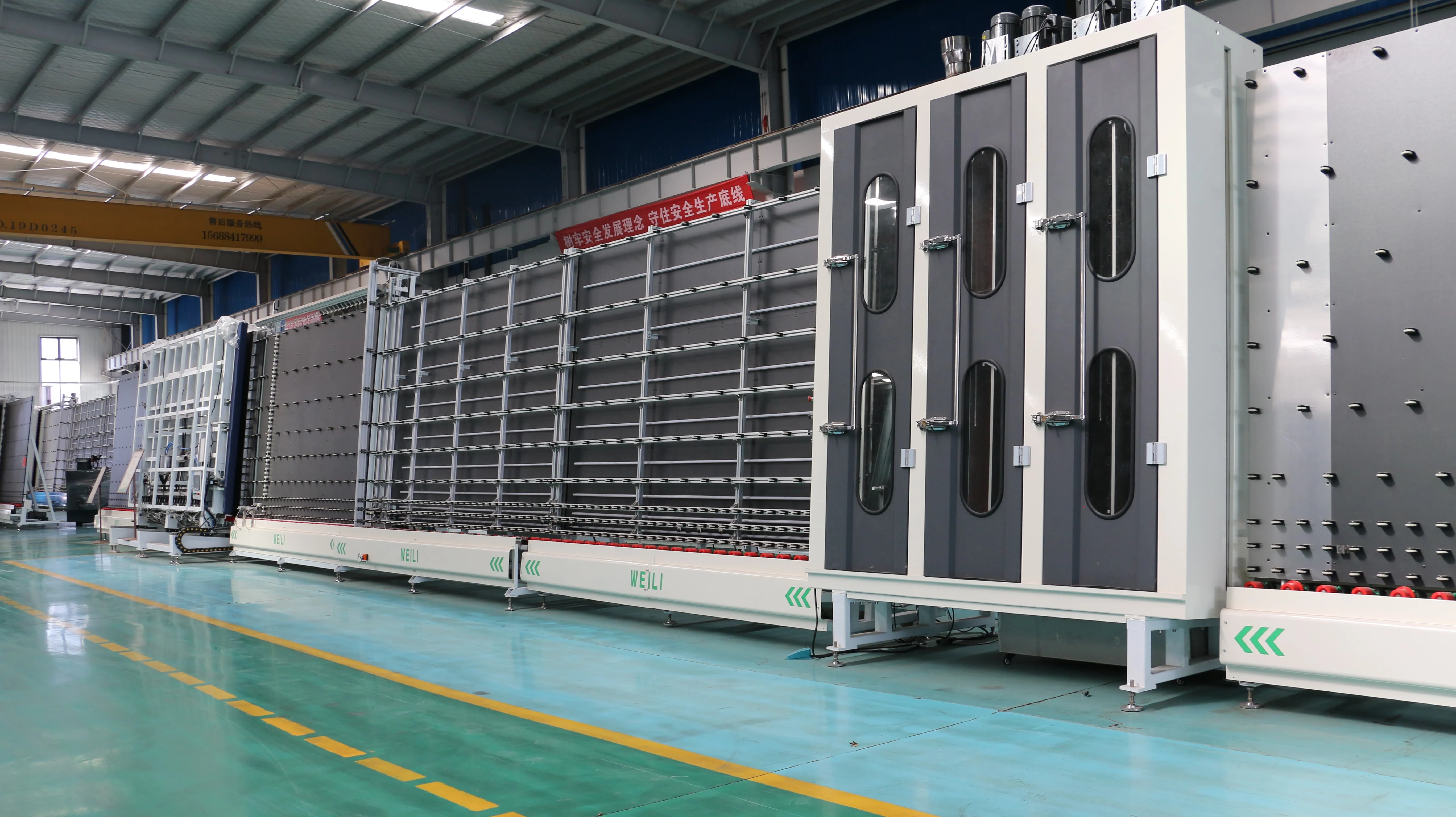

Vertical Panel Press Insulating Glass Production Line For Manufacturing Double Glass
LBW2500PB Vertical Automatic Insulating Glass Outside Assembly Flat Press Production Line is a high-efficiency insulating glass processing equipment. This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.
Main Features :
1 PLC control system,work automatically.10.4-inch touch screen, convenient to operate.

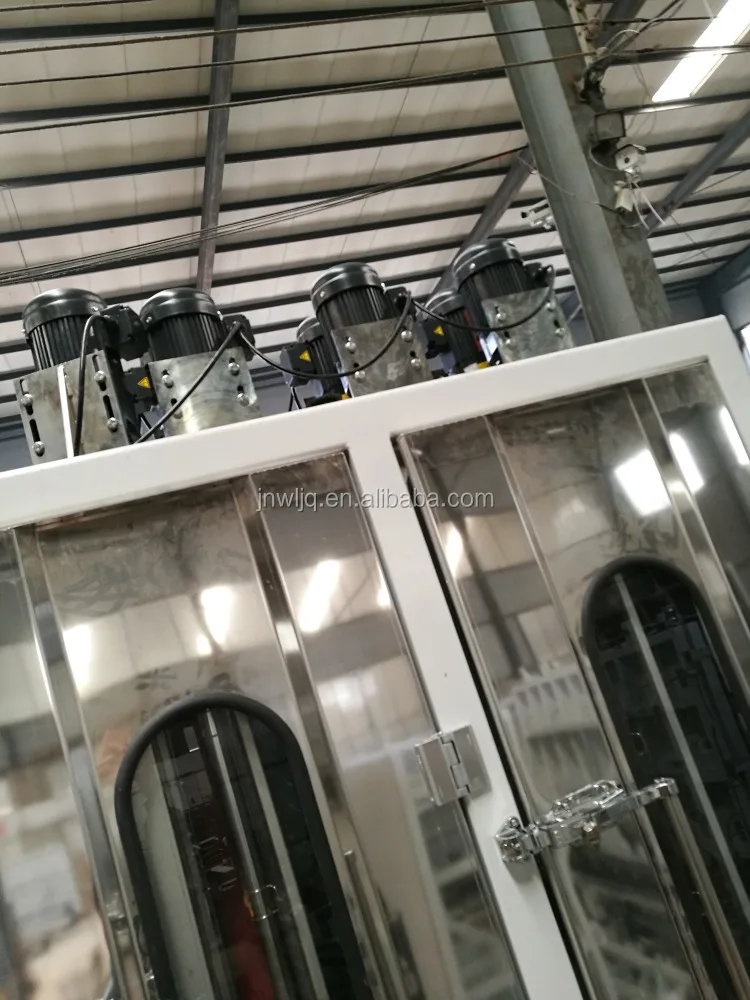

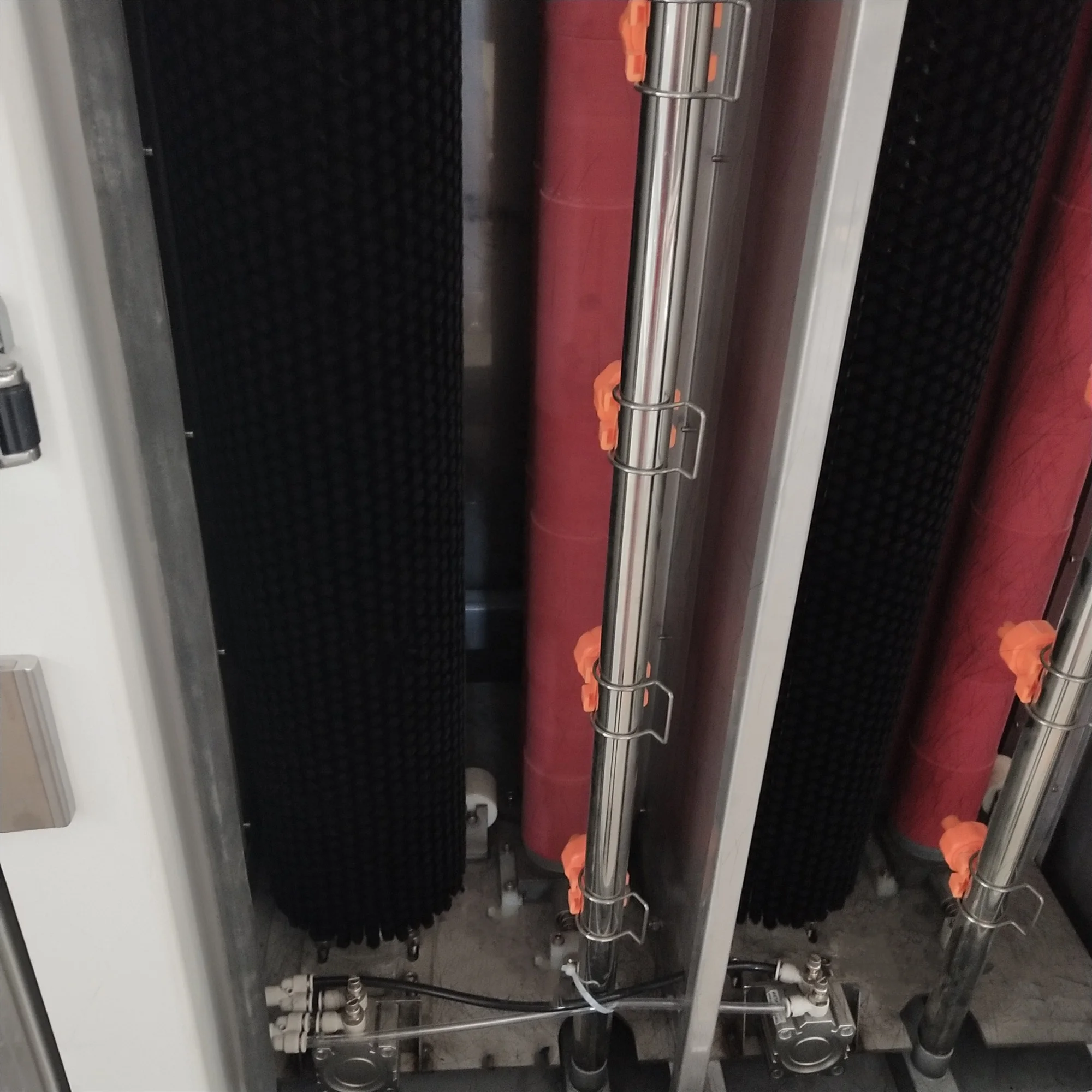

2 Three pairs of high temperature nylon brushes are driven separately by six asynchronous electric motors, and are movable, also can adjust the distance automatically according to the thickness of the glass.
3 Adopts acid-proof, alkali-proof and anti-corrosion solid delivery wheel. The distance between wheel is adjustable according to the thickness of glass.
4 Outside assemble section: hydraulic motivation make the movement more stable. The up and down of locating frame is driven by variable frequency motor and automatically inspect the height of glass.
5 Outside assembly and inside assembly function is optional.
6 All components are high standard to be sure that the machine can be used stable for a long time.
Technical Parameter :
Power Supply | 380V 50 HZ 35KW |
Dimension (L x W x H) | 21600*2800*3450mm |
Max glass size | 2000mmx2580mm |
Min glass size | 300mmx400mm |
Washing glass thickness | 3-15mm |
Washing glass speed | 0-10m/min |
Insulating glass thickness | 48mm(can adjust) |
Transmission glass speed | 45m/min |
Compress air | 0.8m³/min |
Air pressure | 1Mpa |

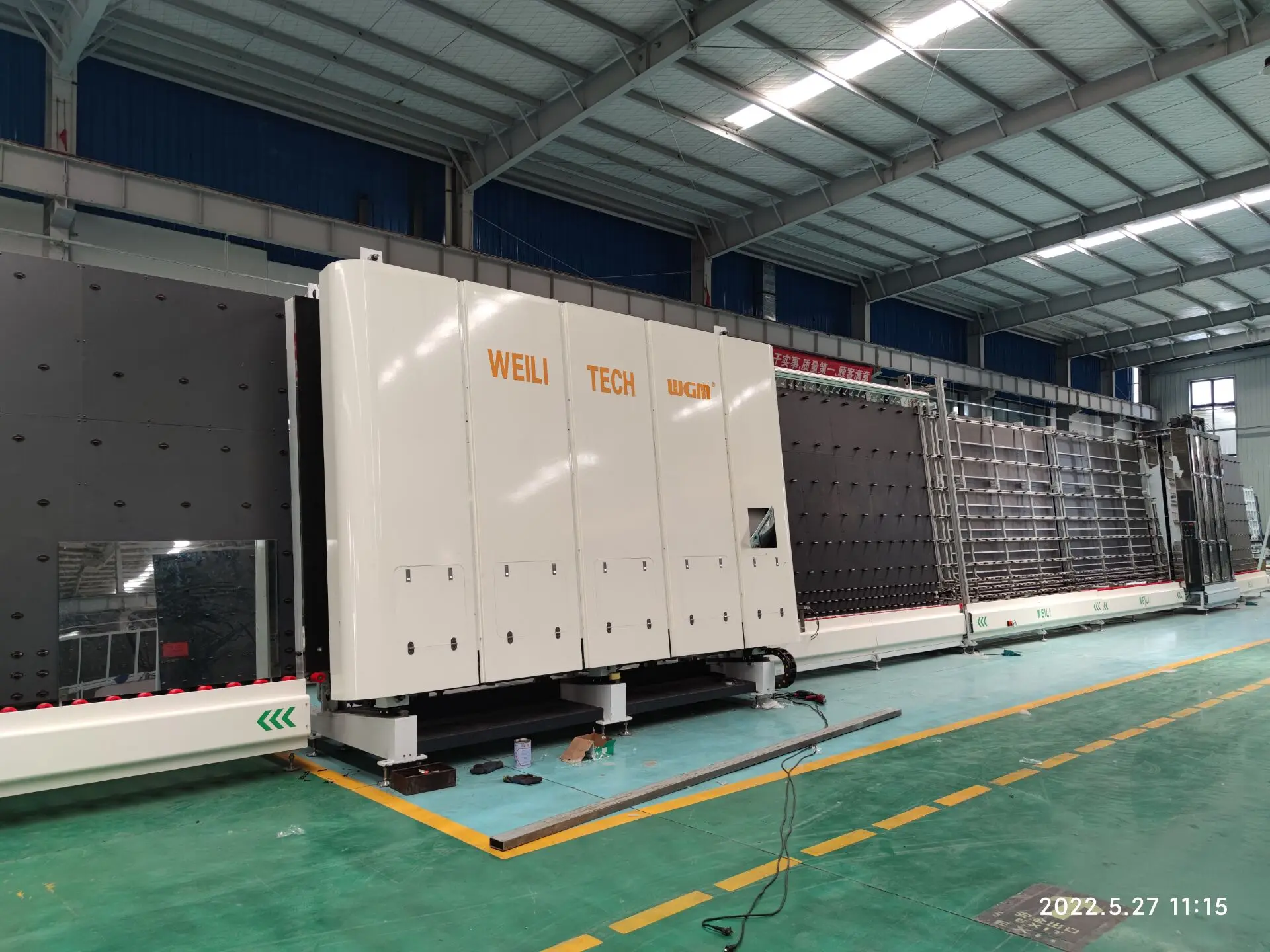

Products Show
* SKF oil-free lubrication waterproof bearing avoid the oil molecular pollution to glass after cleaning.

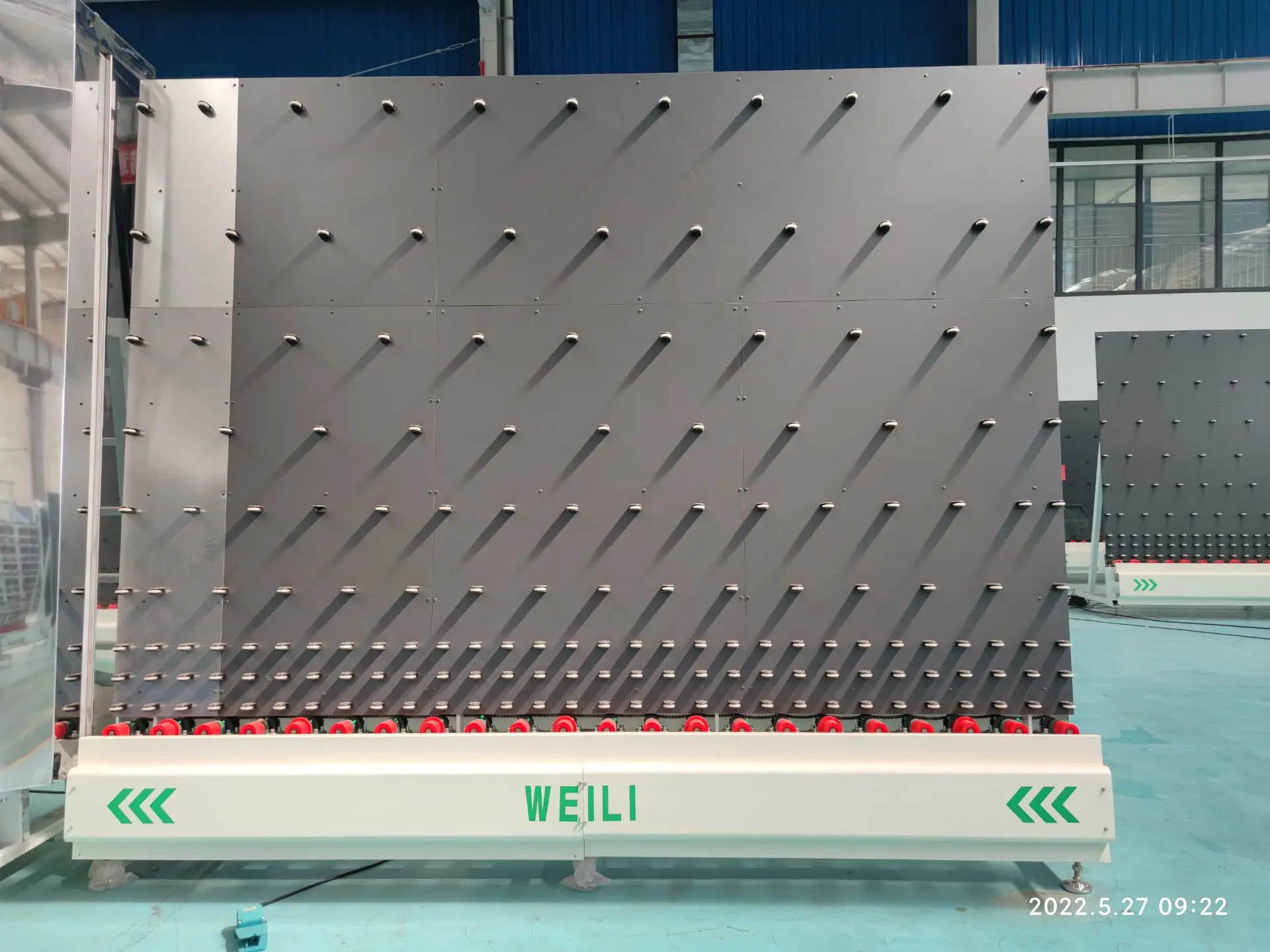

* Glass pressing section is driven by Servo motor and hydraulic system, the suckers are distributed regionally. The press board can be opened to 450mm, convenient to open and maintenance.

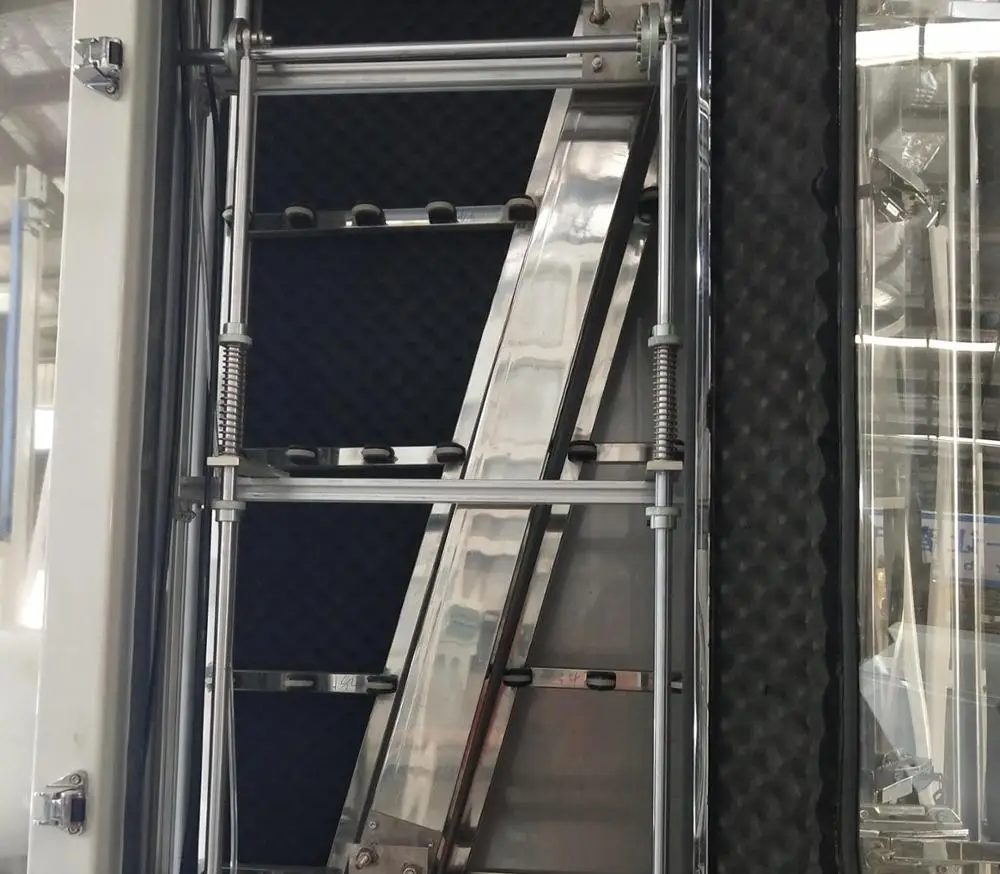

Glass drying section is equipped inclined rhombic air knife by NC bending process. Internal circulation air duct prevent from the wind pollution and save energy.
Automatic LOW-E glass inspection system : identify whether it is coating glass, low-e glass or not.
Electric Component | ||||||
NO. | Name | Brand | Brand Place | |||
1 | PLC | SCHNEIDER | FRANCE | |||
2 | 10.0 inch touch screen | SCHNEIDER | FRANCE | |||
3 | Photoelectric switch | AUTONICS | KOREA | |||
4 | Limit switch | AUTONICS | KOREA | |||
5 | Transducer | SCHNEIDER | CHINA, FRANCE | |||
6 | Low voltage electric components | SCHNEIDER | FRANCE | |||
7 | Solenoid valve | AIRTAC | CHINA, TAIWAN | |||
8 | Cylinder | AIRTAC | CHINA, TAIWAN | |||
9 | Liner guide rail | PMI | CHIAN, TAIWAN | |||
1 | Bearing of cleaning section | SKF | SWEDEN | |||
11 | Servo motor | HONEYWELL / SCHNEIDER | USA/ FRANCE | |||
12 | Transmission motor | Chengbang | CHINA | |||
13 | Triple | AIRTAC | CHINA, TAIWAN | |||
14 | Gas-type Filling | AIRTAC | CHINA, TAIWAN | |||
Relevant Machines
Packing & Delivery
Delivery
1.Machine packing with plastic film and plywood pallet for necessary parts.
2.Packing with wooden box ccording to customers' requirements.
2.Packing with wooden box ccording to customers' requirements.
Our Service
* Provide factory layout according to your factory size in advance.
* Provide English Version of Installation / Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support, video technical support
* Field installation commissioning and training.
* Provide English Version of Installation / Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support, video technical support
* Field maintenance and repair service.
* Field installation commissioning and training.

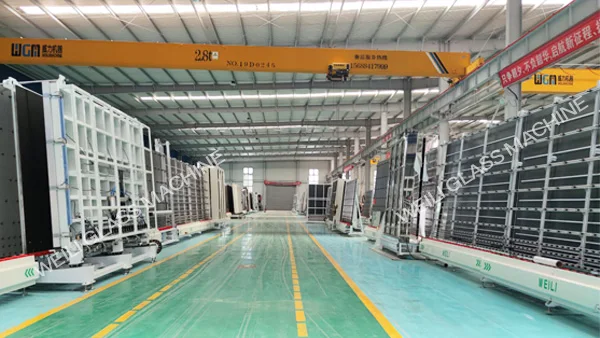

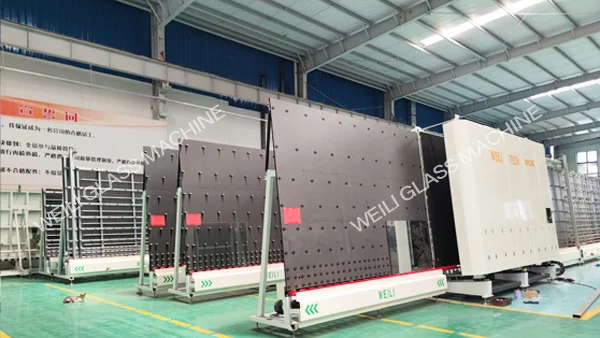

Our Company
Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
Exhibitions
Our Exhibitions
Team
Our Team
Our Certifications
Our products have passed CE, BV SGS and other certifications, and have obtained 12 patent certificates.
FAQ
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 21-years history since 2001.
2.Question: How about the service ?
Answer:
1).Timely reply it at once on WhatsAPP and Email.
2).18 hours online for after-sale service
4).more than 21 years experience in this kind machine field
5).fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 21-years history since 2001.
2.Question: How about the service ?
Answer:
1).Timely reply it at once on WhatsAPP and Email.
2).18 hours online for after-sale service
4).more than 21 years experience in this kind machine field
5).fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
