S5P6818 Embedded System Single Board Computer Support USB Host/USB OTG/UART/IIC/IIS/SPI

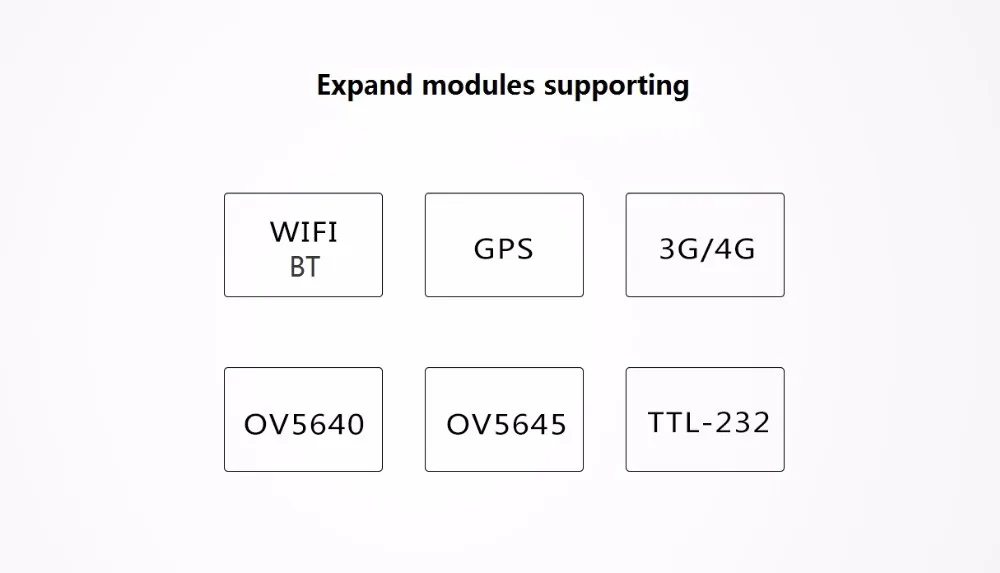

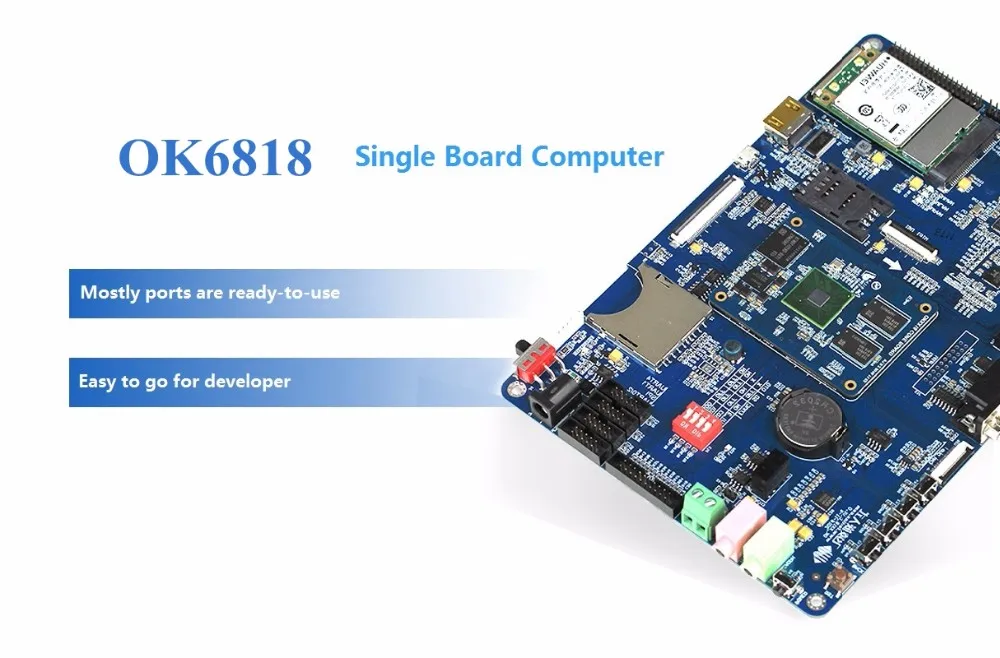

OK6818 is a Cortex-A53 featuring embedded system motherboard designed by Forlinx based on Samsung S5P6818 SoC which is an Octa core CPU with main frequency of 1.4GHz, 1G DDR3 and 8G eMMC, on-board SPI, RS485, CAN, UART, LVDS,HDMIv1.4, MIPI, Gigabit Ethernet are all ready-to-use for developers. What's more, expand modules like MIPI camera, DVP camera, WIFI&BT, 3G/4G are also available. Sleeping and waking up modes are more conveniently to users. This item is totally pin to pin compatible with S5P4418. They share a same PCB layout.
OS supporting
Detailed Images

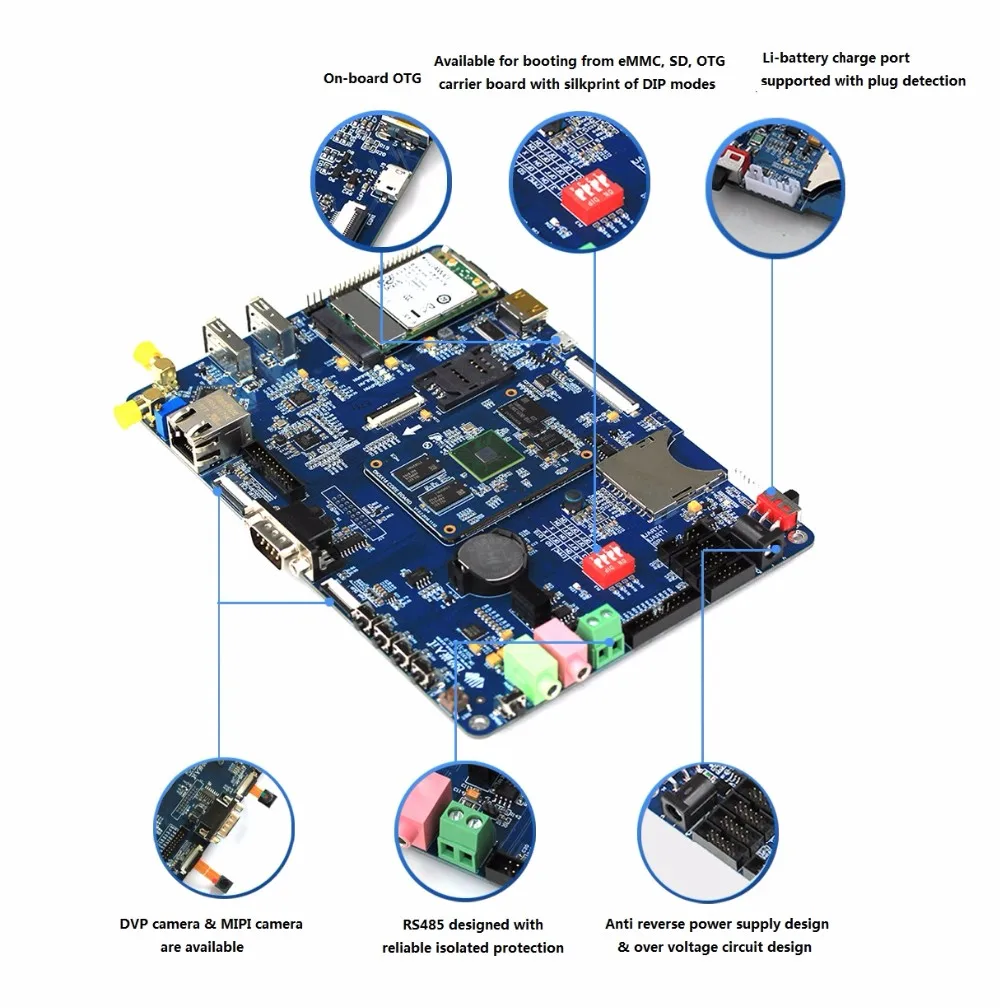

Below is a layout picture of this board, on this picture the CPU is S5P4418, All conponents and connectors of S5P6818 are totally the same with S5P6818
Hardware
S5P6818 SoM Features | ||||||
CPU | S5P6818 | Main Frequecy | 1.4GHz | |||
Architecture | Cortex-A53 | Core | Octa core | |||
Working Temp | 0-70℃ | Working Humidity | 10% to 90% none condensing | |||
RAM | 1GB DDR3 | Memory | 8GB eMMC | |||
Dimensions | 60*45mm | PMU | NXE2000 | |||
Connection Type | board-to-board connector | Working Voltage | 5V input | |||
OS | Android5.1.1, Linux3.4.39,QT 4.8.6 | |||||
Function | Number | Parameters | ||||

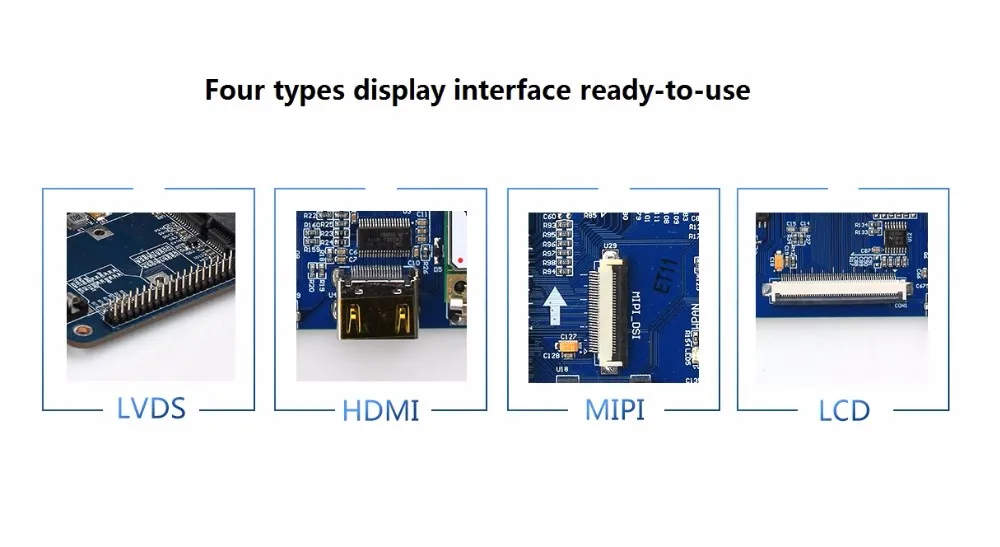

Display | LCD | 1 | RGB 888, maximum resolution up to 2048*1280 | |||
LVDS | 1 | supporting JEIDA and VESA output, 4x data channel, 1x clock channel, maximum resolution supporting 2048*1280 | ||||
HDMI1.4 | 1 | HDMI1.4, 1080*1920 | ||||
MIPI_CSI1 | 1 | MIPI DSI SPEC V1.01r11, up to 4x data channel, resolution up to 1920*1200 | ||||
Camera | MPEG | 2 | 8-bit parallel interface, pixel up to 5-Megapixel | |||
MIPI_CSI | 1 | D-PHY spec. V1.00, pixel up to 5-Megapixel | ||||
SD/MMC/SDIO | 2 | 3-ch supported by CPU, and 2x SD/MMC drawn out by SoM, while the eMMC channel was not drawn out | ||||
USB Host | 1 | USB2.0 host (rate up to 480Mbps), integraged with HS USB Phy | ||||
USB OTG | 1 | USB2.0 OTG (480Mbps), integrated with HS USB Phy | ||||
IIC | 3 | 100kbit/s and 400kbit/s | ||||
UART | 6 | each transferring rate up to 5.0Mbps | ||||
IIS | 3 | supporting up to 3x IIS | ||||
SPI | 3 | supporting up to 3x SPI | ||||
Ethernet | 1 | 10/100/1000Mbps adaptive | ||||
PWM | 4 | 4x PWM output | ||||
SPDIF | 1 | SPDIF interface | ||||
ADC | 7 | 12-bit resolution, maximum input frequency 100KHz, power input range 0-1.8V | ||||
EBI | 1 | Maximum data bus width: 16-bit, maximum address bus: 14-bit | ||||
JTAG | 1 | standard JTAG port | ||||
OK6818 Development Board Features | ||||||
Display | RGB LCD | 1 | RGB888, resolution: 2048*1280 | |||
LVDS | 1 | JEIDA and VESA output, 4x data channel, 1x clock channel, resolution up to 2048*1280 | ||||
HDMI1.4 | 1 | HDMIv1.4, resolution up to 1080*1920 | ||||
MIPI_DSI | 1 | MIPI DSI SPEC V1.01r11, 4x data channel, resolution: 1920*120 | ||||
DVP | 1 | 8-bit parallel interface, pixel up to 5-Megapixel | ||||
MIPI_CSI | 1 | D-PHY spec V1.00, pixel up to 5-Megapixel | ||||
Audio | 1 | 1x MIC, 1x Phone | ||||
SD/MMC | 1 | 1x SD, compatible with SDHC, SDXC (UHS-I) | ||||
SDIO | 1 | pitch of 2mm and drawn out by dual-raw pins (20-pin) | ||||
USB Host | 2 | USB2.0 host (rate up to 480Mbps), integrated with HS USB Phy | ||||
USB OTG | 1 | USB2.0 OTG (rate up to 480Mbps), integrated with HS USB Phy | ||||
UART | 5 | 4x TTL, 1x RS232 (UART5), 5.0Mbps, 4x 3-wire, 1x 5-wire | ||||
IIC | 3 | IIC1 and IIC2 are CPU native IIC, IIC3 is an IO analogy IIC | ||||
SPI | 1 | |||||
Ethernet | 1 | 10/100/1000Mbps adaptive | ||||
WIFI | 1 | RL-UM02WBS-8723BU-V1.2 IEEE 802.11b/g/n 1T1R WLAN and Bluetooth | ||||
BT | 1 | RL-UM02WBS-8723BU-V1.2 IEEE 802.11b/g/n 1T1R WLAN and Bluetooth | ||||
RS485 | 1 | with isolated protection design | ||||
Mini-PCIE | 1 | for 3G/4G module | ||||
IrDA | 1 | empty solderred | ||||

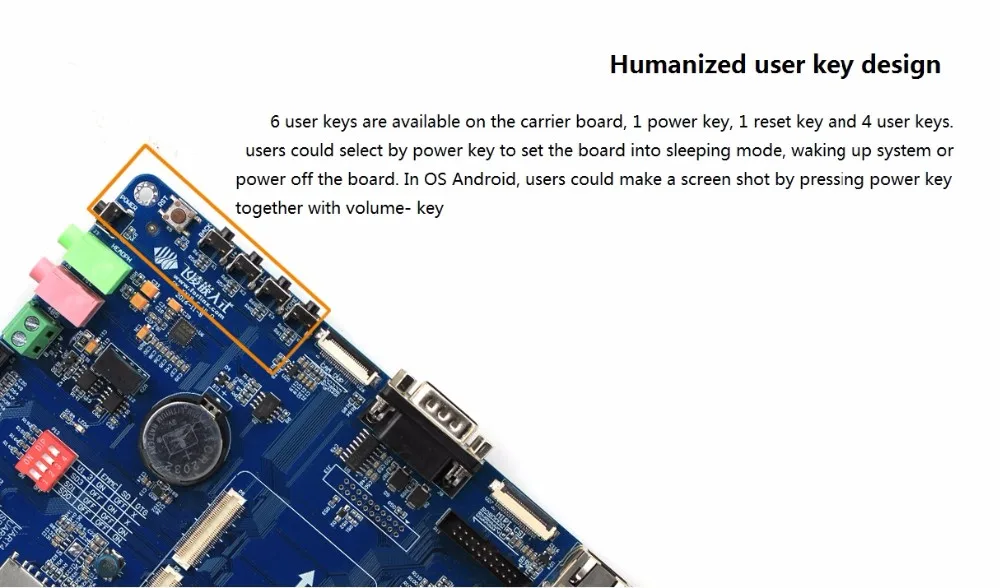

User Key | 6 | 1x power switch, 1x reset, 4x user key. sleeping/waking up and powering off modes are supported by power key. screen scraping is supported by volume (power)key in OS Android | ||||
Software
OS Android 5.1.1 | ||||||
Compiler | Arm-eabi-gcc-4.8, OpenJDK7.0 | |||||
OS Flashing | flash OS image to eMMC via SD card | |||||
Boot Mode | boot from eMMC | |||||
Kernel Version | Linux 3.4.39 | |||||
Android Version | Android 5.1.1 | |||||
Driver | eMMC | UART/RS232 | ||||
SD card | RS485 | |||||
LVDS displaying | ADC | |||||
RGB LCD displaying | accelerator sensor | |||||
MIPI displaying | IrDA | |||||
HDMI1.4 | RTC | |||||
LCD / MIPI / LVDS capacitive touching | IO | |||||
PWM | LED | |||||
LCD / MIPI / LVDS backlight driver, 255-class adjustable | user key | |||||
parallel interface camera OV5640 driver | IIC | |||||
MIPI camera OV5645 | SPI | |||||
GigabitEthernet | USB host driver, supporting mouse and keyboard | |||||
4G module | USB device | |||||
BT module | WM8960 audio driver | |||||
WIFI module | sleep mode waking up | |||||
Application
Multi-media, digital signage, security, car electronics, financial, educational, power system, communicating, smart home, commercial electronics, intelligent transportation, portable device, etc.
Packing & Delivery
Generally, the SBC could be packed by box or carton depends on different order volume. Goods could be dispatched by express or air logistics solution
