Ceramic Rasching Ring chemical random packing for ceramic scrubber packing
- Category: >>>
- Supplier: Pingxiang Zhongtai Environmental Chemical Packing Co. Ltd.
Share on (60646257432):
Product Overview
Description
Products Description

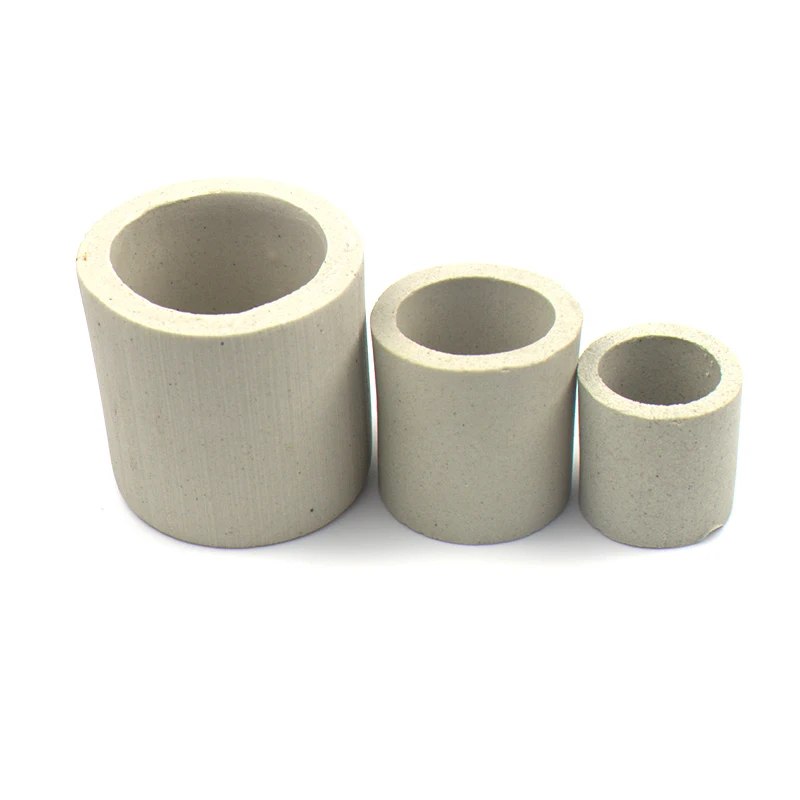

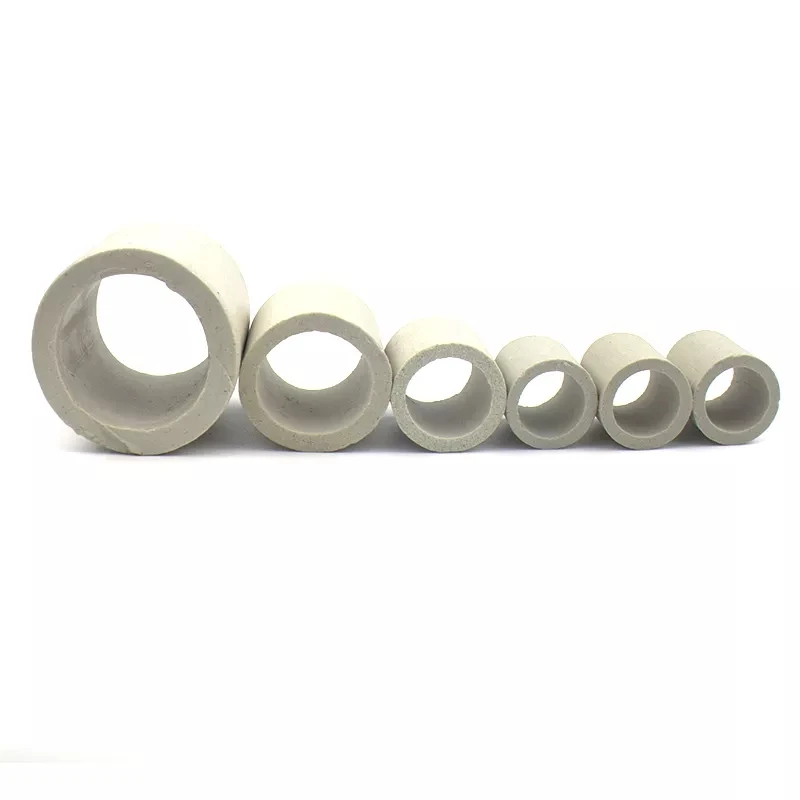

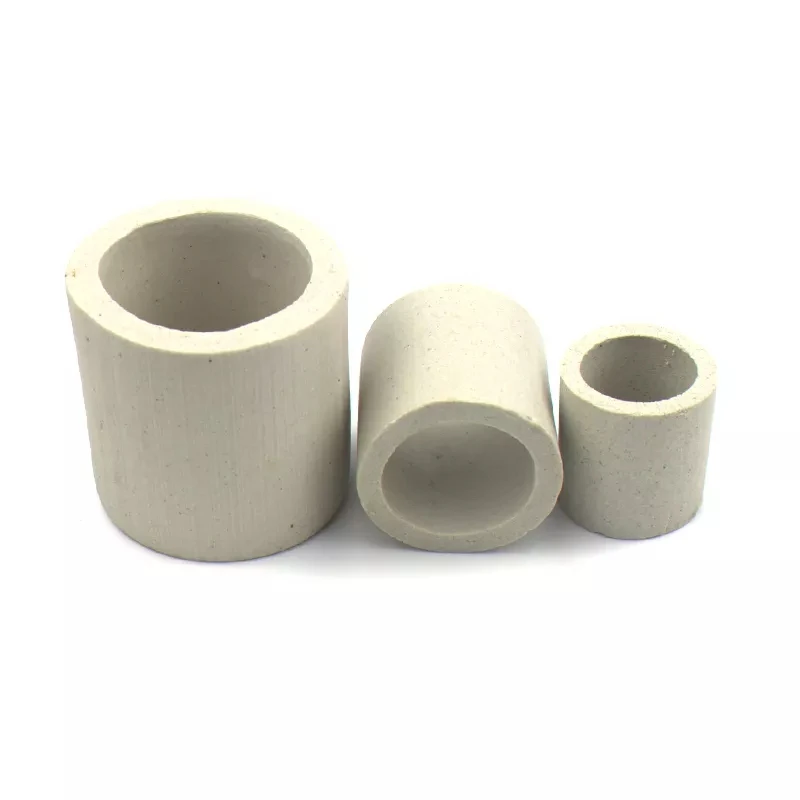

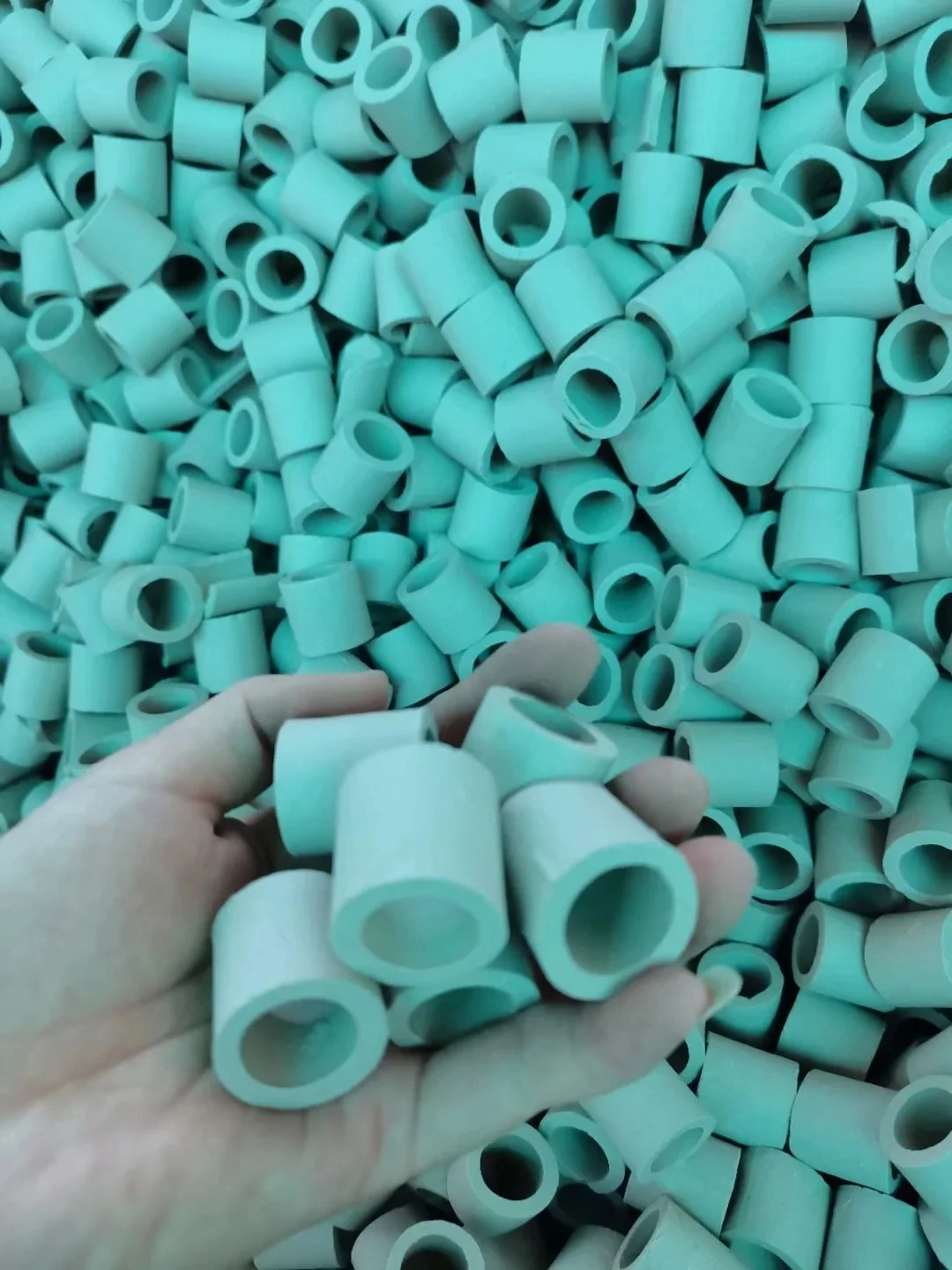

6mm 15mm 25mm 38mm 50mm 80mm 100mm Ceramic Random packing Alumina Ceramic Raschig Ring

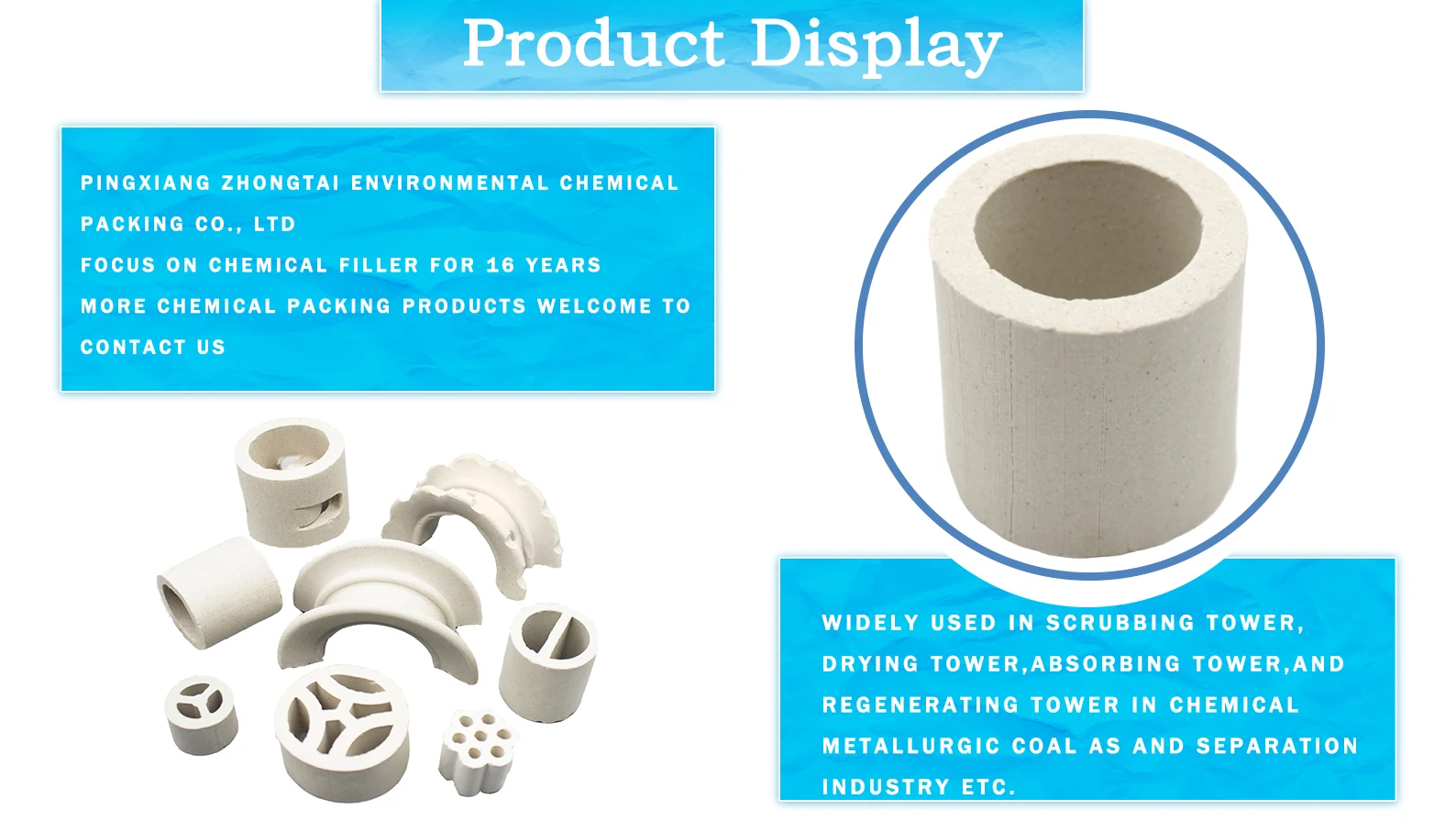

Ceramic Raschig Ring random tower packings (column packing) have excellent acid resistance and heat resistance. Ceramic Raschig
Ring can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be
used in high or low temperature conditions. Consequently their application ranges are very wide. Ceramic Raschig Ring can be used
in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas
industry, oxygen producing industry, etc.
Ring can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be
used in high or low temperature conditions. Consequently their application ranges are very wide. Ceramic Raschig Ring can be used
in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas
industry, oxygen producing industry, etc.
Product Paramenters
Technical Specification of Ceramic Raschig Rings | ||||||
SiO2 + Al2O3 | >92% | CaO | <1.0% | |||
SiO2 | >76% | MgO | <0.5% | |||
Al2O3 | >17% | K2O+Na2O | <3.5% | |||
Fe2O3 | <1.0% | Other | <1% | |||
Physical & Chemical Properties of Ceramic Raschig Rings | ||||||
Water absorption | <0.5% | Moh's hardness | >6.5 scale | |||
Porosity (%) | <1 | Acid resistance | >99.6% | |||
Specific gravity | 2.3-2.40 g/cm3 | Alkali resistance | >85% | |||
Max operation temp | 1200℃ | |||||
Max operation temp | ||||||
Diameter (mm) | D*H*T (mm) | Surface area (m2/m3) | Free volume (%) | Number per m3 | Bulk density (Kg/m3) | Dry Packing Factor(m-1) |
15 | 15*15*2 | 330 | 70 | 250000 | 690 | 960 |
16 | 16*16*2 | 305 | 73 | 192500 | 730 | 784 |
25 | 25*25*2.5 | 190 | 78 | 49000 | 505 | 400 |
40 | 40*40*5 | 126 | 75 | 12700 | 577 | 305 |
50 | 50*50*5 | 93 | 81 | 6000 | 457 | 177 |
80 | 80*80*9.5 | 90 | 68 | 1910 | 714 | 234 |
100 | 100*100*10 | 70 | 70 | 1000 | 700 | 172 |
150 | 150*150*15 | 50 | 68 | 295 | 790 | 142 |

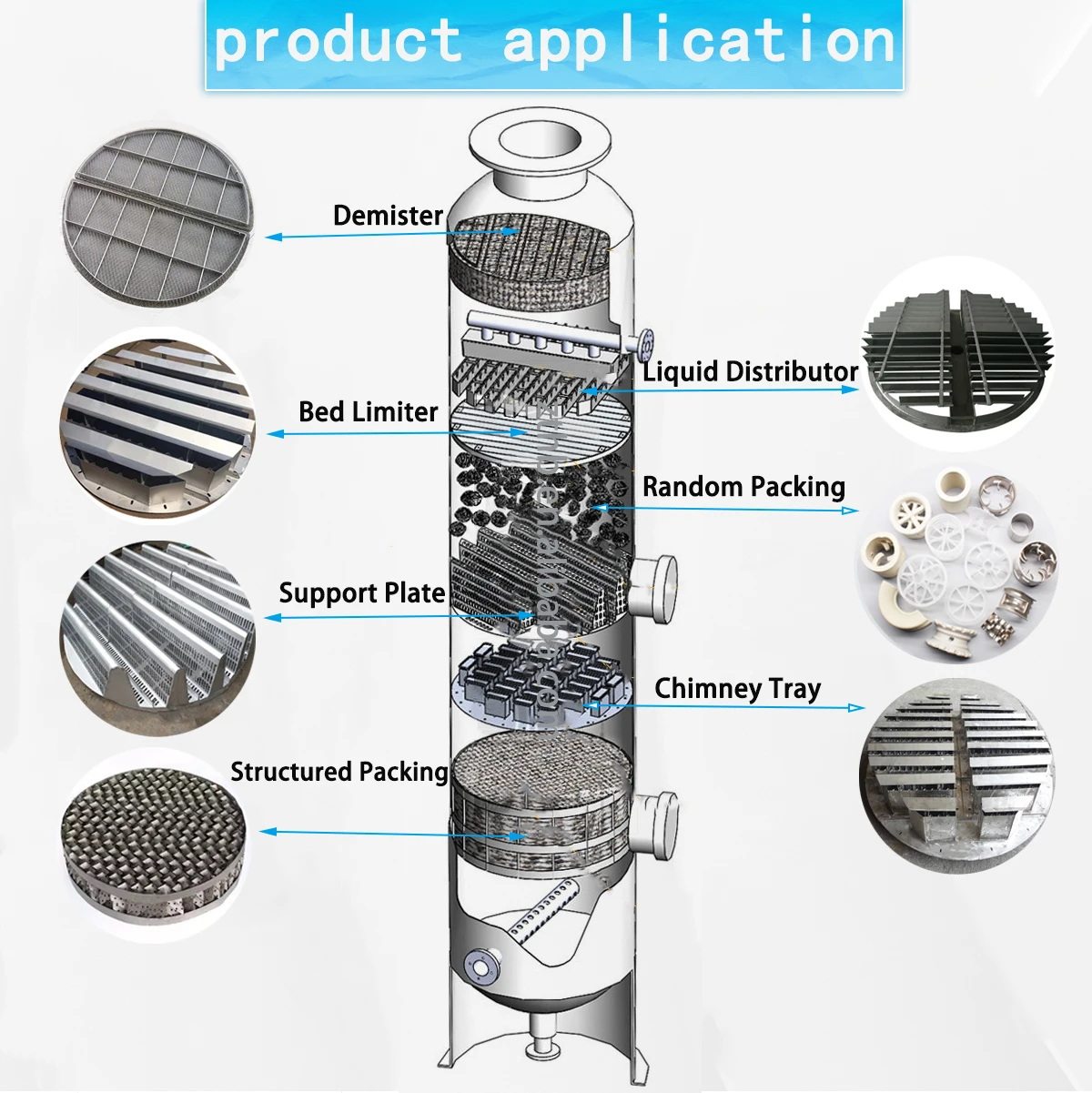

Application
Packing&Delivery
Package type | Container load capacity | Delivery Time | Quality insurance | Payment terms | ||||
Jumbo Bag | 20GP | 40GP | 40HQ | Within3-10days | Chinese national standard; SGSOffer quality assurance as request. | T/T, L/C, Paypal, West Union, Paypal | ||
20 bags 1Bag/Ton, 1M³/Bag | 40 bags 1Bag/Ton, 1M³/Bag | 44-48 bags 1Bag/Ton,1.2M³/Bag | ||||||

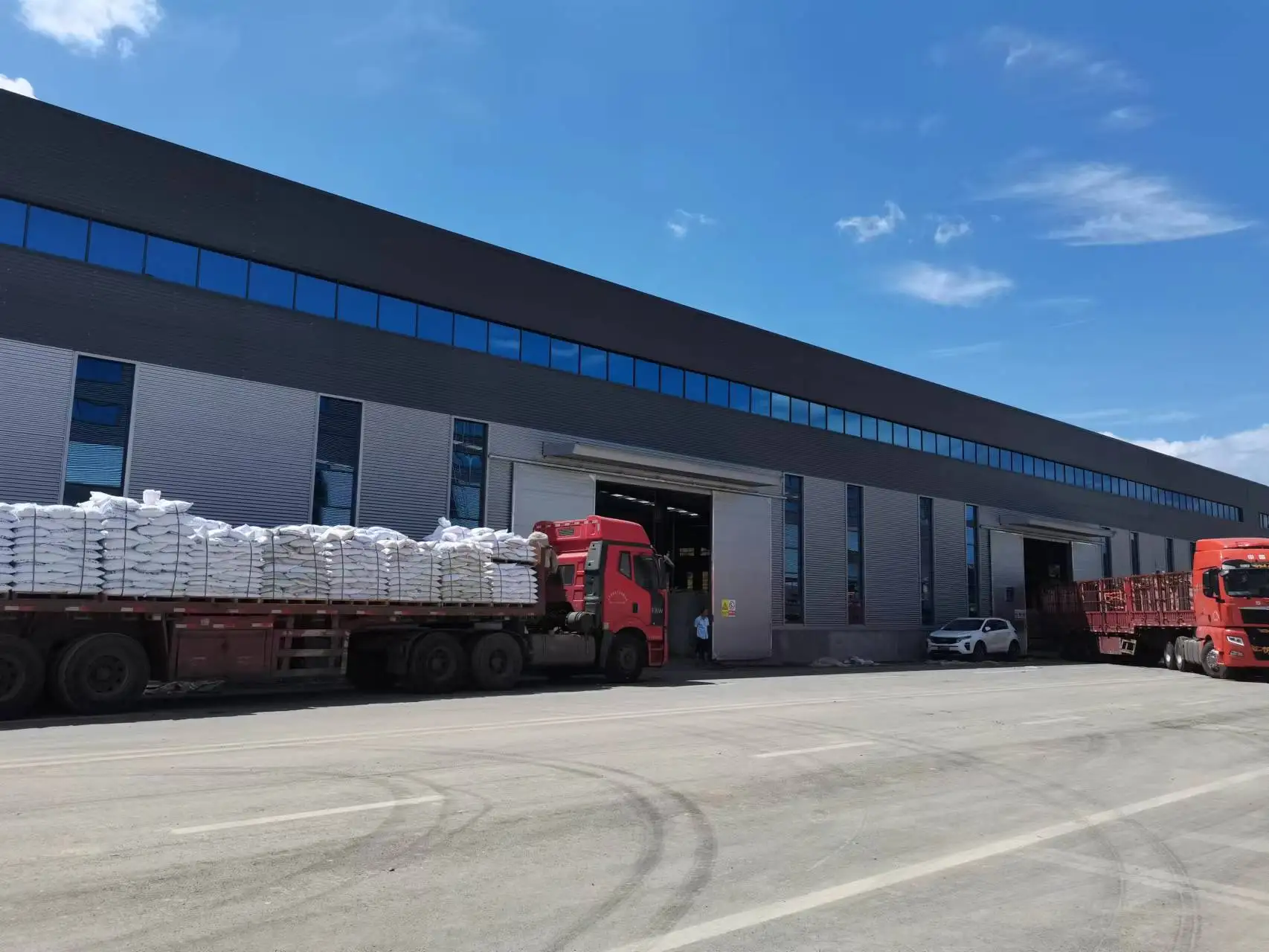

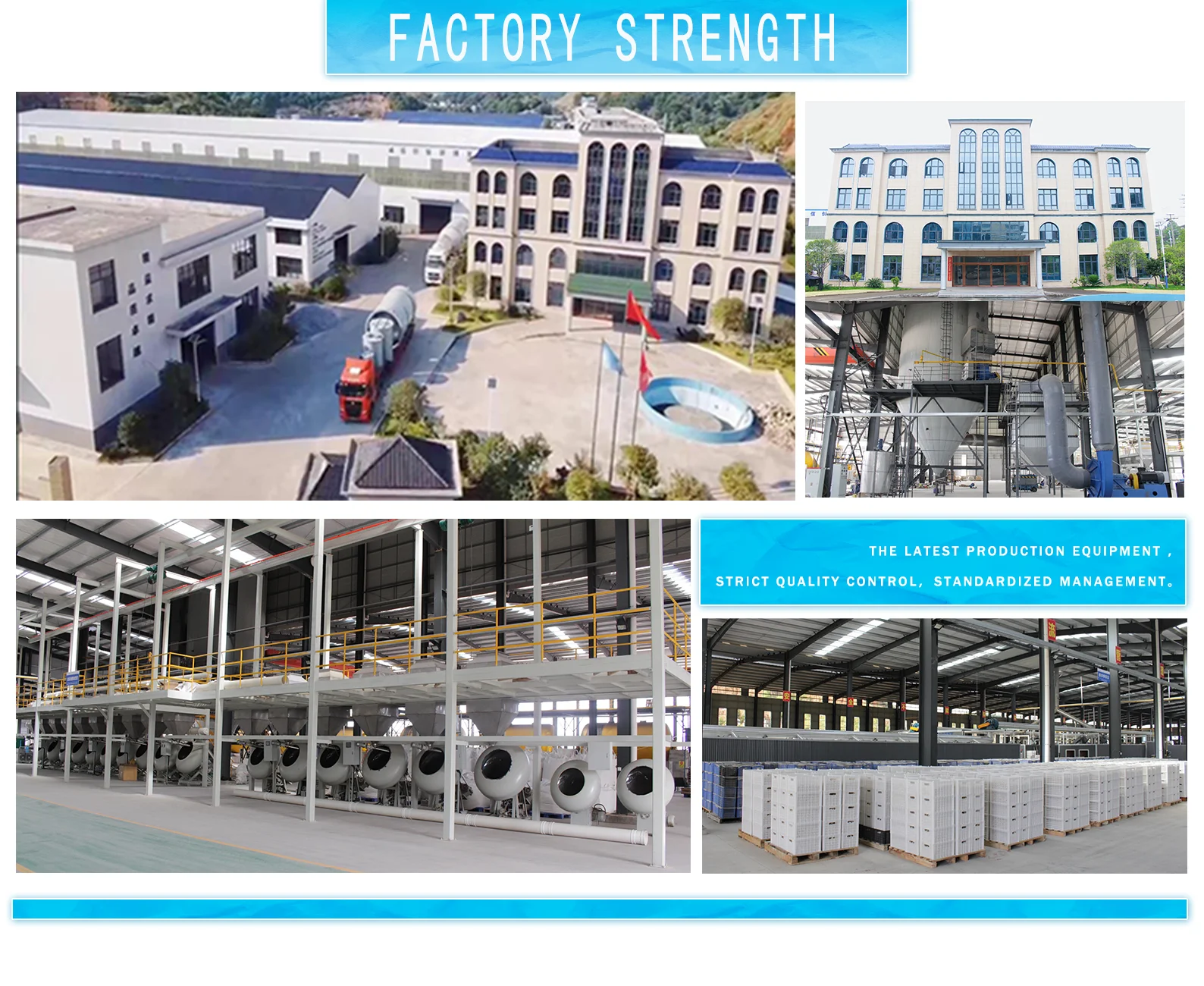

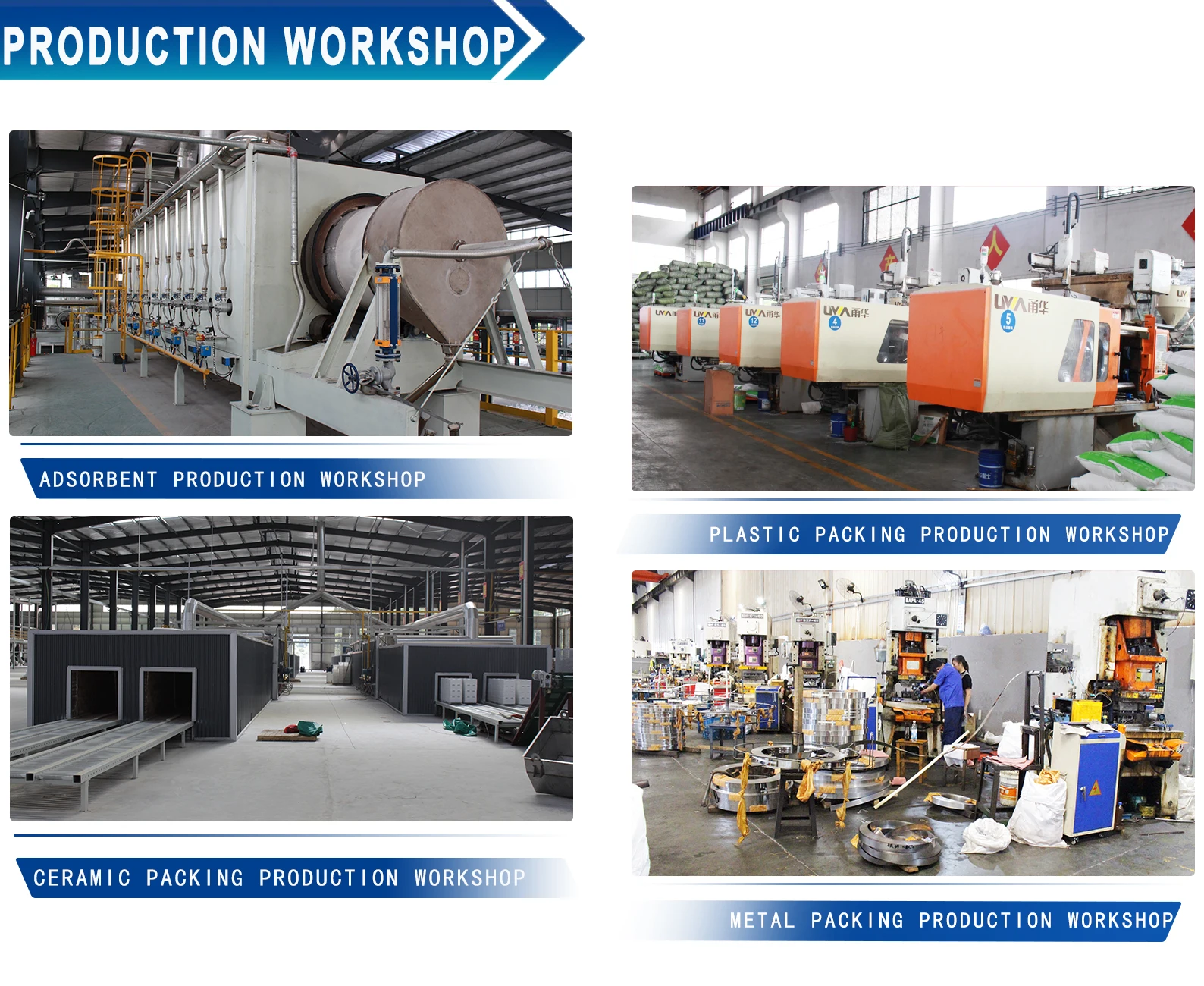

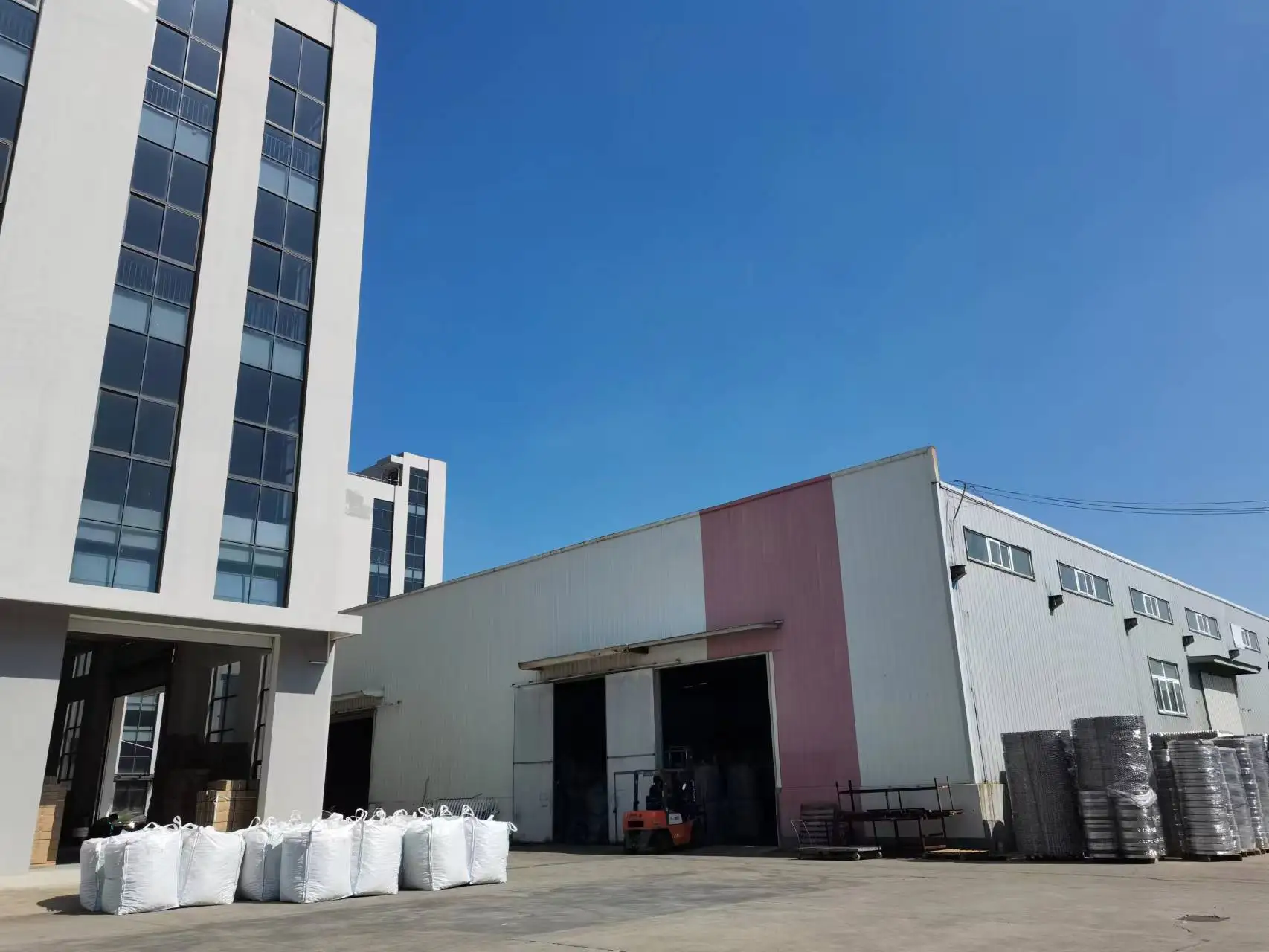

Our company
Certificate
FAQ
1.Who are we?
We located in Pingxiang City, known as “Hometown of Chemical Packing”, established in 2007, have over 10 years export experience, there are 50-80 workers in our company. Products sell to Domestic Market (30%). Southeast Asia (20%), Mid East(10%), Europe (15%), South America (5.0%), North America (15%), Africa (5.0%).
2.How can we guarantee quality?
2.How can we guarantee quality?
We have QC during production, and after product finished Samples can provide before order
Inspection can be done before shipment if needed.
3.What can you buy from us?

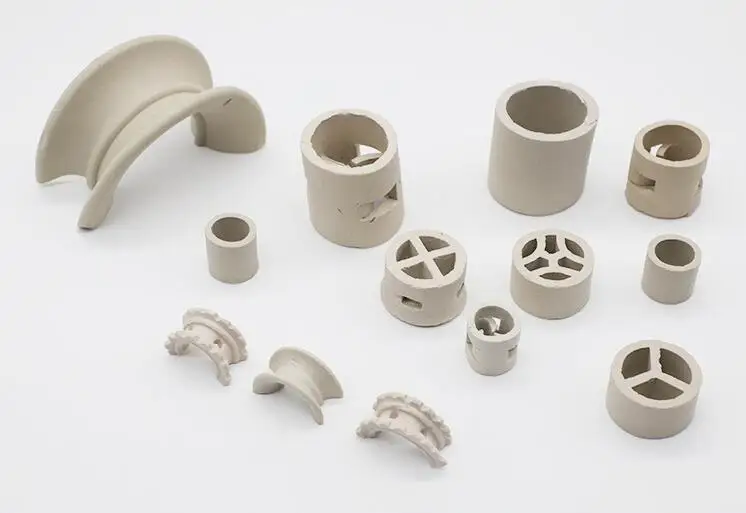

Plastic,ceramic,metal random and Structured tower packing, Ceramic Ball, Molecular Sieve, Silica Gel, Various kinds of ceramic bio ball for water treatment.
4. What payment term can we do?
We accept payment type like T/T, L/C, PayPal, MoneyGram, Western Union etc.
5. What services can we provide?
Accept customized according to your requirements.
Accept Delivery Terms: FOB, CFR, CIF, EXW, FCA, DDP, DDU,Express Delivery.
Accept Payment Currency: USD, EUR; RMB No strict require on the MOQ, accept small order.
Inspection can be done before shipment if needed.
3.What can you buy from us?
Plastic,ceramic,metal random and Structured tower packing, Ceramic Ball, Molecular Sieve, Silica Gel, Various kinds of ceramic bio ball for water treatment.
4. What payment term can we do?
We accept payment type like T/T, L/C, PayPal, MoneyGram, Western Union etc.
5. What services can we provide?
Accept customized according to your requirements.
Accept Delivery Terms: FOB, CFR, CIF, EXW, FCA, DDP, DDU,Express Delivery.
Accept Payment Currency: USD, EUR; RMB No strict require on the MOQ, accept small order.
