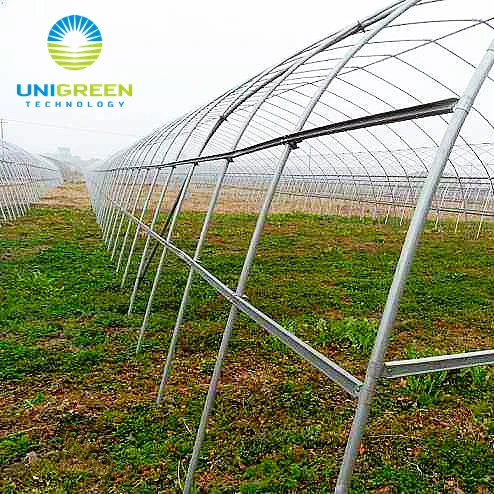

10 Years Lifespan Multi span Agricultural Used Greenhouse Aluminum Base With 200 Micron Plastic Film Greenhouse
- Category: >>>
- Supplier: Suzhou Unigreen Electronic Technology Co. Ltd.
Share on (60646316086):
Product Overview
Description
Specification
Product Name | PEP Greenhouse | |||
Size | Large/Small/Customized | |||

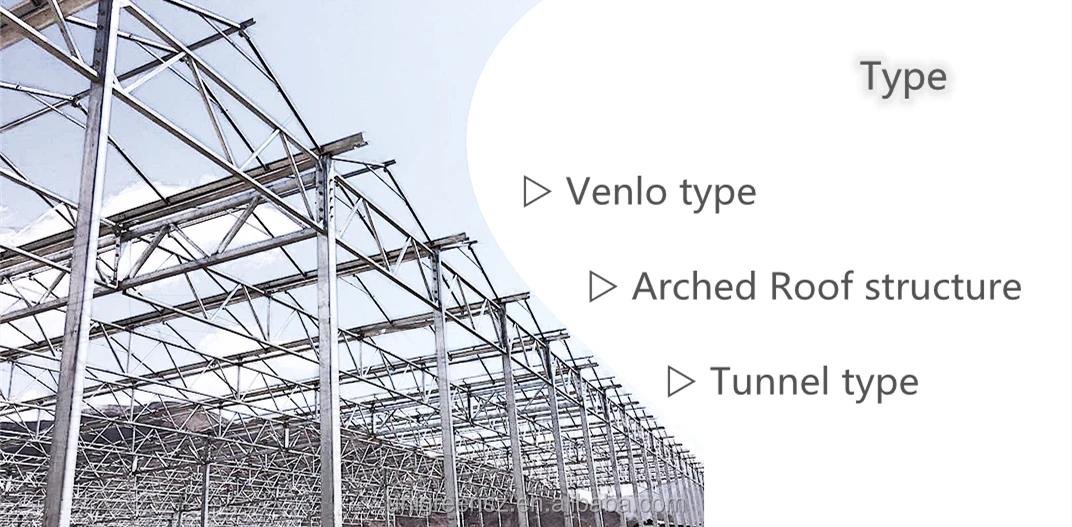

Type | Single-Span Agricultural Greenhouses Multi-Span Agricultural Greenhouses 100% Blackout Light Deprivation Greenhouse | |||
Cover Material | PEP Film/PC Sheet/Glass | |||
Frame Material | Hot-dip Galvanized Steel Pipe | |||
Application | Vegetable/Fruit/Medical Plant/Lettuce/Tomato/Farming Growing | |||
Length | Customized according to customer requirements | |||
Width | Customized according to customer requirements | |||
Span Width | Customized according to customer requirements | |||
Optional Systems | Ventilation System | Shading System | ||
Cooling System | Heating System | |||
Irrigation & Fertilizing System | Benches System | |||
Hydroponics System | Lighting System | |||
Automatic Control System | Other Customized Equipment | |||
We will make design proposal as customers specific requirements. | ||||

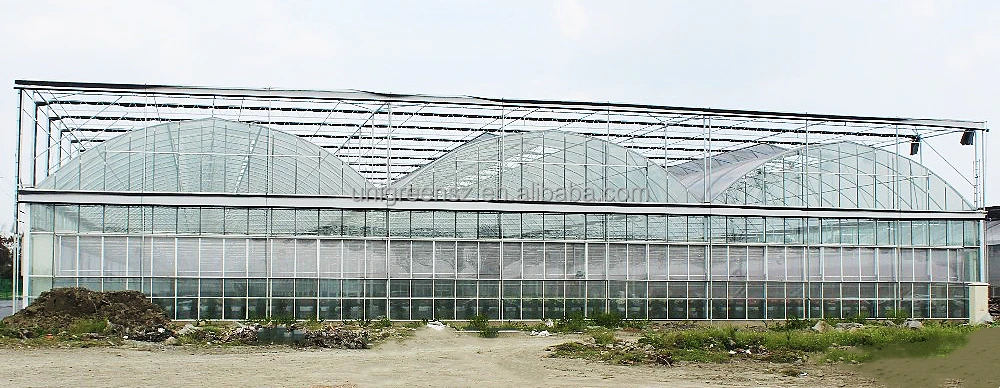

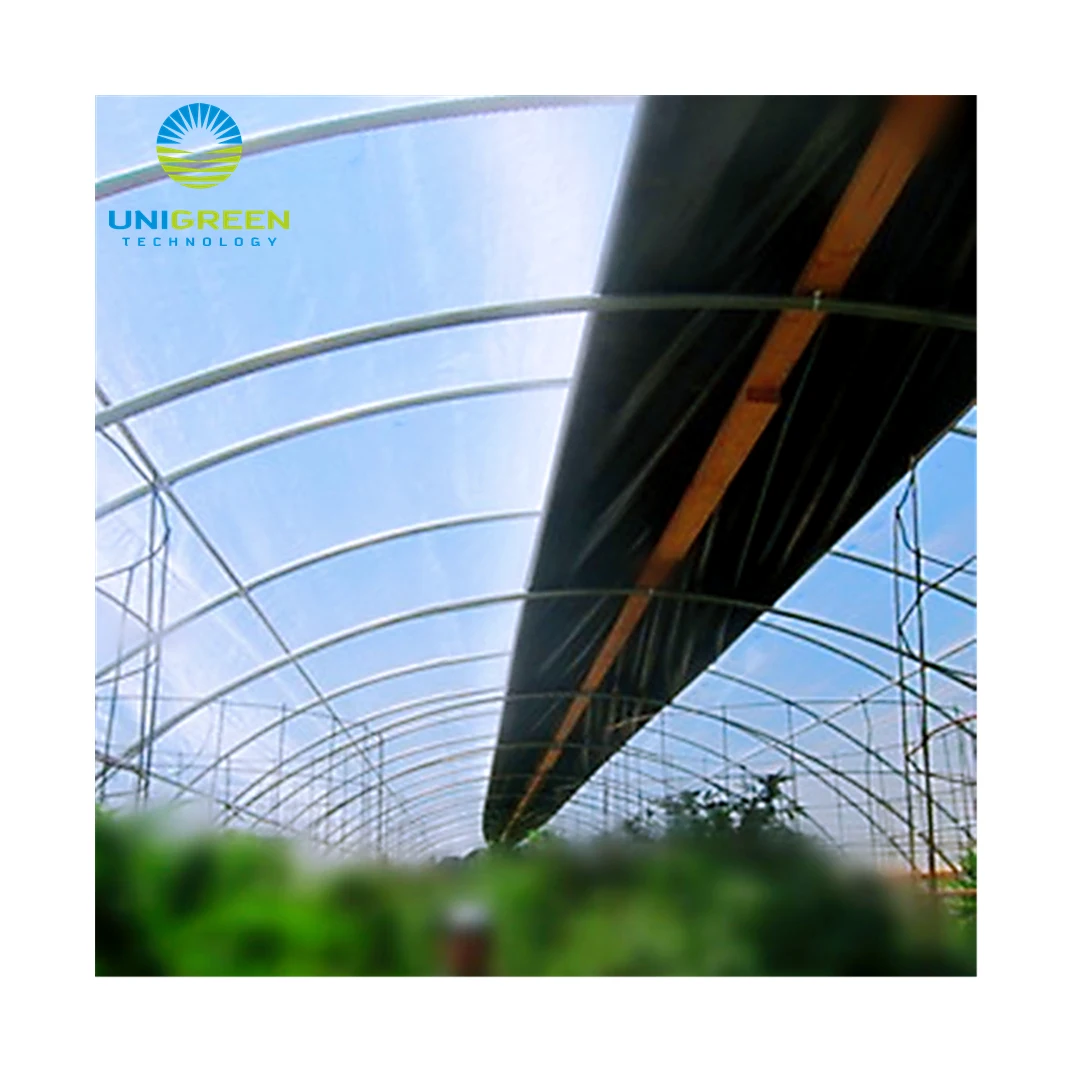

10 Years Lifespan Multi-span Agricultural Used Greenhouse Aluminum Base With 200 Micron Plastic Film Greenhouse
agricultural greenhouse
multi span commercial greenhouse
plastic film greenhouse
Film Greenhouse
The strength of the metal frame of an industrial film greenhouse allows you to tie up plants for their better ripening, as well as to hang heating and lighting equipment necessary for all-season growing of plants in any region.
An industrial film greenhouse with a manual or automatic upper ventilation system allows you to grow even the most whimsical vegetables and flowers.
The skeleton connector is small, the versatility and interchangeability are good, and the installation is convenient.
Products Description
- PEP Film -
（Poly-ethylene Plastic）
Stable chemical property
Heat-resisting
Anti-freezing
Water--proof Moisture--proof
- Glass -
Beautiful and durable
Sound-insulating and heat-insulating Dust-proof and fog-proof
- PC Sheet -
(Poly-carbonate)
Light
Anti-collusive
Heat-resisting
Anti-freezing
Dust-proof
Fog--proof
Anti-ultraviolet-rays
- Plastic film Greenhouse,cost-saving and convenient to use, is a kind of equipment for cultivation or breeding that is constructed simply.
- The greenhouse has great space-efficient performance and strong ventilation ability,also preventing the heat loss and the intrusion of cold air.

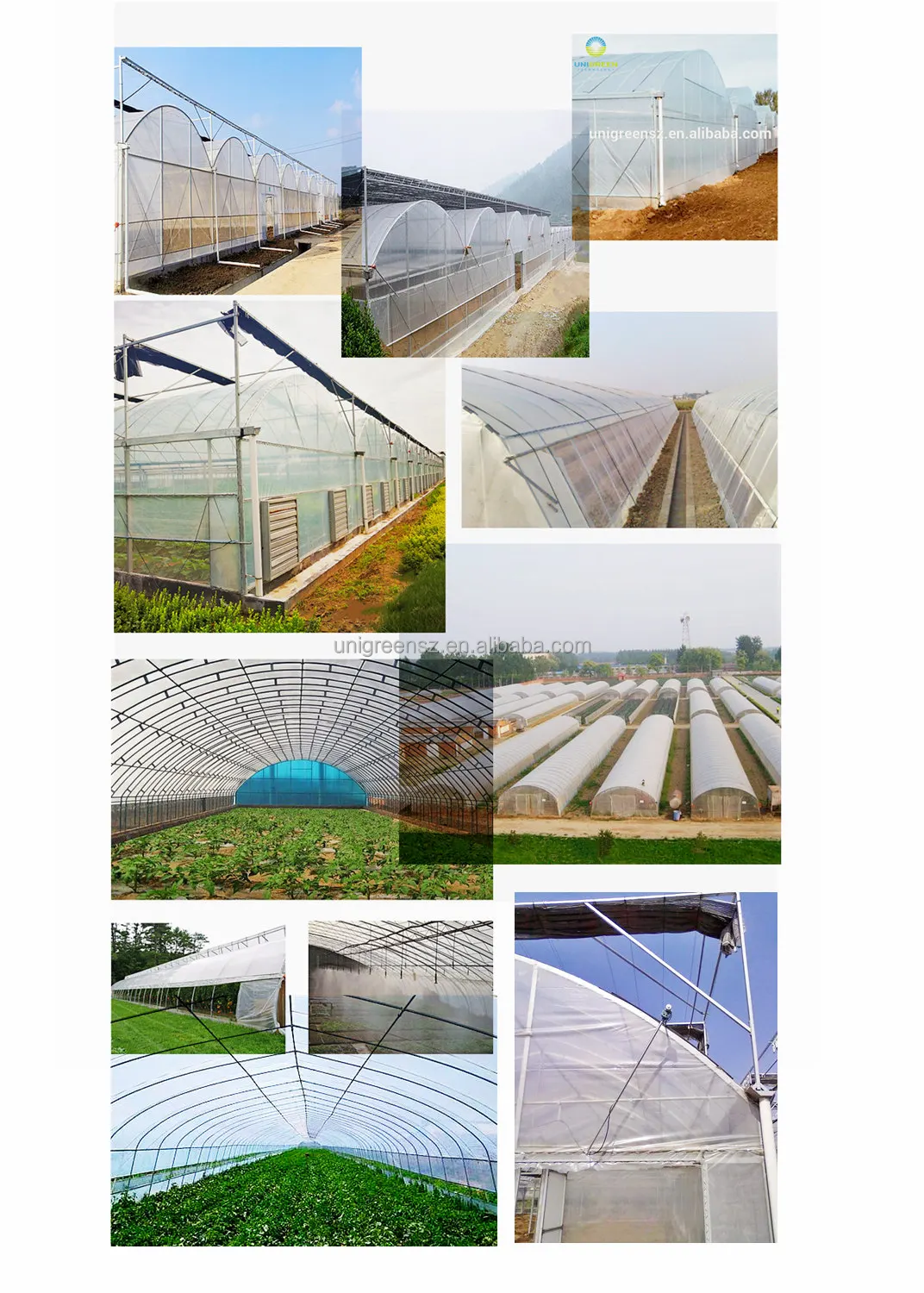

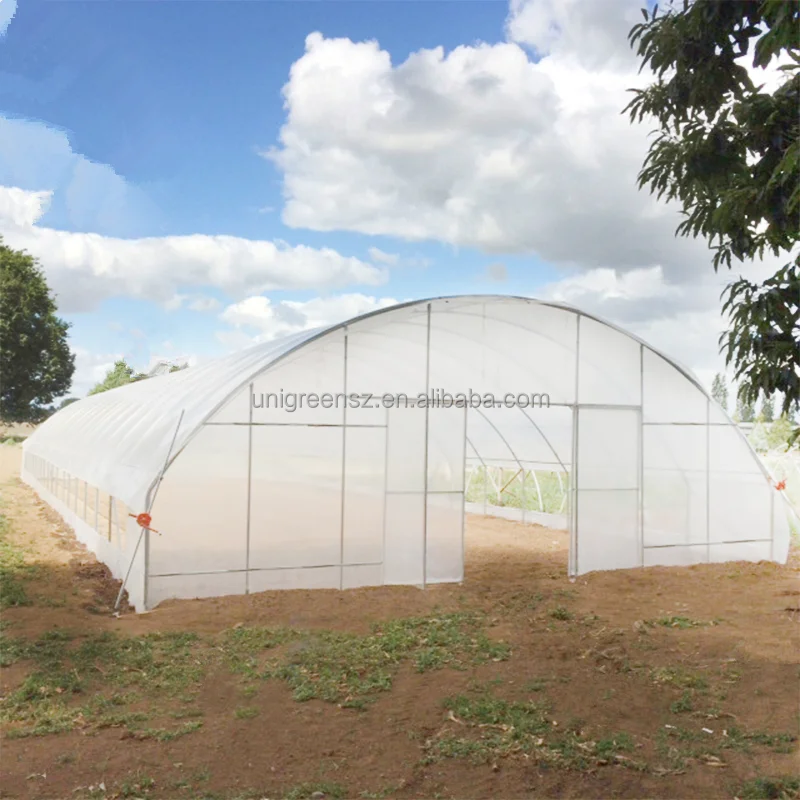

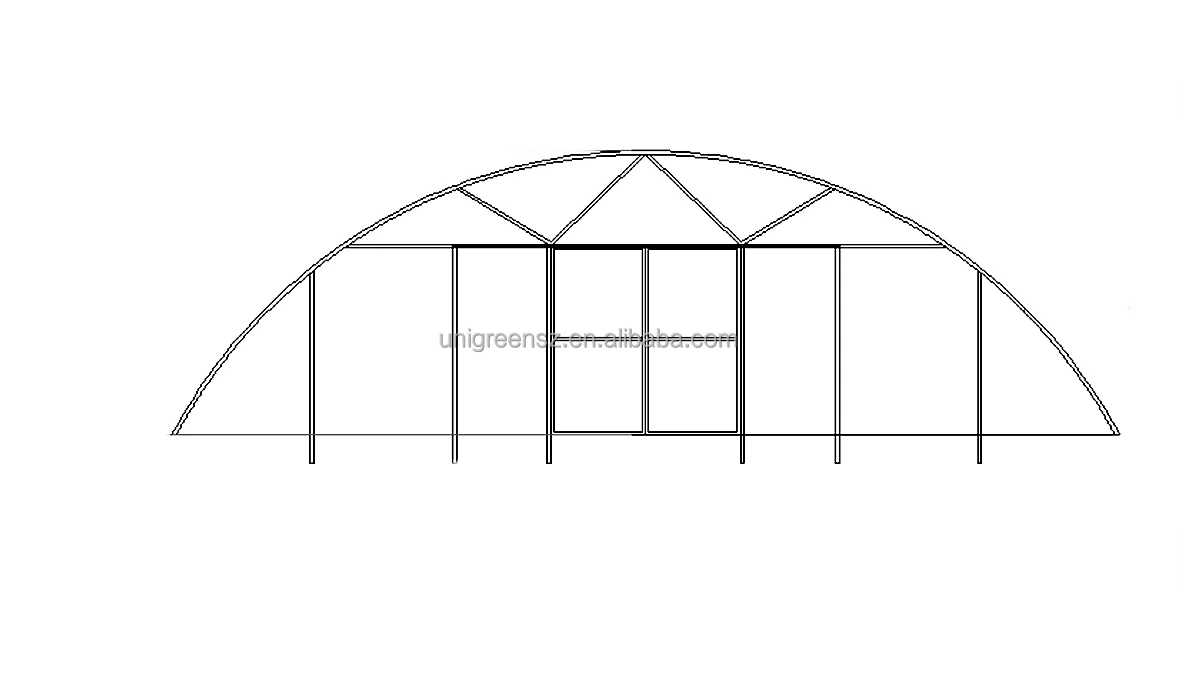

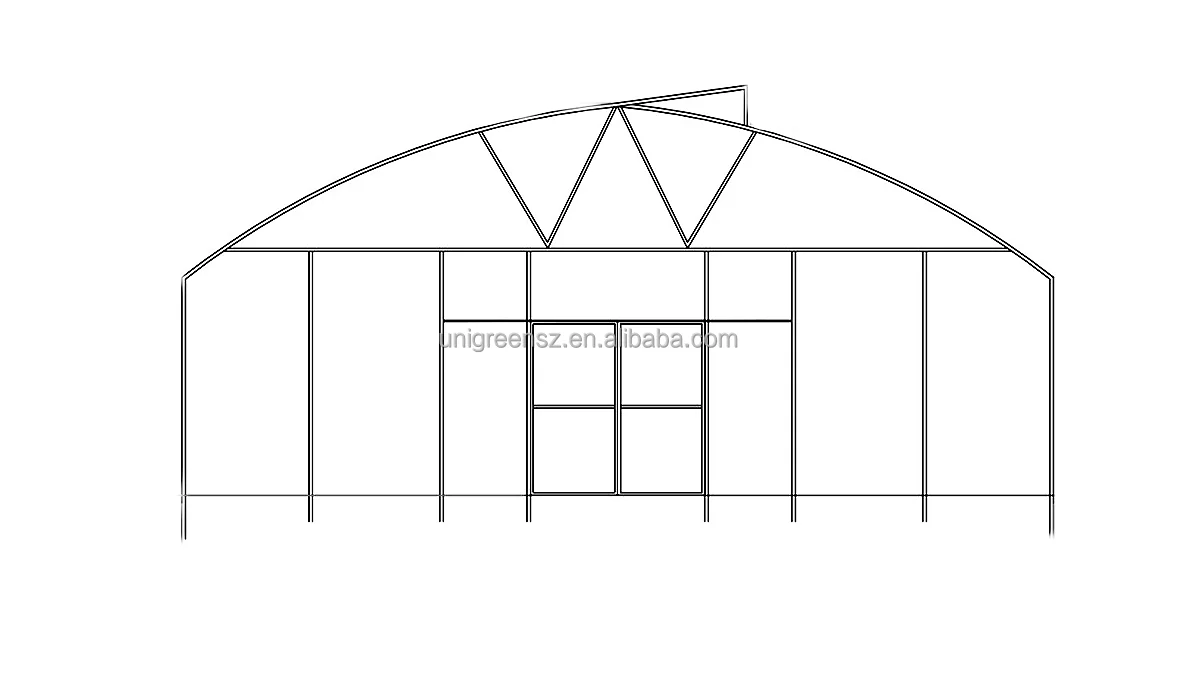

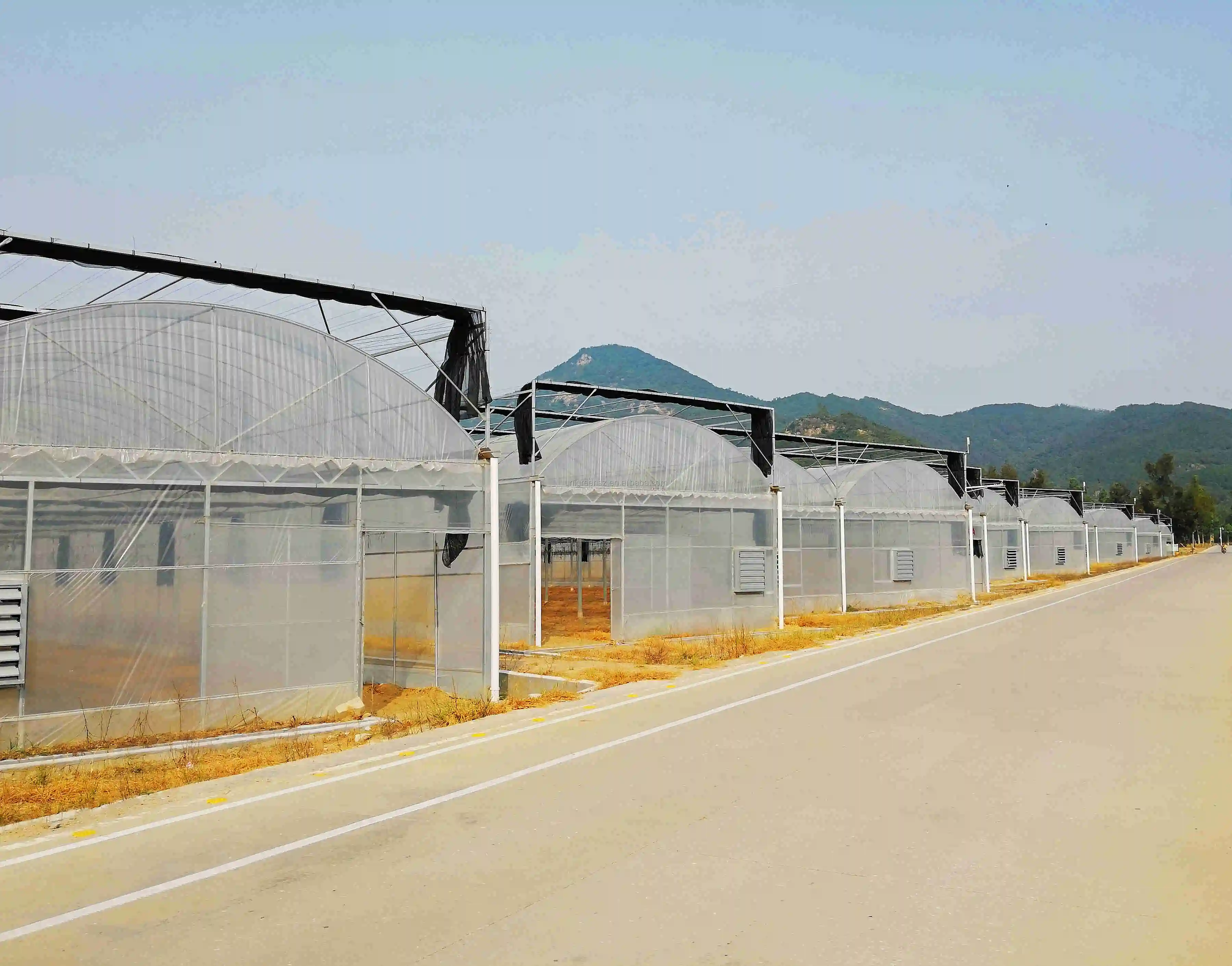

♢Plastic film Greenhouse♢
It can be used for the seed-breeding or planting of dwarf fruit tree and for aquaculture and livestock breeding as well as for exhibition, ecological restaurant and teaching or scientific research, etc.
The Plastic-film Greenhouse can also be specially used for growing fruits, flowers and vegetables, providing them with the most suitable conditions and protecting them from insects and cold.

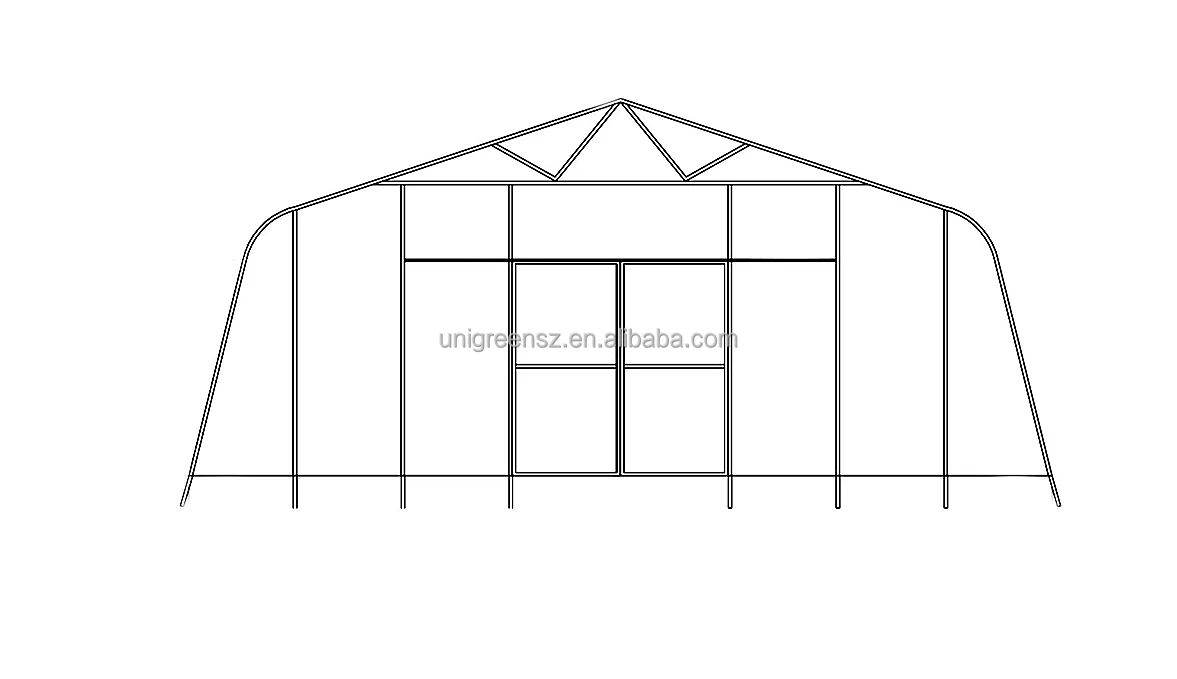

Data reference:
Single-Span Width: 6m / 8m /10m/etc.
Single-Bay Width: 4m
Height of the Gutter: 3.0m ~ 6.0m
Height of Greenhouse: 4.5m～ 7.5m
NOTE:
The height of the gutter can be defined
by the requirements of clients.
by the requirements of clients.

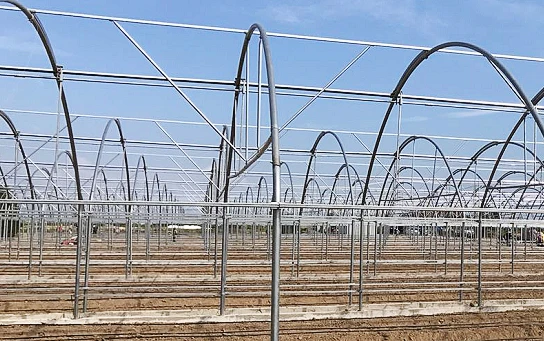

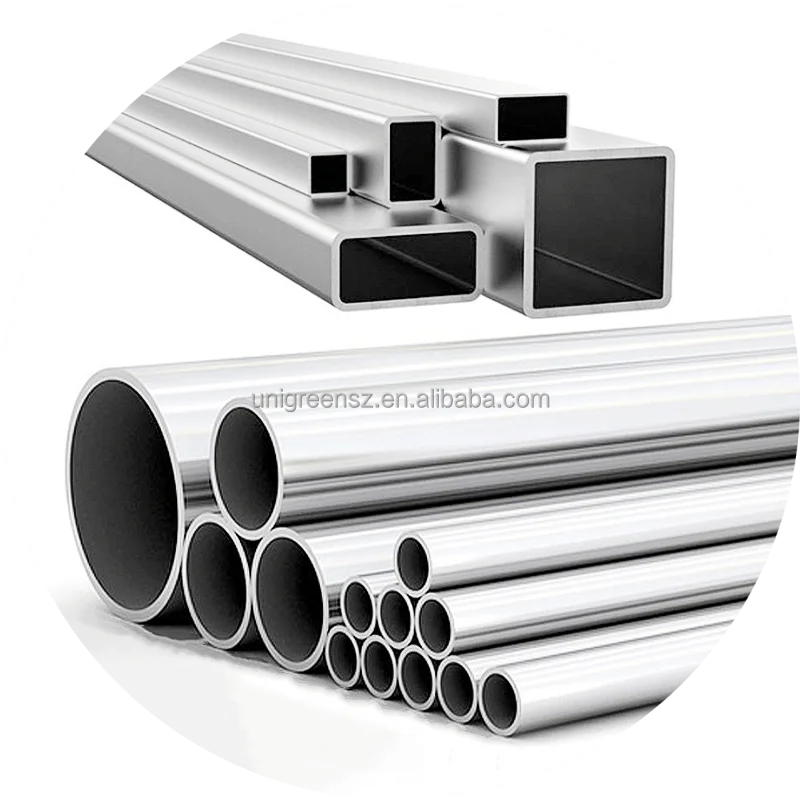

※ Hot drip galvanized steel structures
- Excellent and Durable -
※ Hot drip galvanized steel accessories
- Service life 10-15 years -
- Anti-rust -
- Sturdy and durable -
- Corrosion resistance -

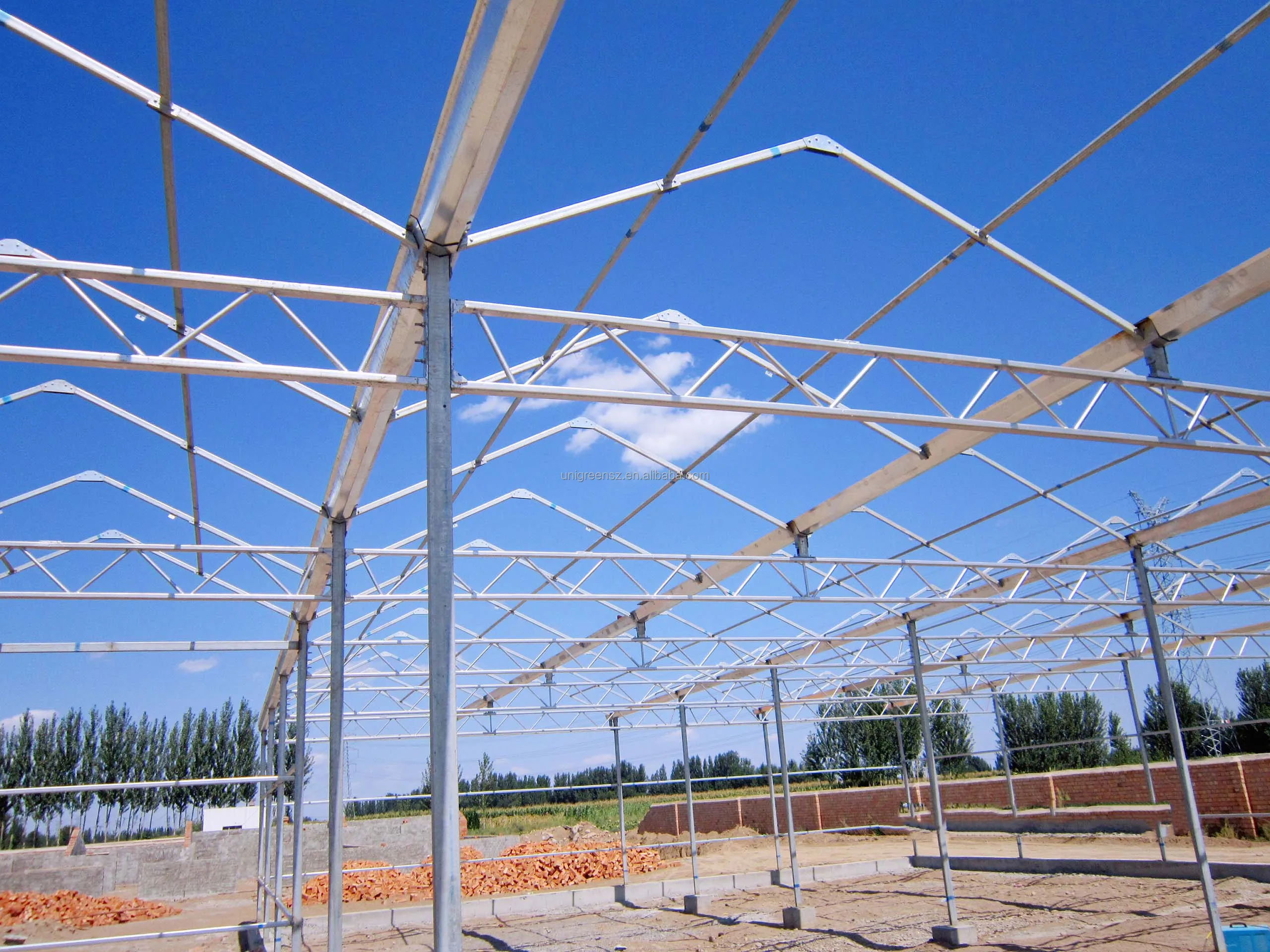

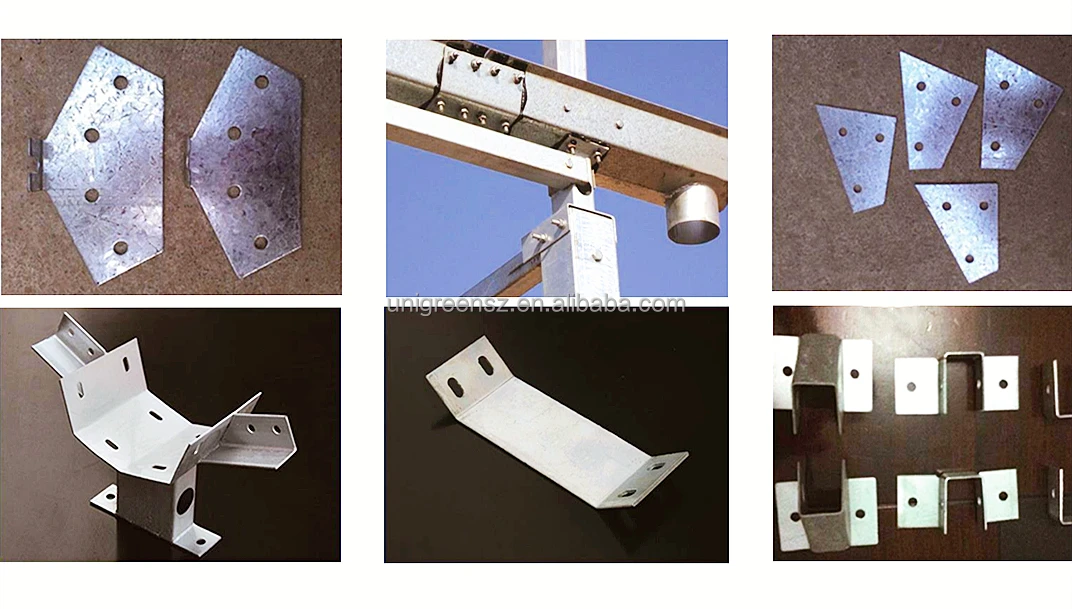

Primary Load-Carrying Materials and Connecting Materials
a)The primary load-carrying materials include upright, gutter and trusses.

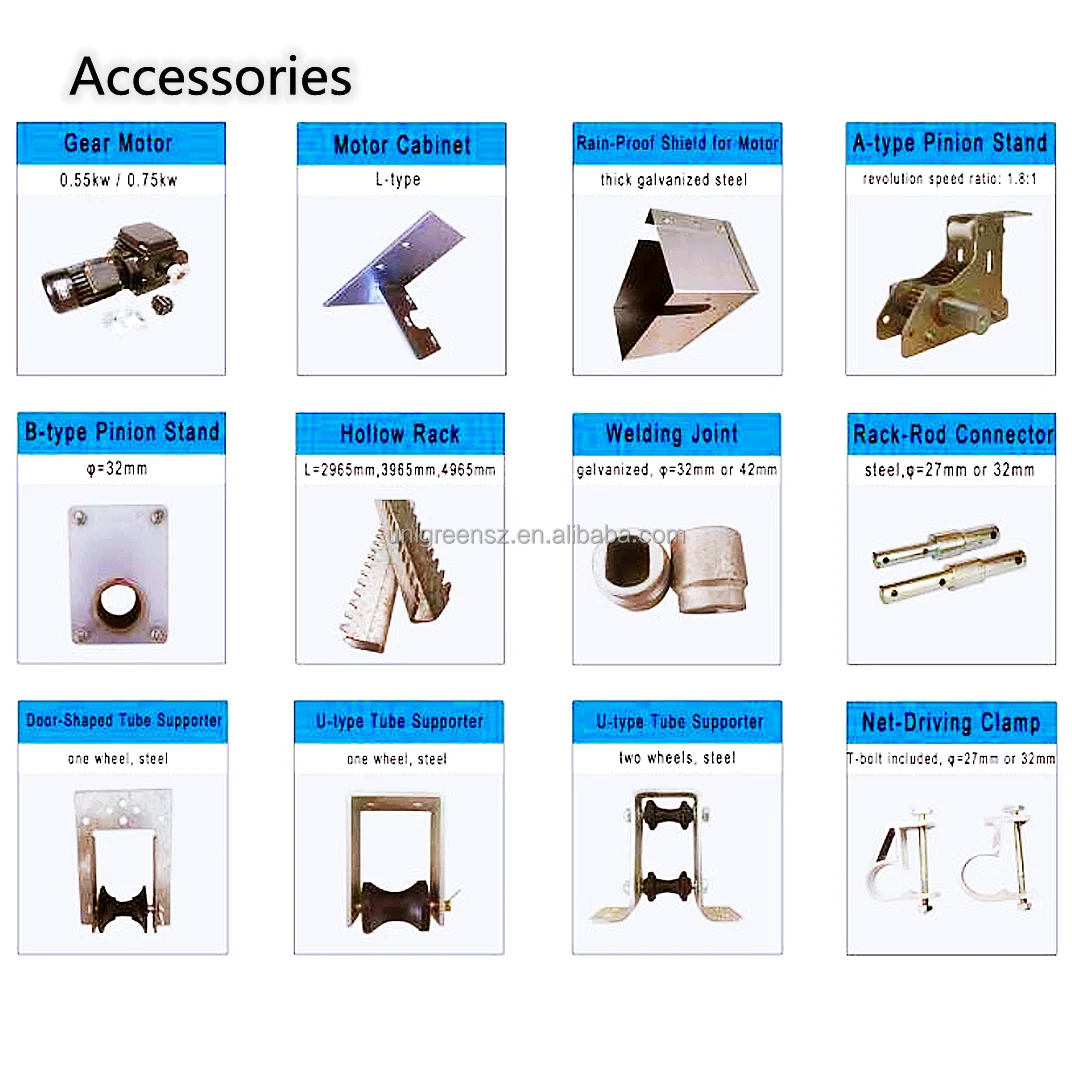

b)There are many kinds of suitable connecting materials, such as roof connectors,roof-gutter connectors, gutter supporters.
b)There are many kinds of suitable connecting materials, such as roof connectors,roof-gutter connectors, gutter supporters.

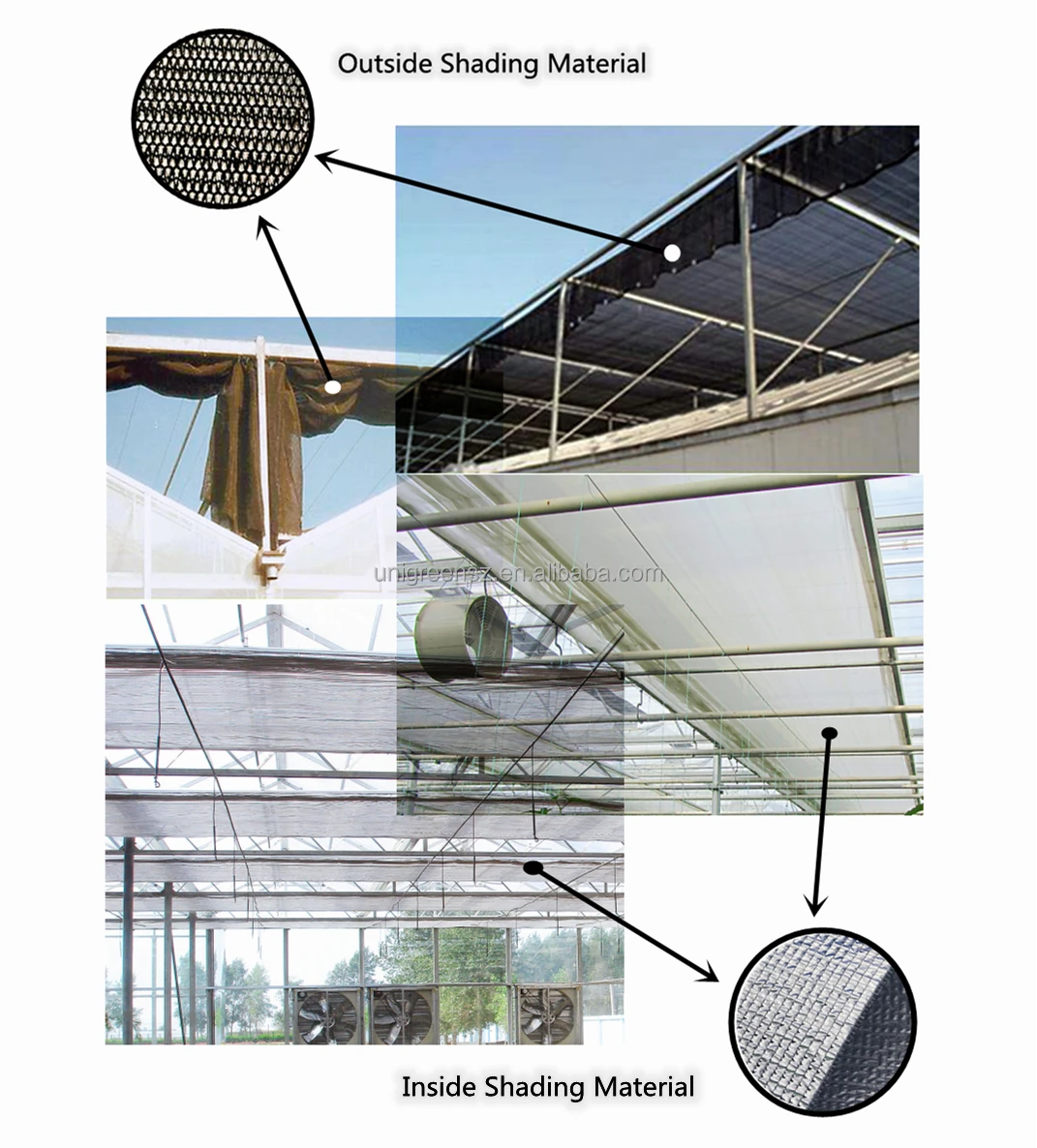

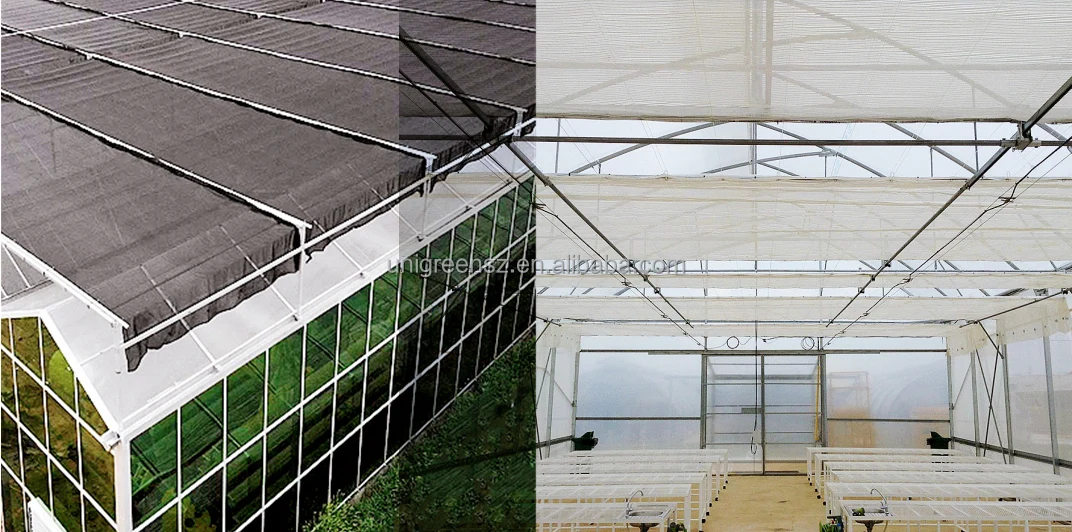

Sunshade system
The Shading system principle is to filter the excess light through shade net to achieve indoor cooling effect,
preventing the plants from being burned in the greenhouse. And it can regulate the heat or reduce the cost for the operations.
The shading system is installed on the top of the greenhouse with a sunshade net that can be driven by electricity.
Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams.
The shading system is installed on the top of the greenhouse with a sunshade net that can be driven by electricity.
Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams.
Outside shading net is made by black and round wire materials and fastened by black polyester strings.

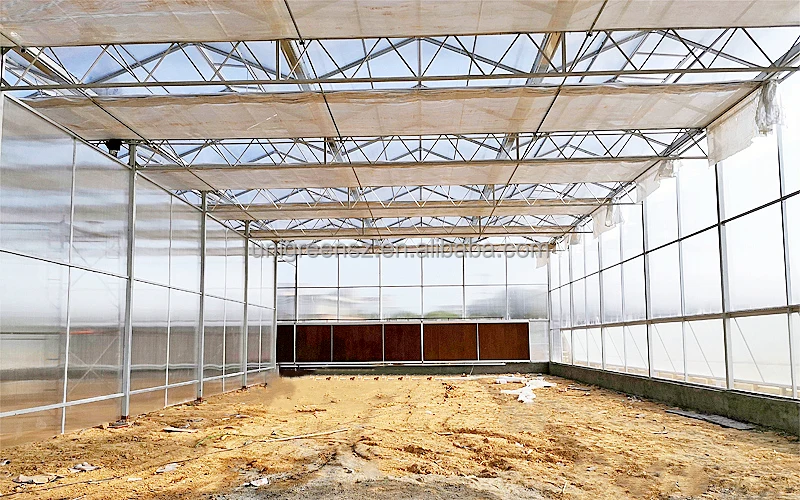

Inside Shading System is installed in the greenhouse, fixed on the truss and with the frame of greenhouse.
Inside Shading System is installed in the greenhouse, fixed on the truss and with the frame of greenhouse.
Inside shading net is made by white aluminum--alloy materials, fastened by white polyester strings.

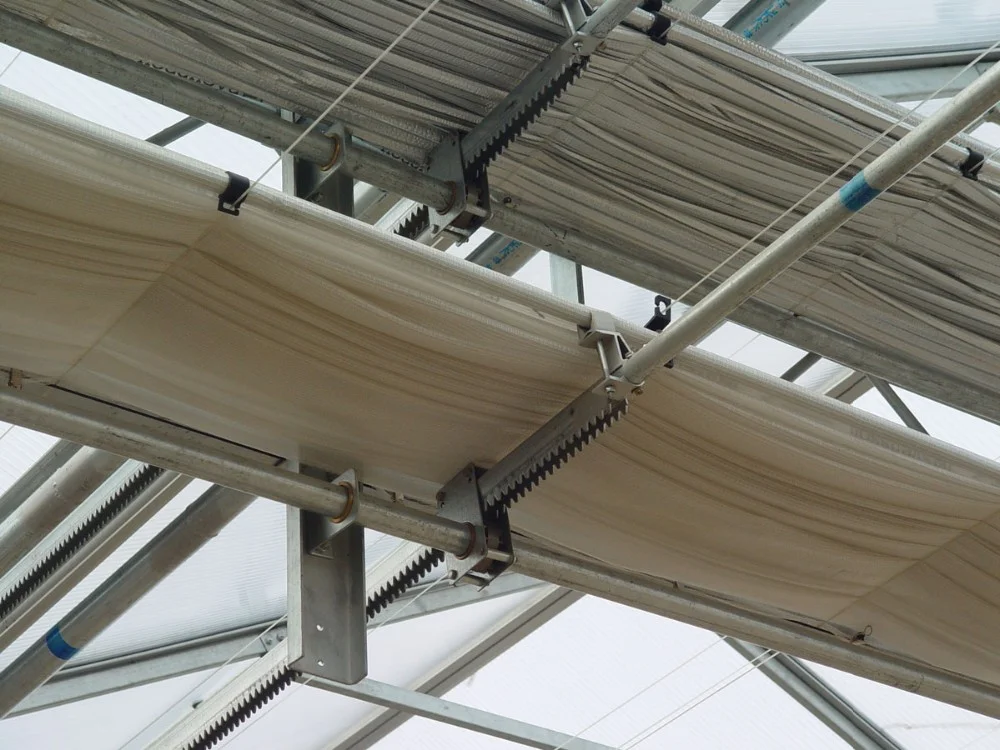

Inner Sunshade System
Material: Aluminum foil Sunshade Net
Introduction:
Introduction:
Installed in the greenhouse, supported by the uprights and beams.
Button control switch, reduce the internal temperature by cutting off excess solar radiation.
In summer, it can reduce the inner temperature, and in winter or in night, it can prevent the heat running off.
Advantage:
This system is Installation inner sunshade net in the greenhouse.Button control switch, reduce the internal temperature by cutting off excess solar radiation.
In summer, it can reduce the inner temperature, and in winter or in night, it can prevent the heat running off.
Outer Sunshade System
Material: Black round wire Net
Introduction:
Installed in the greenhouse, supported by the uprights and beams.
Advantage:
The shading system is installed on the top of the greenhouse with a sunshade net that can be driven by electricity.
The principle is to filter the excess light through shade net to achieve indoor cooling effect.
The external shading drive system adopts type A gear transmission, and the motor adopts a high-quality three-phase deceleration motor.
Shelter Roofing closed, when not hot.
The shading system is installed on the top of the greenhouse with a sunshade net that can be driven by electricity.
The principle is to filter the excess light through shade net to achieve indoor cooling effect.
The external shading drive system adopts type A gear transmission, and the motor adopts a high-quality three-phase deceleration motor.
Shelter Roofing closed, when not hot.

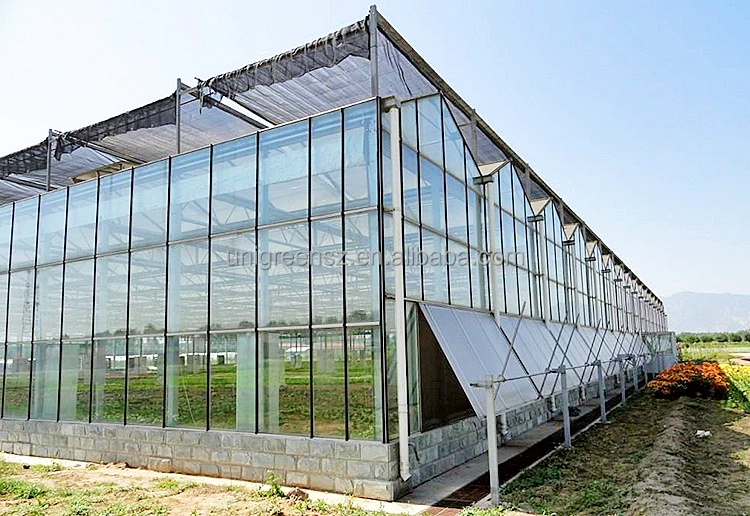

The ventilation systems is consist of Roof Ventilation Systems and Side Ventilation Systems according to the difference of the installation position.
Include:

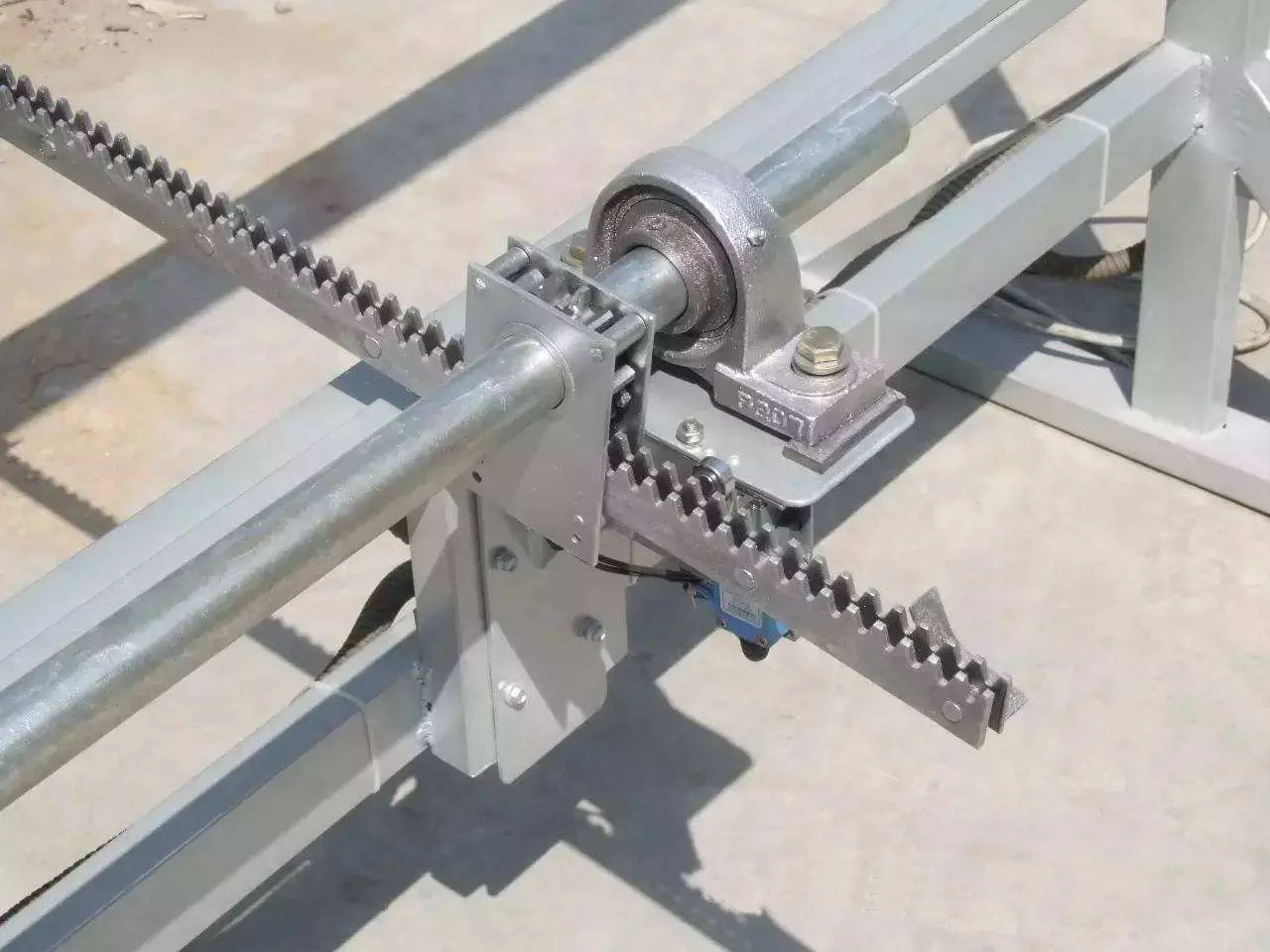

Gear motor and controlled by the rack, pinion and other transmission tubes to make the windows open or closed.Common for glass and PC sheet greenhouse.
Advantage:
One-touch control switch to ensure that the greenhouse has good circulation of air and avoid troubles caused by repeated manual
operations.
operations.

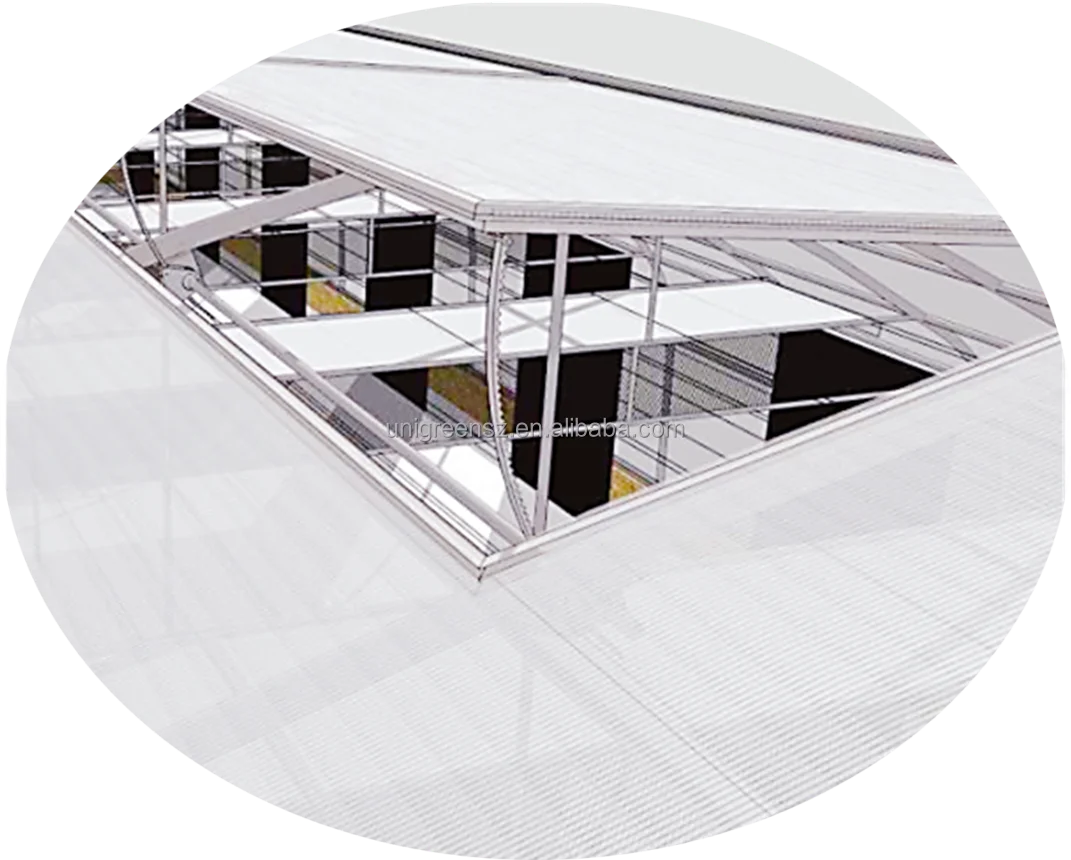

Roof
Ventilation System
The gear motor controls the rack
pinion structure,
by which a set of driving rods act.
The windows open and close, supported by them (supporting arms).
Cooling System
Side Cooling-Pad Ventilation System
The gear motor controls
the rack-pinion structure.
The rack connects the windows,
thus the windows open or clasie.

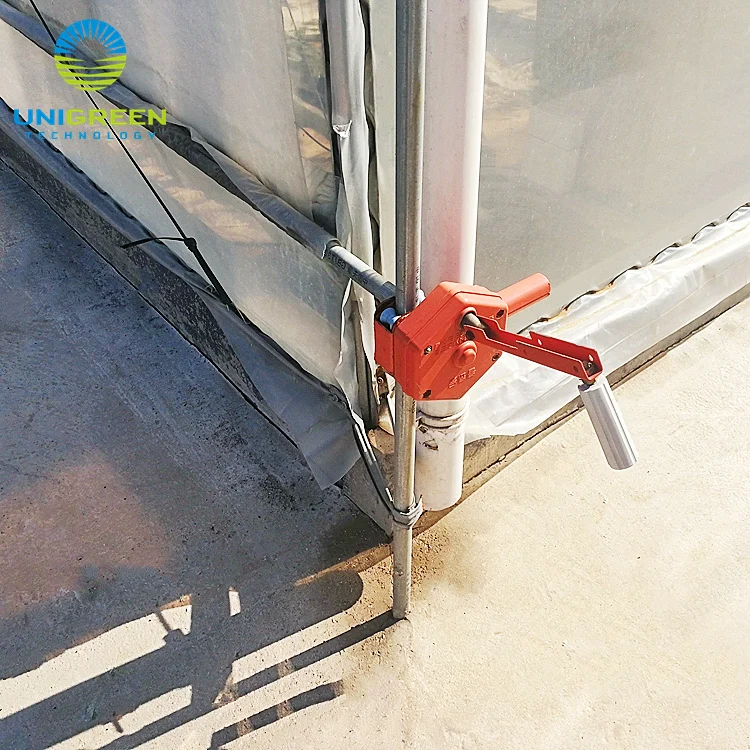

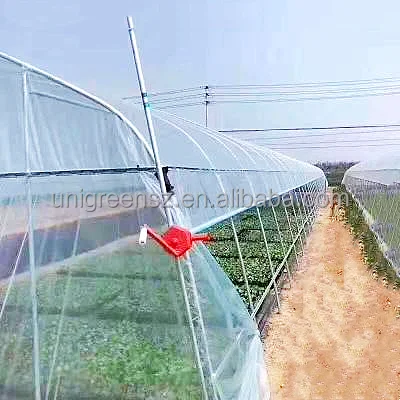

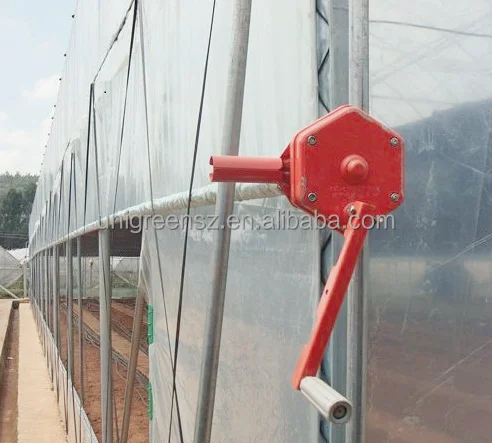

Side Plastic-Film
Reeling Ventilation System
(Manual or Electric)
Can be used on the side.
Usually installed on the plastic firm multi-span greenhouse on tunnel greenhouse and
controlled by the film reeler.

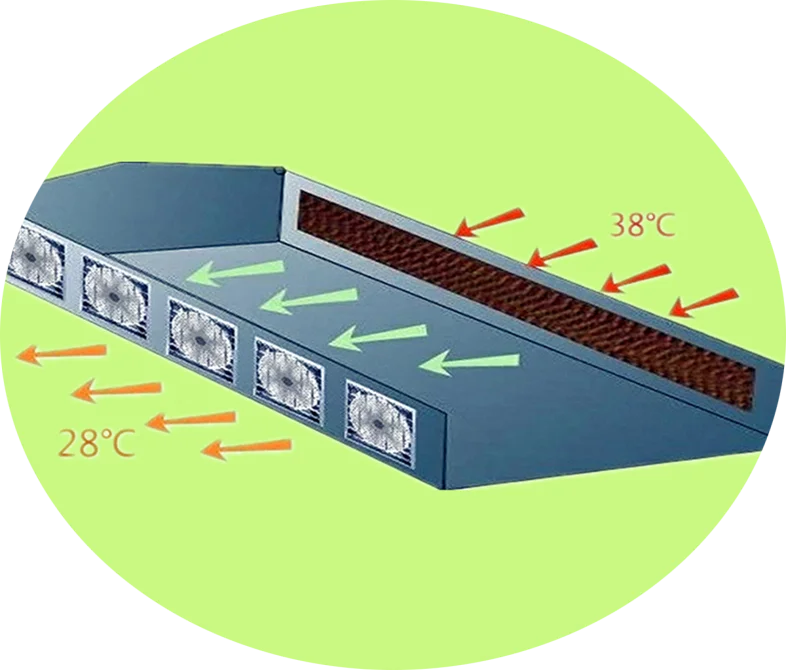

- The cooling pads are installed on one side of the greenhouse, the exhaust fans, the other. (The air-circulating fans are installed in the greenhouse.)
- The exhaust fans eject the air from the greenhouse (The air-circulating fans promote the circulation of the air in the greenhouse), negative pressure formed in the greenhouse.
- The air enters the greenhouse through the cooling pads, resulting in the effects of cooling, moistening and air-dedusting.
- The exhaust fans eject the air from the greenhouse (The air-circulating fans promote the circulation of the air in the greenhouse), negative pressure formed in the greenhouse.
- The air enters the greenhouse through the cooling pads, resulting in the effects of cooling, moistening and air-dedusting.
Advantage:
In hot weather, the pads and fans are used together,cool water circulation could reduce temperature and increase humidity inside the greenhouse at same time.

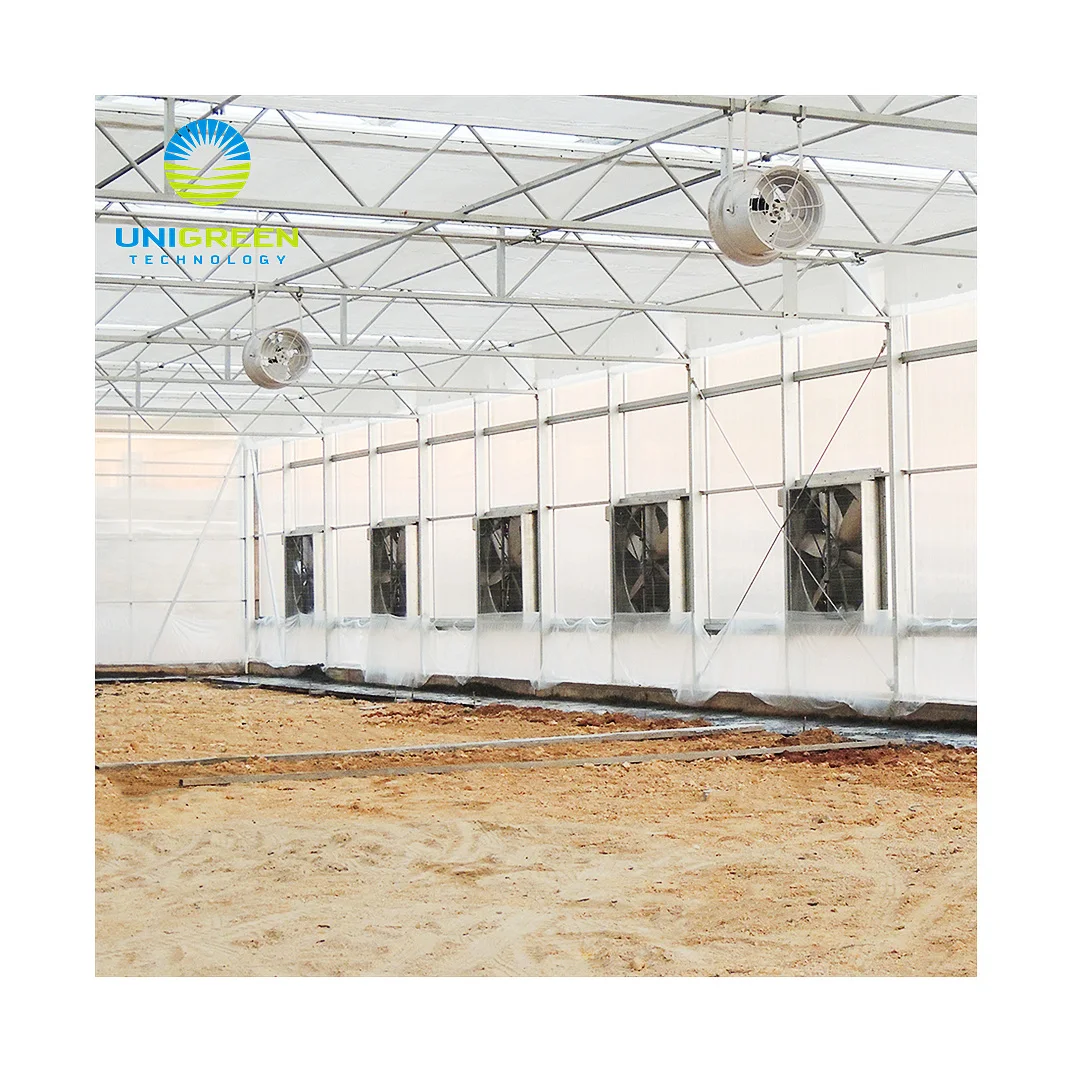

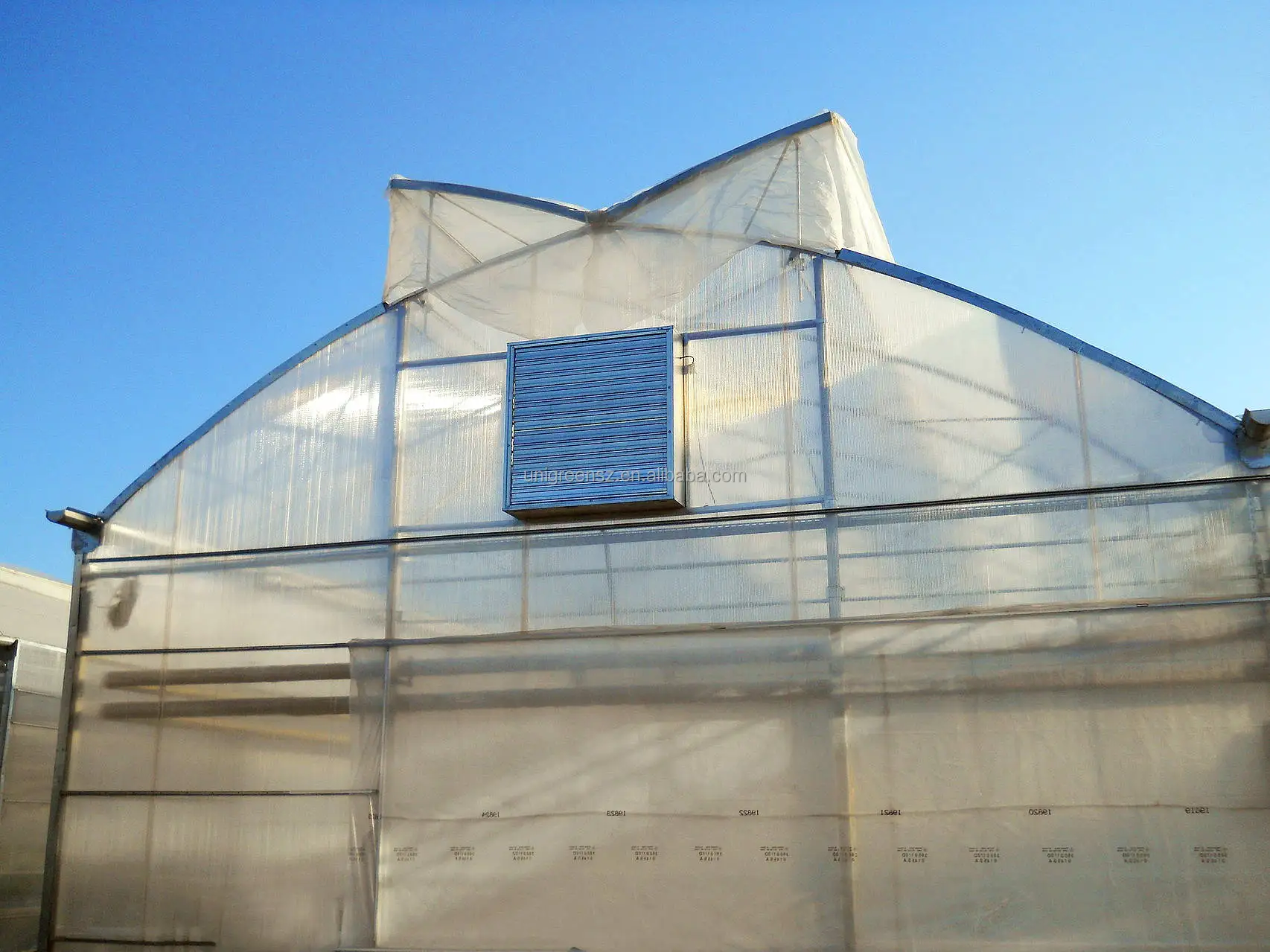

Fan
Thick galvanized steel sheet
Advantage: Strong anti-corrosion property
b) Blade: Driven by the belt through the motor.
Passing the test of dynamic balance and static balance,ensuring the strong blasts of air through them and the low noise that is caused.
c) Louver Material:
Aluminum alloy or galvanized steel
With the special switch structure,
functioning as the role of wind-proof, rain-proof and dust-proof effects.
Air-circulating Fan
a)The motor has the great performance of rain-proof,wind-proof and dust-proof.
It works in low noise and can be in service for long time.
b) The blade is punched by the light aluminum materials,large tilting angel, great blast capacity and low noise.
c) The blast capacity,ensuring the circulation and uniformize the temperature, humidity and the concentration of CO2.
c) The blast capacity,ensuring the circulation and uniformize the temperature, humidity and the concentration of CO2.
d) You can choose the different frame, made by stainless steel steel or painted steel.
Cooling Pad
there is flowing water,
through which the hot air outside can be cooled.
a) Advantage:
Strong, Ant-corrosive,
Durable,Water-absorbing greatly
Aluminum alloy or galvanized steel
Hot-dip galvanized steel and aluminized zinc frames
Thickness 10mm and 15mm for tropical area

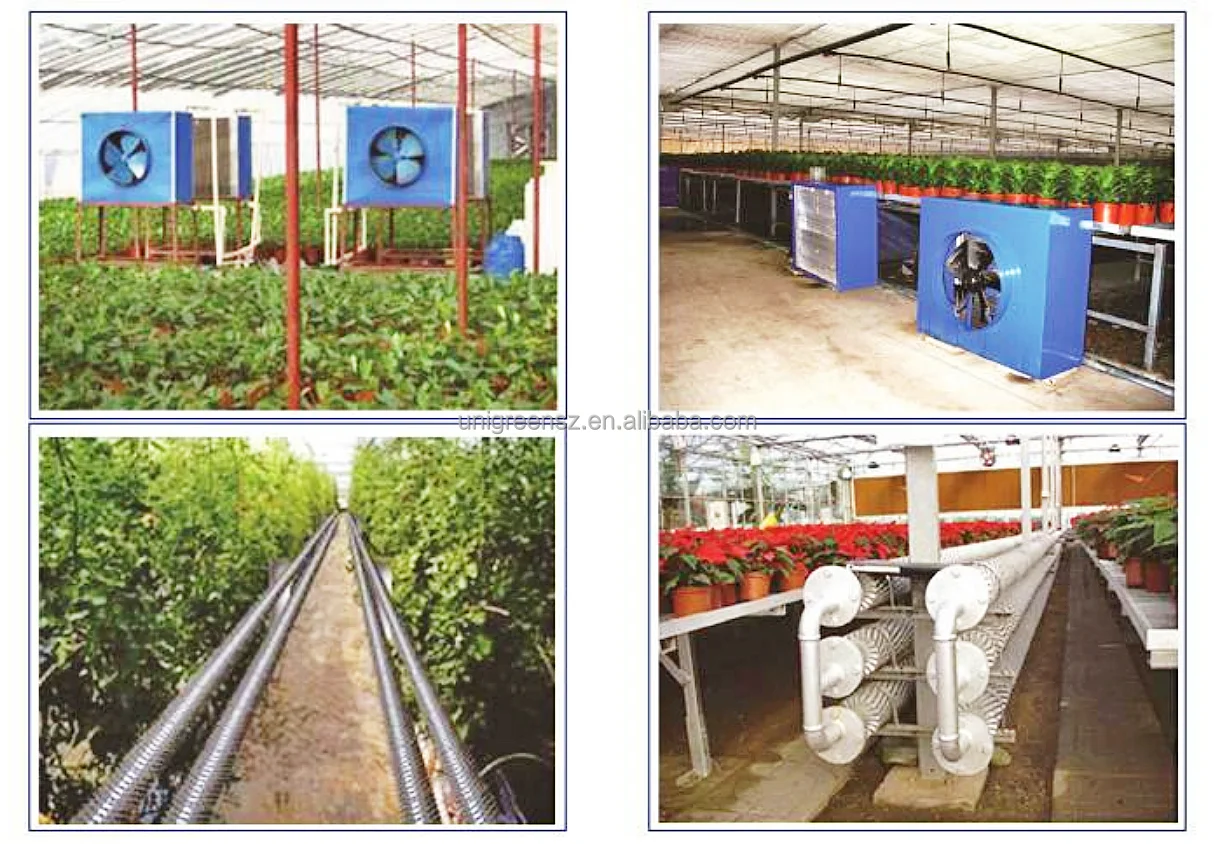

Heating System
- Consisting of heating source,heat--radiating facilities, heat-transmitting facilities.
- It includes gas boiler, heating fans and circulating water pipeline.

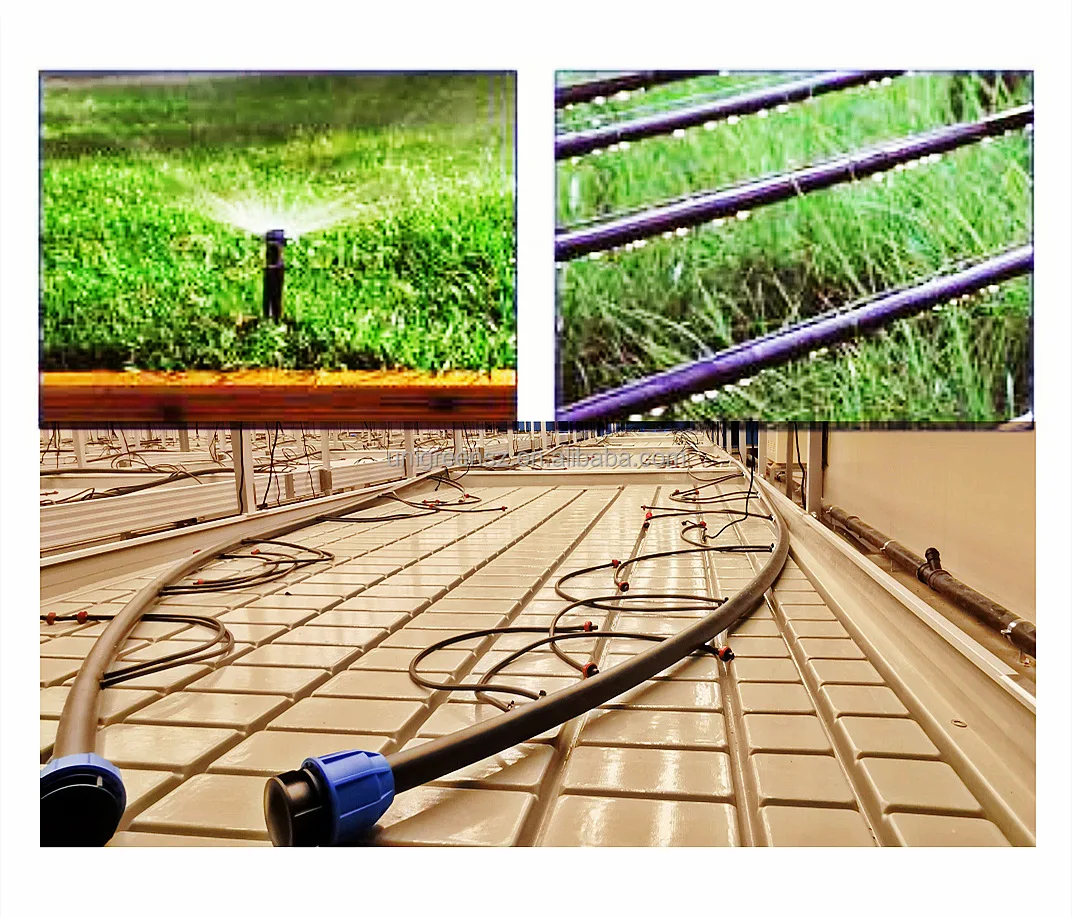

Working principle:
The irrigation water is extracted from the source, pressurized, purified, filtered properly, then sent through the water-transmitting pipeline into the irrigation facility on the field. At last, the irrigation water is released by the irrigation emitter of the irrigation facility to the plants of the field in the greenhouse.
The irrigation water is extracted from the source, pressurized, purified, filtered properly, then sent through the water-transmitting pipeline into the irrigation facility on the field. At last, the irrigation water is released by the irrigation emitter of the irrigation facility to the plants of the field in the greenhouse.

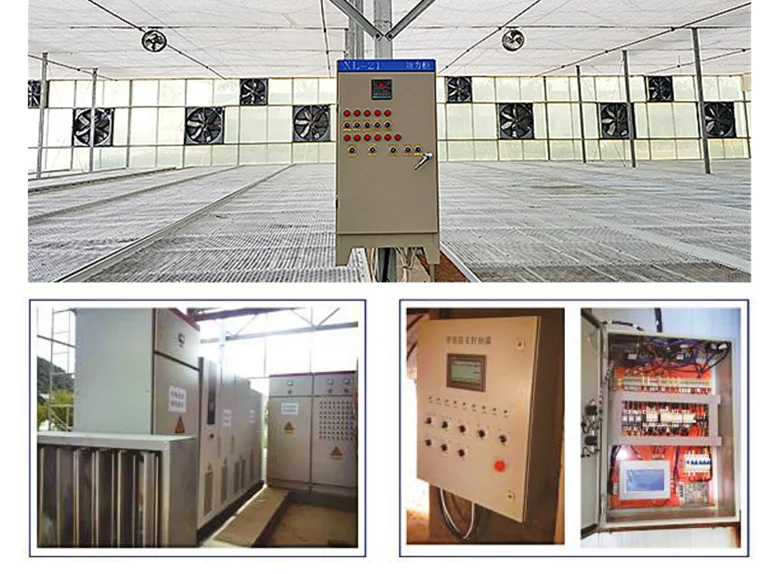

Control System
It can control the facilities of ventilation system, shading system, cooling system,illumination supplement, irrigation and fertilization, adjusting the inner environment of the greenhouse to the most suitable conditions.

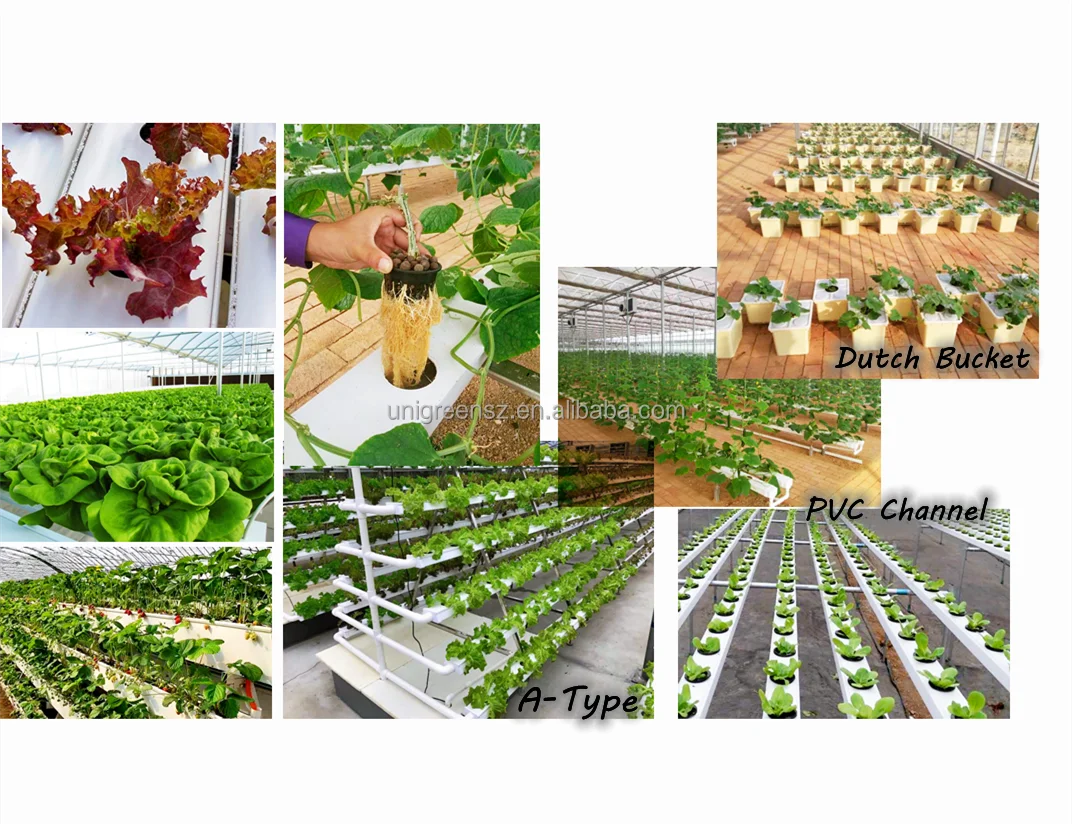

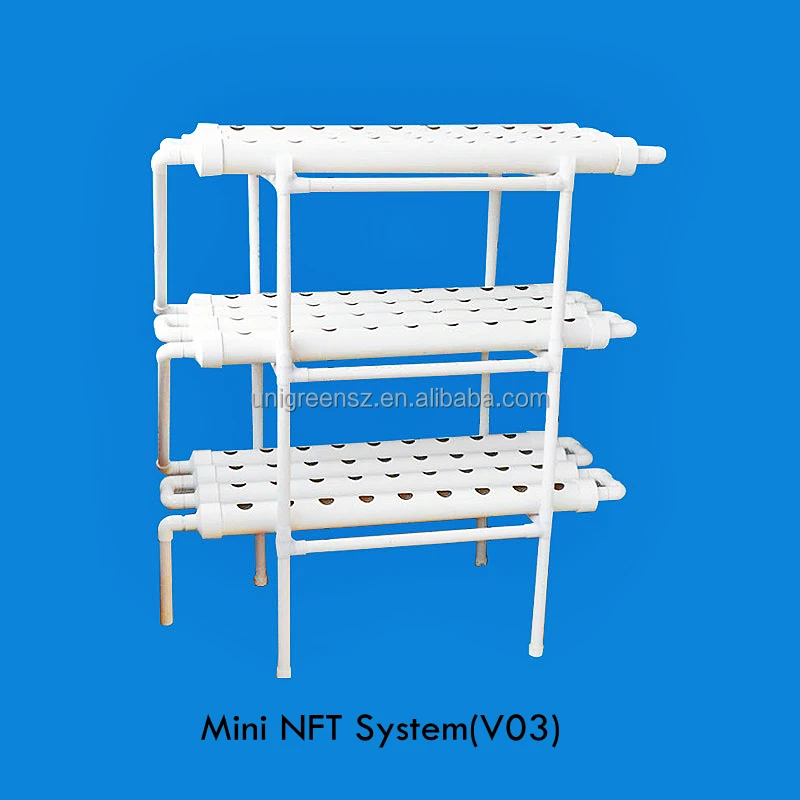

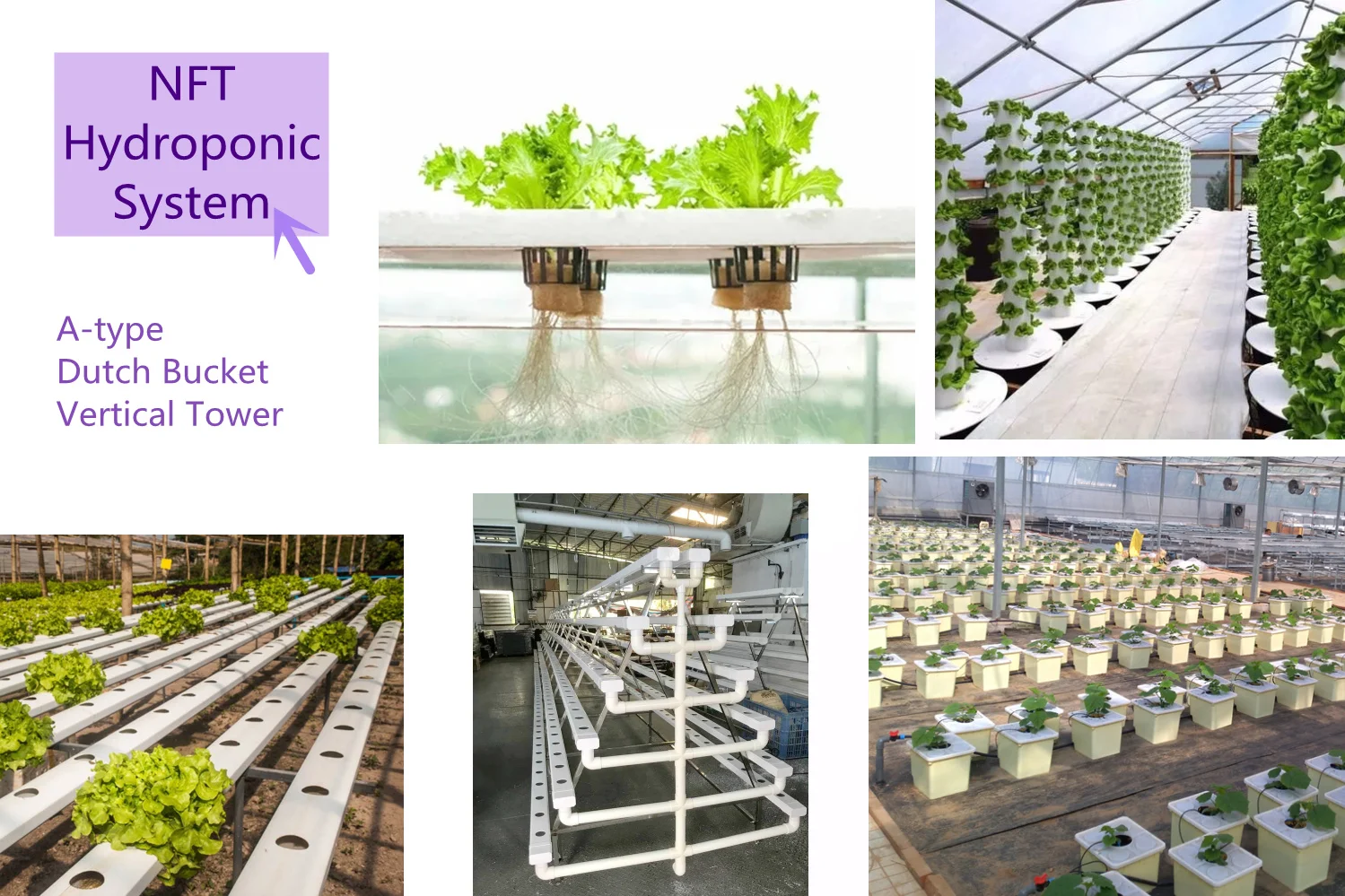

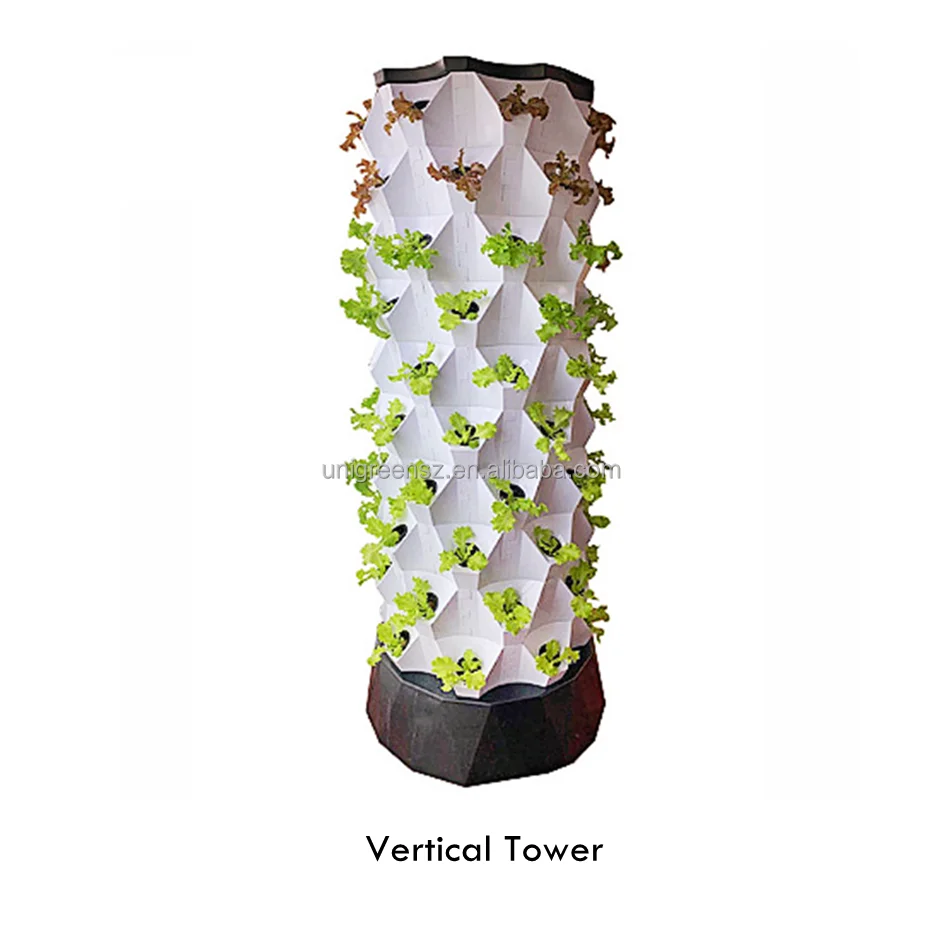

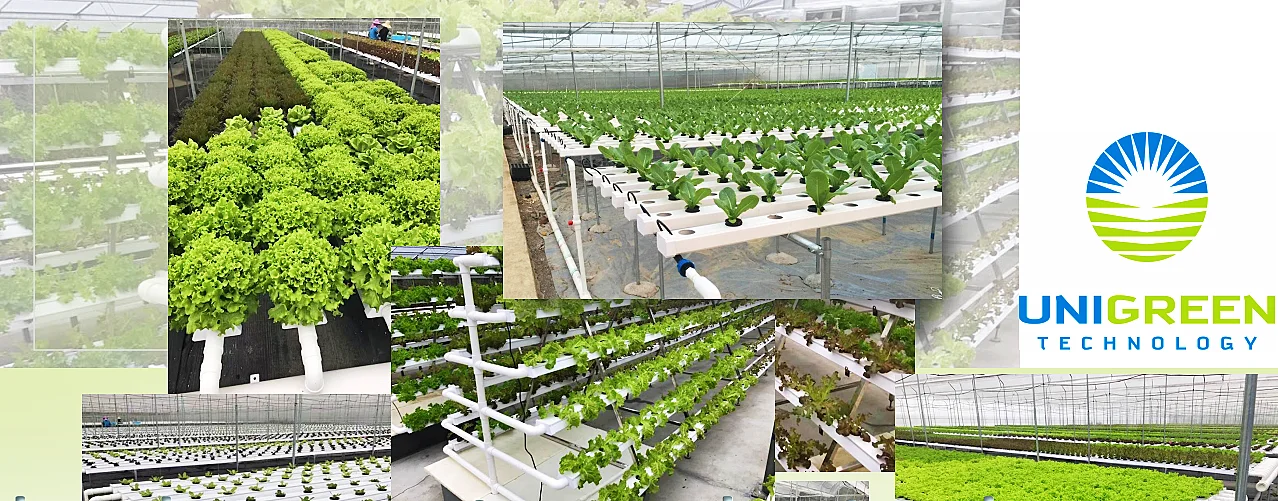

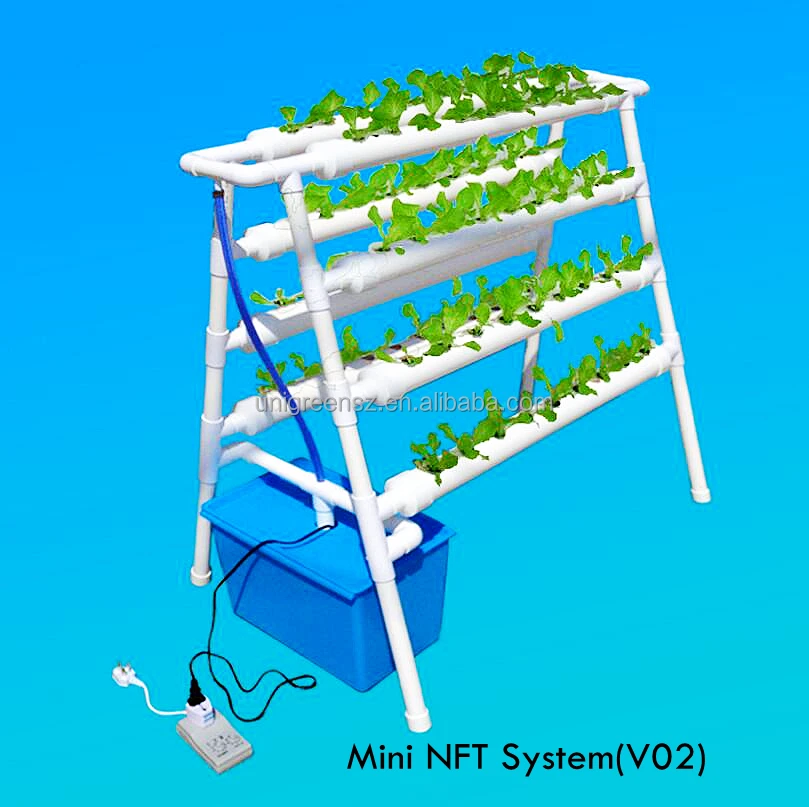

Hydroponic System
Hydroponic System of greenhouse applies the hydroponics, which refers to the meens of cultivation that is equipped with the base materials, not natural soil, when plants are in seed-breeding period and that is fixed with nutrient solutions for irrigation after they are settled,) preventing the diseases due to the soil frequently used and the physiological barriers because of the salt accumulation of it and meeting the needs of plants with minerals, water, air and other conditions.
The base materials can be recycled, and the hydroponics is characterized with water-saving, fertilizer-saving, labor-saving as well as great harvest and superior quality, etc.
The base materials can be recycled, and the hydroponics is characterized with water-saving, fertilizer-saving, labor-saving as well as great harvest and superior quality, etc.

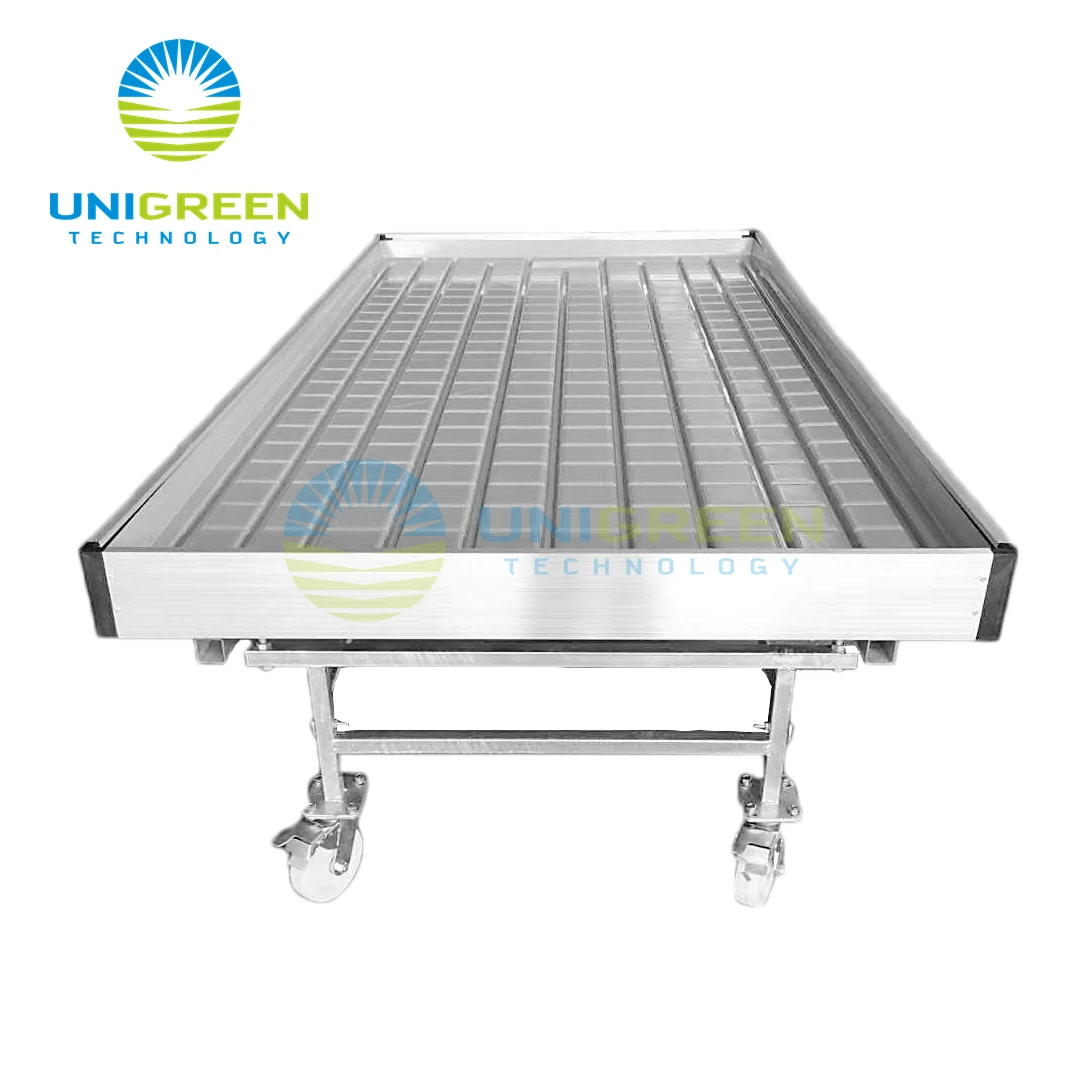

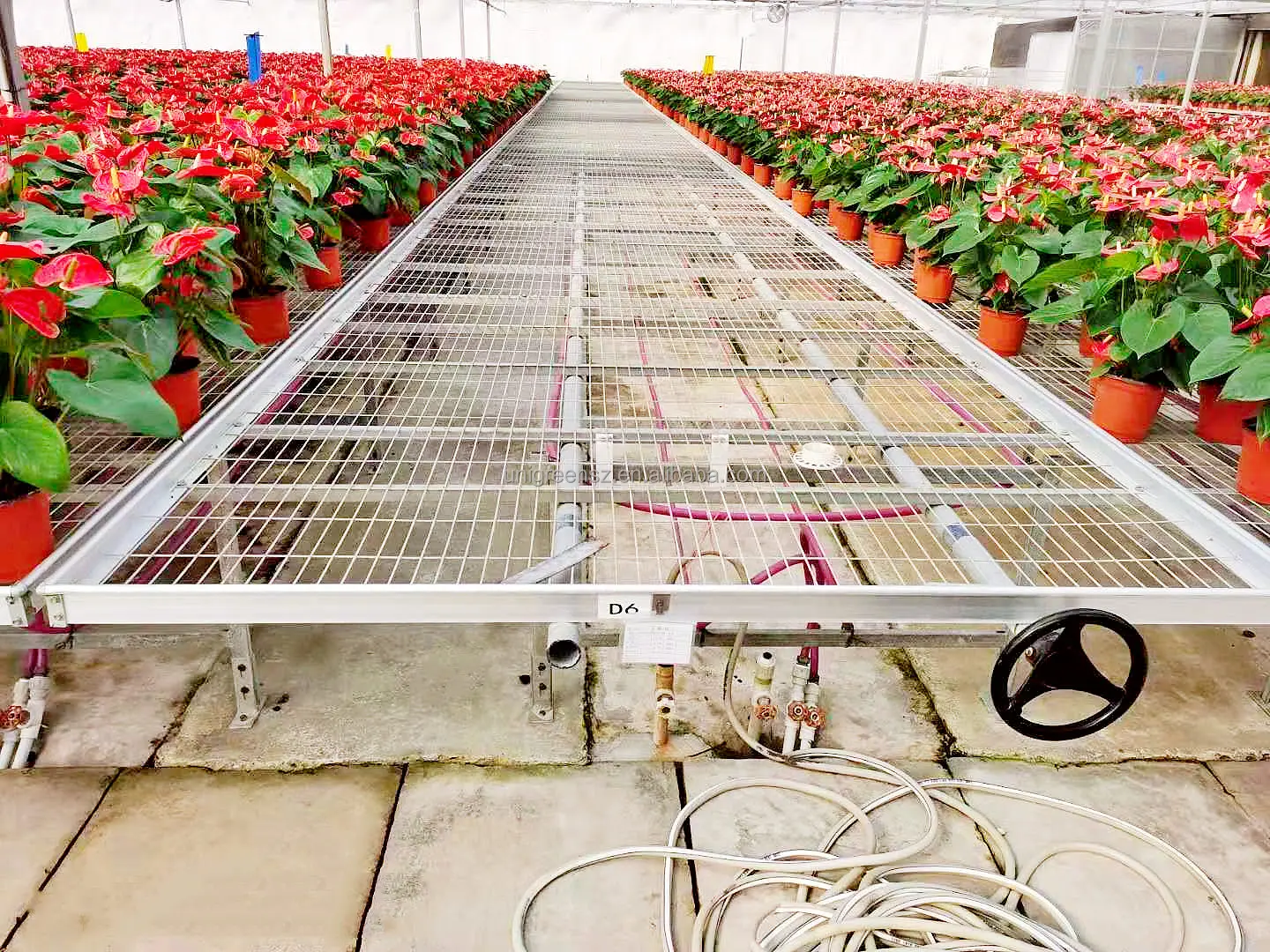

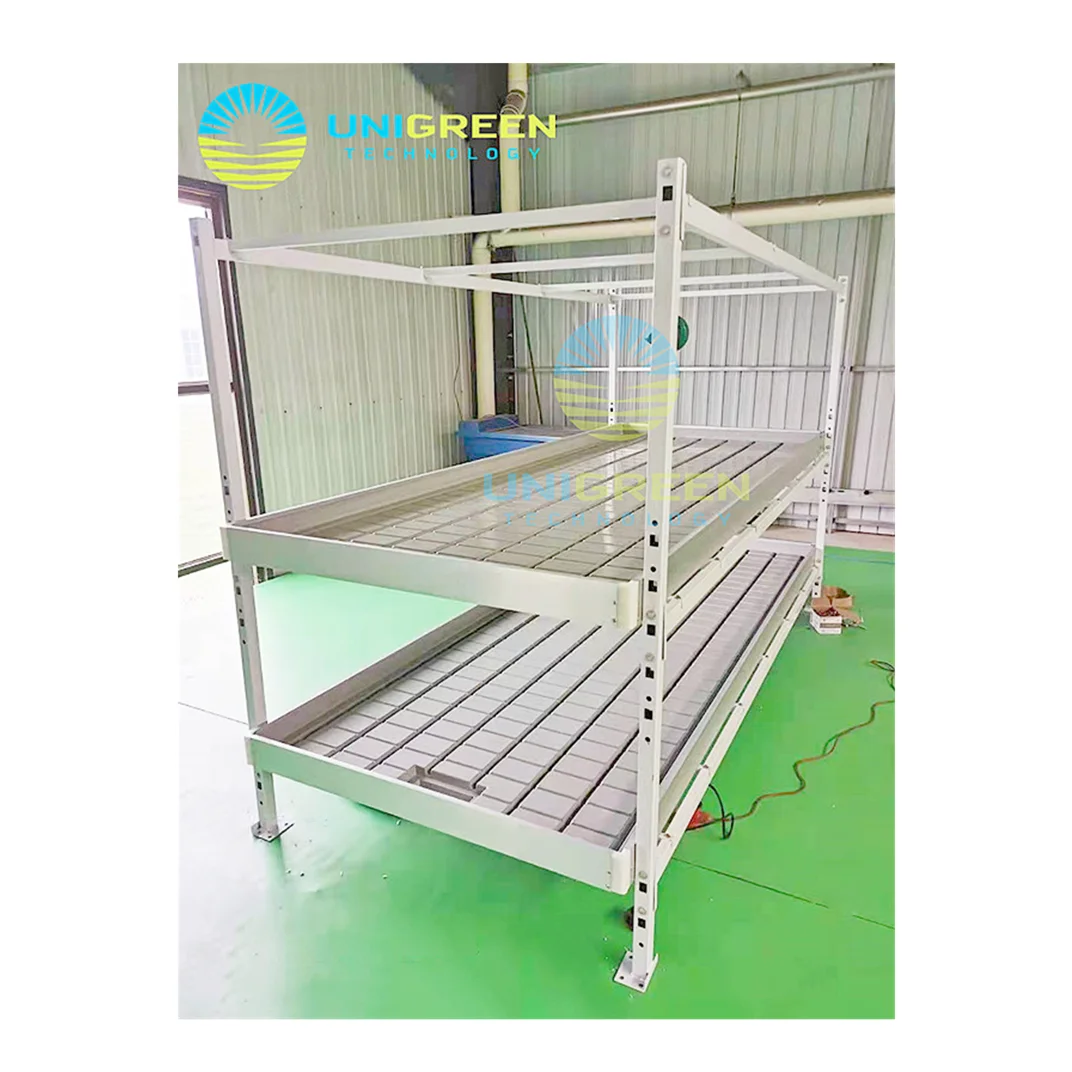

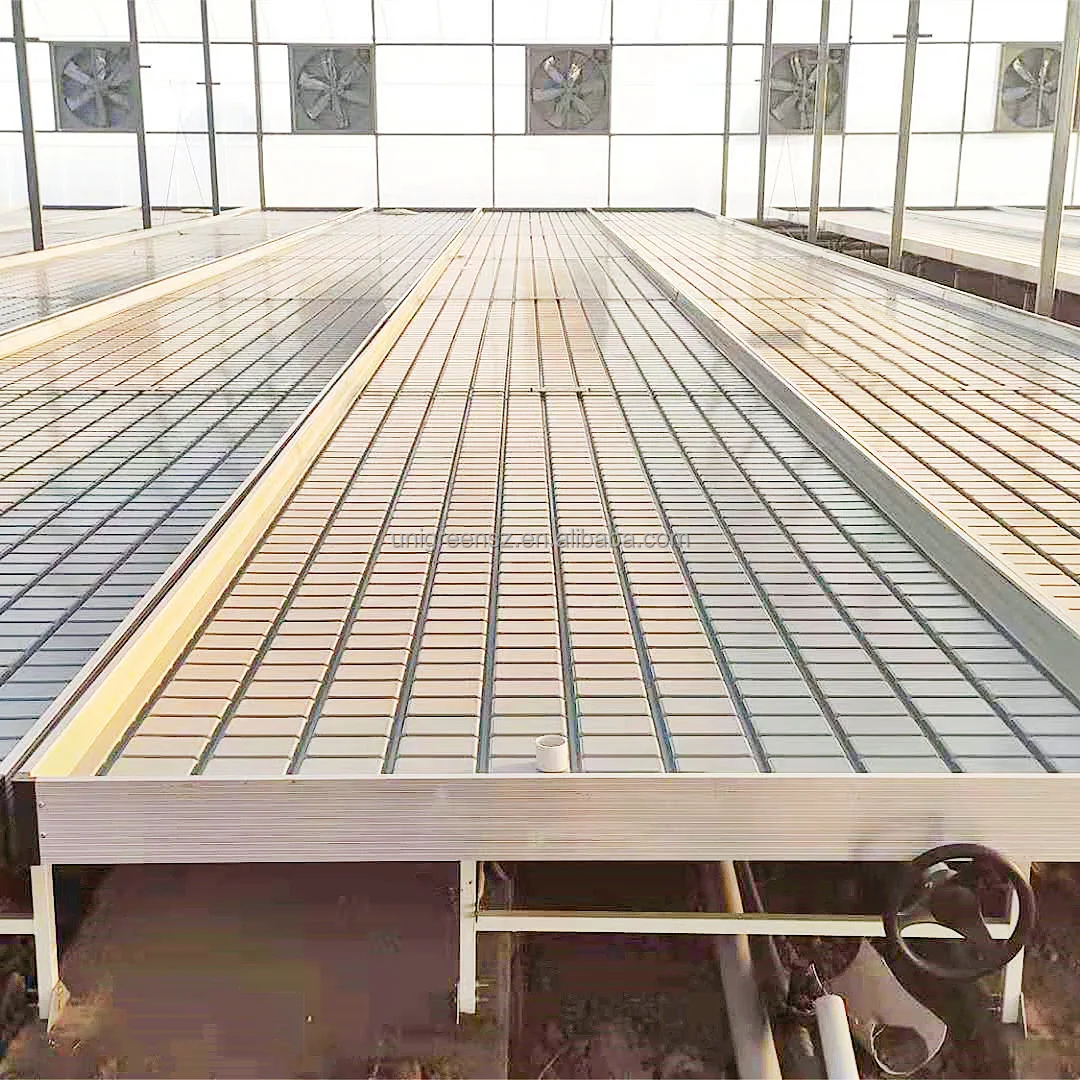

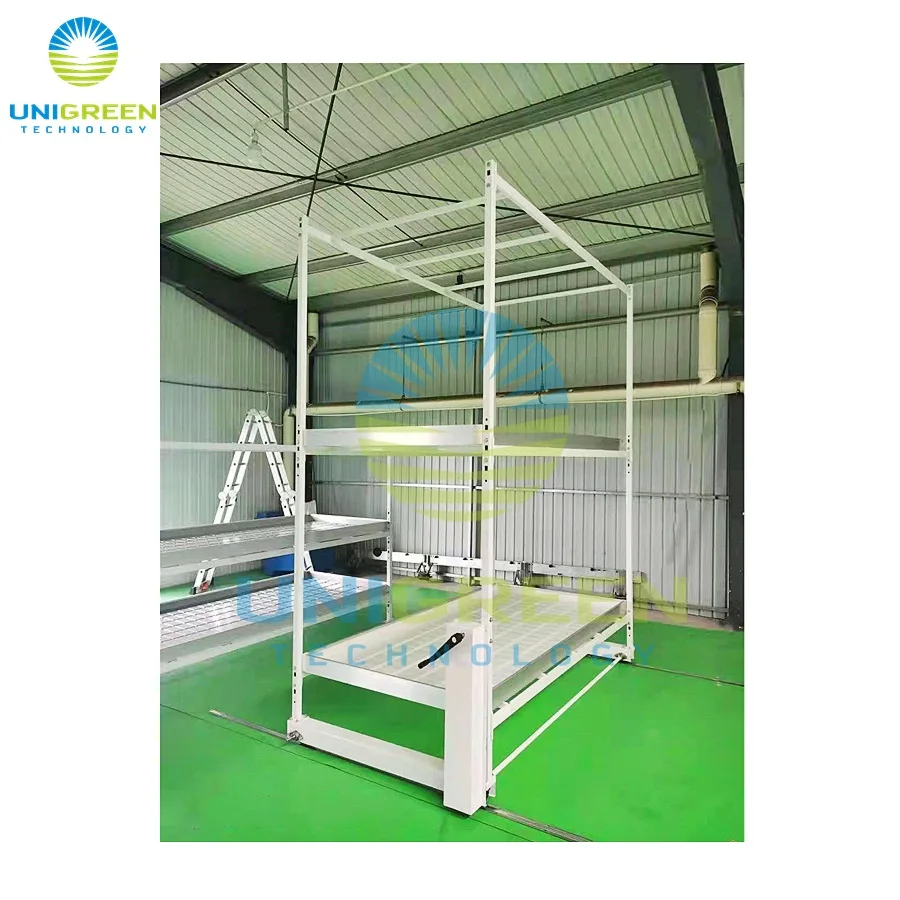

Seedbed System

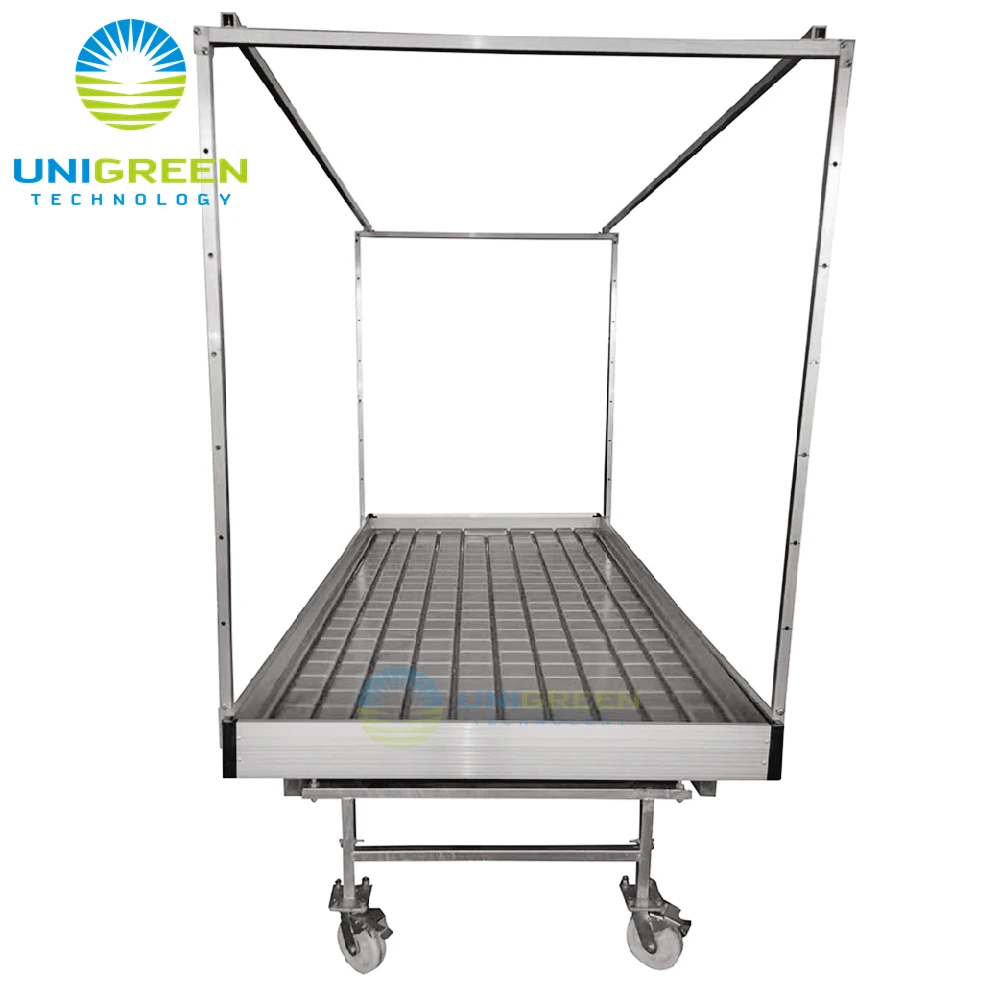

Seedbed system of greenhouse inciudes fixed seedbed and mobile seedbed.
The fixed seedbed is single-layer, angle steel as the support, stee-wire mesh set on the surface. The surface of the mesh applies the ant-corrosive treatment by the cladding layer.The support of mobile seedbed is made by galvanized steel tubes, outline of the seedbed aluminum--alloy material.
Height of it can be slightly adjusted, and it is equipped with the ant-overturn device and location-limiting device.
The seedbed system can promote the utilization rate effectively of the greenhouse. usually up to about 85%
Packaing and Delivery
Related Products
Company Profile
FAQ
1. Can you supply sample?
Yes ,we could supply,but you should pay the express.
2. How can I get a sample to check your quality?
After price confirmation, you can inquire for samples to check our quality.
3. How long is your delivery time?
Generally it is 25 days after order.
4. How to install the greenhouse? Do you provide installation service?
We will provide paper or video building manual, or if needed we will send engineer to do installation guidance..
5. why should you buy from us not from other suppliers?
5. why should you buy from us not from other suppliers?
-Professional supplier with rich OEM experience
-Good quality product with reasonable price.
-responsible supplier provide customers with excellent after-sale service
