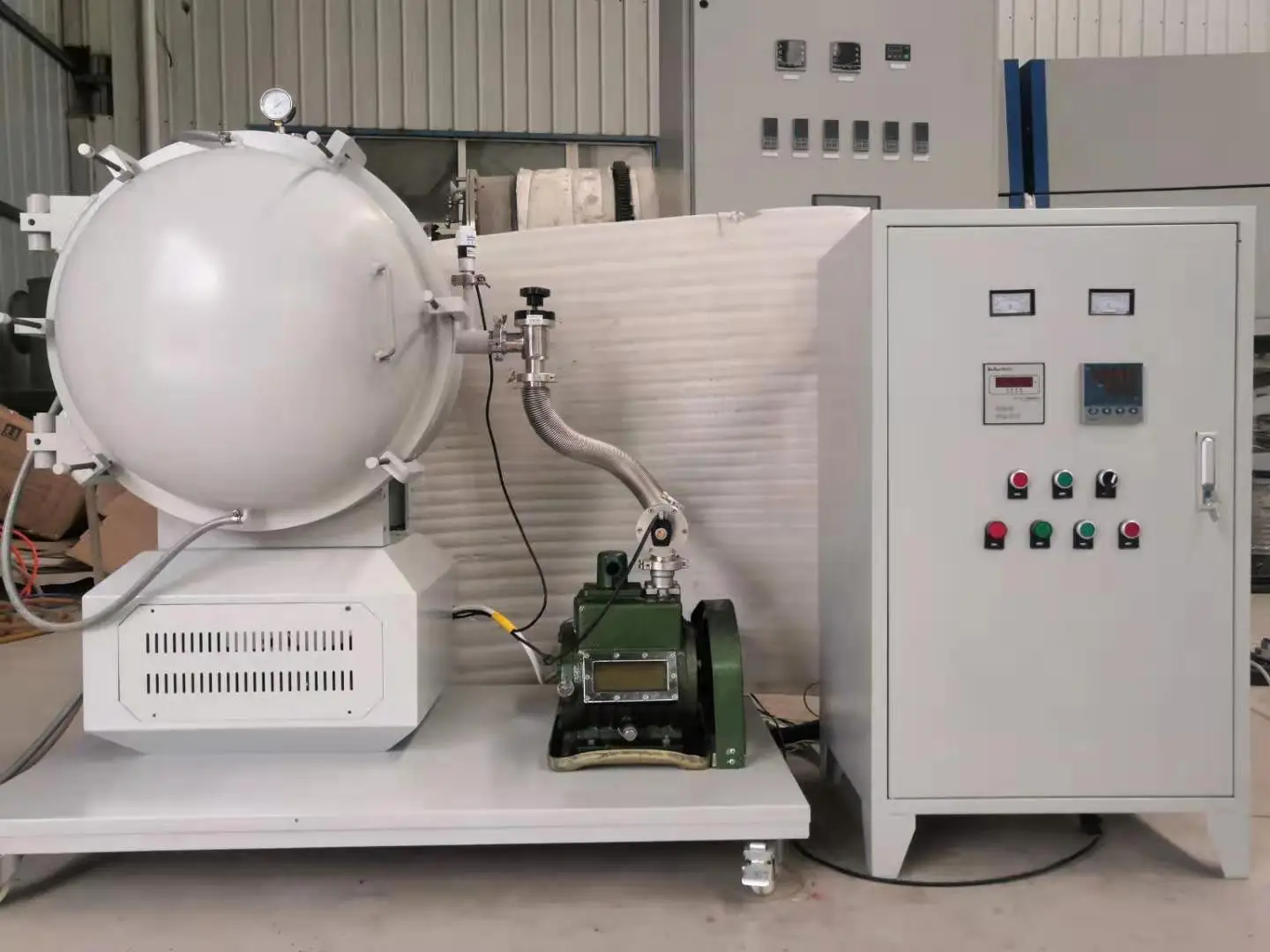

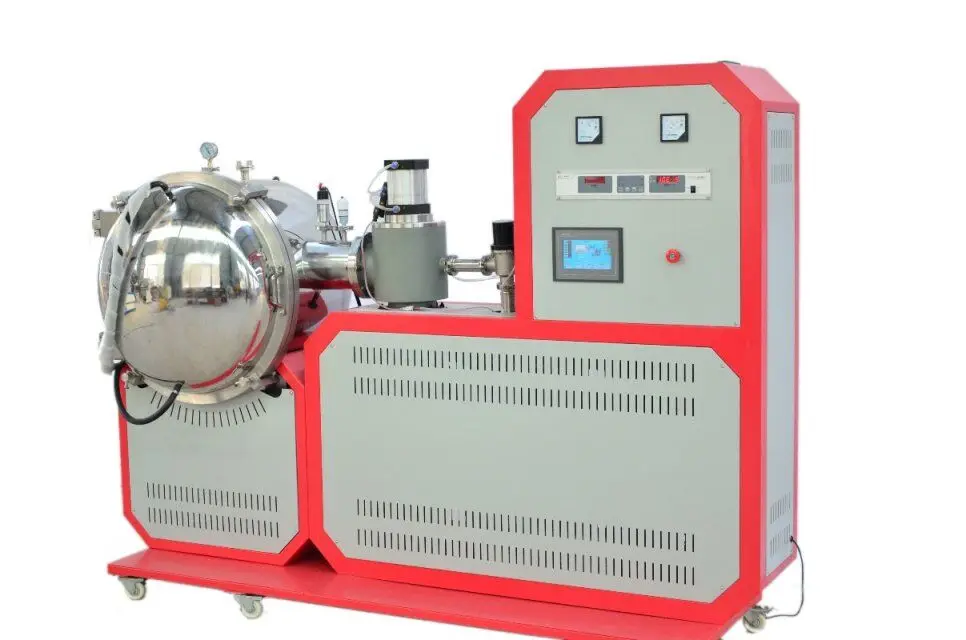

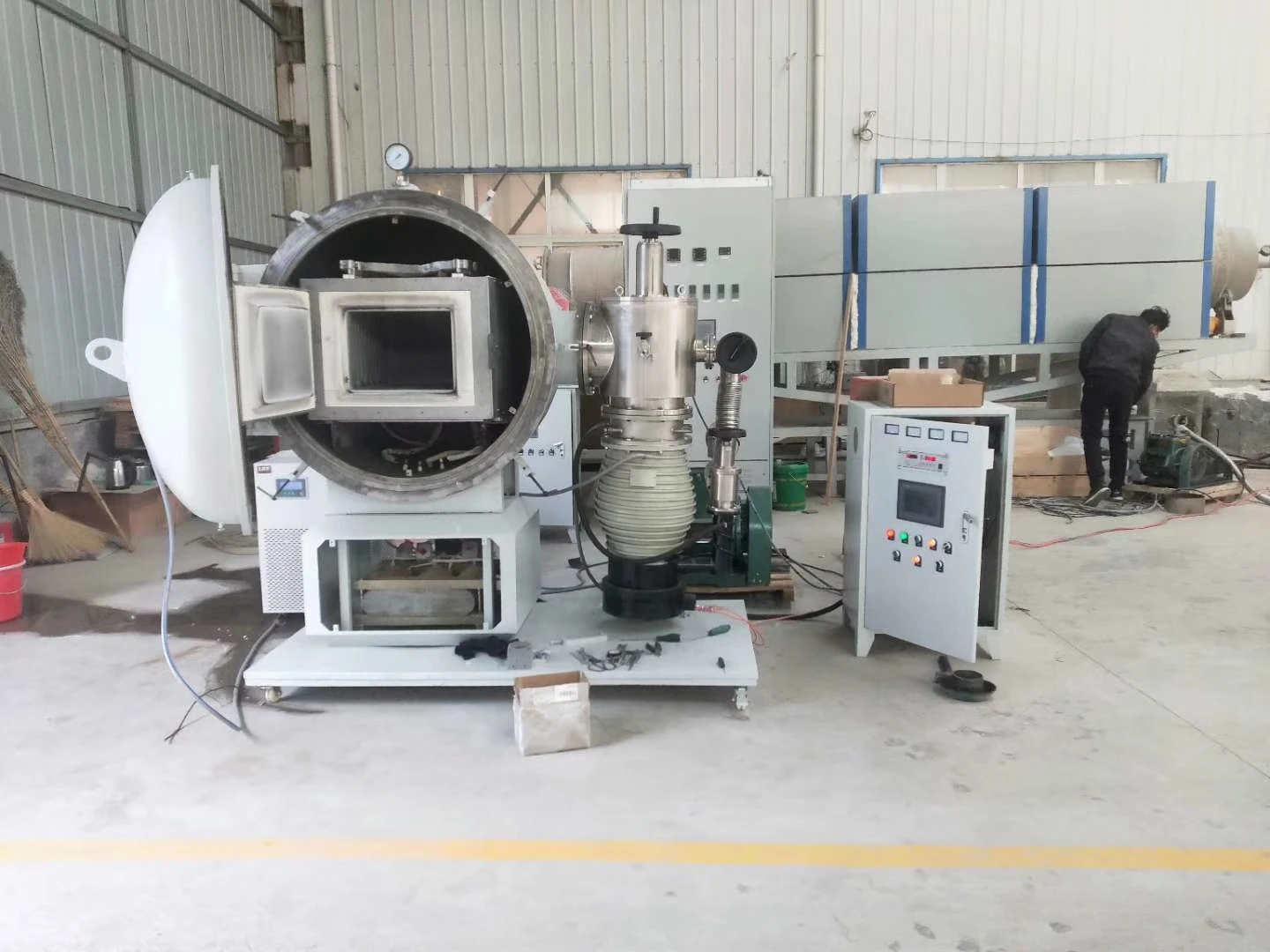

10 5 torr Nitrogen Argon Atmosphere high Vacuum Sintering Furnace For Metal heat treatment

VF series vacuum furnace is widely used for heating treatment of metal materials in low vacuum, recursive, protective atmosphere, also can be used for heating treatment of special materials, such as carbonization process of carbon products. The furnace chamber is ceramic fiber with excellent thermal insulation; Vacuum Reservoir with water cooling system.

Mainly used for ceramic firing, vacuum smelting, degassing of electric vacuum parts, annealing, brazing of metal parts, and ceramic-metal sealing, etc.

Product application Widely used in enterprises and institutions scientific research and small batch production, as well as colleges and universities involved in scientific research and teaching of ceramics, metallurgy, electronics, glass, chemical, machinery, refractory materials, new material development, special materials, building materials in the field.

The detail specifications of 10-5 torr Nitrogen Argon Atmosphere high Vacuum Sintering Furnace For Metal heat treatment

	Max.temperature	1800C
	Working temperature	0-1700C
	Furnace Chamber size(DWH)mm	300*200*200 or as your requirement
	Heat element	High quality Mosi2 heating element
	voltage and frequency	380v 2phase 50Hz/60Hz
	Heating rate	0-10C/min
	Temperature accuracy	±1°C
	Thermocouple	B type
	Max vacuum	10-1pa-10-3pa
	Furnace chamber  material	Chamber material is light alumina ceramic fiber,module,reasonable design,good heat preservation performance,saving energy.(Fireproof layer adopts vacuum forming ceramic fiber insulation layer adopts ceramic fiber )
	Furnace shell	Internal stainless steel,external high strength carbon steel,external electrostatic spray,beautiful and generous
	Surface temperature	Ouble layer water cooling structure,surface temperature ≤50C
	Temperature control	Adopt international advanced temperature controller,with 30-50 programmable PID self-tuning,automatic temperature rise,automatic temperature drop,no duty.
	Temperature control instrument	Linear current output,flip-flop phase shift trigger reverse parallel bidirectional SCR,precise temperature control accuracy
	Alarm action	1 Overtemperature alarm when the temperature in the furnace rises to the alarm temperature,the power supply will be cut off automatically and the alarm light will be on. 2 Couple break alarm open thermocouple,instrument alarm and automatic power off
	Inlet gas/Atmosphere	It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc
	Gas control	The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump.

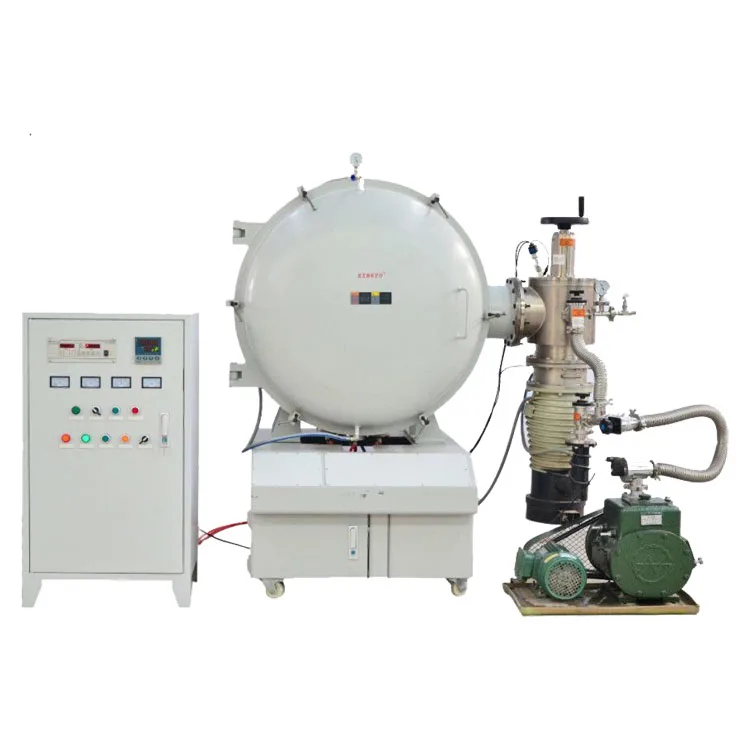

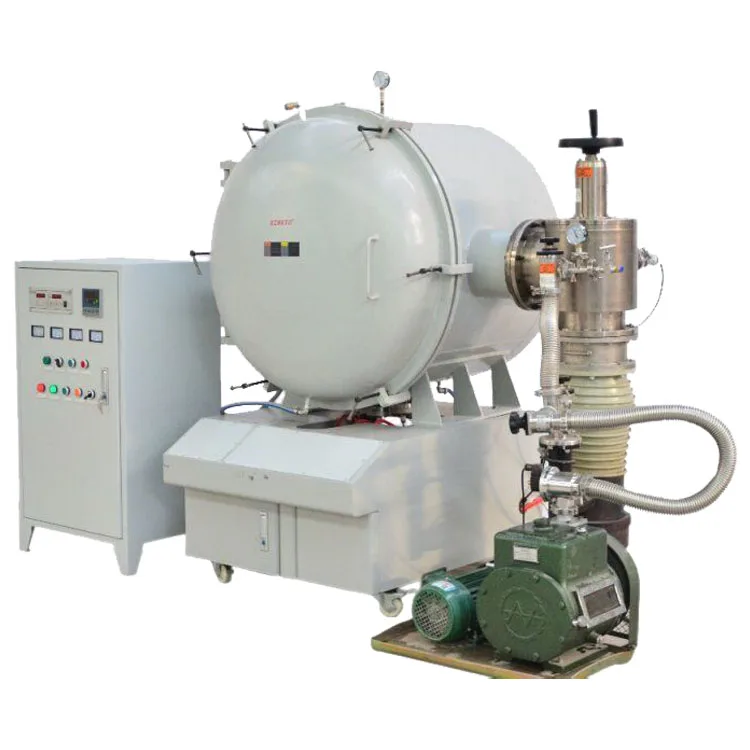

		The vacuum unit is composed of front stage pump and diffusion pump. All the machines selected are the best domestic brand Chengdu Nanguang machine. The early pump is 2X-15 nanguang pulley. Diffusion pump for 100 caliber, pumping speed 1800L/S, limit vacuum 10-3Pa.
		The compound vacuum gauge brand is Chengdu Ruibao, ionization vacuum gauge adopts durable metal gauge,rather than cheap and easy to break glass gauge.
		The suction port of the vacuum pump is equipped with an electromagnetic differential pressure valve to prevent the vacuum pump oil suction caused by misoperation or sudden power failure.
		Vacuum tank and vacuum pump connected with bellows, manual flapper valve control.
	Sandard accessories	Vacuum pump 1pc, Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace
	Other temperature options	1200C,1400C,1700C,1800C
	Furnace chamber standard size	100*100*100mm,200*150*150mm,300*200*200mm,400*300*300mm or other OEM size
	Waranty	One year

Our products have passed CE certification, SGS,UL,ISO9001 and other certificates.

Nanyang Dadi Electric Equipment Co., Ltd is a professional Heat treatment furnace manufacture which with more than 15 years experiences.

We have Professional technical engineers team, complete scientific management system, standard workshop and strict quality-monitoring framework.

The most important thing is that we have our own furnace shell processing factory, which has a great advantage for delivery time and price.

Our furnaces have been exported to more than 30 countries and with good feedback from our customers.

Our quality policy is "first-class Quality, first-class technology and sincere service to make customers satisfy".Our eternal faith is "living on quality, reputation on honesty, development on mutual benefit". We are looking forward to offering our best services to our friends from at home and abroad.

Mainly products:

FAQ

1. Q:Are you muffle furnace manufacturer?

    A: Yes, we are professional muffle furnace manufacturer of China.

2. Q:What kind terms of payment can be accepted?

    A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.

3. Q: Can I ask for customized furnace?

    A: Yes, customized furnace is accepted.

4. Q: What about the delivery time?

    A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.

5. Q: What about the guarantee period?

    A: The guarantee period is 12 months.

6. Q: What about the Minimum Order Quantity?

    A: The MOQ is 1 pcs.
