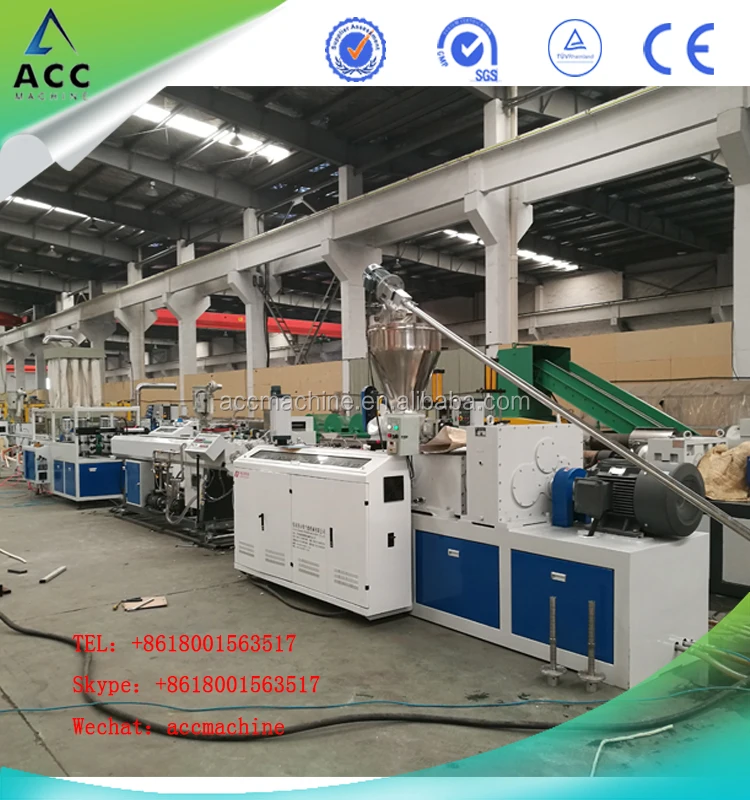

Оборудование для производства экструдера с двойной трубой из ПВХ и пластика

Product Overview

Description

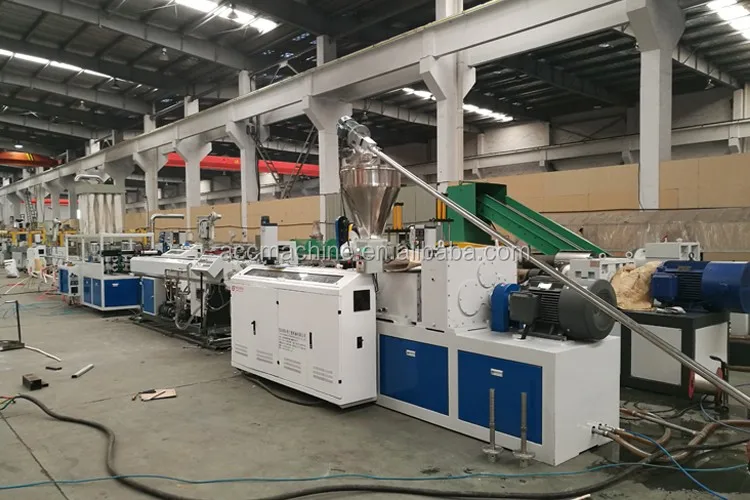

PVC Double Pipe Extrusion Line Production Description

Application

This PVC double pipe extrusion line is specially desighed for PVC or other plastic powder. It is suitable for PVC pipe high-speed extrusion, and make enterprise more competitive. It adopts rugged compact reducer, shielding type separation screw, slot machines tube, basket extrusion die which can ensure high quality of plastic pipe, improve efficiency, and ecomomic the artificially, electricity, workshop space.

Features

1. Adopt PLC control and simple operation.
2. Use stainless steel which type is 304.
3. The center height can be adjusted.
4. Material of screw and barrel: 38CrMoAlA, nitrogen quenched which the thickness layer 0.4-0.7mm; Hardness of screw barrel: >940 HV.
5. Adopt Electric Parts (Motor/Inverter/breaker/relay and so on) which is SIEMENS/OMRON/SCHNEIDER. It can keep machine operation stable and improve the extruder's output.
6. Production speed is 6m/min to 15m/min.





Main Technical Parameter





Model	SJSZ45	SJSZ51	SJSZ55	SJSZ65	SJSZ80	SJSZ92
Screw diameter(mm)	45/100	51/105	55/120	65/132	80/156	92/188
Screw quantity	2	2	2	2	2	2
Screw rotation speed(r/min)	1-38	1-38	1-38	1-36	1-35	1-34
Effective length of screw(mm)	1000	1050	1150	1430	1800	2520
Main motor power(kw)	15	15	22	37	55	90
Barrel heating power(kw)	12	12	18	24	36	48
Production capacity(kg/h)	95	110	150	250	380	520
Central height(mm)	1000	1000	1000	1000	1000	1000
