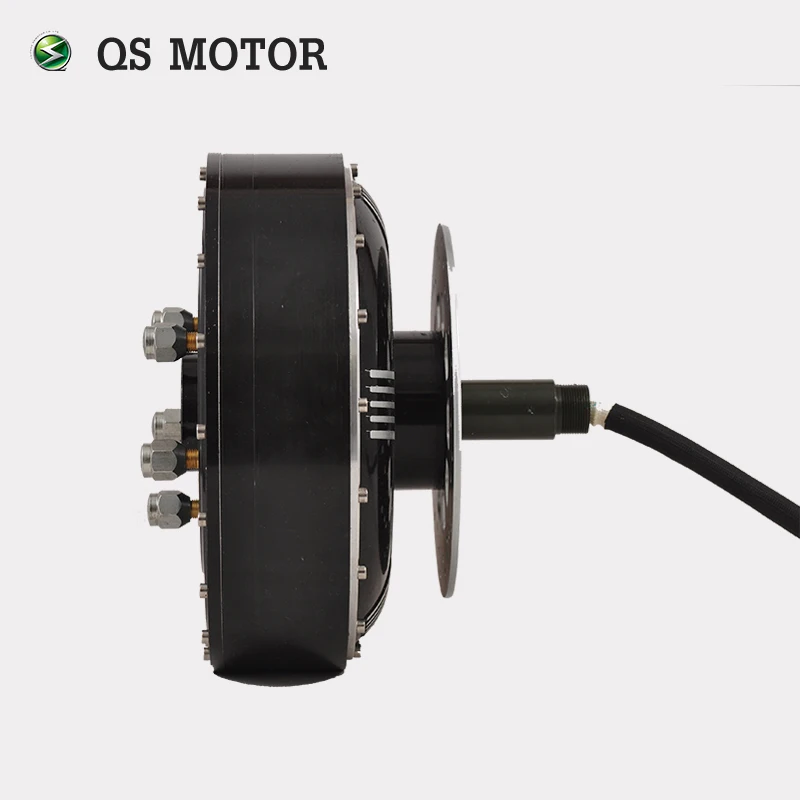

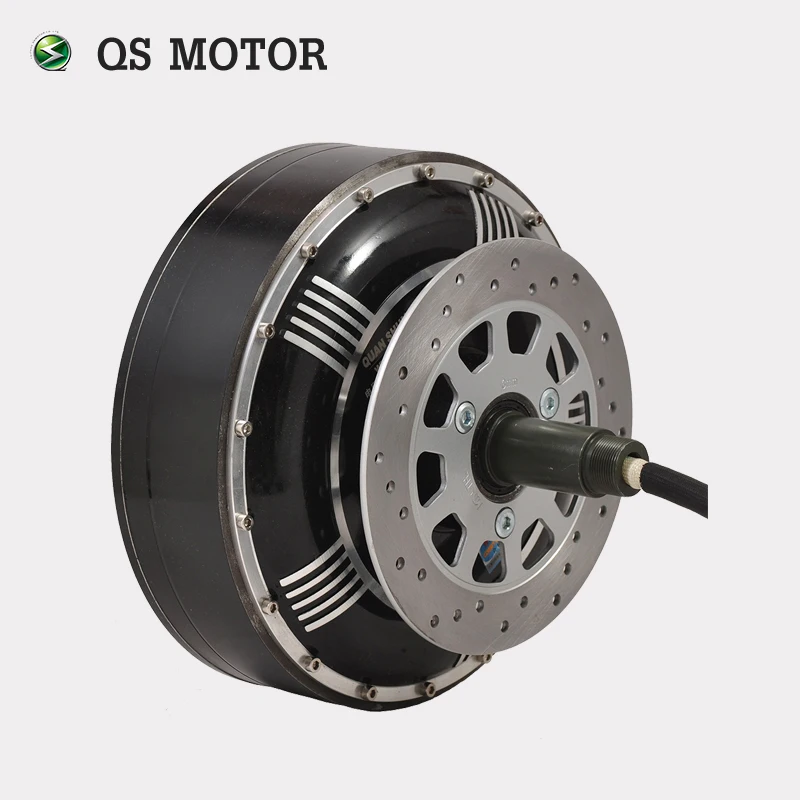

Power Efficiency QSMOTOR 8000W V2 273 BLDC brushless hub electric car wheel hub motor
Power Efficiency QSMOTOR 8000W V2 273 BLDC brushless hub electric car wheel hub motor
Power Efficiency QSMOTOR 8000W V2 273 BLDC brushless hub electric car wheel hub motor
Power Efficiency QSMOTOR 8000W V2 273 BLDC brushless hub electric car wheel hub motor

Power Efficiency QSMOTOR 8000W V2 273 BLDC brushless hub electric car wheel hub motor

Share on (60646436879):


Price:$627.50

Quantity:


Product Overview

Description


Product Description
\t
Motor Type
\t
BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
\t
Suggest Peak Phase Current
\t
530-660A (depend on the kV)
\t
Brand
\t
QS Motor,QSMOTOR
\t
Thermic Probe
\t
KTY83/122 (as default, optional)
\t
Motor Design
\t
Single axle
\t
kV
\t
10.14/12.4 /19.99etc.
\t
Speed
\t
Optional:50-120kph
\t
Brake type
\t
Disc brake,
PCD 3*88mm M8
\t
Magnet Height
\t
50mm, 28 pole pairs
\t
PCD & CB
\t
4*100mm, 5*110mm etc.
>60mm(can be customized)
\t
Stator
\t
Aluminmum core
\t
Waterproof Grade
\t
IP54
\t
Rated Power
\t
8000W
\t
Peak Power
\t
16000W
\t
Rated Voltage
\t
72V as default (48V-120V, optional)
\t
Hall
\t
Dual Hall Set with waterproof connectors
\t
Matched Wheel
\t
More than 14inch wheel(including 14inch)
\t
Cross Section of Phase Wire (not include insulation layer)
\t
16mm²
\t
Working Temperature
\t
70-120℃ , peak 150 ℃
\t
Hall Sensor Phasing angle
\t
120 degree
\t
Max. Torque
\t
Approx. 300N.m
\t
Hall Working Voltage
\t
5
\t
Max Efficiency
\t
86-89%
\t
Color of Motor
\t
Black
\t
Continuous Battery Current
\t
138A (72V)
\t
N.W./G.W.
\t
24.5kg/26kg
\t
Peak Battery Current
\t
276A (72V)
\t
Package Dimension
\t
43cm*43cm*34cm/piece

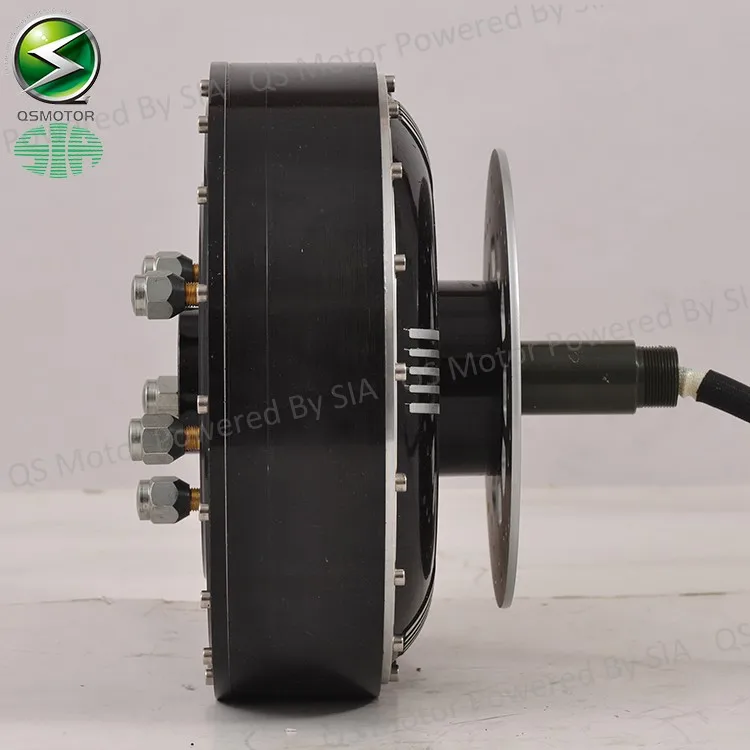

Detailed Images
\t
Questions Before Make Order
\t
Electric Car Application

Pure Electric Car Conversion

Using QS Motor 273 e-car kits to electric car weight around 300kg~600kg, max. speed 50~120km/h, voltage 72v-96v is better for choice.

2pcs/4pcs * QS Motor 273 e-car hub motor 72v 8000w

2pcs/4pcs * QSKLS96501-8080I

2pcs/4pcs * DC-DC Converter

1pc * foot throttle

1pc * X8-E e-car speedometer 48v-96v

If using two motors driving, the max. speed around 100km/h for loaded weight 600-800kg; if using four motors driving, the max. speed around 120km/h.

\t

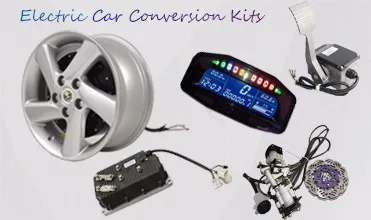

Motor kits

Other accessories of car hub motor kits

Meanwhile, we also provide motor kits for electric car, if you are interested, pls. click the hyperlink of the left picture.


Motor Kits: Controller, Charger, Disc brake assembly, Foot throttle, Speedometer etc.

Our Company

QS MOTOR is the MANUFACTURER of high quality & power Electric Bike/Scooter/Car Hub in-wheel motor (CE approved) with competitive price for 10 years! Ranging 500W-14kW, 48-144V, 30-160KPH, with the customers of Mahindra GenZe in USA/India, Govecs in Germany, Terra Motors in Japan.

Payment & Shipment

Find a good payment term is important to boost the cooperation. If you do not find your favorable payment way, please feel free to contact our customer service.

TT, Money Gram, Western Union, Paypal, online order etc.

Find a convenience way for your shipment.

Sample order: DHL, FedEx, TNT, UPS, EMS, E-package, by sea, by air etc.

Mass order: By sea, by air etc.

Packing & Delivery
Our most professional packaging
Package for sample order
Packed by wooden frame for mopped spoke motor
Our Advantage

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q1. You are trader or manufacture?

 A: We are manufacture.


Q2. How long is your production time?
A:  Generally, the production period is 12-14 working days(6 working days per week).

     The mass production and customized production you need contact with our customer service.

     The stock production is 3 days.


Q3. How long is your warranty time?

A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
