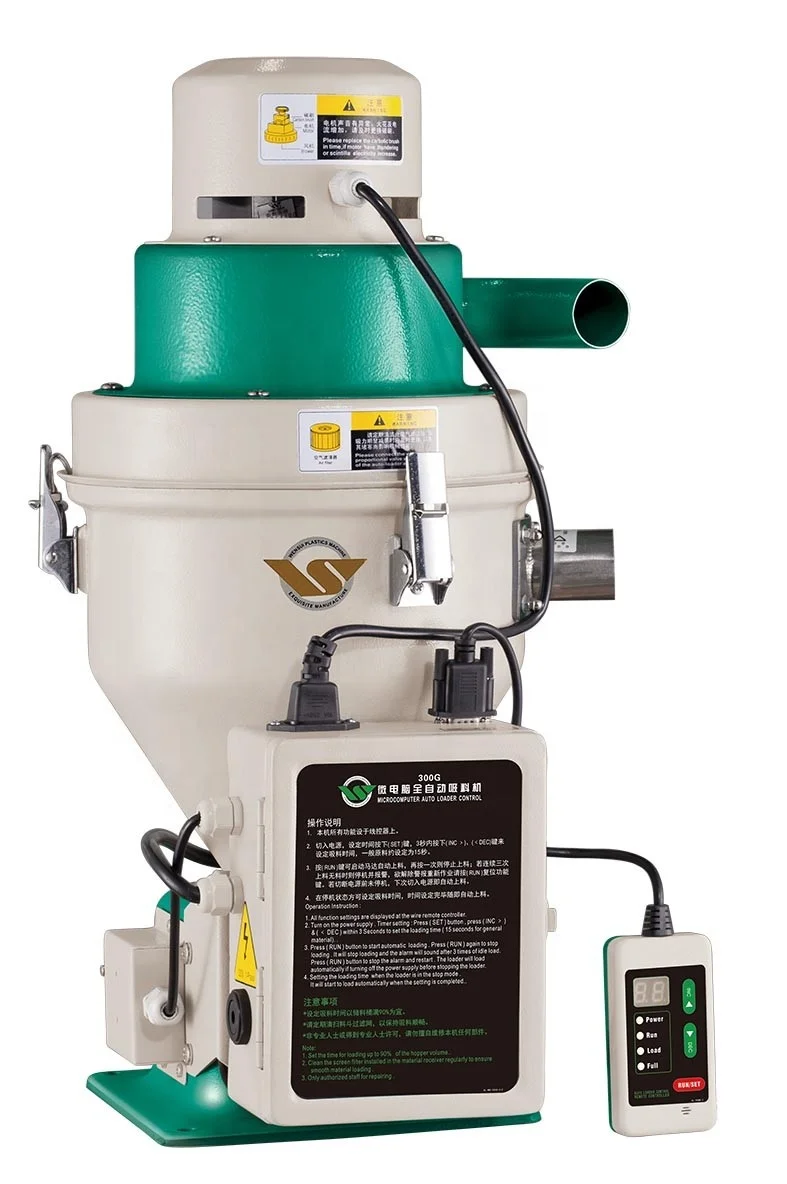

Wensui пластиковый вакуумный дозатор пластиковый автоматический загрузчик WSAL 300G автономная Автопогрузчик
- Category: Plastic Loader >>>
- Supplier: Wensui Intelligent Equipment Inc.
Share on (60646454718):
Product Overview
Description
Product Features

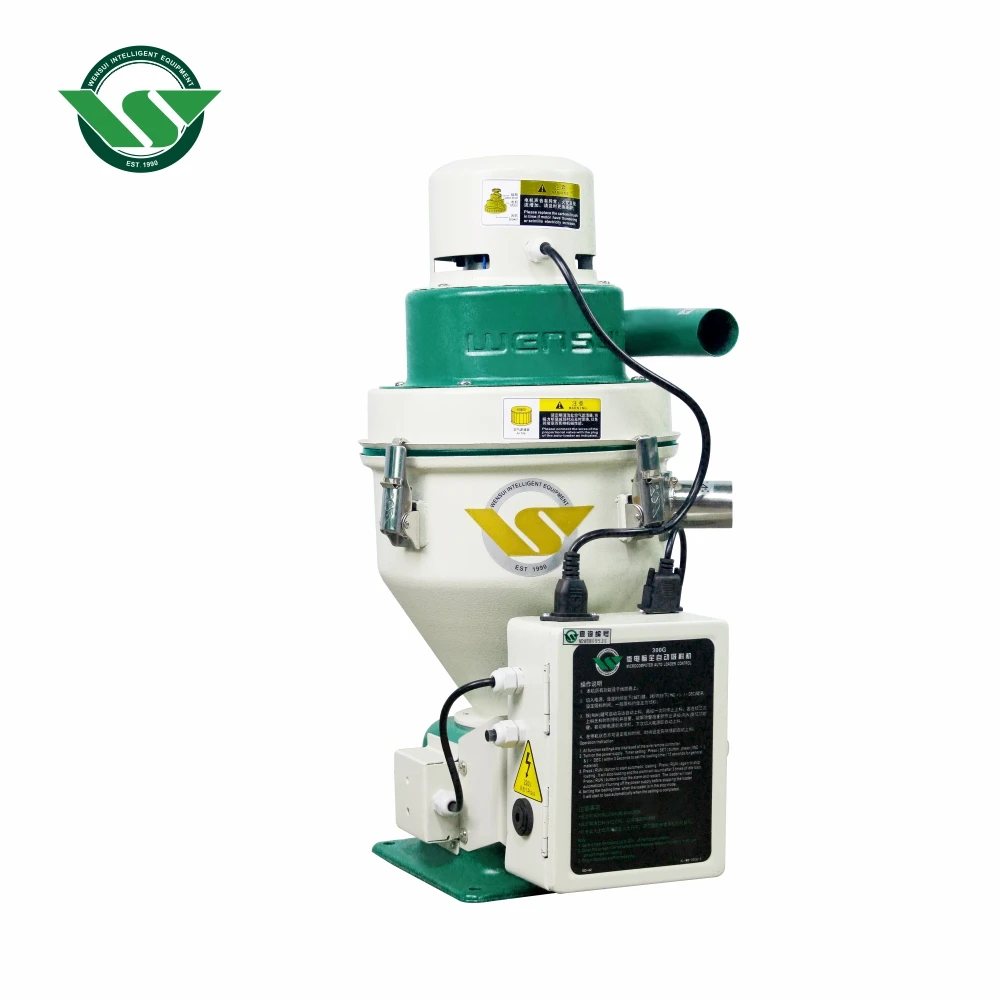

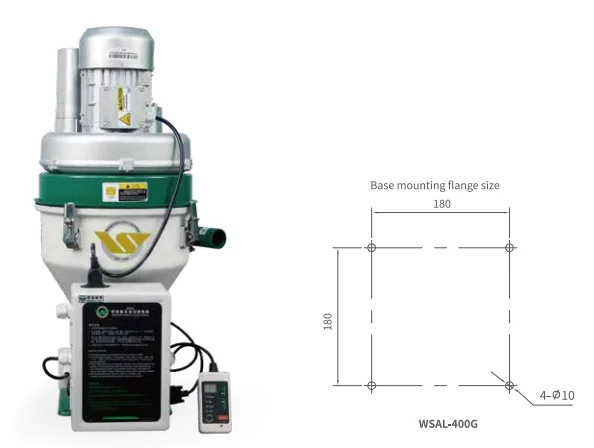

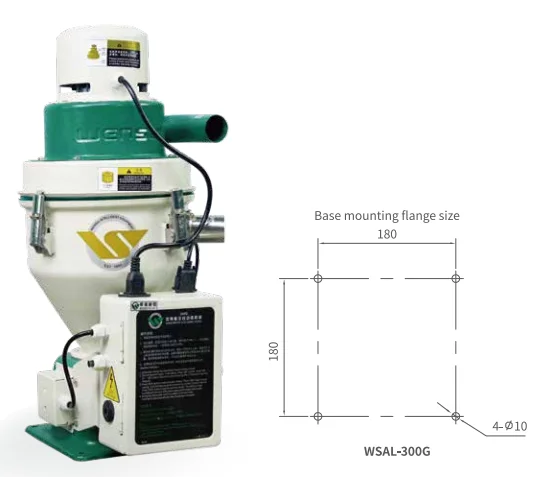

STAND-ALONE AUTOLOADER WSAL-300G/400G
> Small and light, which can be directly mounted on dryer and molding machine's feeding port.>Controlled by miscroporcessor.
> Alarms for motor overload and material shortage.
> 300G adopts high-speed brush motor with a small footprint and strong suction, applicable for conveying virgin materials.

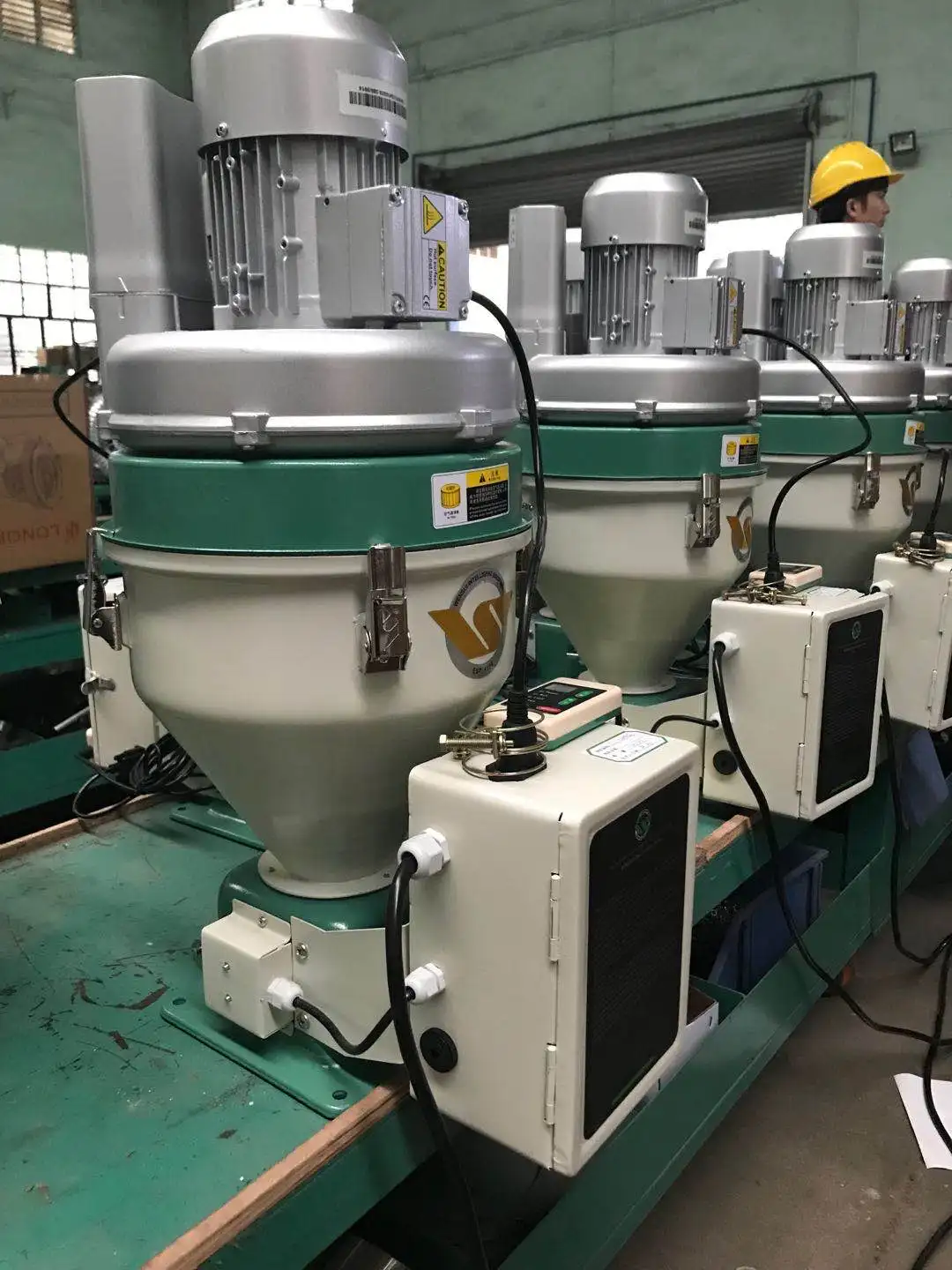

> 400G adopts induction high pressure blower with low noise and long motor lifespan.
> Features cable controller for quick adjustment.

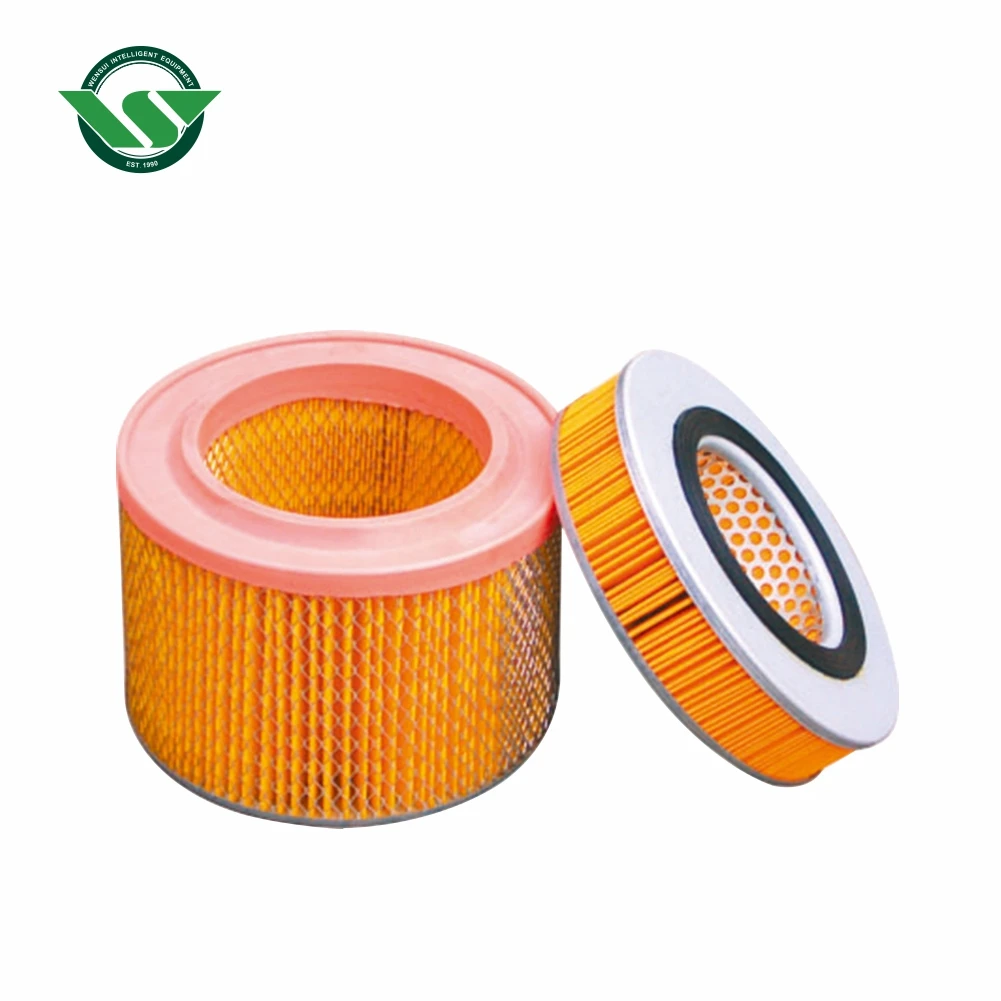

> Able to be installed with bag filter(optional).
> Alarms for motor overload and material shortage.
> 300G adopts high-speed brush motor with a small footprint and strong suction, applicable for conveying virgin materials.
> 400G adopts induction high pressure blower with low noise and long motor lifespan.
> Features cable controller for quick adjustment.
> Able to be installed with bag filter(optional).
Specification
Model | WSAL-300G | WSAL-400G | ||
Motor | Type | Carbon Brush | Induction | |
Specification | 1kw/1.3hp 1Φ | 0.75kw/1hp 3Φ | ||
Conveying Capacity(kg/h) | 300 | 330 | ||
Pump Lift(m) | 3.5 | 4 | ||
Static Wind Pressure(bar) | 0.13 | 0.14 | ||
Storage Bin Volume(L) and Number of Bin | 6 | 10 | ||
Conveying Tube Inner Diameter(mm) | Φ38 | Φ38 | ||
Size of Standard Hose | Φ38*3.5m 1pcs | Φ38*4m 1pcs | ||
Power Supply | 1Φ 220VAC 50Hz | 3Φ 380VAC 50Hz | ||
Dimension(cm) | 34*34*59 | 45*37*66 | ||
Net weight(kg) | 12 | 27 | ||
Product Details
Certifications
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Wensui, founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia. Welcome to browse our website www.wensui.com if necessary.
Our products range as following:
1. Automation Series
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … )
Our products range as following:
1. Automation Series
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … )
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia.
Q: How long is your delivery time?
A: Generally it is 7-10 days if have in stock. Or it's 45 days if the goods are not in stock, it is according to quantity.
A: We are factory. Founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia.
Q: How long is your delivery time?
A: Generally it is 7-10 days if have in stock. Or it's 45 days if the goods are not in stock, it is according to quantity.
