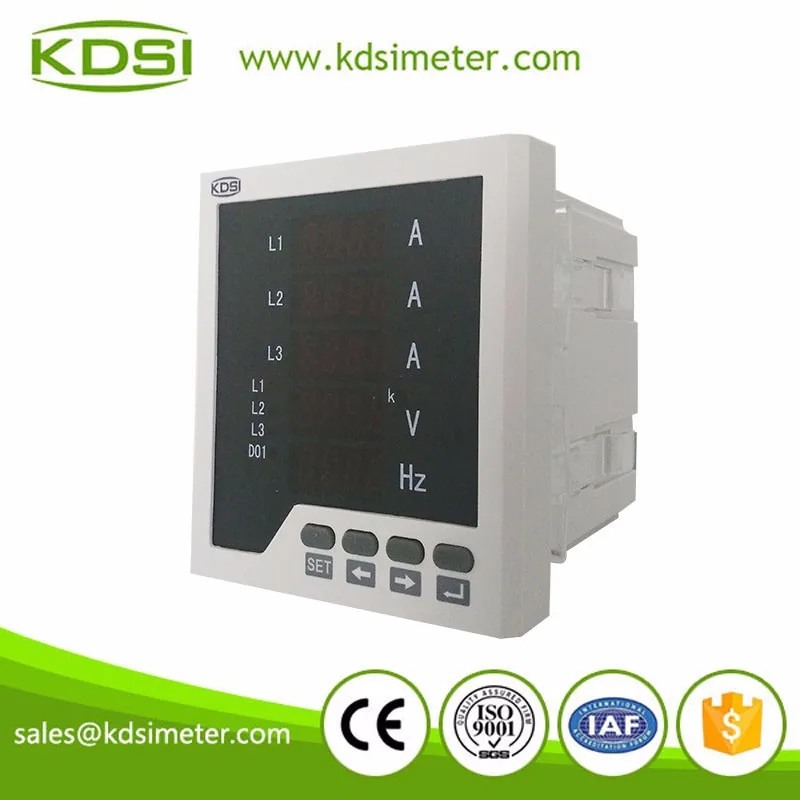

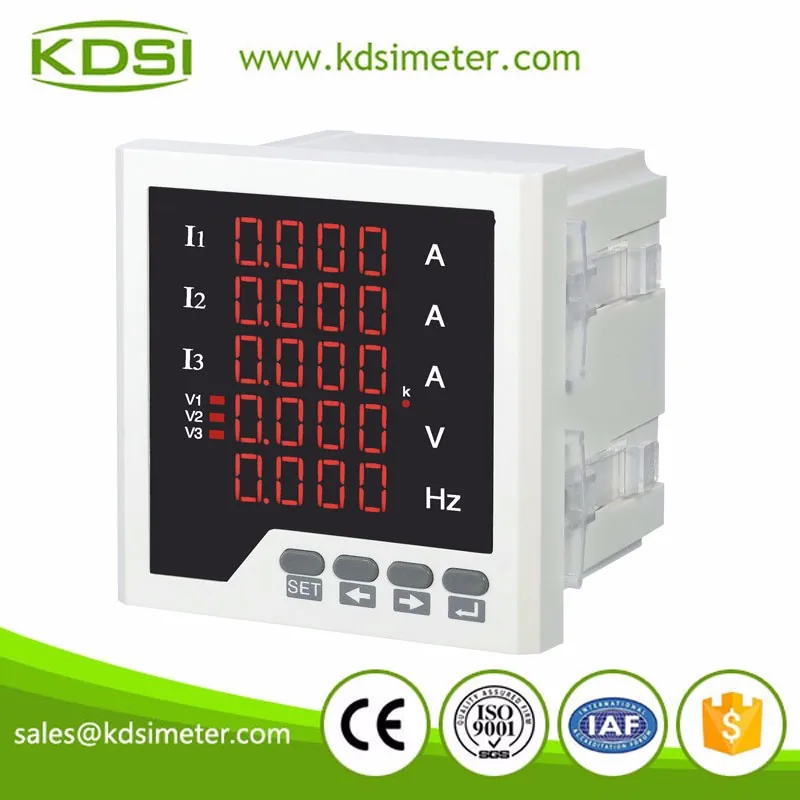

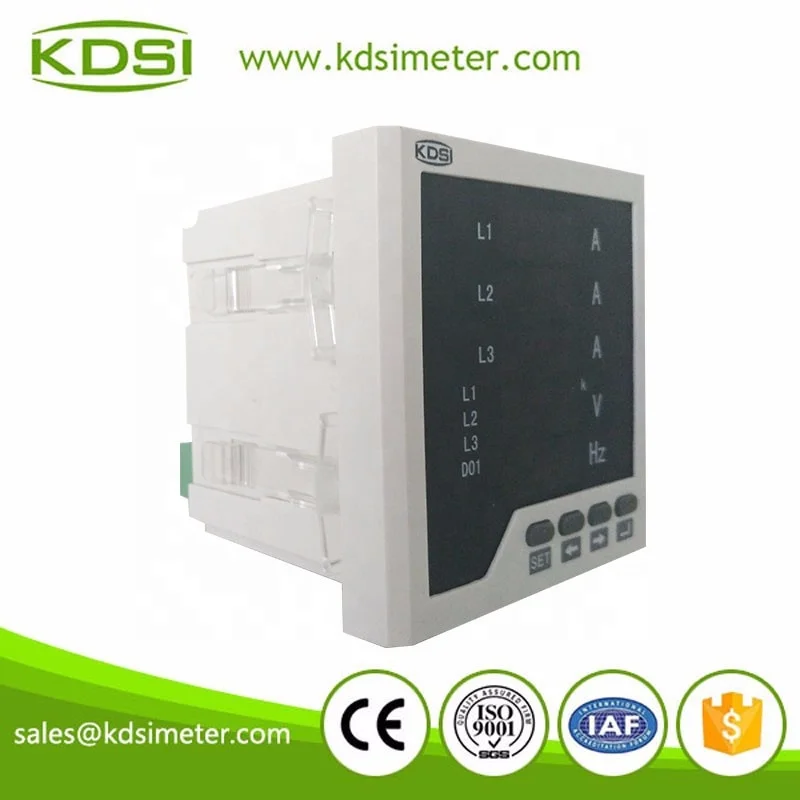

KDSI 3 Phase Digital Ammeter and Voltmeter Frequency Combined Meter

Product Overview

Description



Welcome to KDS INSTRUMENT(KUNSHAN) Co.,Ltd.

Please clike above to review our home page for more products!!
Or you can contact us from below info:

Sales manager: Jessica

Email:  sales3(@)kdsimeter.com

Skype ID: kdsi03

Tel/Whatsapp: 0086 18068059269

 Product  Description ______________________________________________________________

KDSI 3 Phase Digital Ammeter and Voltmeter Frequency Combined Meter

Product details
Place of Origin:Jiangsu ,China (Mainland)	Brand Name:KDSI	Model Number:BE-96 3I/U/F
Display Type:Analog and Digital	Measuring Range:0-9999	Accuracy Class:0.5(A/V)/±0.02Hz

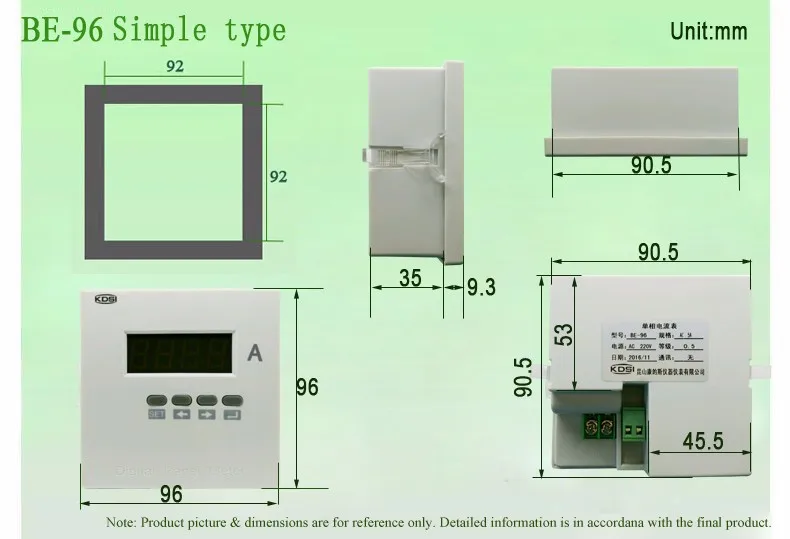

Auxiliary power supply: AC/DC 80V-270V,AC220V, AC380V, AC100V(V)	Operating Temperature: -10℃~+55℃	Dimensions: 96*96mm
Auxiliary power supply: AC/DC 80V-270V,AC220V, AC380V, AC100V(V)	Power consumption: <4VA	Display: LED Intelligent Digital



Performance Characteristics

High precision measurement measurement of single phase AC or DC current

Provide the digital tube display, local data query

Programmable voltage ratio

Support for RS-485 communication, Modubus-RTU protocol

Support for switching input, output, analog quantity transmitting output

Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V

A variety of shapes, to meet the different requirements of the cabinet body electric circuit



Technical Index
Accuracy of measurement	Voltage level 0.5, current level 0.5, frequency ±0.02Hz

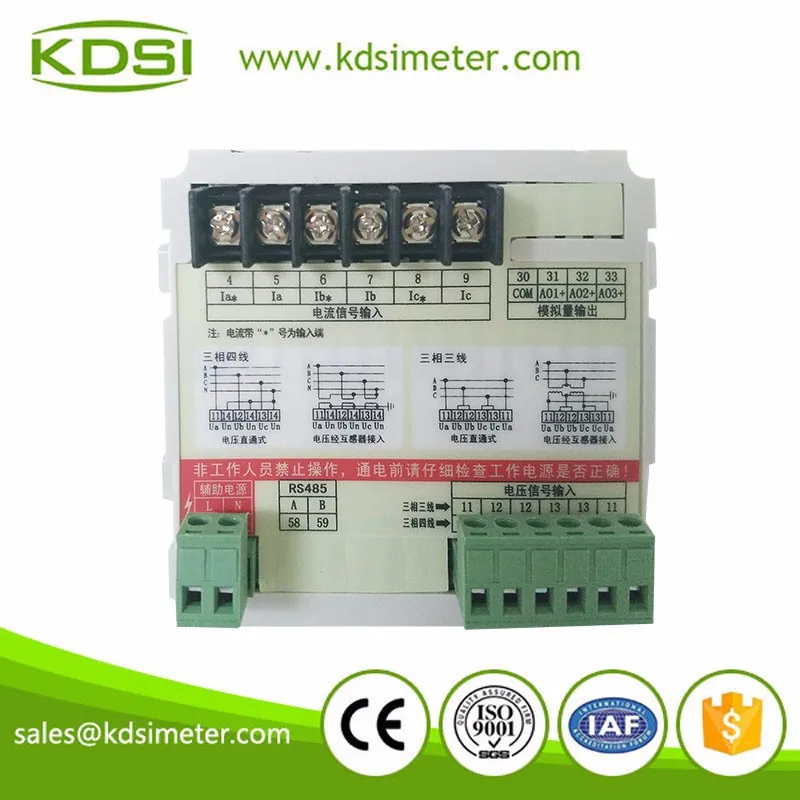

Signal input	Connection mode of three phase two wire, three phase three line. Rated current of AC1A,AC5A. Over load 1.2 times ( Continued ), 2 times / second( instantaneous ). Power consumption voltage <1VA/phase, current: <.0.4VA/phase. Impedance voltage: >300KΩ  current: <20mΩ. The frequency of 45~65Hz.
Auxiliary power supply	AC/DC 80V~270V, AC220V, AC380V, AC100V. Power consumption   <4VA.
Function module	Communication interface 1 way RS-485 communication, Modbus-RTU protocol. Baud rate: 1200~9600bps, the default 2400bps. Switch input support 4 stem node input. The switch output support 3 relay output, capacity: AC 250V/5A, DC 30V/5A. Transmission output support 3 ways (analog output: 0/4~20mA or 0~5/10V).
Environment	Working temperature:-10°C ~+55°C. Storage temperature:-25°C ~+70°C. Relative humidity is less than 93%, no corrosive gas. Elevation≤2500m.
Safety	Insulation resistance >100MΩ. AC withstand voltage AC 2KV.
Electromagnetic compatibility	ESD level 4. Electrical fast transient burst level 4
