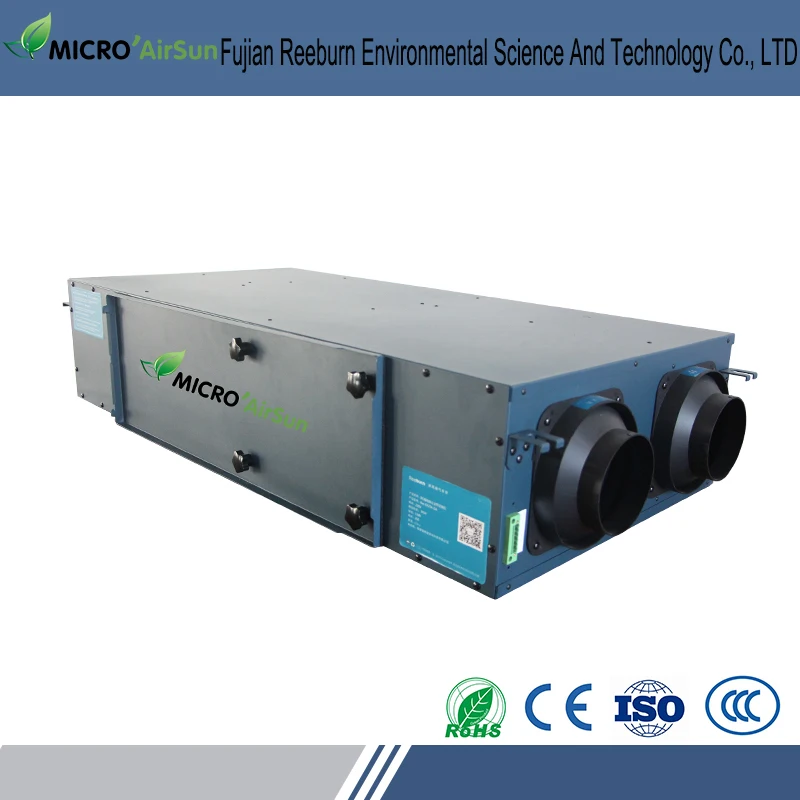

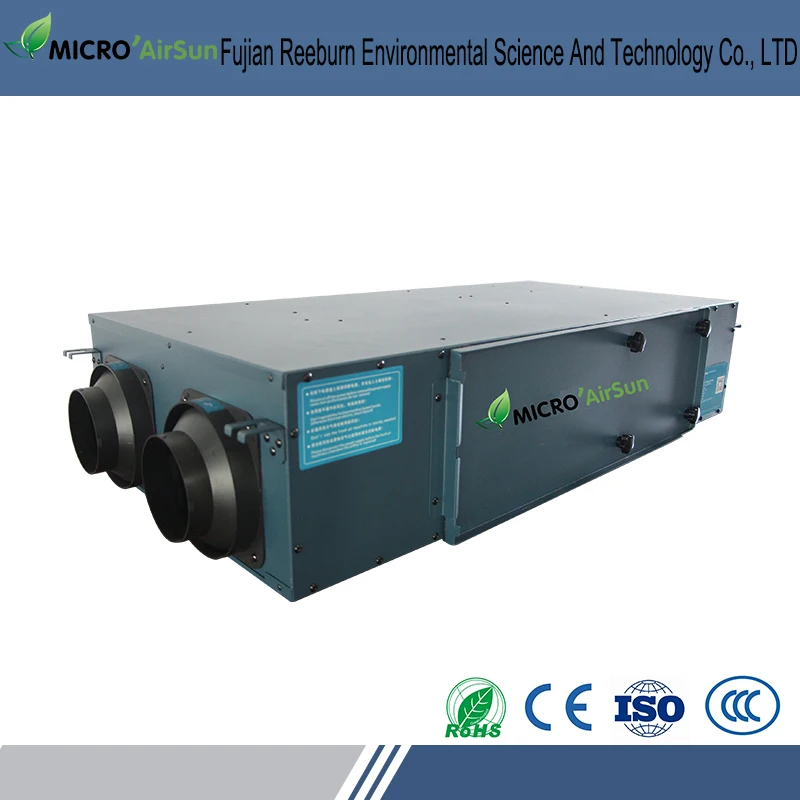

Lcd control panel vertical type air handling unit

Specifications of ventilators

How to choose the suitable ventilators

• We calculate the require airflow per hour according to the number of people, the size of the room and the amount of fresh air per hour and than choose the suitable fresh air ventilator.

Fresh AirFlow Calculation Formula

• 1. Fresh Airflow Standard: 30m3/h/person(Different environment different standard)

    =Number of people × 30m3/h

• 2.According to the size of room and fresh air change rate per hour

    =Room size × Floor height × Fresh air change rate (times/m3/h)

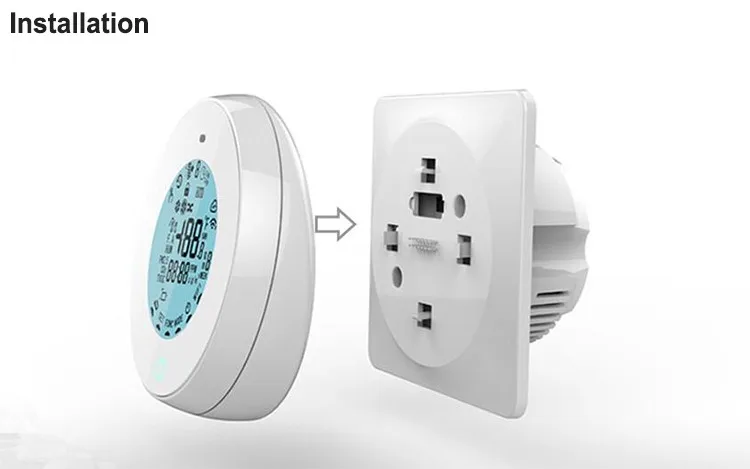

Installation conditions of fresh air equipment

• 1.Keep away from the rest area
• 2.Prevent exposure and rain
• 3.Duct layout is reasonable

Features

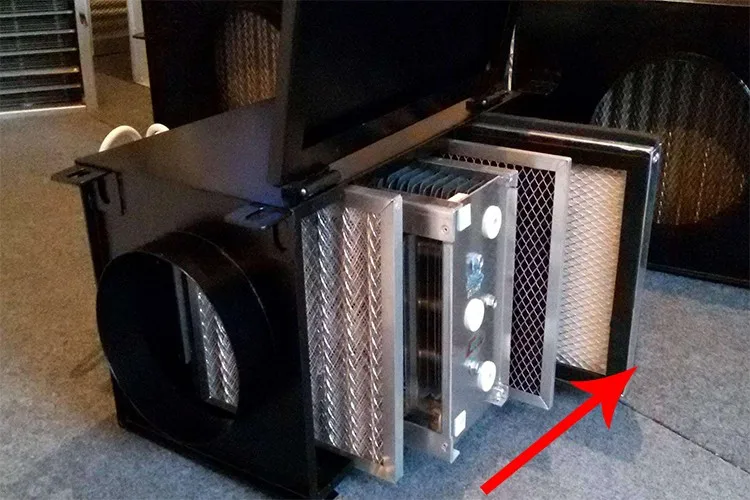

• Heat Exchange Ventilation System brings in fresh air through four air filters. The four filtrations of indoor and outdoor airflow can ensure air quality of H13 level

1. Pre-filter

• Medical environmental protection materials, filter large particles of dust and mosquitoes

2.Carbon filter

• Adsorption of formaldehyde, benzene and other harmful gases in the air

3.IFD electrostatic module

• Nearly 100% adsorption of PM2.5 and other small particles of pollutants
• Effectively reduce the bacteria and virus cross infection

4.Hepa filter(H13)

• The hight efficiency filtration is the best choise because the filltration efficiency of more than 0.3μm particles in more than 99.97%(Only for outlet numerical, not including the room)

Panasonic DC Motors

• High quality motor with low noise: Use Panasonic DC motor from Japan, lower noise and smooth operation performance
• Motor warranty is 5 years, longer life time
• High efficiency, energy saving by 20-40%

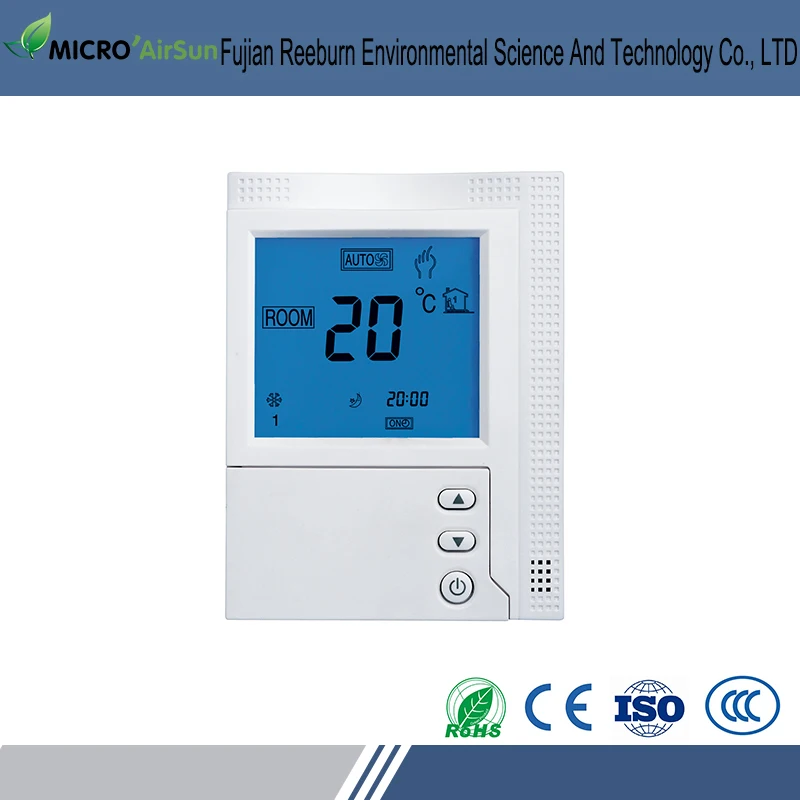

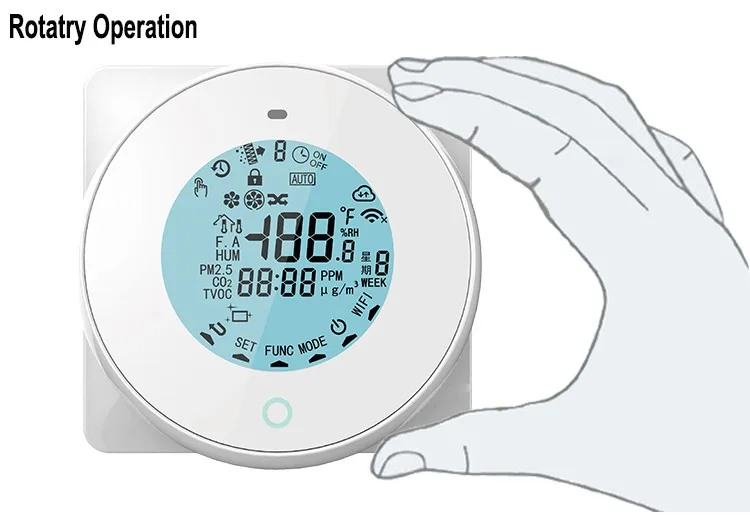

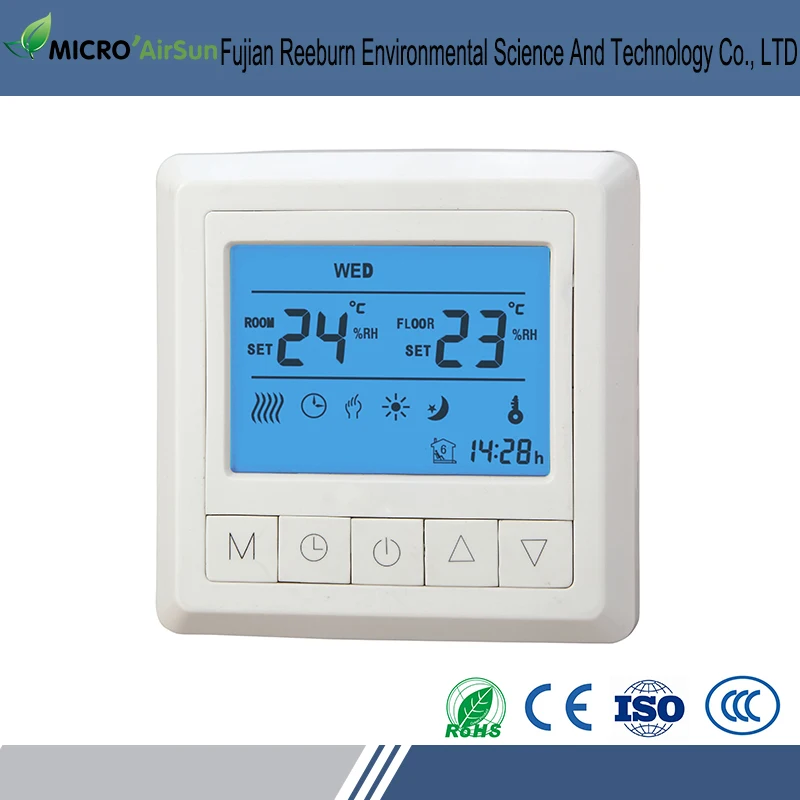

Intelligent controller-LCD Panel

• WIFI remote control
• 3 levels of fan speed control to offer different supply airflow
• Optional CO2 concentration control
• Optional humidity sensor to control indoor humidity
• Optional PM2.5 sensors monitor the quality of indoor air
• Individual supply and exhaust fan control to create positive or negative indoor air
• EA fan defrost technology or the use of OA electric heater technology can adapt to the different climate in winter.
• Weekly timer function ensures the perfect indoor air quality at the same time to minimize power consumption
• Filter alarm to remind user cleaning the filter in time
• The unit features 100% summer bypass and winter defrost functions for year-round temperature comfort.

Working principle of heat recovery ventilator

• Reeburn heat & energy recovery ventilator can exhaust the polluted air indoor out of room, meanwhile supplying the fresh air from outside, by using the advanced ERV technology, the energy can exchange taking advantage of the difference of the temperature and humidity between indoor and outdoor air. It can not only eliminate the problem of indoor pollution, but also can save energy.

A. Order service

1,We are ready to serve you 24 Hours A Day 7 Days A Week!
2,We offer you our product catalogue, specification, prices, and other information according to your inquiry.
3,We issue you the proforma invoice after you confirm the order model, quantity and other requirements.
4,We start to work on your order after the payment.
5,We produce your goods and test them 100% in the test room.
6,We pack the goods carefully with the best materials and arrange the goods delivery to you according to your requirement.
7,We send you the invoice, packing list, bill of lading and other shipping documents for you to collect the goods.

B. Payment service

1,T/T
2,L/C
3,Western Union

C. Technical service

1,We calculate the capacity and recommend the best models.
2,We design and develop the new products according to your requirement besides our standard products.
3,We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4,We supply the spare parts and technical support in & after the warranty time.
5,We supply the training course to your workers at our factory if you need.

D. After-sales service

1,Technical support for your installation, operation and maintenance.
2,One year’s warranty, and you can pay for extended warranty.
3,Spare parts and technical support at most economic prices after the warranty.
4,Update you the latest products information and price adjustment every year.
5,Old customer discount will be available when you order the products again.

E. Customized service

1,OEM service
2,ODM service
3,New product R&D service

Q1.Are you a factory?

Yes. We are professional ventilator manufacturer, specializing in the design, development, manufacture and sales.

Q2.How to select the suitable products?

Based on the fresh airflow you need. Please send us the room area, room type or application and number of persons, our engineers will help select the suitable fresh air ventilator you need.

Q3.Where is your factory located? How can I visit there?

The headquarted of Reeburn located in Xiamen and our factory is located in Longyan city, Fujian Province.You can take the train to Longyan railway station or take a plane to Xiamen airport. We will pick you up to our factory.

If you want to know more about our products, please feel free to contact us, we will reply as soon as possible and you will get professional solutions from us.
