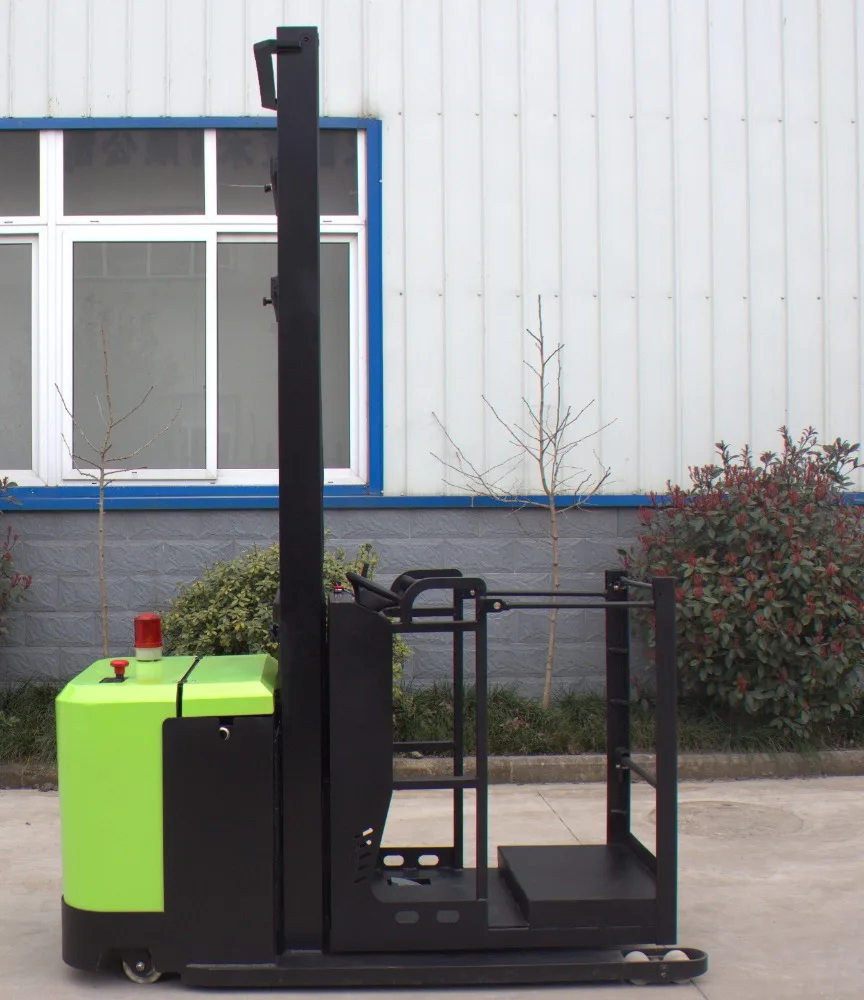

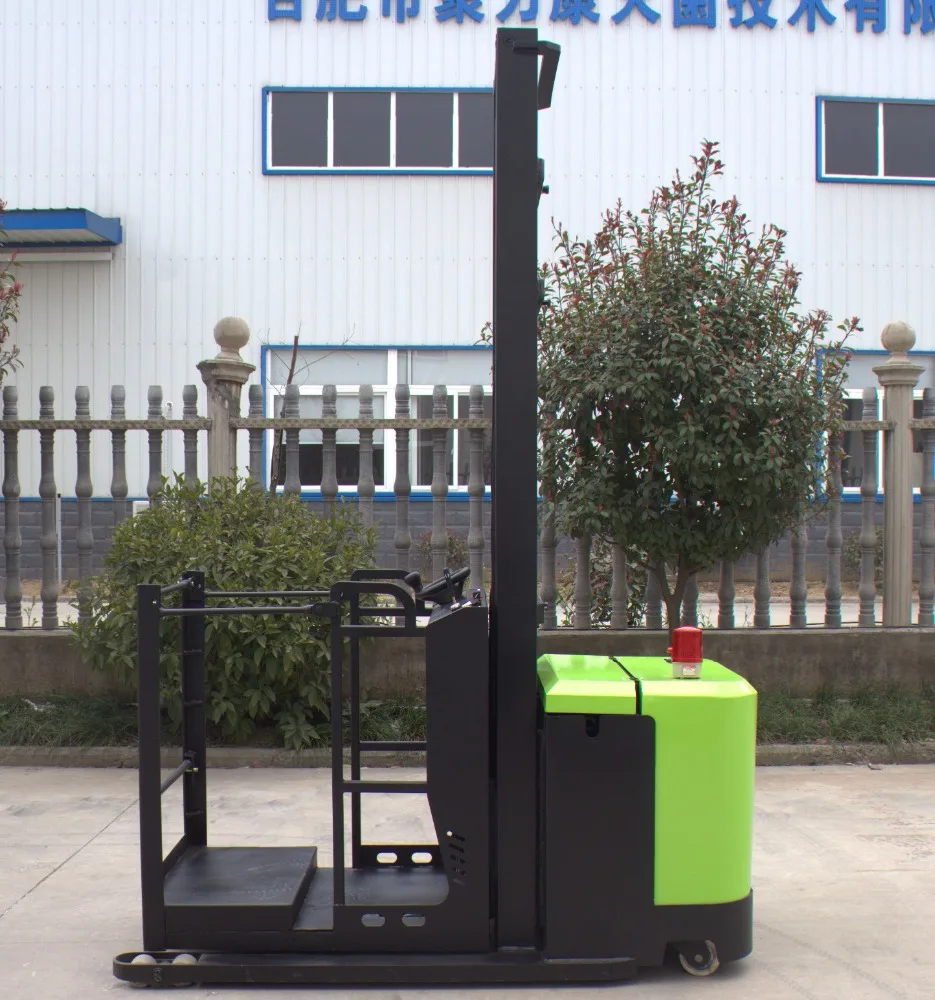

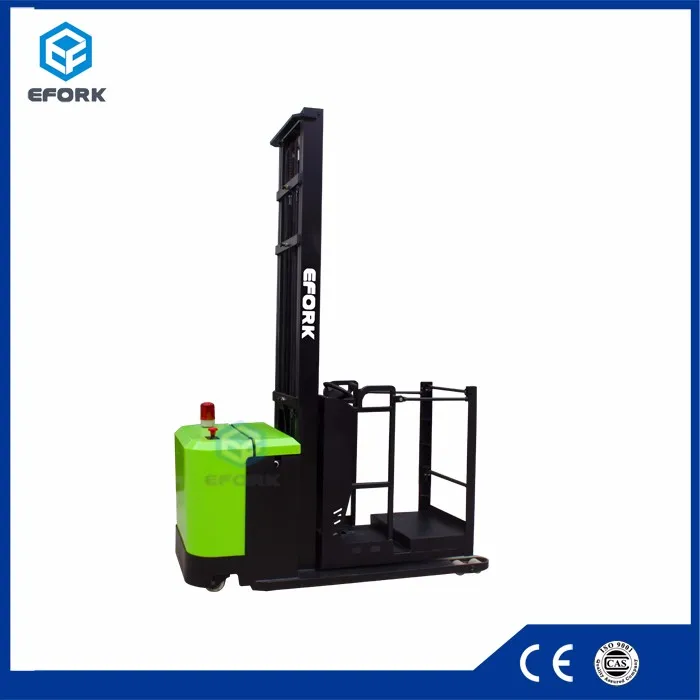

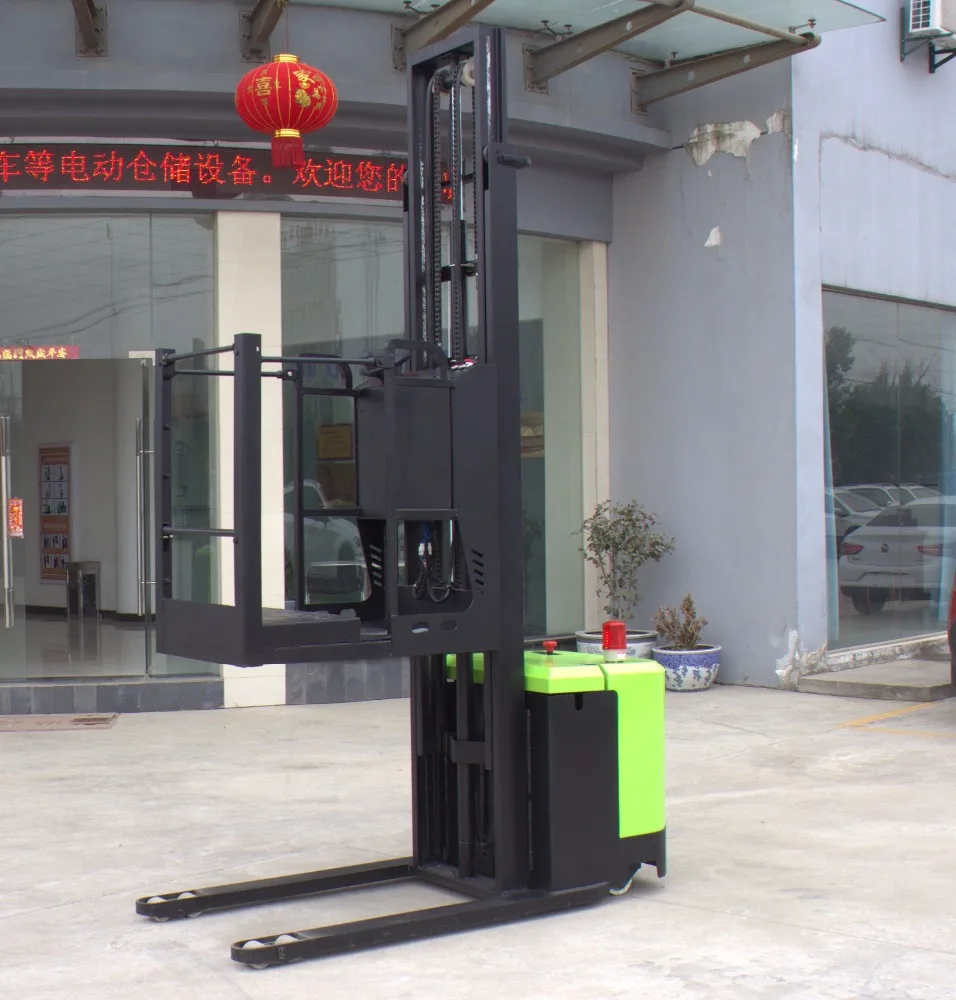

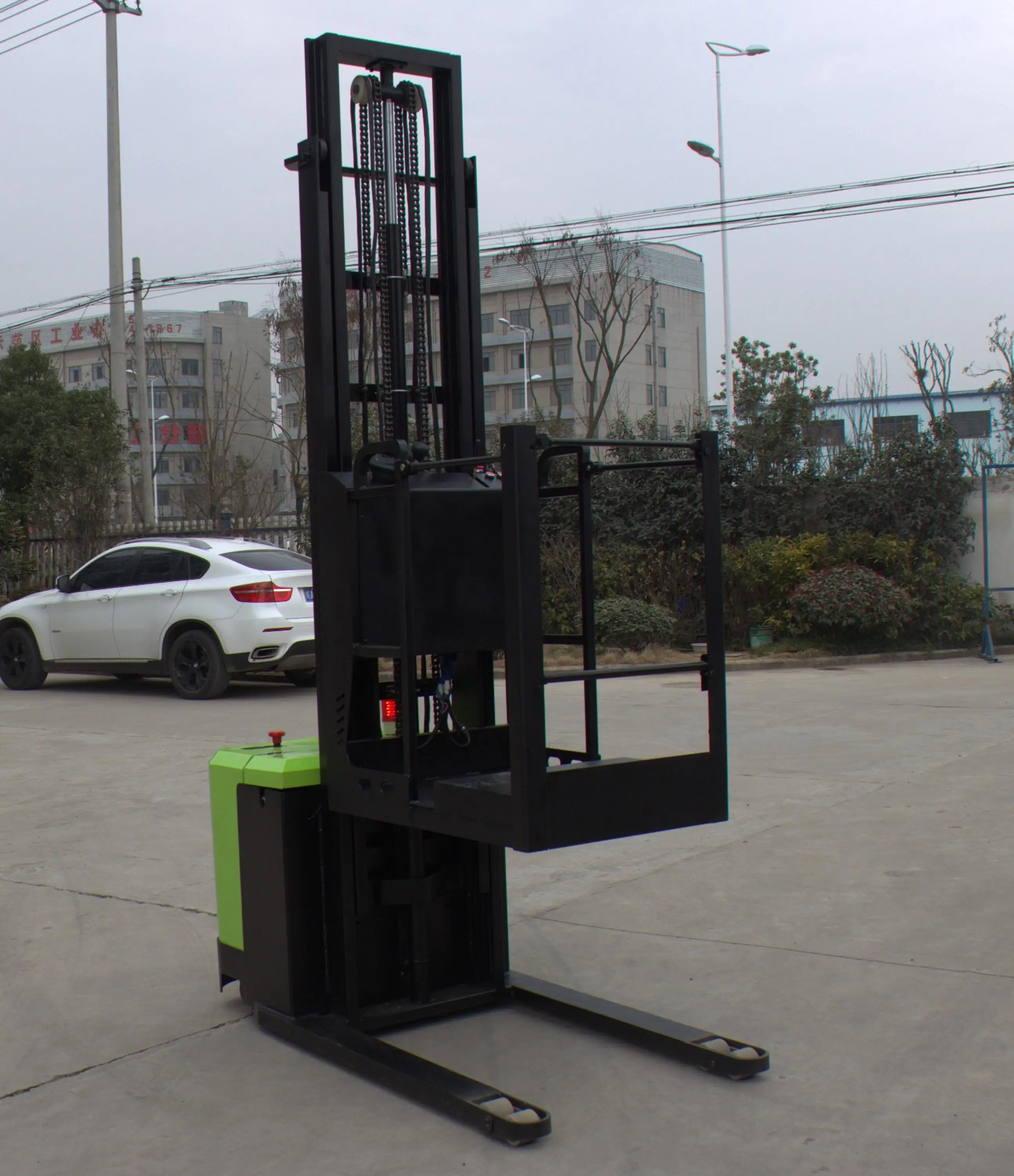

Full Electric Order Picker with Caution Light for Warehouse
1. The machine has the advantages of light weight, high mobility and suitable for single operation for Full Electric Order Picker with Caution Light for Warehouse.
2. It can enter into the commonly elevator, go through the door opening smoothly, and get into narrow opening because ofcompact structure and small transport state size.
3. It has 160mm of ground clearance. Dual protection of the leg structure makes the work more safely, and can close to the working face.
4. The Full Electric Order Picker with Caution Light is equipped with an alarm to ensure the driving safety.
5. Low voltage protection system can prolong the period of battery.Full Electric Order Picker has AC drive system, no replacementcarbon brush, strongclimbing capacity and regenerative braking function.
Name
Full Electric Order Picker with Caution Light(24V)
Model No.
Unit
EFD 15-45
Capacity
Kg
300
Max lifting height
H(mm)
4500
Load center
C(mm)
500
Pedal clearance from the ground
(mm)
160
Wheel type
Polyurethane solid tire
Fork size
mm2
780*630
Free lift height
mm
0
Overall length
L(mm)
1910
Overall width
S(mm)
900
Height--Mast Lowered
H1(mm)
2830
Maximum height when fork is lifting
H2(mm)
5600
Turning radius (when the pedal fold)
Wa(mm)
1785
Max.Walking Speed
Km/h
4.0/5.8
Grade ability
%
3-6
Dead weight
Kg
1250
Driving wheel
mm
Ø230*75
Front wheel
mm
Ø80*70
Balance wheel
mm
Ø125*50
Battery capacity
V/Ah
24/210
Charger-Intelligent
V/A
24/30
Driving motor
Kw
1.5
Lifting motor
Kw
2.2
Walking Adjustable Type
Holzer type accelerator
Packaging & Shipping
Packaging Details:
Film winded, then plywood crated according customers' requirements for Full Electric Order Picker with Caution Light for Warehouse.
Delivery Detail:
Whole machine by sea and spare parts by delivery or according to your demand,Shipped in 25 days after payment.
Company Information
1. Anhui Yufeng Equipment Co.,Ltd. is a high-tech enterprise professionally specialized in R&D, production, sales, service of electric storage and intelligent industrial system.
2. It is located in Feixi Huagang industrial park in Anhui, with advanced forklift manufactory technology, processing equipment and perfect product testing center. Our company is the China Automobile Industry Association member unit.
3. We won the honorary title such as “Outstanding Enterprise of Quality Management, Credibility and Service AAA level”, "National Enterprise of Good Creditworthiness", "National Quality Management Advanced Enterprise" and "Anhui Famous Brand" etc.
4. The company has already passed the safety production standardization and the quality authentication of ISO9001 and European Union CE certification, fit-out national patent certificate.

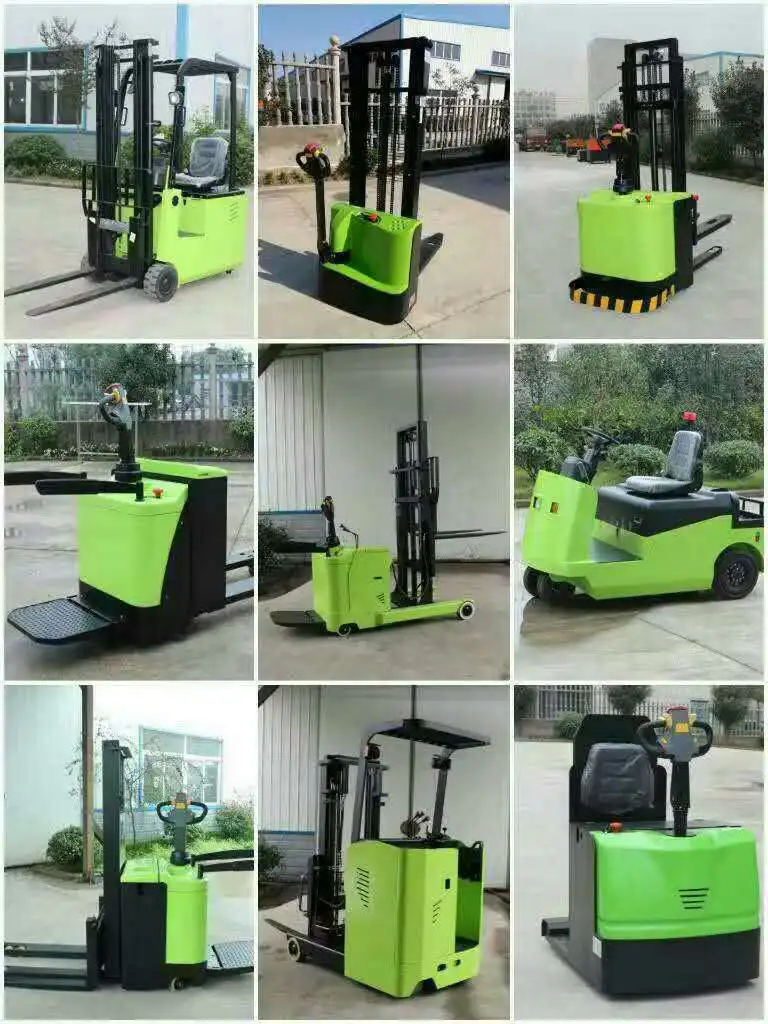

5. Our main storage equipment are electric truck,stacking car,reach forklift trucks,towing vehicle, order picker,AGV pilotless truck, counter balanced weight forklift and so on.They are widely used in various places of modern logistics.
FAQ
1. How long it will take to deliver the products after I pay for it?
Abovedelivery time is 26 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, tow tractor, order picker etc?
Our equipment quality warranty is 1 year or 1000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Electric motor, CURTIS controller. Absolutely high quality.
5. How many colors of forklift you can supply?
Green, Orange, Yellow, Red. Or As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat, direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
