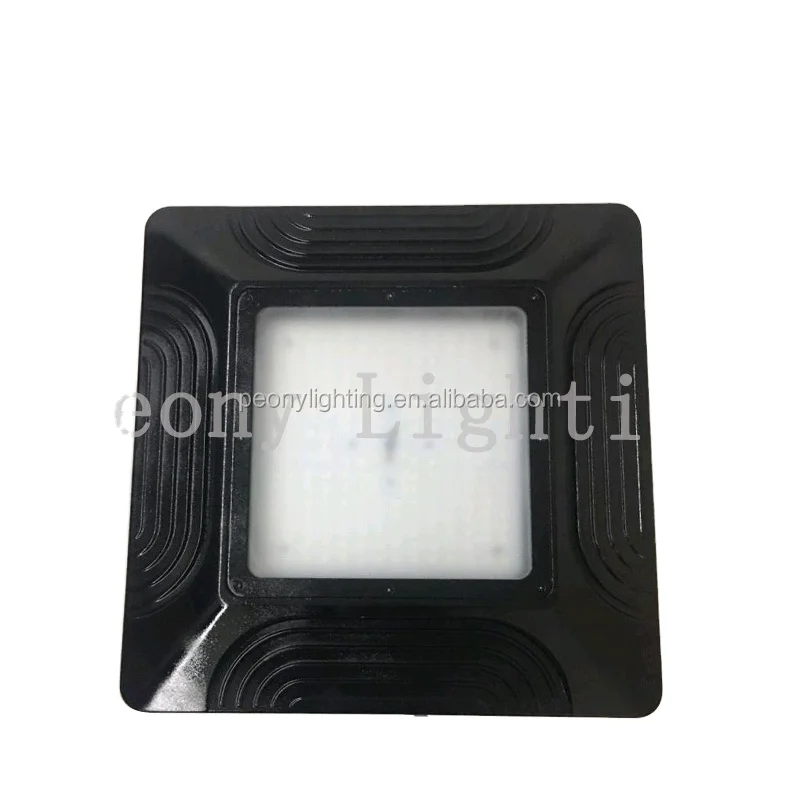

aluminum IP65 80w led gas station light ,led canopy light ,Gastation light led from shenzhen with ATEX certificate

Product Overview

Description

aluminum IP65 80w led gas station light ,led canopy light ,Gastation light led  from shenzhen with ATEX certificate



Features:
1.Usage of a single high power  lumileds 3030smd as the source of light, with a unique lighting design made of multiple
chips integrated in a single module. Based on a selection of excellent imported semiconductor chips, it has high thermal conductivity, low luminous decay, pure colors, no heavy shade etc.
2.Unique cooling body design combined with perfect driver box to help heat conduction and diffusion, this reduces efficiently the temperature of the lamp body and so provides to the LED and its power supply a longer lifespan.
3.Sandblasting process and anodic oxidation surface treatment applied to the cooling body providing to the lamp an elegant and compact overall structure.
4.Environmentally friendly, it contains no lead, no mercury or any other elements that may harm the environment.
5.High color rendering level that shows true colors of things to people. Several colors are also available to meet specific requirements, delivering different kinds of atmosphere, reducing the depressive mood from traditional lamps with uneven color temperatures, improving work efficiency with better visual comfort.
6.Advanced constant current and voltage control techniques, wide power adaptation coverage to fit all countries specificities, management of electrical unstable factors with a power grid and noise pollution with ballast, high lighting stability delivered avoiding unnecessary additional work effort for the eyes and thus preventing from eyestrain.
7.Excellent decoration integration, unique surface treatment technology, modern design, easy installation, simple dismount, wide range of applications.

Advantages:
1. Lumileds  3030 LED, CRI> 80,LM80 standard
2. Inventronics driver High efficiency LED
Driver
3. PF value over 0.95,
4. Die-cast aluminum housing, optimized cooling,
5. Excellent optical design, high efficiency of
luminance and uniform light distribution.

Production Introduction:
High power LED Flood Light a unique shape, streamlined and stylish lines which integrate perfectly in modern architecture with highly ornamental value

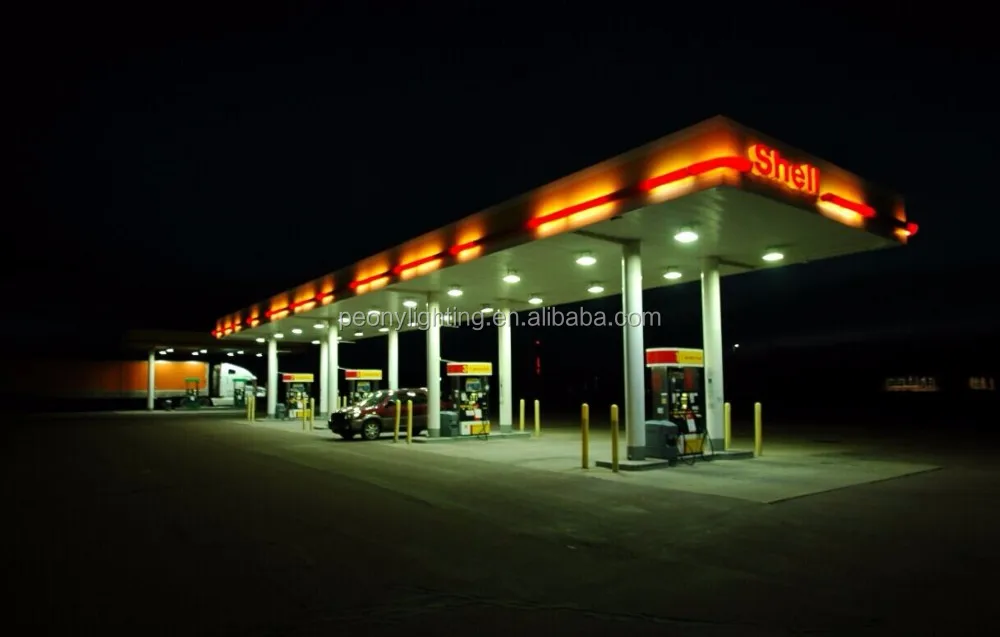

Application:
1. Indoor & half-outdoor project lighting; IP65
2. Suitable for workshop, factory, warehouse,
toll station, gas station, supermarkets, stadium,
exhibition center, and other places.

 Specification datesheet :

Parameters		Package
Power: 40W  Input Votage:AC90V-305V   Material: Aluminum + Glass(clear/milky) IP grade:IP65  Lumileds :56PCS 3030smd	Beam angle: 120° Light effect:110-130lm/w    PF:> 0.95 CRI: Ra>70/80 CCT:2700-6500K  Life:50000H	Demension:280*280mm    Qty:1PCS/ctn    G.W:3.5kg
Power: 60W   Input Votage:AC90V-305V   Material: Aluminum + Glass(clear/milky) IP grade:IP65 Lumileds :84PCS 3030smd	Beam angle: 120° Light effect:110-130lm/w     PF:> 0.95 CRI: Ra>70/80 CCT:2700-6500K Life:50000H	Demension:280*280mm  Qty:1PCS/ctn   G.W:3.5kg
Power: 80W  Input Votage:AC90V-305V    Material: Aluminum + Glass(clear/milky) IP grade:IP65 Lumileds:112PCS 3030smd	Beam angle: 120° Light effect:110-130lm/w   PF:> 0.95 CRI: Ra>70/80 CCT:2700-6500K Life:50000H	Demension:280*280mm Qty:1PCS/ctn    G.W:3.5kg
Power: 100W Input Votage:AC90V-305V  Material: Aluminum + Glass(clear/milky) IP grade:IP65     Lumileds :140PCS 3030smd	Beam angle: 120° Light effect:110-130lm/w    PF:> 0.95 CRI: Ra>70/80 CCT:2700-6500K Life:50000H	Demension:382*382mm    Qty:1PCS/ctn      G.W:5.5kg
Power: 120W Input Votage:AC90V-305V    Material: Aluminum + Glass(clear/milky) IP grade:IP65  Lumileds :168 PCS 3030smd	Beam angle: 120° Light effect:110-130lm/w   PF:> 0.95 CRI: Ra>70/80 CCT:2700-6500K Life:50000H	Demension:382*382mm  Qty:1PCS/ctn   G.W:5.5kg
Power: 150W  Input Votage:AC90V-305V  Material: Aluminum + Glass(clear/milky) IP grade:IP65  Lumileds :224PCS 3030smd	Beam angle: 120° Light effect:110- 130lm/w   PF:> 0.95 CRI: Ra>70/80 CCT:2700-6500K Life:50000H	Demension:382*382mm Qty:1PCS/ctn        G.W:5.5kg









User Guide:

1. Please note the operating voltage/frequency: AC85-265V, 50-60Hz. Do not exceed the operating voltage and frequency range.

2. Please note that the product requires gentle handling.

AC90V-305V IP65 high bright 100w led gas station  light

After Sales Service:

Please refer to the Company After Sales Service Items.

The above parameters are only for information; the data from the real samples final datasheet prevail.

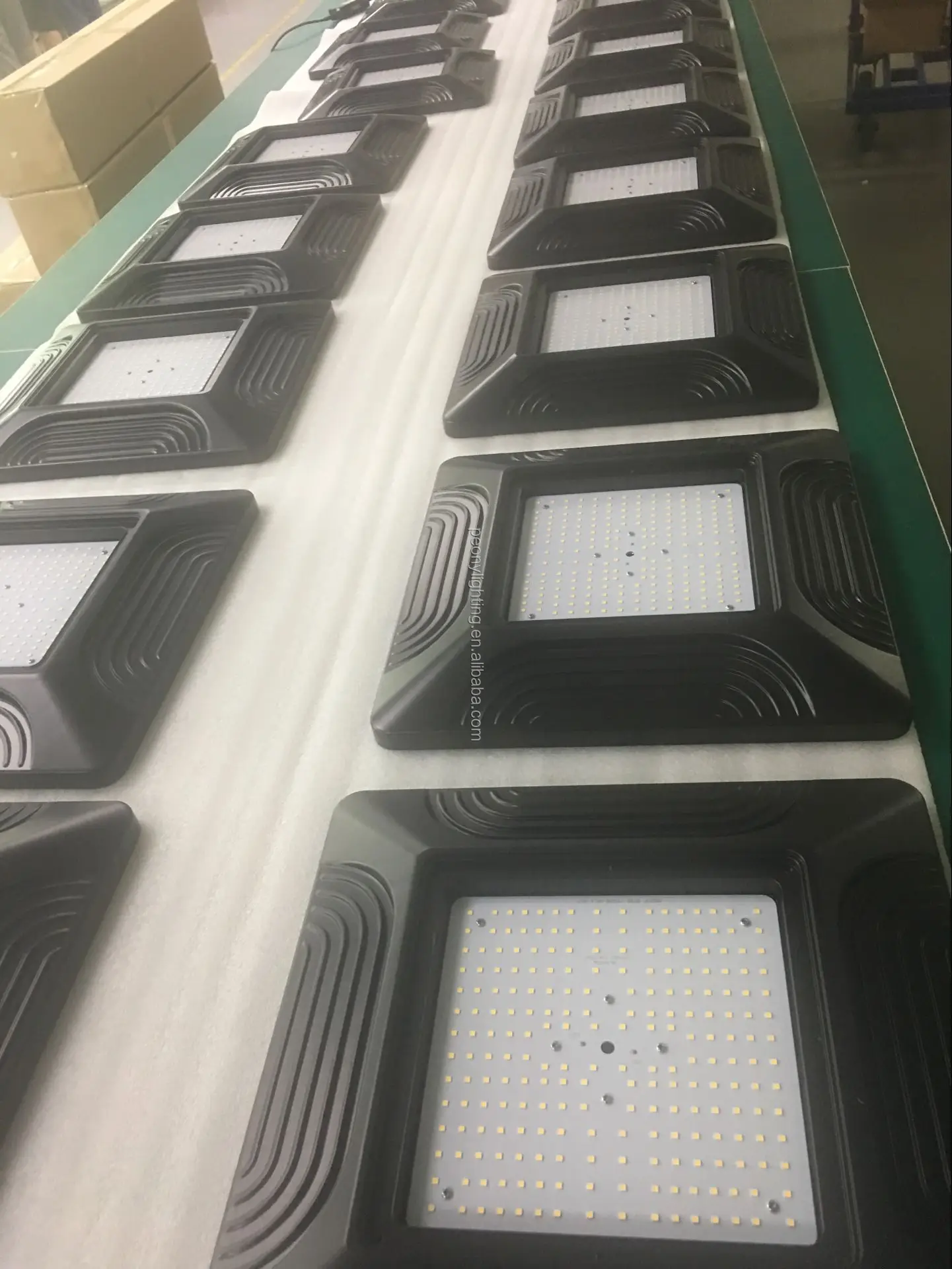

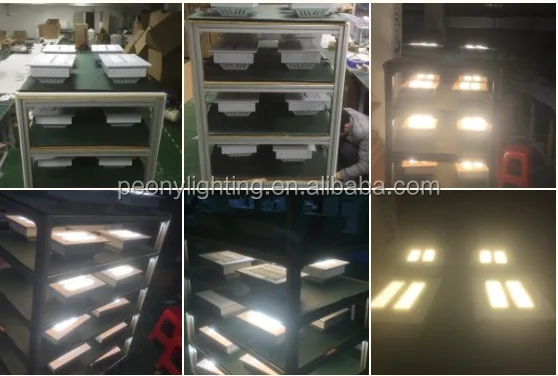

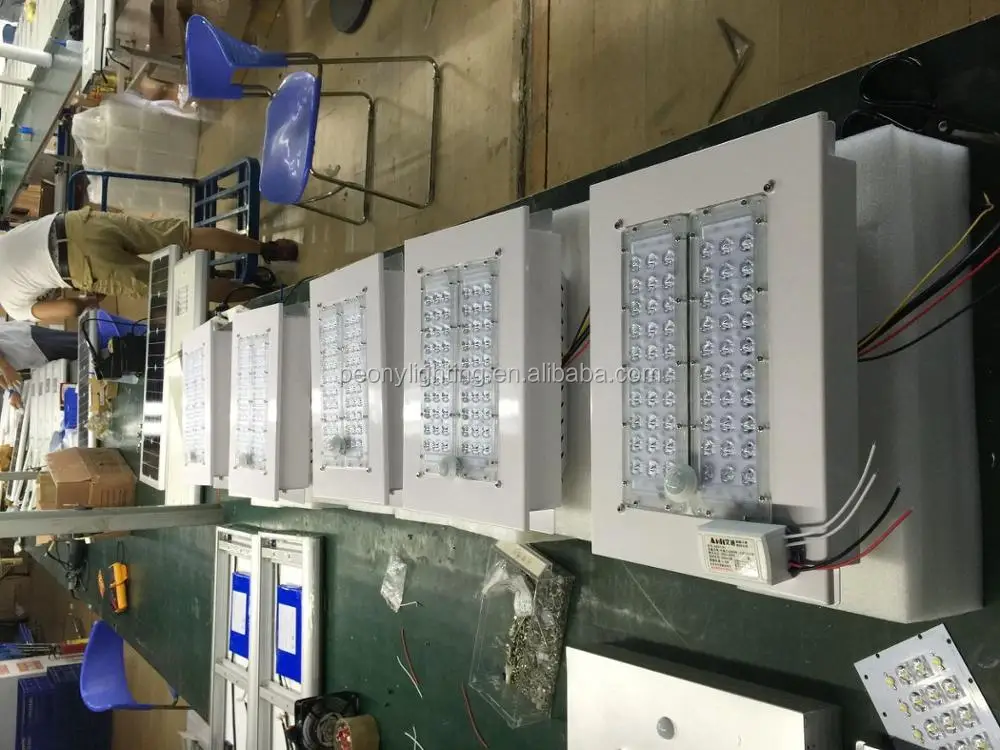

Workshop:

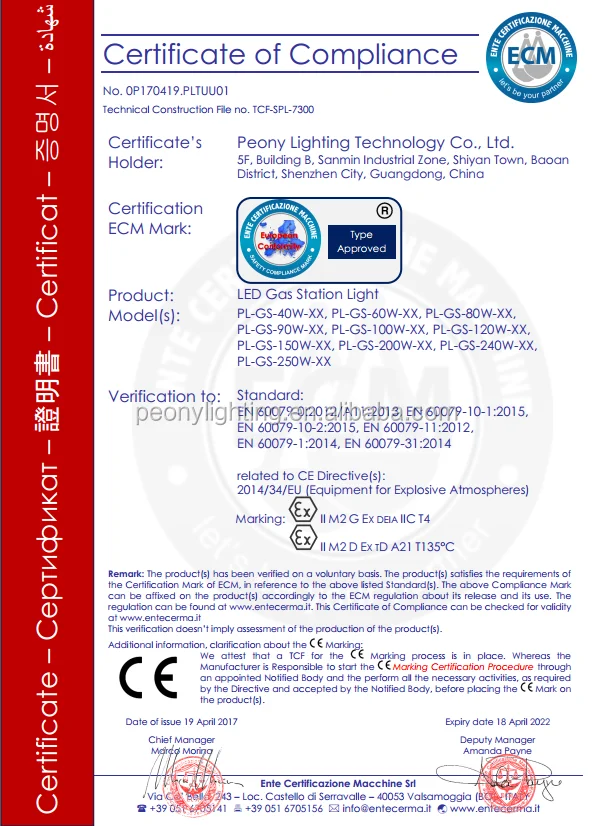

ATEX Certificate:
