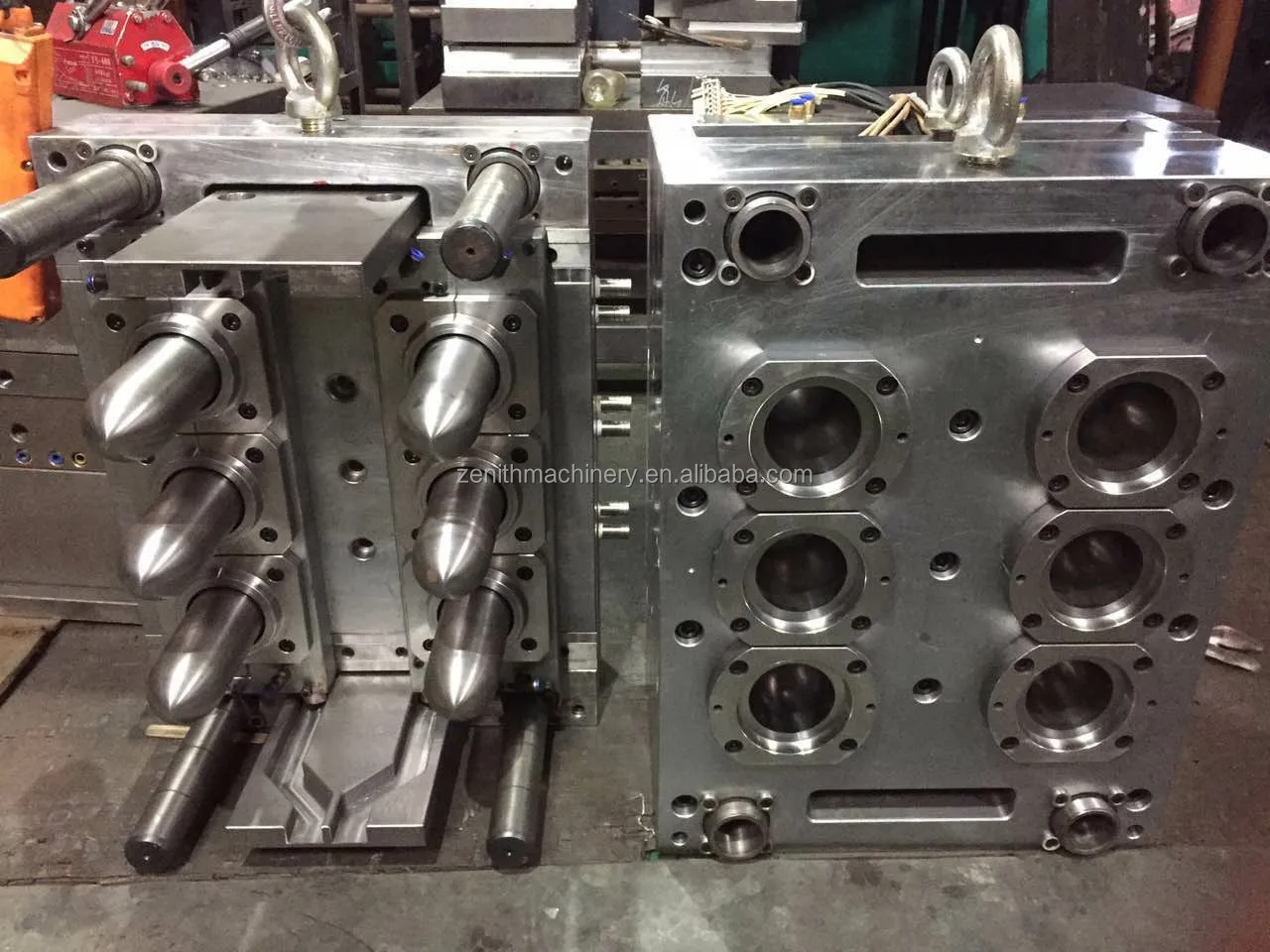

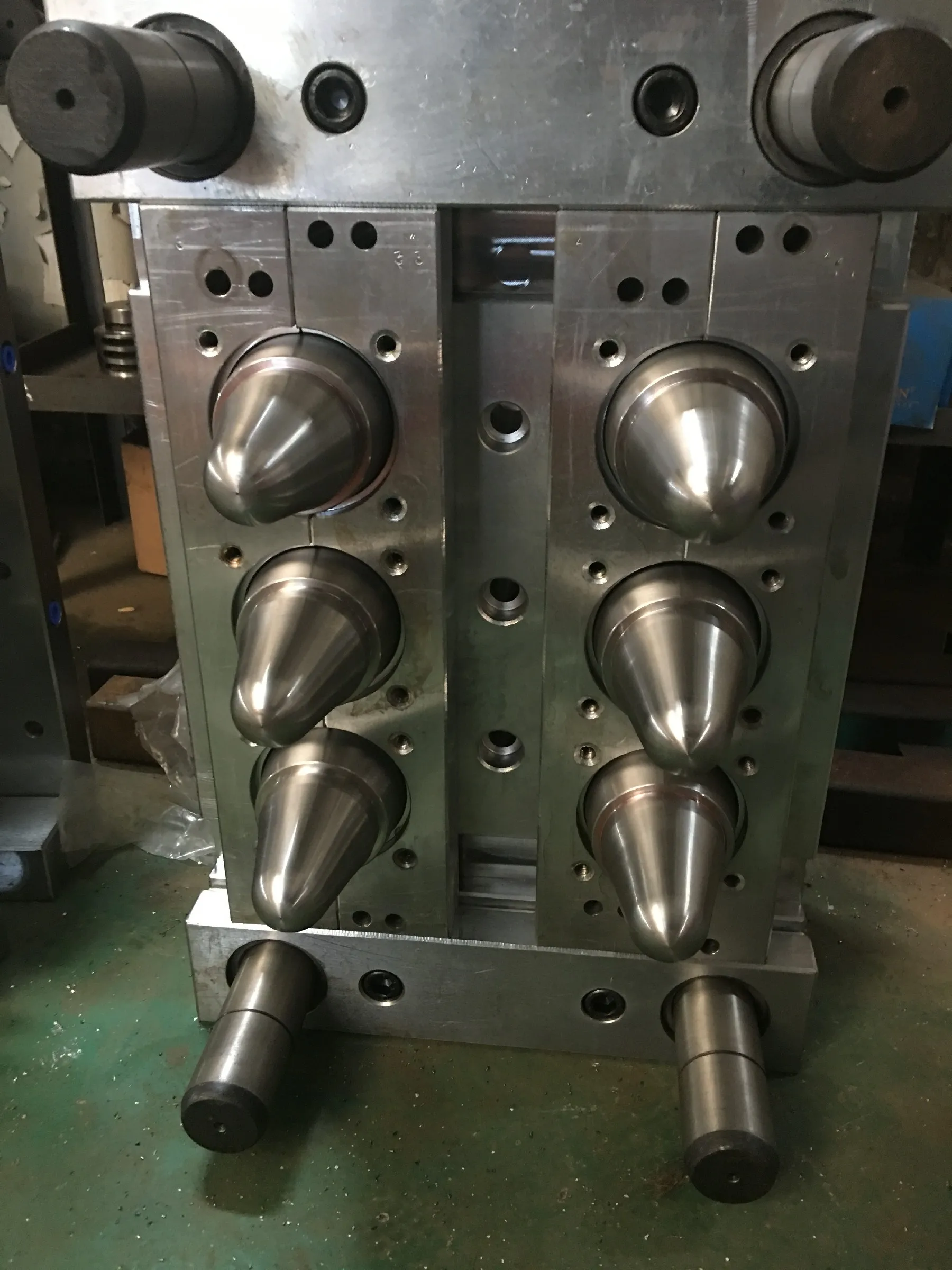

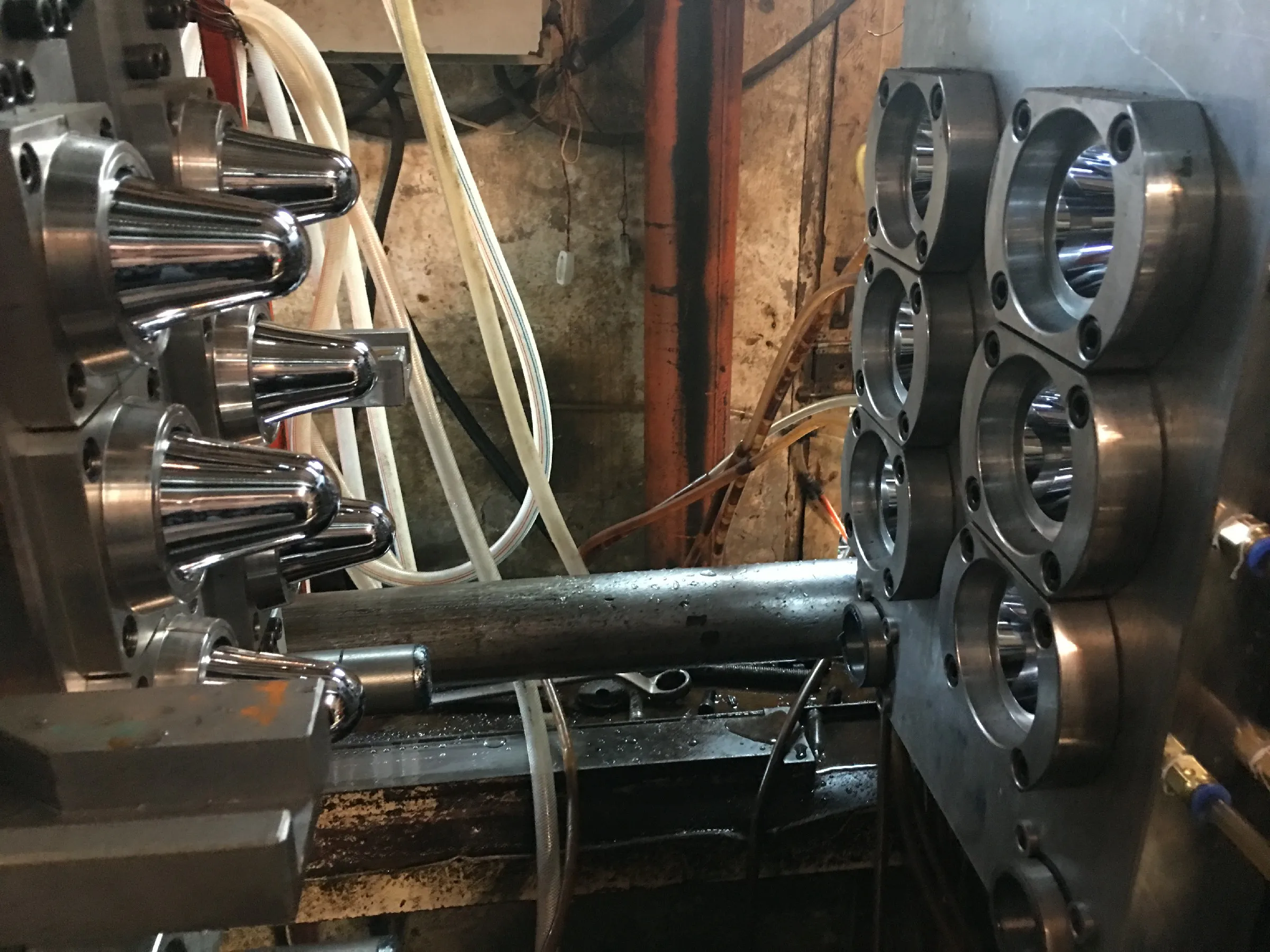

6cavity big neck PET Jar preform mould with hotrunner system
- Category: >>>
- Supplier: Zhangjiagang Zenith Beverage Machinery Co. Ltd.
Share on (60646604207):
Product Overview
Description
Detailed Images
Product Description
Product Application

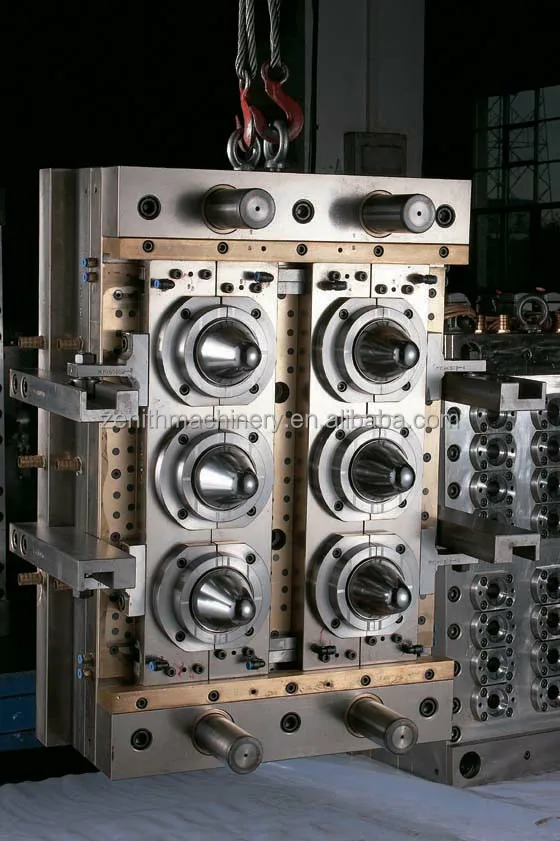

PET preform Mould is hotrunner with temperature controller,each heating control for each cavity,and one control for main injection point
preform mould is with double self-lock with cavity core and screw locked each other to ensure precise concentration of preform for evenly preform wall thickness to guarantee even thickness of blowed bottle,
mould concentration adjustable to guarantee precision of preform wall thickness after long time continuous production

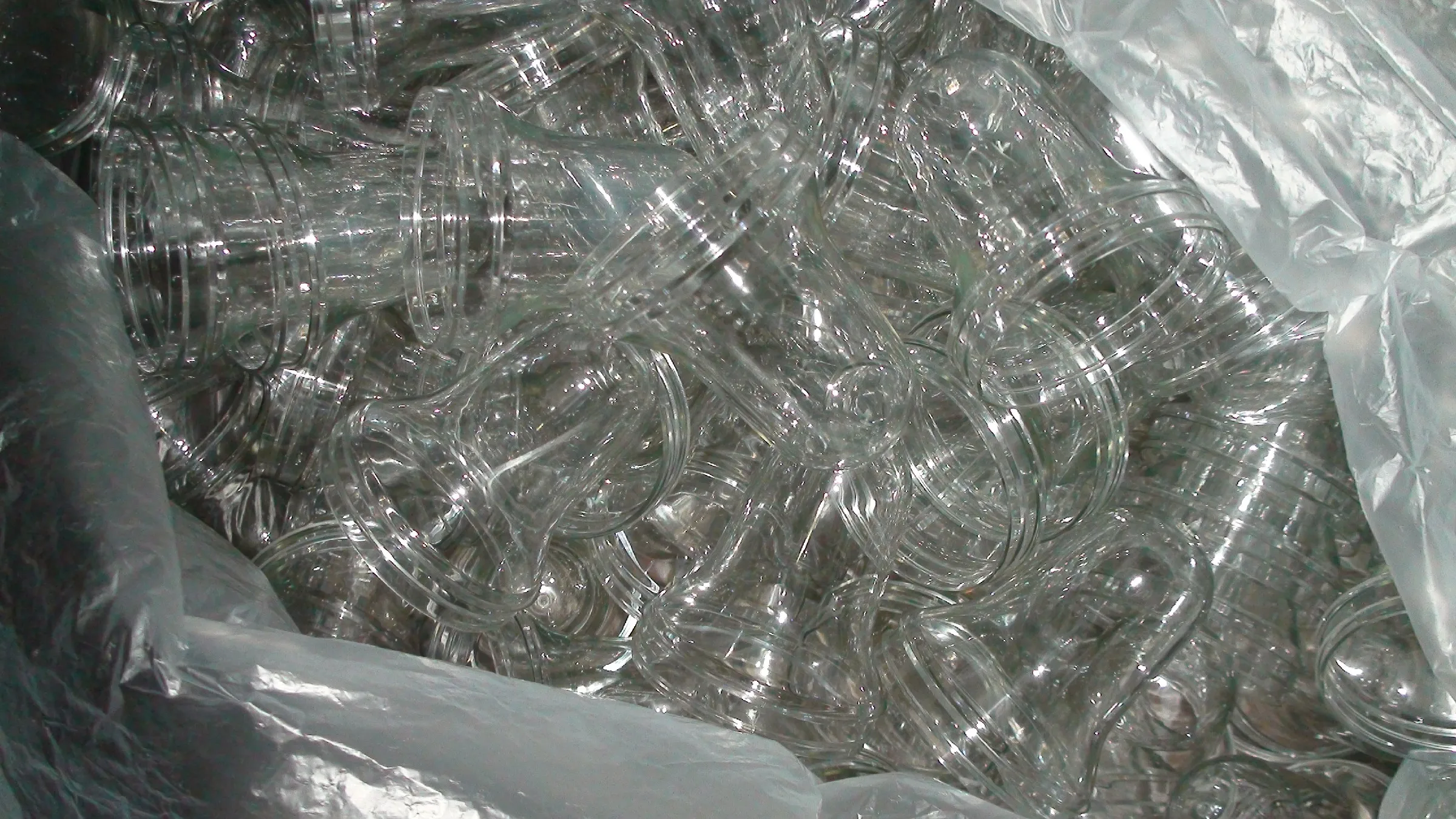

Produced Perform is Without tail and do not need manual cutting of tail,can be directly well blowed into bottles with prefect bottle bottom,

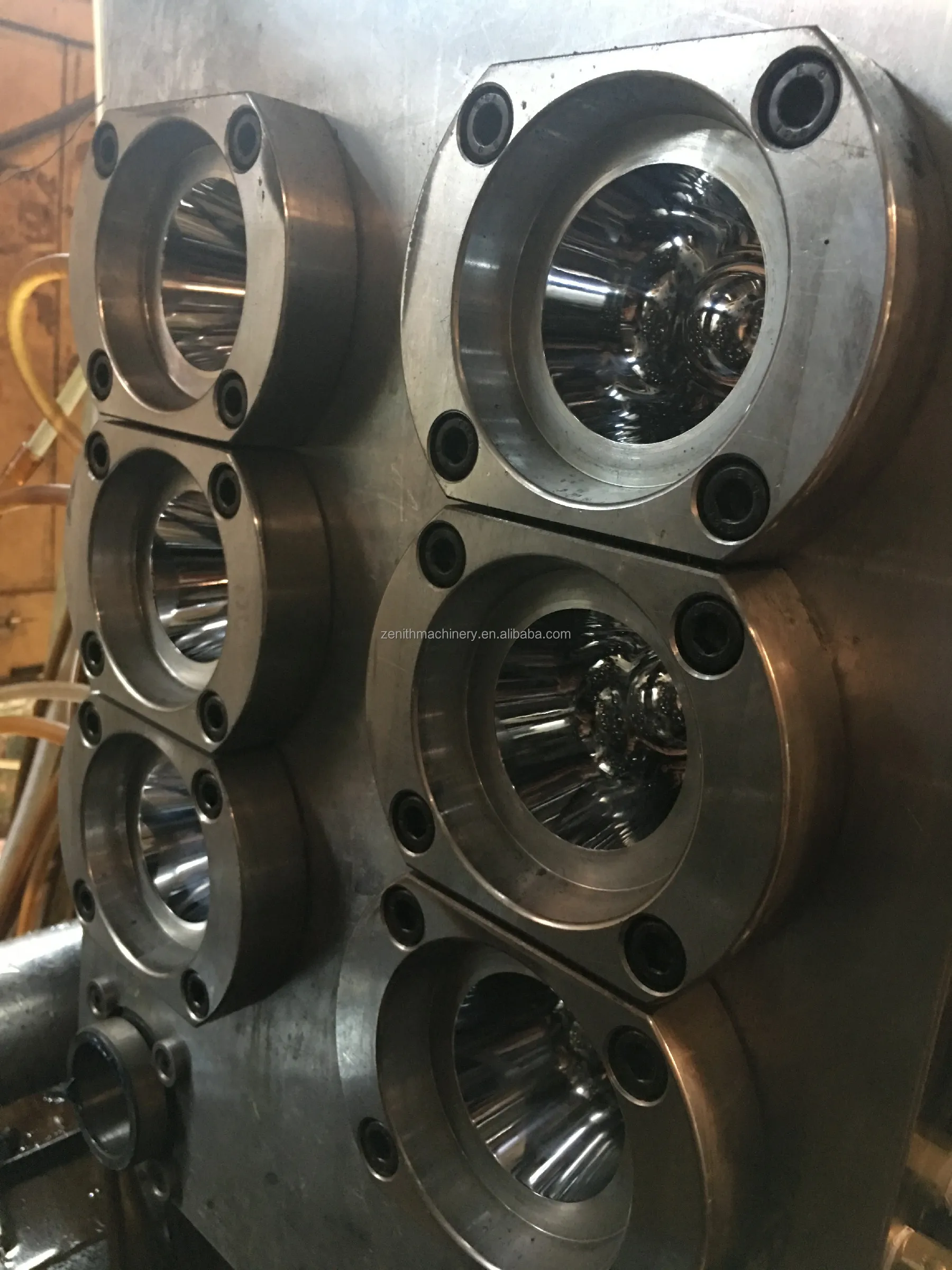

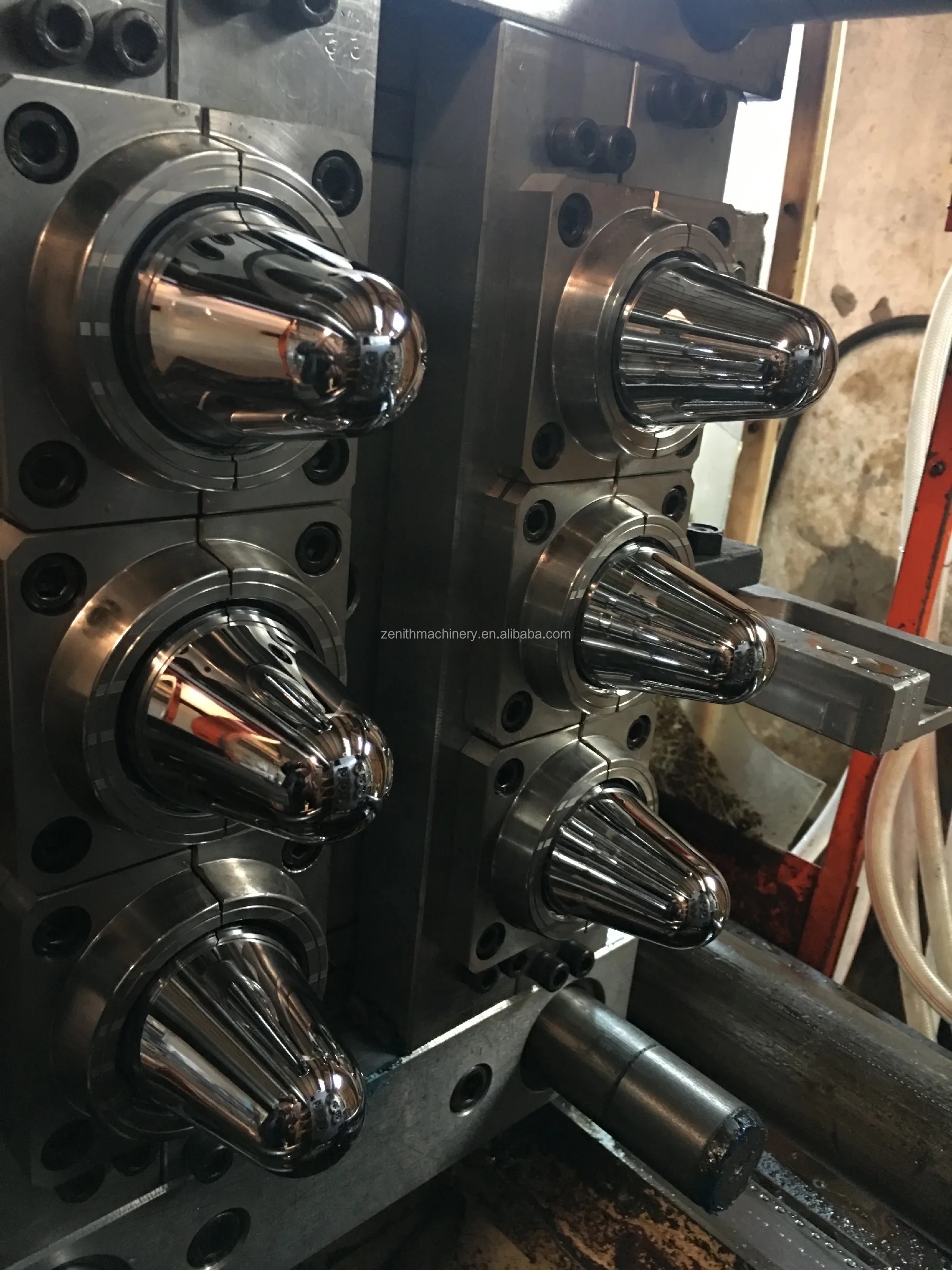

Mould cavity and core made with s316 steel, screw made with s136 cavity, so that mould is with high HRC,can guarantee 3million shots,
working with injection molding machine
fully-automatic ejection of injected preforms
Main Specification
DESCRIPTION | Specification |
Cavity number | 6 |
Preform material | PET |
Preform Weight | 18-56gram |
Preform neck | 40-90mm |
Runner system | Hotruneer |
Gate syetem | Short Gate |
Locking system | Double self Lock |
Components List
Main Components Name | Brand |
Cavity | S136 |
Core | S136 |
Screw | S136 |
Mould Base | Standard |
Hotrunner control | one by one,precise control |
Related Machines

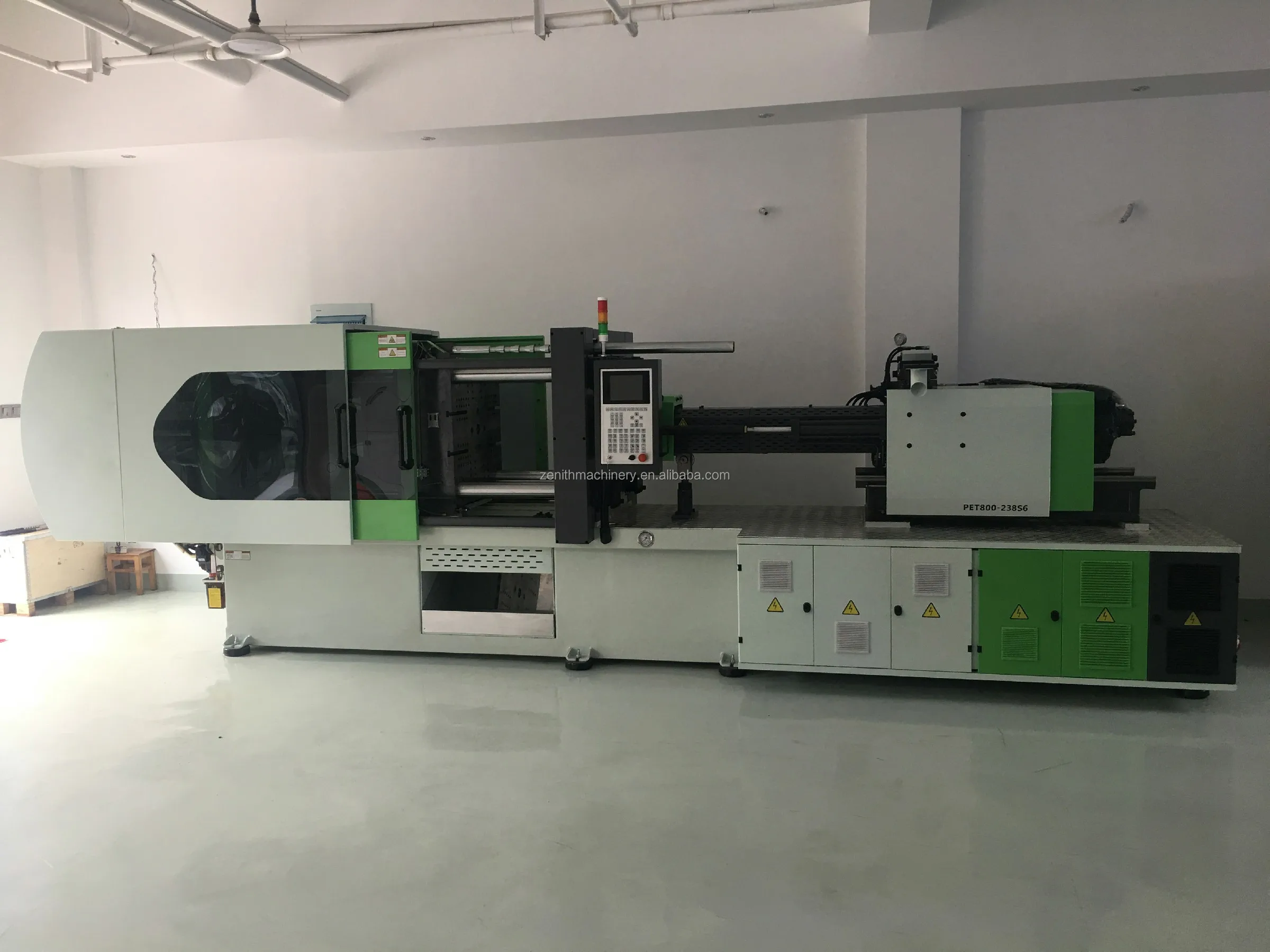

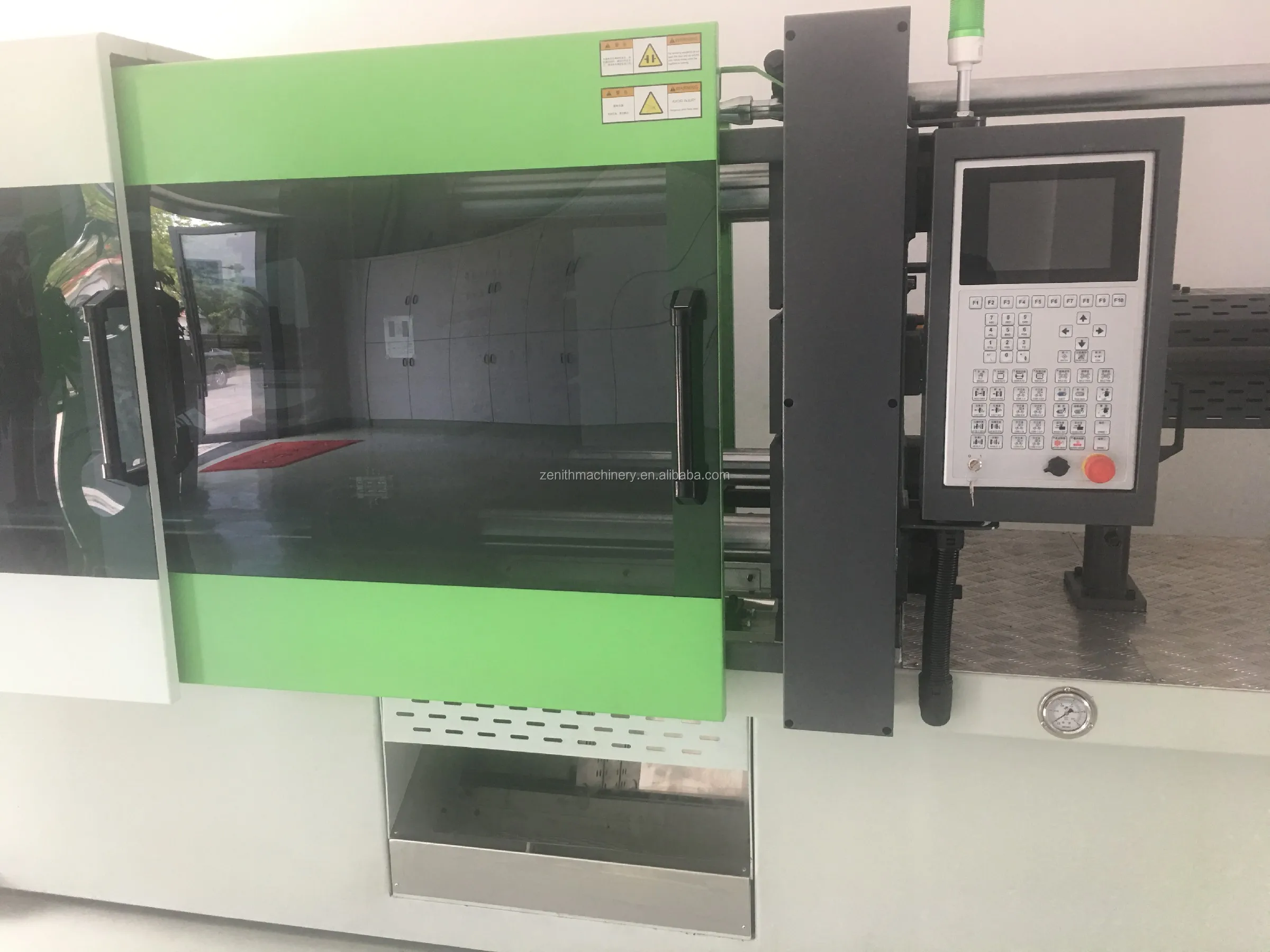

PET Preform Injection Molding Machine
Water Chiller
Dehumidifier
Hopper dryer
Color doser
Plastic crusher
,
