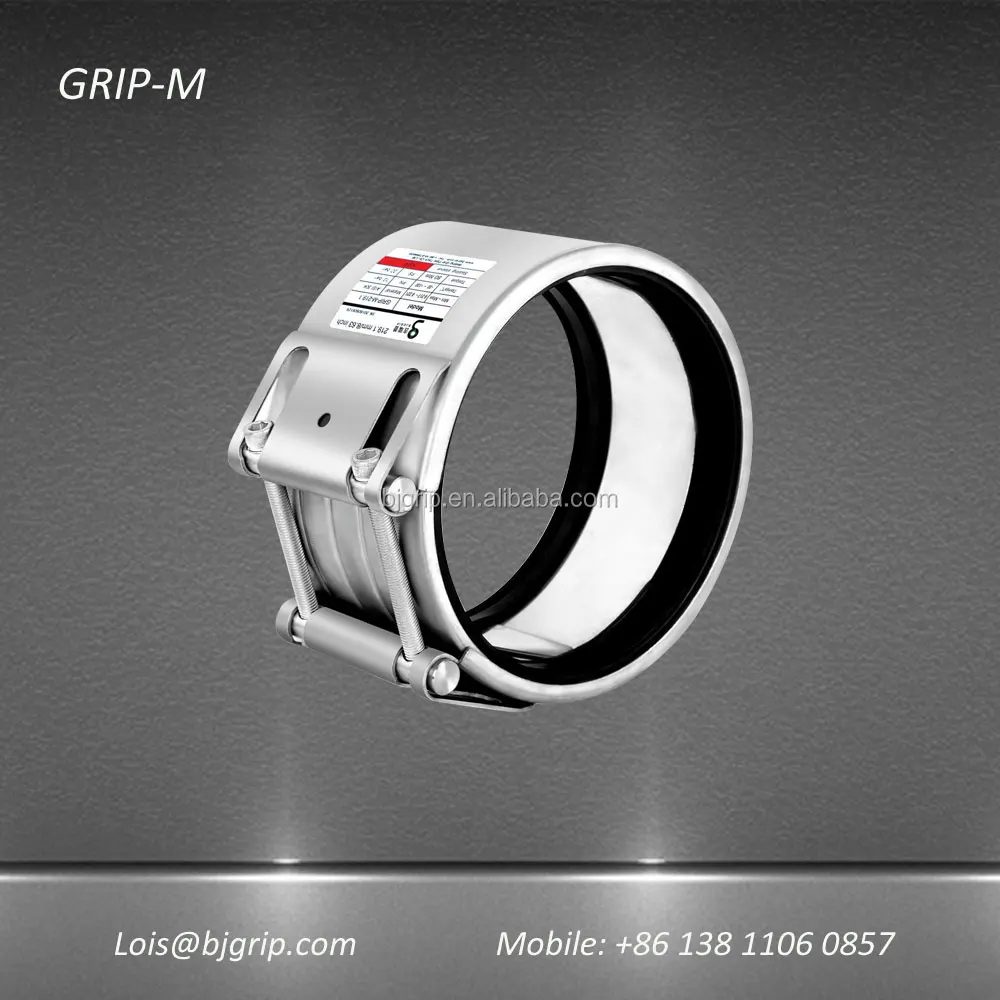

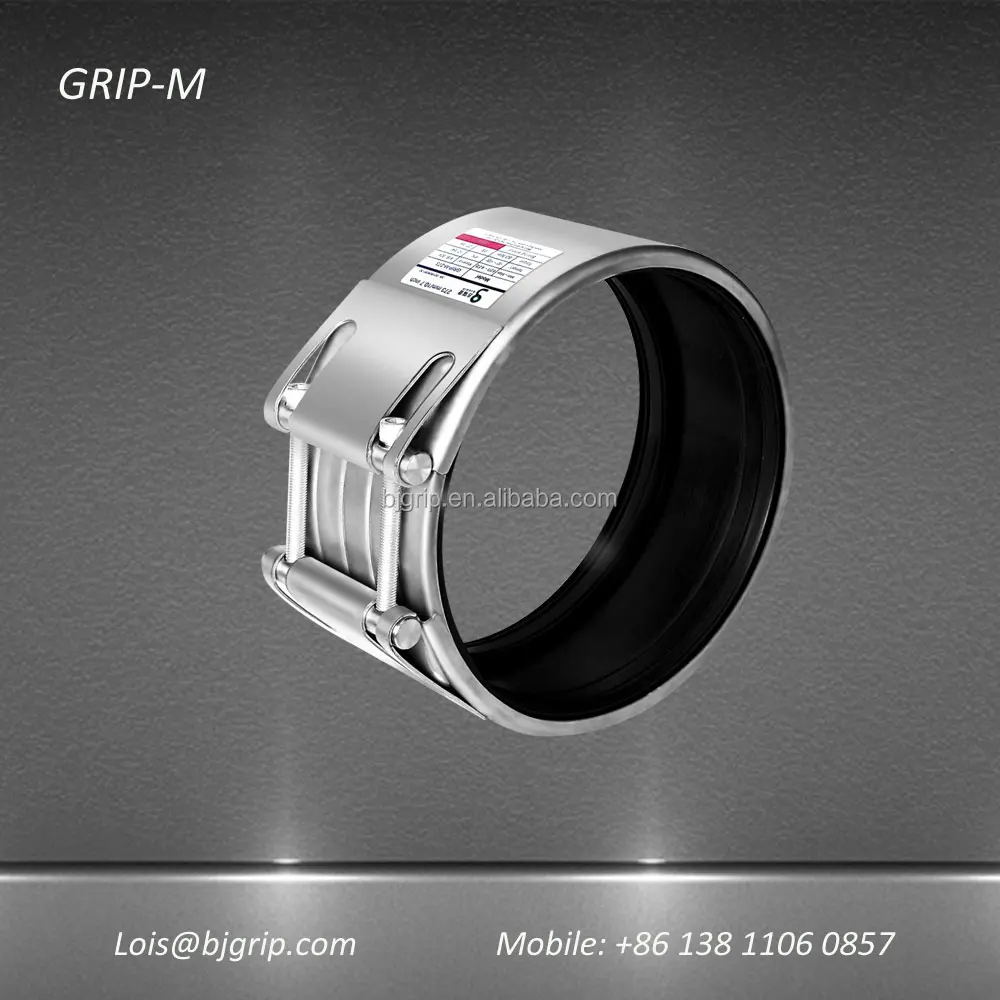

168.3MM and 323.9mm Flex pipe couplings with SS304 and silicone rubber water pipe joint coupling
- Category: >>>
- Supplier: Beijing Grip Pipe Tech Co. Ltd.
Share on (60646635023):
Product Overview
Description
About Us

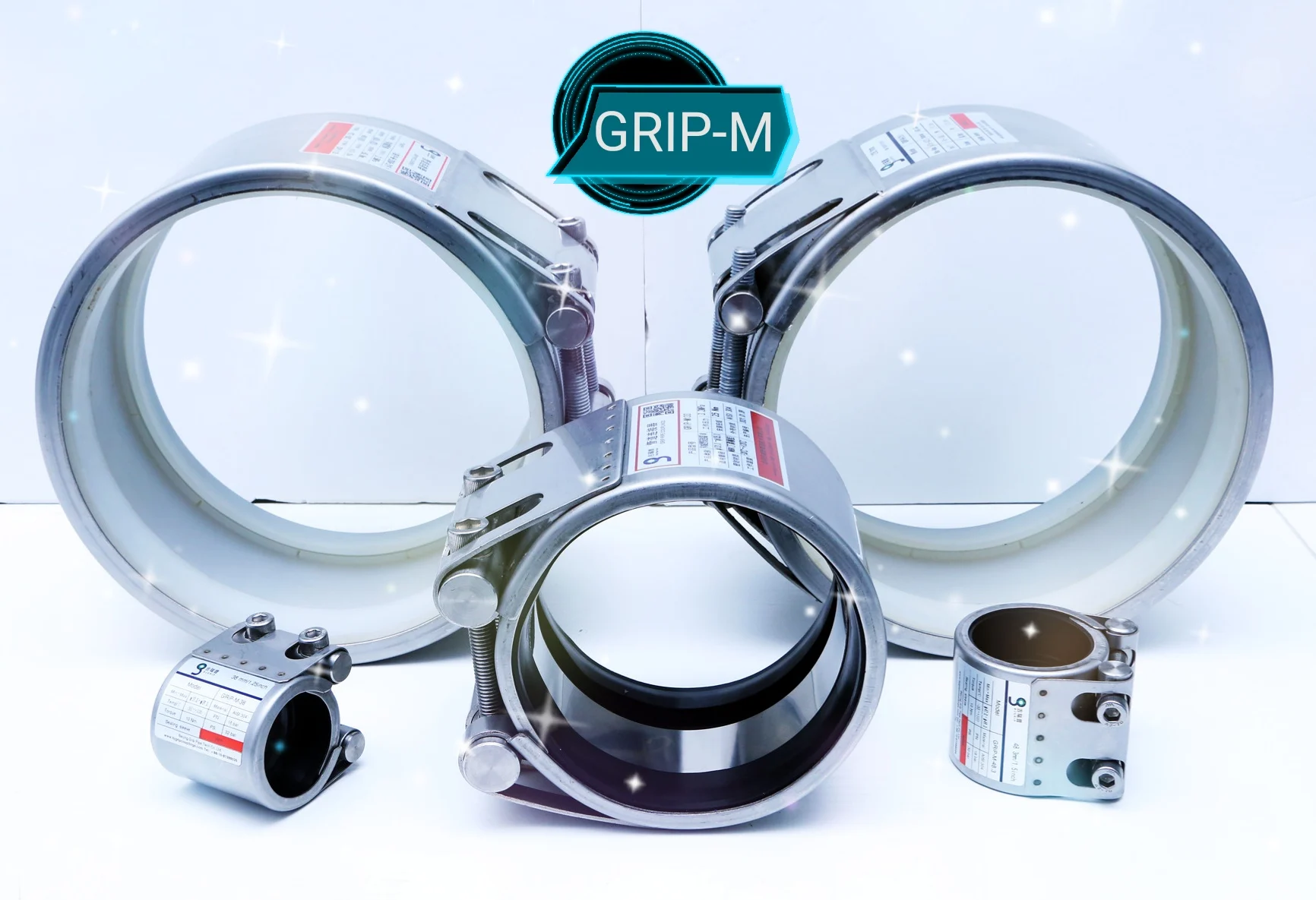

Products Grip-M
6 Inch Flex pipe couplings EPDM sleeve water pipe joint couplings

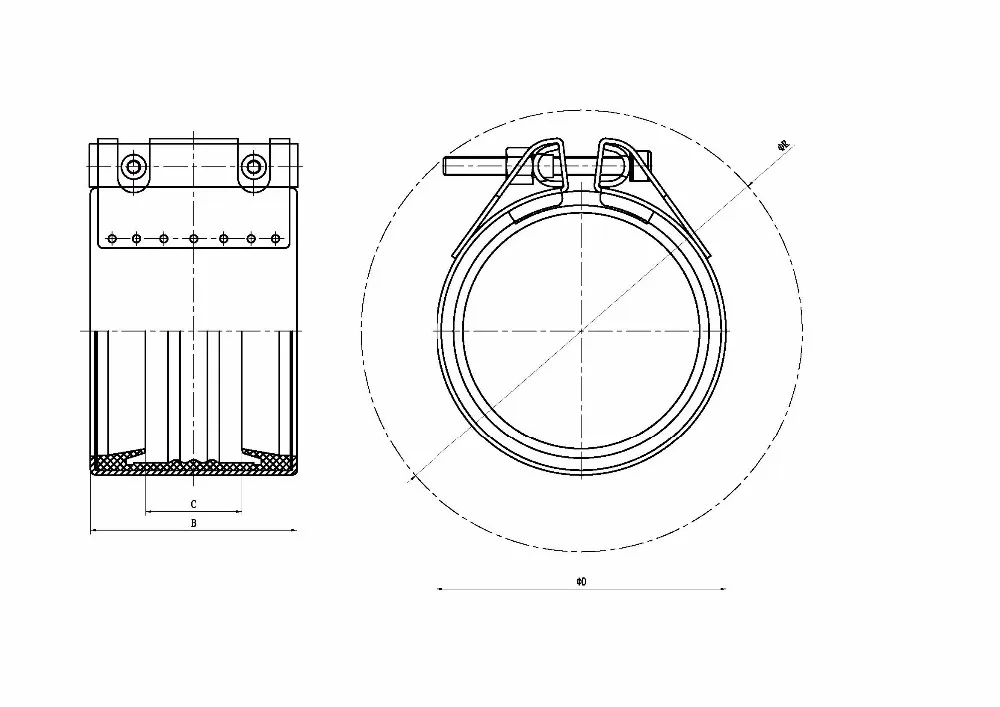

Pipe outside diameter | Clamping Range | Working Pressure | Width | Distance between sealing slips | Setting gap between pipe ends | Torque rate | Bolt | |||
| O.D. | Min-Max |   | B | C | without strip insert | with strip insert (Max) | ||||
| (mm) | (In.) | (mm) | (bar) | (bar) | (mm) | (mm) | (mm) | (mm) | (Nm) | M |
| 26.9 | 1.059 | 26-28 | 25 | 40 | 61 | 26 | 5-8 | 10 | 5 | M6×2 |
| 30 | 1.181 | 29-31 | 25 | 40 | 61 | 26 | 5-8 | 10 | 5 | |
| 33.7 | 1.327 | 32-35 | 25 | 40 | 61 | 26 | 5-8 | 10 | 5 | |
| 38 | 1.496 | 37-39 | 25 | 40 | 61 | 26 | 5-8 | 10 | 7.5 | M8×2 |
| 42.4 | 1.669 | 41-43 | 25 | 40 | 61 | 26 | 5-8 | 10 | 7.5 | |
| 44.5 | 1.752 | 44-45 | 25 | 40 | 61 | 26 | 5-8 | 10 | 7.5 | |
| 48.3 | 1.902 | 47-50 | 25 | 40 | 61 | 26 | 5-8 | 10 | 7.5 | |
| 54 | 2.126 | 52-56 | 20 | 35 | 76 | 37 | 5~10 | 15 | 10 | |
| 57 | 2.244 | 55-59 | 20 | 35 | 76 | 37 | 5~10 | 15 | 10 | |
| 60.3 | 2.374 | 59-62 | 20 | 35 | 76 | 37 | 5~10 | 15 | 10 | |
| 66.6 | 2.622 | 64-68 | 20 | 40 | 95 | 37 | 5~10 | 25 | 20 | |
| 70 | 2.756 | 68-71 | 20 | 40 | 95 | 41 | 5~10 | 25 | 20 | |
| 73 | 2.874 | 71-75 | 20 | 40 | 95 | 41 | 5~10 | 25 | 20 | |
| 76.1 | 2.996 | 74-78 | 20 | 40 | 95 | 41 | 5~10 | 25 | 20 | |
| 79.5 | 3.130 | 78-80 | 20 | 40 | 95 | 41 | 5~10 | 25 | 20 | |
| 84 | 3.307 | 82-86 | 20 | 40 | 95 | 41 | 5~10 | 25 | 20 | |
| 88.9 | 3.500 | 87-91 | 20 | 40 | 95 | 41 | 5~10 | 25 | 20 | |
| 100.6 | 3.961 | 99-103 | 18 | 35 | 95 | 41 | 5~10 | 25 | 20 | |
| 101.6 | 4.000 | 100-104 | 18 | 35 | 95 | 41 | 5~10 | 25 | 20 | |
| 104 | 4.094 | 102-106 | 18 | 35 | 95 | 41 | 5~10 | 25 | 20 | |
| 108 | 4.252 | 103-107 | 18 | 35 | 95 | 41 | 5~10 | 25 | 20 | |
| 114.3 | 4.500 | 113-116 | 18 | 35 | 95 | 41 | 5~10 | 25 | 20 | |
| 127 | 5.000 | 126-128 | 18 | 40 | 110 | 54 | 5~10 | 35 | 25 | M10×2 |
| 129 | 5.079 | 128-130 | 18 | 40 | 110 | 54 | 5~10 | 35 | 25 | |
| 130.2 | 5.126 | 129-132 | 18 | 40 | 110 | 54 | 5~10 | 35 | 25 | |
| 133 | 5.236 | 131-135 | 18 | 40 | 110 | 54 | 5~10 | 35 | 25 | |
| 139.7 | 5.500 | 138-142 | 18 | 40 | 110 | 54 | 5~10 | 35 | 25 | |
| 141.3 | 5.563 | 140-143 | 18 | 40 | 110 | 54 | 5~10 | 35 | 25 | |
| 154 | 6.063 | 153-156 | 18 | 35 | 110 | 54 | 5~10 | 35 | 25 | |
| 159 | 6.260 | 158-161 | 18 | 35 | 110 | 54 | 5~10 | 35 | 25 | |
| 168.3 | 6.626 | 167-170 | 18 | 35 | 110 | 54 | 5~10 | 35 | 25 | |
| 180 | 7.087 | 166-171 | 16 | 30 | 142 | 75 | 10~25 | 40 | 50 | M12×2 |
| 200 | 7.874 | 198-202 | 16 | 30 | 142 | 75 | 10~25 | 40 | 50 | |
| 219.1 | 8.626 | 216-222 | 16 | 30 | 142 | 75 | 10~25 | 40 | 60 | |
| 250 | 9.843 | 247-253 | 16 | 25 | 142 | 75 | 10~25 | 40 | 60 | |
| 267 | 10.512 | 264-270 | 16 | 25 | 142 | 75 | 10~25 | 40 | 60 | |
| 273 | 10.748 | 270-276 | 16 | 25 | 142 | 75 | 10~25 | 40 | 60 | |
| 304 | 11.969 | 301-307 | 10 | 20 | 142 | 75 | 10~25 | 40 | 80 | |
| 323.9 | 12.752 | 321-327 | 10 | 20 | 142 | 75 | 10~25 | 40 | 80 | |
| 355.6 | 14.000 | 353-358 | 8.5 | 16 | 142 | 75 | 10~25 | 40 | 80 | |
| 377 | 14.843 | 375-379 | 8.5 | 16 | 142 | 75 | 10~25 | 40 | 80 | |
| 406.4 | 16.000 | 404-409 | 7.5 | 16 | 142 | 75 | 10~25 | 40 | 80 | |
| 457.2 | 18.000 | 454-460 | 6.5 | 12 | 142 | 75 | 10~25 | 40 | 80 | |
| 508 | 20.000 | 505-511 | 6 | 10 | 142 | 75 | 10~25 | 40 | 120 | M16×2 |
| 558.8 | 22.000 | 556-562 | 5.5 | 10 | 142 | 75 | 10~25 | 40 | 160 | |
| 609.6 | 24.000 | 606-613 | 5 | 10 | 142 | 75 | 10~25 | 40 | 160 | |
| 711.2 | 28.000 | 708-715 | 4 | 5 | 142 | 75 | 10~25 | 40 | 160 | |
| 762 | 30.000 | 758-766 | 4 | 5 | 142 | 75 | 10~25 | 40 | 160 | |
| 812.8 | 32.000 | 809-817 | 4 | 5 | 142 | 75 | 10~25 | 40 | 200 | |
| 914.4 | 36.000 | 910-918 | 4 | 5 | 142 | 75 | 10~25 | 40 | 200 | |
| 1016 | 40.000 | 1012-1020 | 4 | 5 | 142 | 75 | 10~25 | 40 | 200 | |
| 1117.6 | 44.000 | 1114-1122 | 3.5 | 5 | 142 | 75 | 10~25 | 40 | 200 | |
| 1219.2 | 48.000 | 1215-1224 | 3.5 | 5 | 142 | 75 | 10~25 | 40 | 200 | |
| 1320.8 | 52.000 | 1316-1325 | 3 | 5 | 142 | 75 | 10~25 | 40 | 240 | |
| 1422.4 | 56.000 | 1418-1427 | 3 | 5 | 142 | 75 | 10~25 | 40 | 240 | |
| 1524 | 60.000 | 1519-1529 | 2.5 | 5 | 142 | 75 | 10~25 | 40 | 240 | |
| 1600 | 62.992 | 1595-1605 | 2.5 | 5 | 142 | 75 | 10~25 | 40 | 240 | |
| 1625.6 | 64.000 | 1621-1631 | 2.5 | 5 | 142 | 75 | 10~25 | 40 | 240 | |
| 1727.2 | 68.000 | 1722-1732 | 2.5 | 5 | 142 | 75 | 10~25 | 40 | 240 | |
| 1828.8 | 72.000 | 1824-1834 | 2 | 5 | 142 | 75 | 10~25 | 40 | 240 | |
| 1930.4 | 76.000 | 1925-1936 | 2 | 5 | 142 | 75 | 10~25 | 40 | 240 | |
| 2032 | 80.000 | 2027-2037 | 2 | 5 | 142 | 75 | 10~25 | 40 | 240 | |
