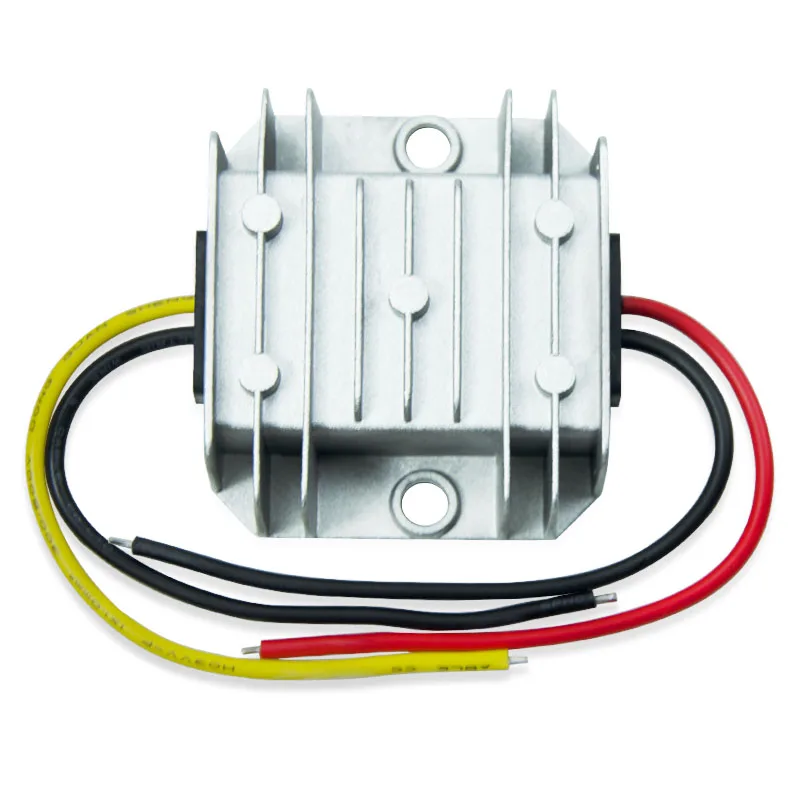

DC 12V to DC 12V 3A Buck Boost Converter 5 32V to 12Vdc Car Automatic Voltage Stabilizer Regulator Power Supply for Monitor
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60646769334):
Product Overview
Description
DC 12V to DC 12V 3A Buck Boost Converter 5-32V to 12Vdc Car Automatic Voltage Stabilizer Regulator Power Supply for Monitor
| Model | F32W12V3A4L1 (Old: FW32D12A3 ) |
| Input rated voltage | DC 12V |
| Input voltage range | DC 5-32V |
| Efficiency | 88% (half load), 90% (full load) |
| Output voltage | DC 12V |
| Output current | 3A Max |
| Output rated power | 36W Max |
| Output peak power | 15W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -20°c ~+65°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature,Short-circuit protection |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | approx 100G |

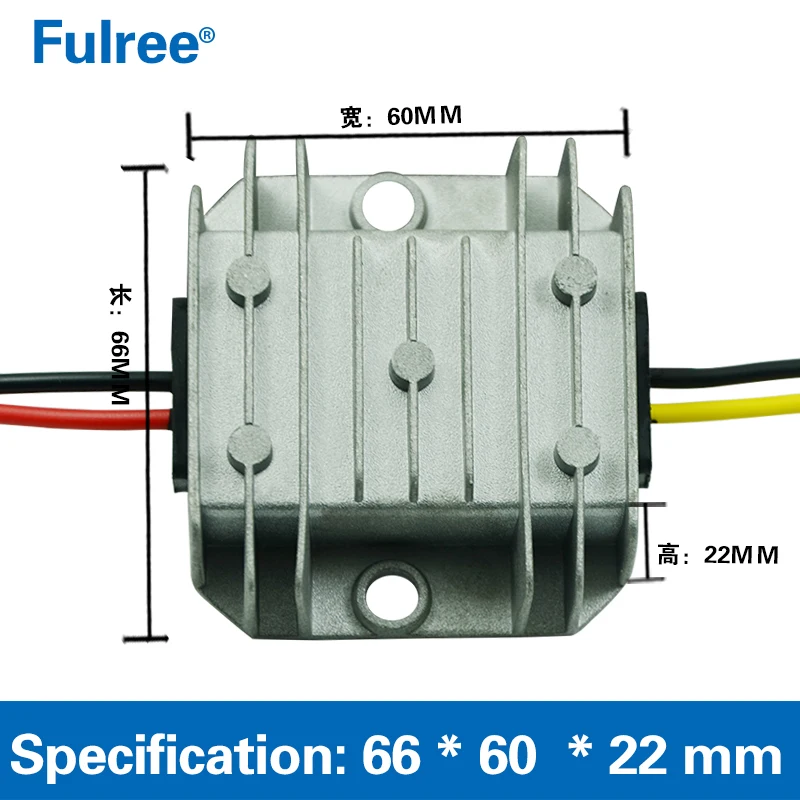

| Product size | 66*60*22mm |
Other output current option for DC 12V TO 12V | 5A, 10A(pls contact with our sales manager if need) |
Attention: | |
